Vehicle care247Wrap a cloth around the tip of a flatscrewdriver to prevent paint
damage. Insert the screwdriver in
the recess at the edge of the
cover. Release the cover by
levering it out carefully.
Country Tourer
Undo the screw with a torx
screwdriver.
2. Grand Sport, Sports Tourer
Undo screw with the torx
screwdriver and remove the
faceplate.
Country Tourer
Wrap a cloth around the tip of the
flat screwdriver to prevent paint
damage. Lever out the faceplate
by inserting the screwdriver in the
recess and remove it.
3. Undo three screws with the torx screwdriver and remove the light
assembly to the front.

248Vehicle care
4. Turn the bulb socketanticlockwise and remove it from
the light assembly.
5. Disengage the plug connector by pressing the retaining lug.
6.Remove and replace the bulb unit
and attach the plug connector.
Note that the bulb and the socket
are one unit and have to be
changed together.
7. Insert the bulb socket into the light
assembly by turning clockwise
and engage.
8. Mount the light assembly by tightening the three screws.
9. Attach the faceplate and tighten the screw.
10. Grand Sport, Sports Tourer
Attach and engage the cover.
Tail lights Tail lights and brake lights are
designed as LEDs. In case of failure,
have LEDs replaced by a workshop.
Turn lights, rear fog light and reverse
lights are designed for bulbs and can
be changed as follows.Grand Sport
Light assembly in the body
1. Remove the cover on the respective side.

Vehicle care2492. Unscrew the two plastic securingnuts from the inside by hand.
3. Carefully withdraw light assembly from recess and remove. Take
care that the cable is not being
pulled off.
4. Turn the turn light bulb socket anticlockwise and remove it from
the light assembly.
5. Remove and replace the turn light
bulb.
6. Attach the bulb socket to the light assembly.
7. Attach the light assembly to the vehicle body and tighten the
securing nuts from the inside of
the load compartment. Attach
cover.
Light assembly in the tailgate
1. Release the cover in the tailgate and remove it.

250Vehicle care
2. Unscrew the plastic securing nutby hand.
3. Carefully withdraw light assemblyfrom recess and remove. Take
care that the cable is not being
pulled off.
4. Turn the bulb socket anticlockwise and remove it from
the light assembly.
Rear fog light ( 1)
Reverse light ( 2)
5. Detach the bulb from the bulb socket and replace the bulb.
Rear fog light

Vehicle care251Reverse light
6. Insert the bulb socket into the tail light assembly. Fit light assembly
on the tailgate and tighten the
screw from the inside. Attach
cover.
Sports Tourer, Country Tourer
Light assembly in the body
1. Open the covers with screwdriver.
Unscrew and remove both
screws.
2. Carefully withdraw light assembly from recess and remove. Take
care that the cable is not being
pulled off.
3. Turn the turn light bulb socket anticlockwise and remove it from
the light assembly.
4. Detach the bulb from the bulb socket and replace the turn light
bulb.
5. Attach the bulb socket to the light assembly.
6. Attach the light assembly to the vehicle body and tighten the
screws. Close covers.

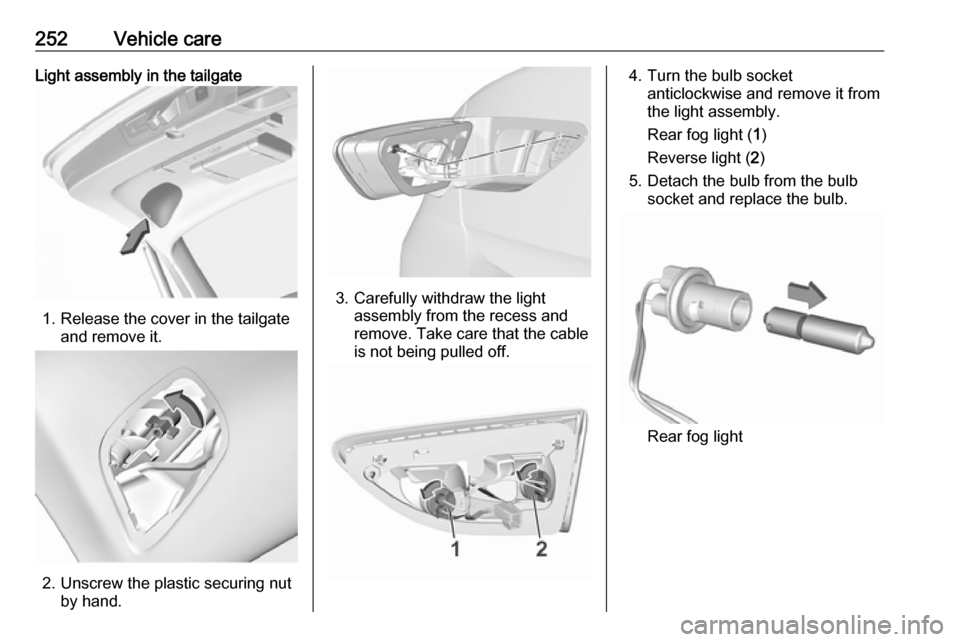

252Vehicle careLight assembly in the tailgate
1. Release the cover in the tailgateand remove it.
2. Unscrew the plastic securing nutby hand.
3. Carefully withdraw the lightassembly from the recess and
remove. Take care that the cable
is not being pulled off.
4. Turn the bulb socket anticlockwise and remove it from
the light assembly.
Rear fog light ( 1)
Reverse light ( 2)
5. Detach the bulb from the bulb socket and replace the bulb.
Rear fog light

Vehicle care253
Reverse light
6. Insert the bulb socket into the light
assembly. Fit light assembly on
the tailgate and tighten the screw
from the inside. Attach cover.
Side turn lights
To replace bulb, remove lamp
housing:
1. Slide the lamp housing forward and remove it at the back.
2. Turn bulb holder anticlockwiseand remove from housing.
3. Pull bulb from bulb holder and replace it.

254Vehicle care4. Insert bulb holder and turnclockwise.
5. Insert left end of the lamp, slide to
the left and insert right end.
Number plate light
The number plate light is designed as
LEDs and can not be changed. In
case of defective LEDs, have them
replaced by a workshop.
Interior lights
Have the following bulbs replaced by
a workshop:
● courtesy light, reading lights
● load compartment light
● instrument panel illuminationElectrical system
Fuses Data on the replacement fuse mustmatch the data on the defective fuse.
There are two fuse boxes in the
vehicle:
● engine compartment
● instrument panel
Before replacing a fuse, turn off the
respective switch and the ignition.
A blown fuse can be recognised by its melted wire.Caution
Do not replace the fuse until the
cause of the fault has been
remedied.
Some functions are protected by
several fuses.
Fuses may also be inserted without
existence of a function.
Fuse extractor
A fuse extractor may be located in the
fuse box in the engine compartment.
The extractor has two sides, each
side is designed for a different type of fuses.
