Special features
3-1
3
EAU76422
D-mode ( drive mo de)
D-mode is an electronically controlled
engine performance system. This
model has three mode selections:
“STD”, “A”, and “B”.
WARNING
EWA18440
Do not chan ge the drive mo de while
the vehicle is movin g.
With the throttle grip closed, push this
switch to change the drive mode in the
following order:
STD → A → B → STD
TIP
 Make sure you understand each
drive mode before operating the
drive mode switch.
 The current drive mode is shown
in the drive mode display (page
4-12).
 The current drive mode is saved
when the vehicle is turned off.
Mo de “STD”
Mode “STD” is suitable for various rid-
ing conditions.
This mode allows the rider to enjoy
smooth and sporty drivability from the
low-speed range to the high-speed
range. Mo
de “A”
Mode “A” offers a sportier engine re-
sponse in the low- to mid-speed range
compared to mode “STD”.
Mo de “B”
Mode “B” offers response that is
somewhat less sharp compared to
mode “STD” for riding situations that
require especially sensitive throttle op-
eration.
1. Drive mode switch “MODE”
1
UBN6E1E0.book Page 1 Thursday, October 5, 2017 2:48 PM

Special features
3-2
3
EAU79732
Traction control system
The traction control system (TCS)
helps maintain traction when acceler-
ating on slippery surfaces, such as un-
paved or wet roads. If sensors detect
that the rear wheel is starting to slip
(uncontrolled spinning), the traction
control system assists by regulating
engine power as needed until traction
is restored.
WARNING
EWA15433
The traction control system is not a
substitute for rid ing appropriately
for the con ditions. Traction control
cannot prevent loss of traction due
to excessive speed when entering
turns, when acceleratin g har d at a
sharp lean an gle, or while brakin g,
an d cannot prevent front wheel slip-
pin g. As with any vehicle, approach
surfaces that may be slippery with
caution an d avoi d especially slip-
pery surfaces.
The “ ” indicator light flashes when
traction control has engaged. You may
notice slight changes in engine and ex-
haust sounds when the system has en-
gaged.
When the traction control system is
turned off, the “ ” indicator light will
come on.
TIP
 When the vehicle is turned on, the
traction control system is turned
on and set to the last used TCS
setting.
 The current TCS setting is shown
in the TCS display (page 4-12).
TCS settin gs
TCS “OFF”
TCS “OFF” turns the traction control
system off.
TCS “1”
TCS “1” minimizes traction control
system assist.
TCS “2, 3, 4, 5”
TCS levels “2” through “5” sequentially
increase traction control system assist.
TCS “6”
TCS “6” maximizes traction control as-
sist; wheel spin is most strongly con-
trolled.
NOTICE
ECA16801
Use only the specifie d tires. (See
pa ge 7-20.) Usin g different sized
tires will prevent the traction control
system from controllin g tire rotation
accurately.
1. Engine trouble warning light “ ”
2. Traction control system indicator light “ ”
3. TCS display
12
3
UBN6E1E0.book Page 2 Thursday, October 5, 2017 2:48 PM

Instrument and control functions
4-6
4 When the vehicle is turned on, the light
will perform a circuit check (come on
for a few seconds and then go off).
If the warning light remains on after
confirming that the oil level is correct
(page 7-13), have a Yamaha dealer
check the vehicle.
TIP

Even if the oil level is sufficient, the
warning light may flicker when rid-
ing up or downhill, or during sud-
den acceleration or deceleration,
but this is not a malfunction.
 If a malfunction is detected, the oil
level warning light will flash re-
peatedly. Have a Yamaha dealer
check the vehicle.
EAU11369Fuel level warnin g lig ht “ ”
This warning light comes on when you
are low on fuel. When the fuel level
drops below approximately 3.4 L (0.90
US gal, 0.75 Imp.gal), the light will
come on to remind you to refuel as
soon as possible.
When the vehicle is turned on, the light
will perform a circuit check (come on
for a few seconds and then go off).
If the warning light does not come on
during the circuit check, or if the warn-
ing light remains on after refueling,
have a Yamaha dealer check the vehi-
cle.
TIP
If a malfunction is detected, the fuel
level warning light will flash repeatedly.
Have a Yamaha dealer check the vehi-
cle.
EAU72930Coolant temperature warnin g
li g ht “ ”
This warning light comes on if the en-
gine overheats. If this occurs, reduce
the load on the engine immediately. If
message “HI” flashes in the coolant
temperature display, stop the vehicle,
then stop the engine and let the engine
cool.
The electrical circuit of the warning
light can be checked by turning the key
to “ON”. The warning light should
come on for a few seconds, and then
go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
NOTICE
ECA10022
Do not continue to operate the en-
g ine if it is overheatin g.
TIP
 For radiator-fan-equipped vehi-
cles, the radiator fan(s) automati-
cally switch on or off according to
the coolant temperature in the ra-
diator.
 If the engine overheats, see page
7-41 for further instructions.
EAU73171Engine trou ble warnin g lig ht “ ”
This warning light comes on if a prob-
lem is detected in the engine or other
vehicle control system. If this occurs,
have a Yamaha dealer check the on-
board diagnostic system.
UBN6E1E0.book Page 6 Thursday, October 5, 2017 2:48 PM

Instrument and control functions
4-8
4 If the indicator light does not come on
initially when the key is turned to “ON”,
if the indicator light remains on, or if the
indicator light flashes in a pattern (if a
problem is detected in the immobilizer
system, the immobilizer system indica-
tor light will flash in a pattern), have a
Yamaha dealer check the vehicle.
TIP
If the immobilizer system indicator light
flashes in the pattern, slowly 5 times
then quickly 2 times, this could be
caused by transponder interference. If
this occurs, try the following.
1. Make sure there are no other im- mobilizer keys close to the main
switch. Other immobilizer system
keys may cause signal interfer-
ence and prevent the engine from
starting.
2. Use the code re-registering key to start the engine.
3. If the engine starts, turn it off, and try starting the engine with the
standard keys.
4. If one or both of the standard keys do not start the engine, take the
vehicle and all 3 keys to a Yamaha
dealer to have the standard keys
re-registered.
EAU3904F
Multi-function meter unit
WARNING
EWA12423
Be sure to stop the vehicle before
makin g any settin g chan ges to the
multi-function meter unit. Chang ing
settin gs while ri din g can d istract the
operator an d increase the risk of an
acci dent.
The multi-function meter unit is
equipped with the following:
 speedometer
 tachometer
 clock
 lap timer
 coolant temperature display
 air intake temperature display
 transmission gear display
 drive mode display
 TCS display
1. Tachometer
2. Shift light
3. TCS display
4. Coolant/Air intake temperature display
5. Quick shift icon “QS”
6. Drive mode display
7. Speedometer
8. Multi-function display
9. Clock/Lap timer
10.Transmission gear display
11.“RESET” button
12.“SELECT” button
6
5
7
8
9
2
34
101112
1
UBN6E1E0.book Page 8 Thursday, October 5, 2017 2:48 PM

Instrument and control functions
4-9
4

QS icon
 multi-function display
 display brightness and shift light
control mode
TIP
To switch the multi-function meter
unit between kilometers and
miles, push the “SELECT” button
for one second.
 The “ ” and “GPS” icons require
accessory parts to function.
Speed ometer
The speedometer shows the vehicle’s
traveling speed.
Tachometer
The electric tachometer shows the en-
gine speed, as measured by the rota-
tional velocity of the crankshaft, in
revolutions per minute (r/min). When
the vehicle is first powered on, the ta-
chometer needle will sweep once
across the r/min range and then return
to zero.
NOTICE
ECA10032
Do not operate the en gine in the ta-
chometer re d zone. Re
d zone: 16500 r/min an d a bove
Clock an d lap timer
The clock uses a 12-hour time system.
To set the clock
1. Turn the key to “ON”.
2. Push the “SELECT” button and the “RESET” button for two sec-
onds. The hour digits will start
flashing.
3. Push the “RESET” button to set the hours.
4. Push the “SELECT” button, and the minute digits will start flashing.
5. Push the “RESET” button to set the minutes.
6. Push the “SELECT” button to con- firm the settings and start the
clock.
To switch between the clock and lap
timer
Push and release the “SELECT” button
and the “RESET” button at the same
time.

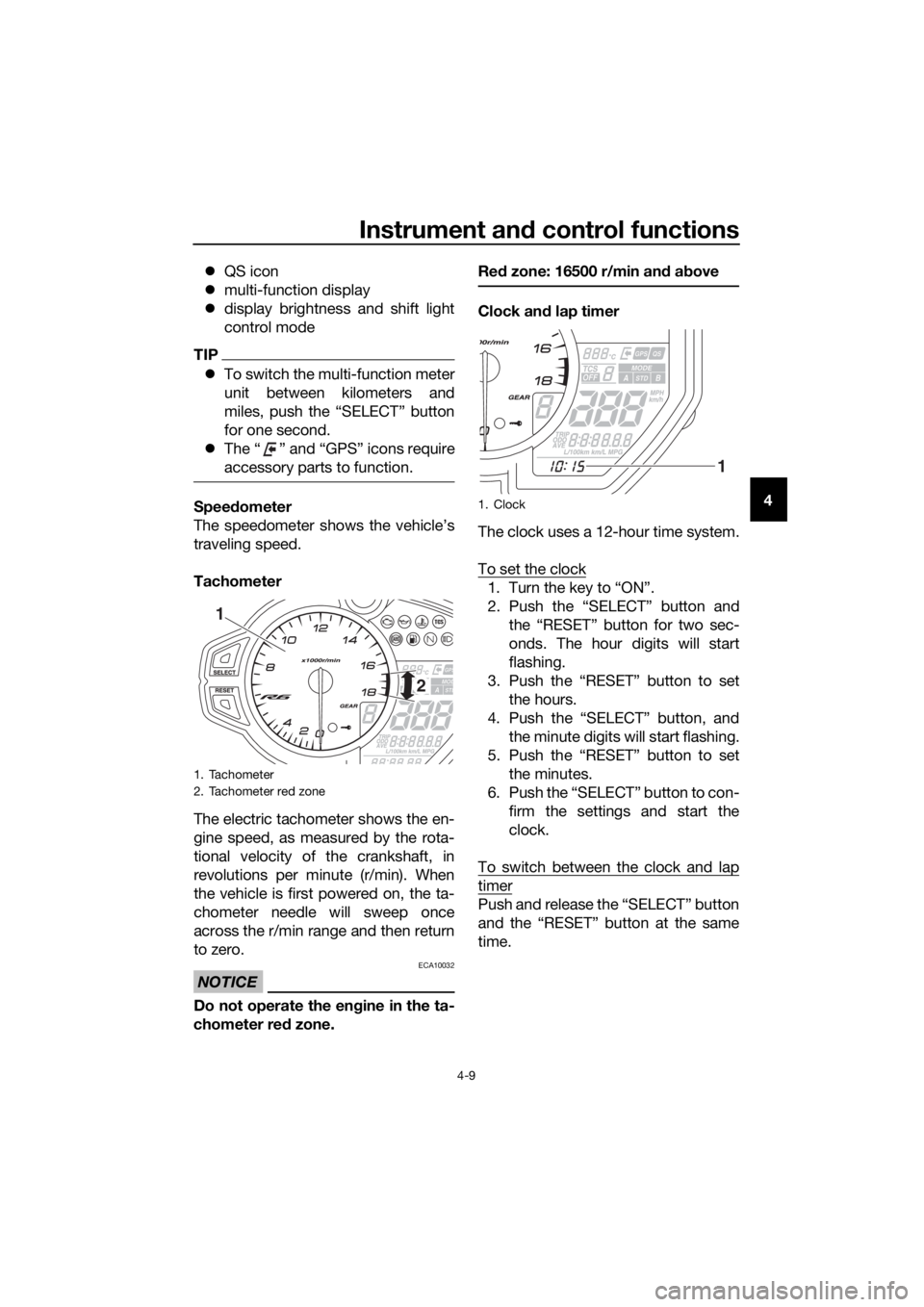

1. Tachometer
2. Tachometer red zone
2
1
1. Clock
1
UBN6E1E0.book Page 9 Thursday, October 5, 2017 2:48 PM

Instrument and control functions
4-10
4 The lap timer records and stores up to
20 lap times. The lap time history re-
cords are divided into two groups, “L”
for lap order and “F” for fastest order.
For lap order, the most recent lap is
designated L1 (and L19 will become
L20). In the case of fast lap history, any
new fast lap within the top 20 will be in-
serted and the previous F20 will be
pushed out of the history.
To use the lap timer
1. Push the “RESET” button for one
second to set the lap timer to the
counting-ready state (the colon “:”
and period “.” will flash).
2. Push the pass switch “ ” to start the lap timer.
3. Push the pass switch “ ” to mark the start of each new lap.
4. Push the “SELECT” button to stop the lap timer.
5. Push the “SELECT” button again to reset the lap timer (or push the
“RESET” button for one second to
reset the lap timer and set it to the
counting-ready state). To view the lap time history
1. Push the “SELECT” button for one
second. Lap order history is se-
lected (indicated by “L-20” in the
lower part of the display), or push
the “SELECT” button again to se-
lect fast lap history (indicated by
“F-20”). “L-20” = lap order (most re-
cent is L1)
 “F-20” = fastest order (fastest
lap time is F1)
2. Push the “RESET” button and the 1st lap time of that history group
(indicated by “L1” or “F1”) is
shown.
3. Use the “SELECT” button to scroll the history in ascending order, or
use the “RESET” button to scroll
the history in descending order.
1. Lap timer
1
1. History type (L-20 or F-20)
1. Lap number/Fastest rank
2. Lap time
1
1
2
UBN6E1E0.book Page 10 Thursday, October 5, 2017 2:48 PM

Instrument and control functions
4-11
4
4. When you have finished viewing
the lap records you can: push the “RESET” button for
one second to delete that
group of lap records.
 push the “SELECT” button
for one second to exit and re-
turn to the lap timer.
Coolant temperature display
This display indicates the temperature
of the coolant from 41 °C to 124 °C in
1 °C increments.
If the coolant temperature is between
117 and 124 °C, the coolant tempera-
ture display flashes and the coolant
temperature warning light comes on. If
this occurs, reduce the load on the en-
gine by riding at a moderate pace, at
low rpm, until the coolant temperature
goes down. If the temperature does
not go down, or if the message “HI”
flashes, stop the engine and let it cool.
(See page 7-41.)
TIP
 When the vehicle is turned on, the
coolant temperature display is au-
tomatically selected. 
When the coolant temperature is
below 41 °C, “Lo” will be dis-
played.
Air intake temperature display
This display indicates the temperature
of the air drawn into the air intake duct.
Push the “RESET” button to switch the
display between the coolant tempera-
ture and the air intake temperature.
TIP
 When the coolant temperature
display is selected, “C” is dis-
played for one second, and then
the coolant temperature is dis-
played.
 When the air intake temperature
display is selected, “A” is dis-
played for one second, and then
the air intake temperature is dis-
played.
 When the air temperature is below
–9 °C, “–9 °C” will be displayed.
1. Coolant temperature display
1
1. Air intake temperature display
1
UBN6E1E0.book Page 11 Thursday, October 5, 2017 2:48 PM

Instrument and control functions
4-12
4 Transmission
gear display
This display shows the selected gear.
The neutral position is indicated by “ ”
and by the neutral indicator light.
Drive mo de display
This display indicates which drive
mode has been selected: “STD”, “A” or
“B”. For more details on the modes
and on how to select them, see page
3-1. TCS
display
This display indicates which traction
control system setting has been se-
lected: “1” through “6” or “OFF”. For
more details on the TCS settings and
on how to select them, see page 3-2.
QS icon
When the quick shift system is set to
on (i.e. when the shift switch is con-
nected), this icon will turn on. See page
3-4 for quick shift information.
1. Neutral indicator light “ ”
2. Transmission gear display
1. Drive mode display
2 1
1
1. TCS display
1. Quick shift icon “QS”
1
1
UBN6E1E0.book Page 12 Thursday, October 5, 2017 2:48 PM
