WHEELS AND TIRES
}}
* Option/accessory. 567
1.

Turn on the vehicle's hazard warning flashers
if a wheel change must be performed in an
area with traffic.
2. Apply the parking brake and put the gear selector in P.
For vehicles with Leveling Control*: If the
vehicle is equipped with pneumatic suspen-
sion, this must be switched off before the
vehicle is lifted with the jack*.
3. Take out the jack*, lug wrench* and tool for
removing the plastic covers, which are
stowed in the foam block. Tool for removing the plastic covers on the wheel bolts.
4. Place chocks in front of and behind the
wheels that are still on the ground. For exam-
ple, use heavy wooden blocks or large
stones. 5.
Using the lug wrench*, screw the towing eye
into place as far as possible according to the
instructions.
CAUTION The towing eyelet must be screwed into the
lug wrench* as far as possible.
6. Remove the plastic covers from the wheel
bolts using the designated tool.
7.

With the vehicle still on the ground, use the
lug wrench/towing eye to loosen the wheel
bolts ½-1 turn by pressing downward (coun-
terclockwise). 8. When hoisting the vehicle, it is important that
the jack* or garage lift arms are positioned
on the designated points under the vehicle.
The triangle markings on the plastic cover
indicate where the jack attachment points/
lifting points are located. There are two jack
attachment points on each side of the vehi-
cle. There is a groove for the jack at each
attachment point. 9. Position the jack under the attachment point
being used, ensuring that the surface is firm,
flat and not slippery.

MAINTENANCE AND SERVICE
}}
* Option/accessory. 605
Hoisting the vehicle
When hoisting the vehicle, it is important to
ensure the jack/vehicle hoist is correctly
engaged in the designated attachment points
under the vehicle.
For vehicles with self-leveling*, pneumatic sus-
pension (if installed) must be turned off before
the vehicle is lifted. Turning off the function in the
center display.
WARNING If the vehicle is lifted on a garage jack, the
jack must be placed under one of the four lift-
ing points. Make sure that the vehicle is cor-
rectly positioned on the jack and that it can-
not slide off. Make sure the jack plate has a
rubber pad to help keep the vehicle stable
and prevent damage. Always use axle stands
or similar.
NOTE Volvo recommends only using the jack
intended for your specific vehicle model. If a
jack other than that recommended by Volvo is
used, follow the instructions included with the
equipment.
The vehicle's ordinary jack is only intended to
be used in temporary situations for short peri-
ods of time, such as when changing wheels in
the event of a flat tire. If the vehicle needs to
be lifted more frequently, or for a longer
period of time than for a wheel change, a
garage jack or hoist is recommended. Always
follow the instructions for use provided with
the equipment.

||MAINTENANCE AND SERVICE
* Option/accessory.

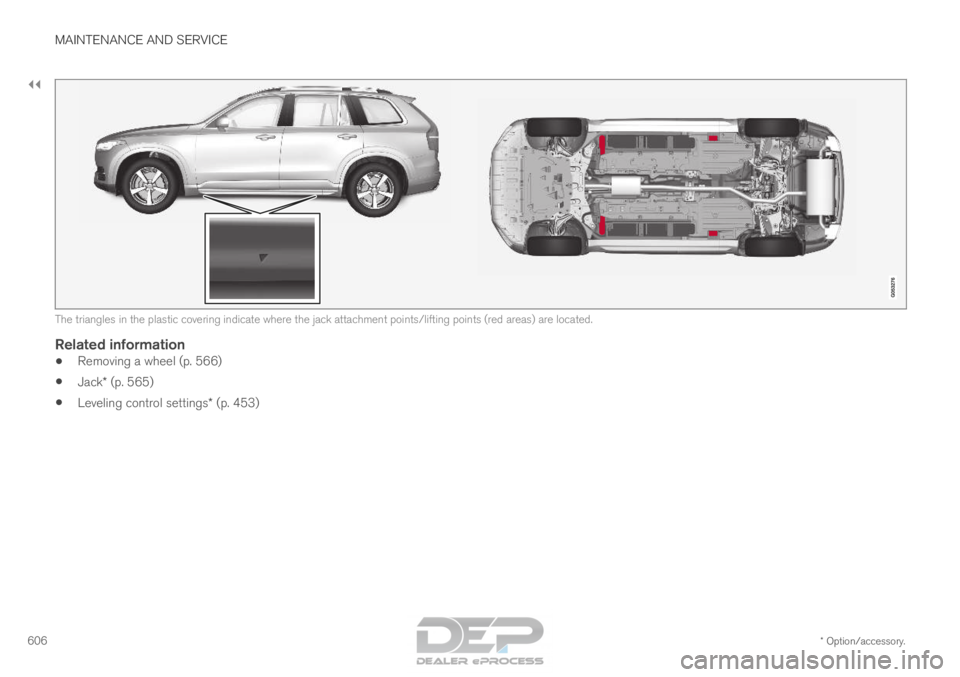

606 The triangles in the plastic covering indicate where the jack attachment\
points/lifting points (red areas) are located.
Related information
•
Removing a wheel (p. 566)
• Jack* (p. 565)
• Leveling control settings* (p. 453)
