Side cameras The side cameras
120
are located in the rearview mirrors.
The side cameras can show views along each
side of the vehicle.
Related information
• Park Assist Camera* (p. 386) Park Assist Camera trajectory lines
The Park Assist Camera uses trajectory lines
and fields on the screen to indicate the vehicle's
position in relation to its immediate surround-
ings. Example
121
of trajectory lines.
The trajectory lines show the anticipated trajec-
tory for the vehicle's outermost dimensions based
on the current position of the steering wheel to help simplify parallel parking, backing into tight
spaces or attaching a trailer.
The lines on the screen are projected as if they
were painted lines on the ground behind the
vehicle and are directly affected by the way in
which the steering wheel is turned. This enables
the driver to see path the vehicle will take, even if
he/she turns the steering wheel.
These lines also indicate the outermost limits that
any object (towbar, rearview mirrors, corners of
the body, etc.) extends out from the vehicle.
NOTE
•
When reversing with a trailer that is not
electrically connected to the vehicle, the
screen guide lines show the path the
vehicle will take – not the trailer.
• The screen does not show guide lines
when a trailer is electrically connected to
the vehicle's electrical system.
• Guide lines are not shown when zooming
in. 120
Note: This illustration is general and details may vary depending on mod\
el.
121 The illustration is generic - details may vary according to vehicle mode\
l.

WHEELS AND TIRES
550Tires

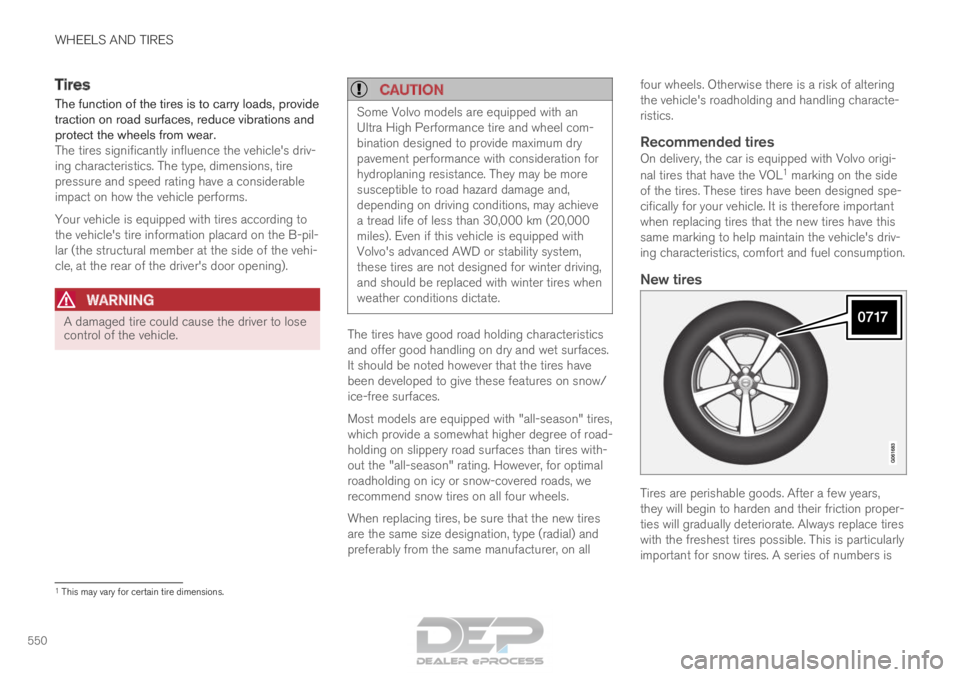

The function of the tires is to carry loads, provide
traction on road surfaces, reduce vibrations and
protect the wheels from wear. The tires significantly influence the vehicle's driv-
ing characteristics. The type, dimensions, tire
pressure and speed rating have a considerable
impact on how the vehicle performs.
Your vehicle is equipped with tires according to
the vehicle's tire information placard on the B-pil-
lar (the structural member at the side of the vehi-
cle, at the rear of the driver's door opening).
WARNING A damaged tire could cause the driver to lose
control of the vehicle.
CAUTION Some Volvo models are equipped with an
Ultra High Performance tire and wheel com-
bination designed to provide maximum dry
pavement performance with consideration for
hydroplaning resistance. They may be more
susceptible to road hazard damage and,
depending on driving conditions, may achieve
a tread life of less than 30,000 km (20,000
miles). Even if this vehicle is equipped with
Volvo's advanced AWD or stability system,
these tires are not designed for winter driving,
and should be replaced with winter tires when
weather conditions dictate.
The tires have good road holding characteristics
and offer good handling on dry and wet surfaces.
It should be noted however that the tires have
been developed to give these features on snow/
ice-free surfaces.
Most models are equipped with "all-season" tires,
which provide a somewhat higher degree of road-
holding on slippery road surfaces than tires with-
out the "all-season" rating. However, for optimal
roadholding on icy or snow-covered roads, we
recommend snow tires on all four wheels.
When replacing tires, be sure that the new tires
are the same size designation, type (radial) and
preferably from the same manufacturer, on allfour wheels. Otherwise there is a risk of altering
the vehicle's roadholding and handling characte-
ristics.
Recommended tiresOn delivery, the car is equipped with Volvo origi-
nal tires that have the VOL
1
marking on the side
of the tires. These tires have been designed spe-
cifically for your vehicle. It is therefore important
when replacing tires that the new tires have this
same marking to help maintain the vehicle's driv-
ing characteristics, comfort and fuel consumption.
New tires Tires are perishable goods. After a few years,
they will begin to harden and their friction proper-
ties will gradually deteriorate. Always replace tires
with the freshest tires possible. This is particularly
important for snow tires. A series of numbers is
1
This may vary for certain tire dimensions.

||WHEELS AND TIRES
* Option/accessory.
552
WARNING •
The wheel and tire sizes for your Volvo
are specified to meet stringent stability
and handling requirements. Unapproved
wheel/tire size combinations can nega-
tively affect your vehicle's stability and
handling.
• Any damage caused by installation of
unapproved wheel/tire size combinations
will not be covered by your new vehicle
warranty. Volvo assumes no responsibility
for death, injury, or expenses that may
result from such installations.
Related information
•Checking tire pressure (p. 557)
• Tire direction of rotation (p. 552)
• Tread wear indicator (p. 553)
• Tire pressure monitoring system* (p. 559)
• Tire sealing system (p. 572)
• Uniform Tire Quality Grading (p. 556)
• Tire terminology (p. 553)
• Tire sidewall designations (p. 554)

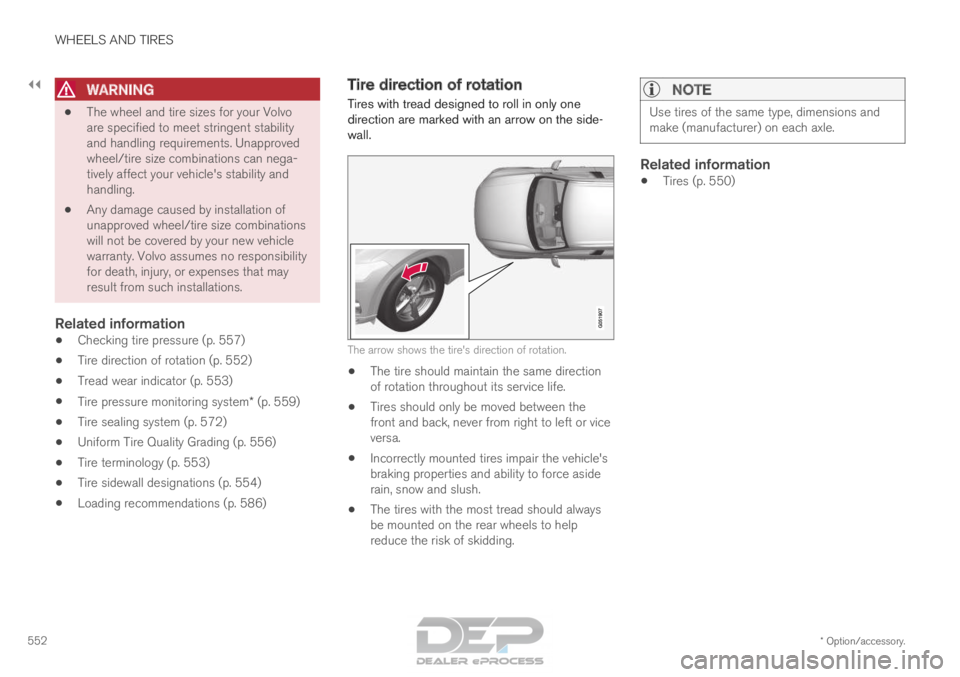

• Loading recommendations (p. 586) Tire direction of rotation
Tires with tread designed to roll in only one
direction are marked with an arrow on the side-
wall. The arrow shows the tire's direction of rotation.
• The tire should maintain the same direction
of rotation throughout its service life.
• Tires should only be moved between the
front and back, never from right to left or vice
versa.
• Incorrectly mounted tires impair the vehicle's
braking properties and ability to force aside
rain, snow and slush.
• The tires with the most tread should always
be mounted on the rear wheels to help
reduce the risk of skidding.
NOTE Use tires of the same type, dimensions and
make (manufacturer) on each axle.
Related information
•
Tires (p. 550)

||WHEELS AND TIRES
* Option/accessory.
564
Related information
• Recommended tire pressure (p. 559)
• Adjusting tire pressure (p. 558)
• Calibrating the tire pressure monitoring sys-
tem* (p. 561)
• Viewing tire pressure status in the center
display* (p. 562)
• Tire pressure monitoring system* (p. 559)
• Inflate tires with the compressor included in
the tire sealing system (p. 577) When changing wheels
The wheels can be changed, e.g. to switch to
snow tires or spare tires. Follow the applicable
instructions for removing and installing the
wheel.
Changing to tires of another dimensionMake sure that the tire dimension is approved for
use on the vehicle.
If you change to tires of another dimension, con-
tact an authorized Volvo workshop to update the
vehicle's software. A software update may be
necessary when changing to tires of larger/
smaller dimensions or when changing to or from
snow tires.
Related information
• Removing a wheel (p. 566)
• Installing a wheel (p. 568)
• Tool kit (p. 564)
• Snow tires (p. 571)
• Spare wheel (p. 569)
• Wheel bolts (p. 565) Tool kit
Tools for e.g. towing or changing wheels are
provided in the vehicle's cargo compartment.
The foam block under the cargo compartment
floor contains the towing eyelet, the tire sealing
system, the tool for removing plastic wheel bolt
covers and the tool for removing the locking
wheel bolts.
If the vehicle is equipped with a spare wheel*
10
, a
jack, lug wrench, and a package with
disposable gloves and a bag for the damaged
wheel are also provided.
Related information
• When changing wheels (p. 564)
• Jack* (p. 565) 10
Not available on all models.

||WHEELS AND TIRES
* Option/accessory.
570
WARNING •
The vehicle must never be driven with
more than one "Temporary spare" tire
mounted.
• Driving with a spare wheel may alter the
driving characteristics of the vehicle.
Replace the spare wheel with a normal
wheel as soon as possible.
• The spare wheel is smaller than the nor-
mal wheel, which affects the vehicle's
ground clearance. Watch for high curbs
and do not wash the vehicle in an auto-
matic car wash when a spare wheel is
mounted.
• Follow the manufacturer's recommended
tire inflation pressure for the spare wheel.
• On all-wheel drive vehicles, the drive on
the rear axle can be disconnected.
• If the spare wheel is mounted on the
front axle, snow chains must not be used.
• The spare wheel must not be repaired.
CAUTION The vehicle must not be driven with wheels of
different dimensions or with a spare tire other
than the one that came with the vehicle. The
use of different size wheels can seriously
damage your vehicle's transmission.
Related information
•
When changing wheels (p. 564)
• Recommended tire pressure (p. 559) Accessing the spare wheel
Follow these instructions regarding handling the
spare wheel. The spare wheel is stored in a bag and should be
secured with two straps onto the floor of the
trunk/cargo compartment when the vehicle is
being driven
12
. The straps should be strapped
down crosswise over the wheel, attached to the
load anchoring eyelets and pulled taut.
Wheel changing tools are located under the
cargo compartment floor.
Related information
• Spare wheel (p. 569)

WHEELS AND TIRES
}}
571
Snow tires
Snow tires are designed for winter driving.
Volvo recommends snow tires with specific
dimensions. The tire dimensions vary depending
on engine type. When driving with snow tires, the
correct type of tires must be mounted on all four
wheels.
NOTE Contact a Volvo dealer for advice on the best
choice of rims and tires.
Tips for changing snow tiresWhen switching between regular tires and snow
tires, mark the tires according to which side they
were mounted on, e.g. L for left and R for right.
Studded tiresStudded tires should be broken in by driving
500–1000 km (300–600 miles) slowly and gen-
tly to help the studs settle properly in the tires.
This gives the tire, and especially the studs, a
longer service life.
NOTE
Regulations regarding the use of studded
tires vary from country to country.
Tread depthRoad conditions with ice, slush and low tempera-
tures place considerably higher demands on tires
than summer conditions. Volvo therefore recom-
mends not driving on snow tires that have a tread
depth of less than 4 mm (0.15 inch).
Related information
•
When changing wheels (p. 564)
• Winter driving (p. 461)
• Tread wear indicator (p. 553) Snow chains
Using snow chains and/or snow tires can help
improve traction in winter driving conditions.
WARNING Use Volvo genuine snow chains or equivalent
snow chains that are suitable for the vehicle
model and the tire and wheel sizes. Only one-
sided snow chains are permitted.
If uncertain about snow chains, Volvo recom-
mends contacting an authorized Volvo work-
shop. Use of the wrong snow chains could
cause serious damage to the vehicle and
result in an accident.
12
The backrest in the third row of seats* must be folded down.

||WHEELS AND TIRES
572
CAUTION
Snow chains can be used on the vehicle, with
the following restrictions:
• Volvo recommends not using snow
chains on wheel dimensions larger than
19 inches.
• Always follow the manufacturer's installa-
tion instructions carefully. Install chains
as tightly as possible and retighten peri-
odically.
• Only put snow chains on the front wheels
(also applies to all-wheel drive vehicles).
• If accessory, aftermarket or "custom"
tires and wheels with different dimen-
sions than the original tires and wheels
are used, snow chains in some cases
may NOT be used. Sufficient distance
between the chains and brakes, suspen-
sion and body components must be
maintained.
• Check local regulations regarding the use
of snow chains before installing.
• Never exceed the snow chain manufac-
turer's specified maximum speed limit.
Under no circumstances should you
exceed 50 km/h (30 mph).
• Avoid bumps, holes or sharp turns when
driving with snow chains. •
Avoid driving on surfaces without snow as
this wears out both the snow chains and
the tires.
• The handling of the vehicle can be
adversely affected when driving with
chains. Avoid fast or sharp turns as well
as locked wheel braking.
• Some types of strap-on chains affect
brake components and therefore must
NOT be used. Consult a Volvo retailer for more information
about snow chains.
Related information
•
Winter driving (p. 461) Tire sealing system
13
The temporary tire sealing system can be used
to seal a puncture in a tire or to check and
adjust the pressure in the tire.
Models equipped with a spare wheel 14
do not
have the tire sealing system.
The tire sealing system consists of a compressor
and a bottle containing sealing compound. The
sealing functions as a temporary repair.
NOTE The sealing compound effectively seals tires
with punctures in the tread but may not be
able to fully seal tires with punctures in the
sidewall. Do not use the tire sealing system
on tires with large tears, cracks or similar
damage.
NOTE
The compressor is intended for temporary tire
sealing and is approved by Volvo.
LocationThe tire sealing system is located in a foam block
under the floor of the cargo compartment.
