2018 VOLVO V90 CROSS COUNTRY Owner´s Manual

MAINTENANCE AND SERVICE
* Option/accessory.607

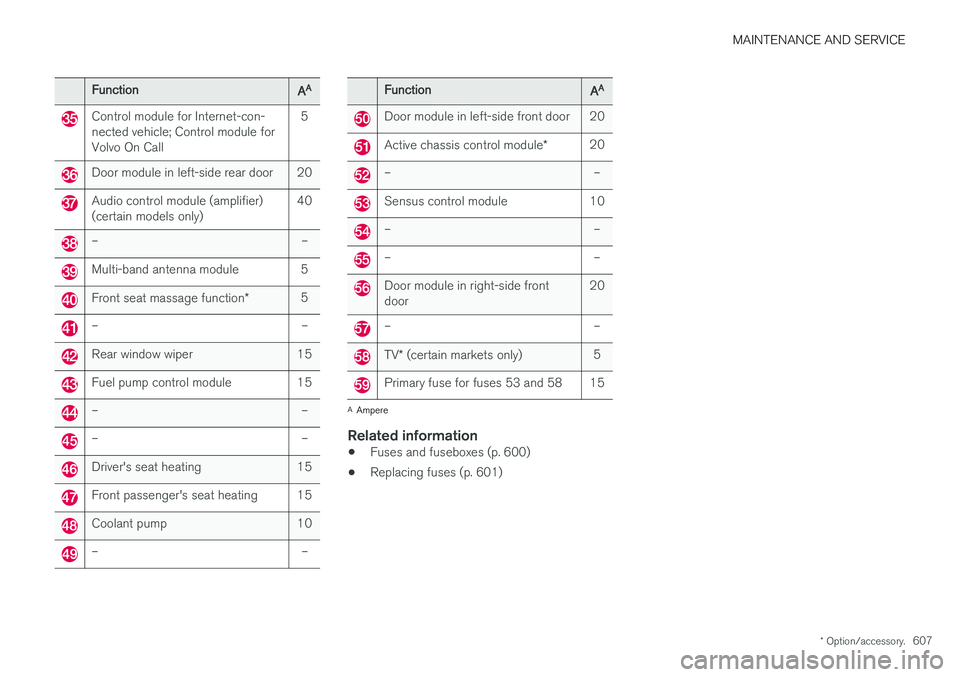

FunctionAA
Control module for Internet-con- nected vehicle; Control module forVolvo On Call 5
Door module in left-side rear door 20
Audio control module (amplifier) (certain models only)
40
– –
Multi-band antenna module 5
Front seat massage function
*5
– –
Rear window wiper 15
Fuel pump control module 15
– –
– –
Driver's seat heating 15
Front passenger's seat heating 15
Coolant pump 10
– –
FunctionAA
Door module in left-side front door 20
Active chassis control module
*20
– –
Sensus control module 10
– –
– –
Door module in right-side front door 20
– –
TV
* (certain markets only) 5
Primary fuse for fuses 53 and 58 15
A
Ampere
Related information
• Fuses and fuseboxes (p. 600)
• Replacing fuses (p. 601)

MAINTENANCE AND SERVICE
* Option/accessory.
608
Fuses in the cargo compartment The fuses in the cargo compartment help pro- tect electrical components such as the power seats *, airbags and seat belt tensioners.

MAINTENANCE AND SERVICE
}}
609

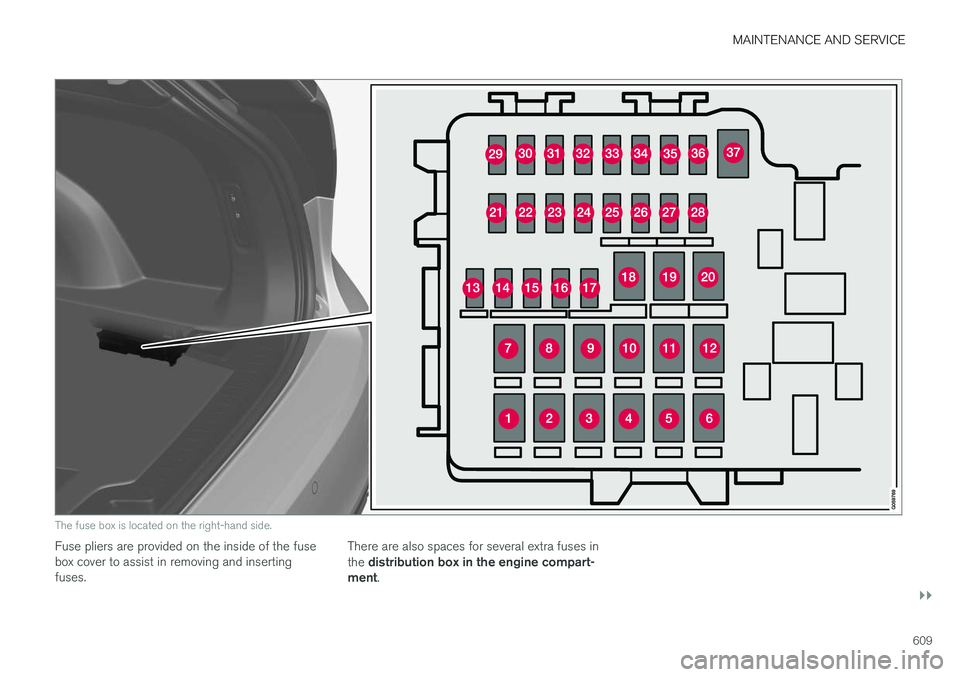

The fuse box is located on the right-hand side.
Fuse pliers are provided on the inside of the fuse box cover to assist in removing and insertingfuses.There are also spaces for several extra fuses in the
distribution box in the engine compart-
ment .

||
MAINTENANCE AND SERVICE
* Option/accessory.
610

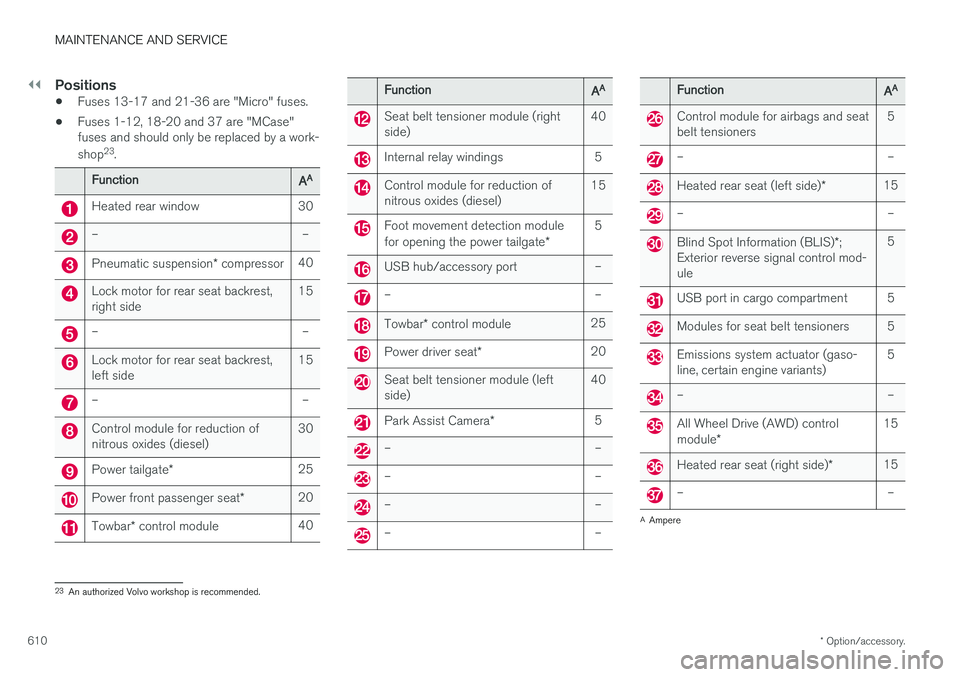

Positions
• Fuses 13-17 and 21-36 are "Micro" fuses.
• Fuses 1-12, 18-20 and 37 are "MCase" fuses and should only be replaced by a work- shop 23
.
FunctionAA
Heated rear window 30
– –
Pneumatic suspension * compressor 40
Lock motor for rear seat backrest, right side 15
– –
Lock motor for rear seat backrest, left side15
– –
Control module for reduction of nitrous oxides (diesel)30
Power tailgate
* 25
Power front passenger seat
*20
Towbar
* control module 40
FunctionAA
Seat belt tensioner module (right side) 40
Internal relay windings 5
Control module for reduction of nitrous oxides (diesel)15
Foot movement detection module for opening the power tailgate
*5
USB hub/accessory port –
– –
Towbar
* control module 25
Power driver seat
* 20
Seat belt tensioner module (left side) 40
Park Assist Camera
*5
– –
– –
– –
– –
FunctionAA
Control module for airbags and seat belt tensioners 5
– –
Heated rear seat (left side)
*15
– –
Blind Spot Information (BLIS)
*;
Exterior reverse signal control mod- ule 5
USB port in cargo compartment 5
Modules for seat belt tensioners 5
Emissions system actuator (gaso- line, certain engine variants)
5
– –
All Wheel Drive (AWD) control module
* 15
Heated rear seat (right side)
*15
– –
A
Ampere
23 An authorized Volvo workshop is recommended.

MAINTENANCE AND SERVICE
611
Related information
•Fuses and fuseboxes (p. 600)
• Replacing fuses (p. 601)

MAINTENANCE AND SERVICE
612

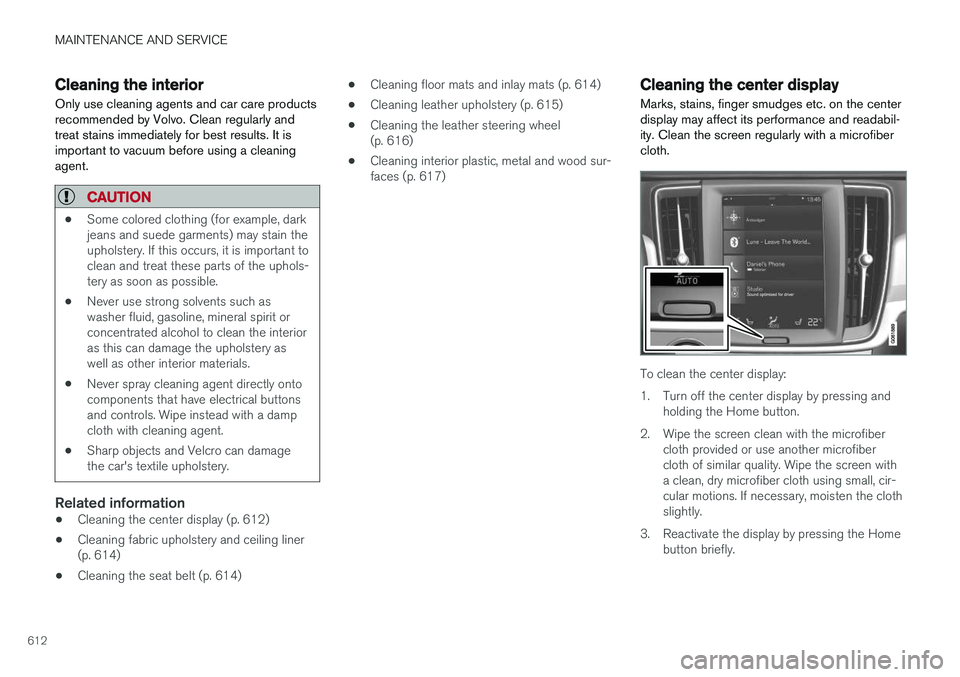

Cleaning the interiorOnly use cleaning agents and car care products recommended by Volvo. Clean regularly andtreat stains immediately for best results. It isimportant to vacuum before using a cleaningagent.
CAUTION
• Some colored clothing (for example, dark jeans and suede garments) may stain theupholstery. If this occurs, it is important toclean and treat these parts of the uphols-tery as soon as possible.
• Never use strong solvents such aswasher fluid, gasoline, mineral spirit orconcentrated alcohol to clean the interioras this can damage the upholstery aswell as other interior materials.
• Never spray cleaning agent directly ontocomponents that have electrical buttonsand controls. Wipe instead with a dampcloth with cleaning agent.
• Sharp objects and Velcro can damagethe car's textile upholstery.
Related information
• Cleaning the center display (p. 612)
• Cleaning fabric upholstery and ceiling liner (p. 614)
• Cleaning the seat belt (p. 614) •
Cleaning floor mats and inlay mats (p. 614)
• Cleaning leather upholstery (p. 615)
• Cleaning the leather steering wheel(p. 616)
• Cleaning interior plastic, metal and wood sur-faces (p. 617)
Cleaning the center display
Marks, stains, finger smudges etc. on the center display may affect its performance and readabil-ity. Clean the screen regularly with a microfibercloth.
To clean the center display:
1. Turn off the center display by pressing and holding the Home button.
2. Wipe the screen clean with the microfiber cloth provided or use another microfiber cloth of similar quality. Wipe the screen witha clean, dry microfiber cloth using small, cir-cular motions. If necessary, moisten the clothslightly.
3. Reactivate the display by pressing the Home button briefly.

MAINTENANCE AND SERVICE
* Option/accessory.613

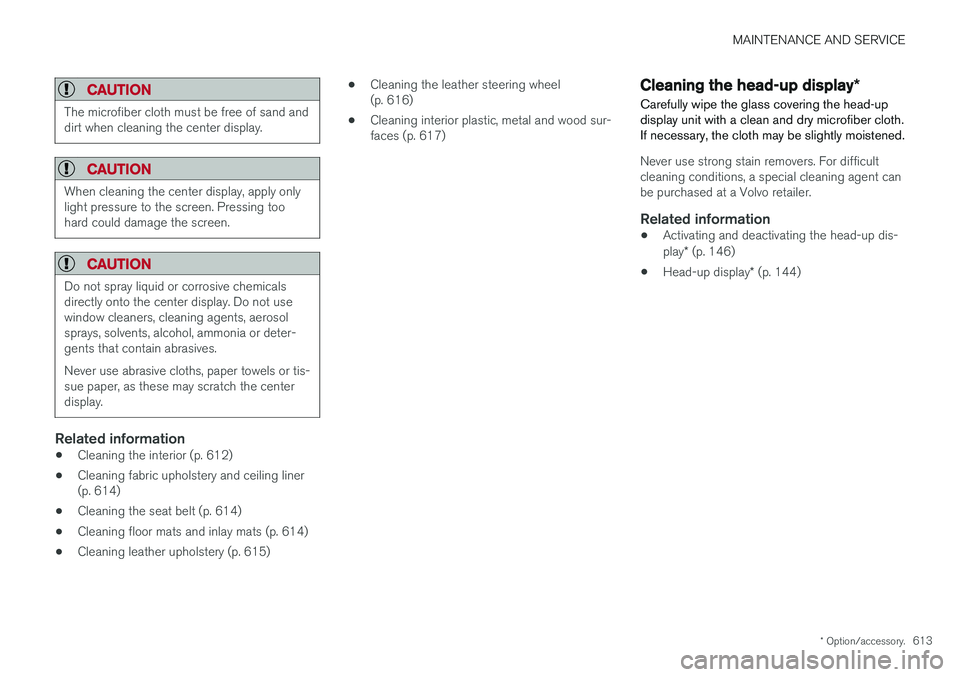

CAUTION
The microfiber cloth must be free of sand and dirt when cleaning the center display.
CAUTION
When cleaning the center display, apply only light pressure to the screen. Pressing toohard could damage the screen.
CAUTION
Do not spray liquid or corrosive chemicals directly onto the center display. Do not usewindow cleaners, cleaning agents, aerosolsprays, solvents, alcohol, ammonia or deter-gents that contain abrasives. Never use abrasive cloths, paper towels or tis- sue paper, as these may scratch the centerdisplay.
Related information
•Cleaning the interior (p. 612)
• Cleaning fabric upholstery and ceiling liner (p. 614)
• Cleaning the seat belt (p. 614)
• Cleaning floor mats and inlay mats (p. 614)
• Cleaning leather upholstery (p. 615) •
Cleaning the leather steering wheel(p. 616)
• Cleaning interior plastic, metal and wood sur-faces (p. 617)
Cleaning the head-up display
*
Carefully wipe the glass covering the head-up display unit with a clean and dry microfiber cloth.If necessary, the cloth may be slightly moistened.
Never use strong stain removers. For difficult cleaning conditions, a special cleaning agent canbe purchased at a Volvo retailer.
Related information
• Activating and deactivating the head-up dis- play
* (p. 146)
• Head-up display
* (p. 144)

MAINTENANCE AND SERVICE
614

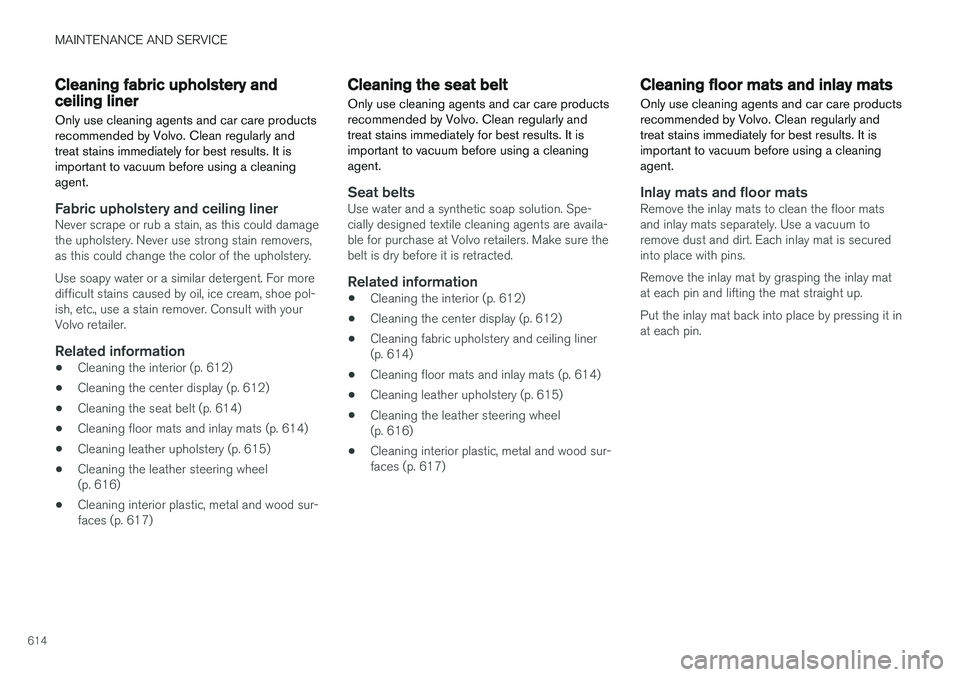

Cleaning fabric upholstery andceiling liner Only use cleaning agents and car care products recommended by Volvo. Clean regularly andtreat stains immediately for best results. It isimportant to vacuum before using a cleaningagent.
Fabric upholstery and ceiling linerNever scrape or rub a stain, as this could damage the upholstery. Never use strong stain removers,as this could change the color of the upholstery. Use soapy water or a similar detergent. For more difficult stains caused by oil, ice cream, shoe pol-ish, etc., use a stain remover. Consult with yourVolvo retailer.
Related information
•Cleaning the interior (p. 612)
• Cleaning the center display (p. 612)
• Cleaning the seat belt (p. 614)
• Cleaning floor mats and inlay mats (p. 614)
• Cleaning leather upholstery (p. 615)
• Cleaning the leather steering wheel(p. 616)
• Cleaning interior plastic, metal and wood sur-faces (p. 617)
Cleaning the seat belt
Only use cleaning agents and car care products recommended by Volvo. Clean regularly andtreat stains immediately for best results. It isimportant to vacuum before using a cleaningagent.
Seat beltsUse water and a synthetic soap solution. Spe- cially designed textile cleaning agents are availa-ble for purchase at Volvo retailers. Make sure thebelt is dry before it is retracted.
Related information
• Cleaning the interior (p. 612)
• Cleaning the center display (p. 612)
• Cleaning fabric upholstery and ceiling liner(p. 614)
• Cleaning floor mats and inlay mats (p. 614)
• Cleaning leather upholstery (p. 615)
• Cleaning the leather steering wheel(p. 616)
• Cleaning interior plastic, metal and wood sur-faces (p. 617)
Cleaning floor mats and inlay mats
Only use cleaning agents and car care products recommended by Volvo. Clean regularly andtreat stains immediately for best results. It isimportant to vacuum before using a cleaningagent.
Inlay mats and floor matsRemove the inlay mats to clean the floor mats and inlay mats separately. Use a vacuum toremove dust and dirt. Each inlay mat is securedinto place with pins. Remove the inlay mat by grasping the inlay mat at each pin and lifting the mat straight up. Put the inlay mat back into place by pressing it in at each pin.
