2018 VOLVO S90 T8 Owner´s Manual

S P E C I F I C A T I O N S

SPECIFICATIONS
144

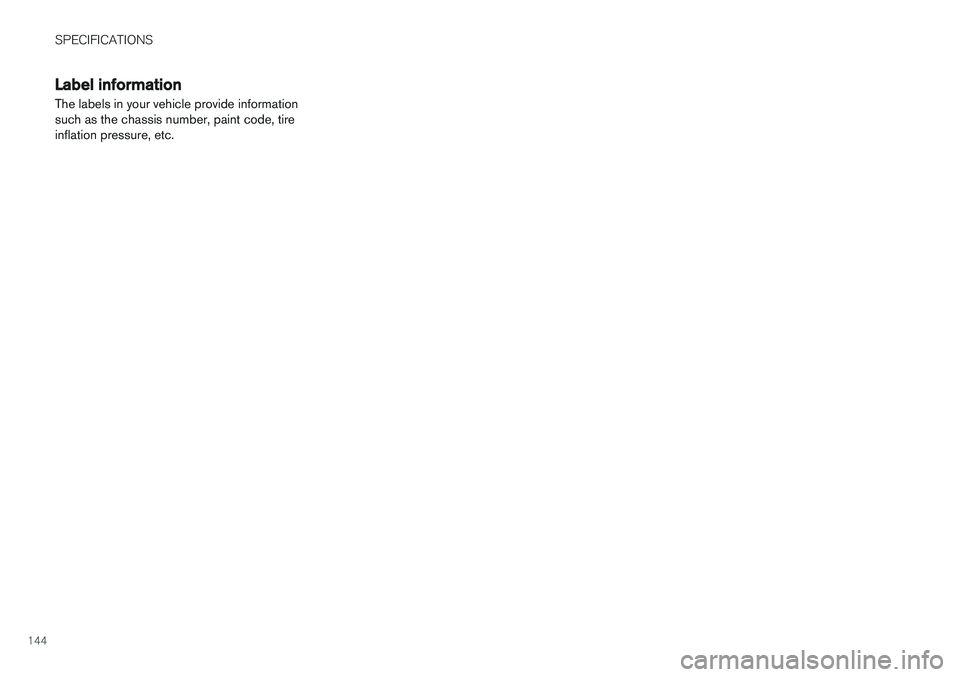

Label information
The labels in your vehicle provide information such as the chassis number, paint code, tireinflation pressure, etc.

SPECIFICATIONS
}}
145

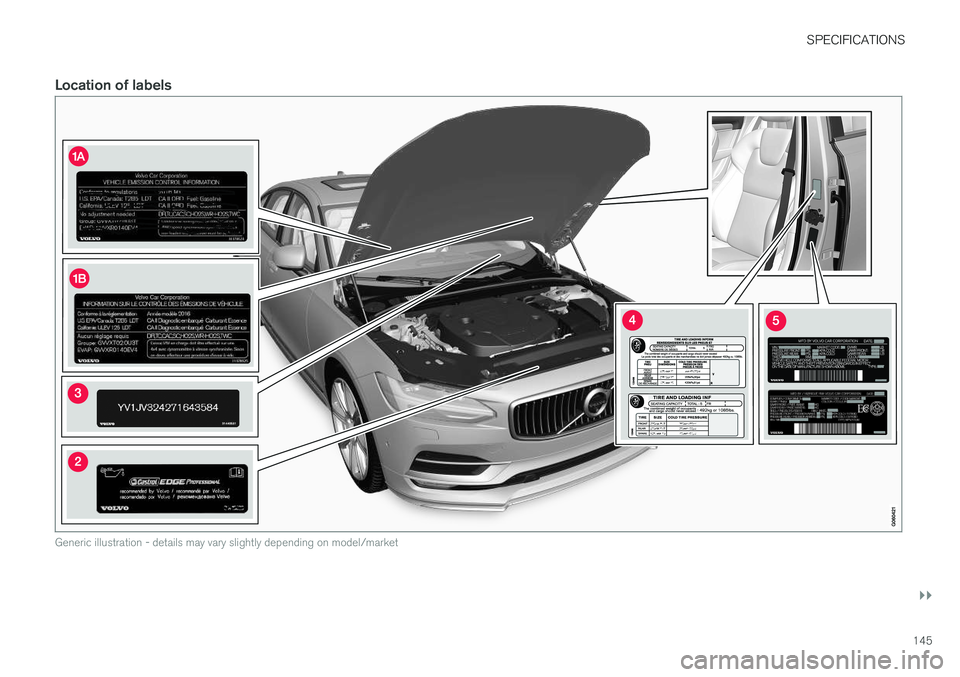

Location of labels
Generic illustration - details may vary slightly depending on model/market

||
SPECIFICATIONS
146
List of labelsVehicle Emission Control Information. (A )
US models, ( B) Canadian models. Your Volvo
is designed to meet all applicable emission standards, as evidenced by the certificationlabel on the underside of the hood. For fur-ther information regarding these regulations,please consult your Volvo retailer.
Engine oil. This label contains the recom-
mended engine oil specifications.
Vehicle Identification Number (VIN). The
VIN plate is located on the top left surface of the dashboard. The Vehicle IdentificationNumber (VIN) should always be quoted in allcorrespondence concerning your vehicle withthe retailer and when ordering parts.
Tire inflation pressures. This label indicates
the correct inflation pressures for the tires that were on the vehicle when it left the fac-tory.
Federal Motor Vehicle Safety Standards (FMVSS) specifications (USA) and Minis-try of Transport (CMVSS) standards(Canada). Your Volvo is designed to meet all
applicable safety standards, as evidenced bythe certification label on the driver's side B-pillar (the structural member at the side ofthe vehicle, at the rear of the driver's dooropening). This label also includes codes forpaint color, etc. For further information regar-ding these regulations, please consult your Volvo retailer. U.S. models have the upperdecal; Canadian models have the lower one.

SPECIFICATIONS
}}
147
DimensionsThe following table lists your vehicle's most important dimensions.

||
SPECIFICATIONS
148
DimensionIn.
(mm)
A Ground clearance (curb weight + 2 people) A5.6 (141)
B Wheelbase 120.5 (3061) C Length 200.1 (5083)
D Load length, floor, seat- back down 82.6 (2098)
E Load length, floor 45.2 (1149) F Height 56.6 (1438)
G Load height between trunk floor and parcel shelf 17.1 (435)
H Track, front 64.1 (1628)B
63.7 (1618) C
63.7 (1617) D
I Track, rear 64.1 (1629)B
63.7 (1619) C
63.7 (1618) D
J Load width, floor 39.9 (1014)
K Width 74.0 (1879)E
74.4 (1890) FDimension
In.
(mm)
L Width incl. door mirrors (folded out) 79.5 (2019)
M Width incl. door mirrors (folded in) 74.6 (1895)
A
Varies slightly depending on tire size, chassis options, etc.
B 18" wheels
C 19" wheels
D 20" wheels
E Body width
F Door molding
Related information
• Weights (p. 149)

SPECIFICATIONS
}}
149
Weights The following table lists important weight data for your vehicle.
CategoryUSACanada
Gross vehicle weight 4-cyl. AWD (All Wheel Drive): B4204T27 4-cyl. AWD (All Wheel Drive): B4204T234-cyl. FWD (Front Wheel Drive): B4204T23 5,290 lbs5,245 lbs5,070 lbs2,400 kg2,380 kg2,300 kg
Capacity weight All models 950 lbs 430 kg
Permissible axle weights, front4-cyl. AWD (All Wheel Drive): B4204T27 4-cyl. AWD (All Wheel Drive): B4204T234-cyl. FWD (Front Wheel Drive): B4204T23 2,645 lbs2,625 lbs2,555 lbs1,200 kg1,190 kg1,160 kg
Permissible axle weights, rear 4-cyl. AWD (All Wheel Drive): B4204T27 4-cyl. AWD (All Wheel Drive): B4204T234-cyl. FWD (Front Wheel Drive): B4204T23 2,755 lbs2,755 lbs2,645 lbs1,250 kg1,250 kg1,200 kg
Curb weight 4-cyl. 3,875-4,205 lbs 1,755-1,906 kg
Max. roof load 220 lbs 100 kg

||
SPECIFICATIONS
150
CategoryUSACanada
Max. trailer weights Without brakes: 1,650 lbs With brakes: 2,000 lbsWithout brakes: 750 kgWith brakes: 900 kg
Max. tongue weight 200 lbs 90 kg
CAUTION
•When loading the vehicle, the maximum gross vehicle weight and permissible axleweights may not be exceeded.
• The maximum trailer weights listed areonly applicable for altitudes up to 3280 ft(1,000 m) above sea level. With increas-ing altitude the engine power and there-fore the car's climbing ability are impairedbecause of the reduced air density, sothe maximum trailer weight has to bereduced accordingly. The weight of thecar and trailer must be reduced by 10%for every further 3280 ft (1,000 m) (orpart thereof).
