2018 VOLVO S90 T8 Owner´s Manual

PRACTICAL INFORMATION
}}
127
Volume:
• 5.8 qts (5.5 liters)
Related information
•
Opening and closing the hood (p. 127)
• Engine compartment overview (p. 81)
Opening and closing the hood The hood is opened by releasing it from the pas- senger compartment and then by using the han-dle under the front edge of the hood.
Opening
With the hood completely closed, pull the control (located to the left of the brakepedal).
Turn the handle under the front edge of the hood counterclockwise to release it from thelock and lift.
Warning–hood not closed
When the hood lock has been com- pletely released, this symbol and agraphic will illuminate in the instrumentpanel and an audible signal will be
given. If the vehicle begins to roll, the audible sig-nal will be repeated several times.
NOTE
If the warning symbol remains on or if the audible signal is given even if the hood iscompletely closed and locked, consult atrained and qualified Volvo service technician.

||
PRACTICAL INFORMATION
128
Closing1. Press down the hood until it begins to closedue to its own weight.
2. When the handle under the front edge of the hood is in the lock, press down on the hood to close it completely.
WARNING
• Be sure the hood is completely unob- structed while it is being closed.
• Check that the hood locks properly whenclosed. It must audibly lock on both sides.
• Never drive if the hood is not completelyclosed and locked.
• While driving, if there are any indicationsthat the hood is not locked in the closedposition, stop safely as soon as possibleand close it completely.
Hood completely closed
Related information
•
Engine compartment overview (p. 81)

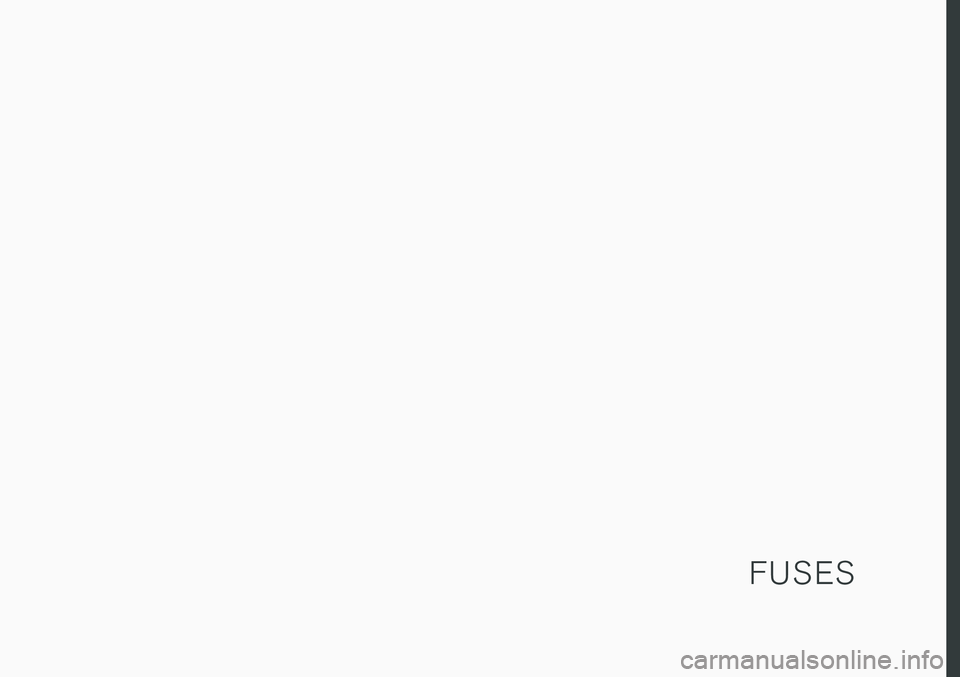

F U S E S

FUSES
130
Fuses The fuses help protect the vehicle's electrical components from overloading or short circuits.
WARNING
Never use metal objects or fuses with higher amperage than those stated on the lists offuses. Doing so could seriously damage oroverload the vehicle's electrical system.
If an electrical component fails to function, this may be due to a blown fuse. If the same fuseblows repeatedly, this indicates a problem withthe component, which should be inspected by atrained and qualified Volvo service technician.
Location of the fuseboxes
Engine compartment
Under the glove compartment
Trunk
Related information
• Replacing fuses (p. 130)
• Fuses in the engine compartment (p. 131)
• Fuses in the passenger compartment (p. 135)
• Fuses in the trunk (p. 139)
Replacing fuses The fuses help protect the vehicle's electrical components from overloading or short circuits.
Fuse replacement1. See the list of fuse boxes for their locations.
2. Pull the fuse straight out and examine it from
the side to see if the curved metal wire in the fuse is intact.
3. If the wire is broken, insert a new fuse of the same color and amperage (written on thefuse).
WARNING
Never use metal objects or fuses with higher amperage than those stated on the followingpages. Doing so could seriously damage oroverload the vehicle's electrical system.
Related information
• Fuses (p. 130)
• Fuses in the trunk (p. 139)
• Fuses in the engine compartment (p. 131)
• Fuses in the passenger compartment (p. 135)

FUSES
}}
131
Fuses in the engine compartment
The fuses in the engine compartment help pro- tect electrical components such as engine andbrake functions.

||
FUSES
132
There is a fuse removal tool on the inside of the fuse box cover. There are also positions in thefuse box for several extra fuses.PositionsThere is a decal on the inside of the cover with alist of fuses.

FUSES
}}
* Option/accessory.133
•
Fuses 1–13, 18–30, 35–37 and 46–54 are called "Micro".
• Fuses 31–34 and 38–45 are called "MCase"and should only be replaced by a trained andqualified Volvo service technician.
Function
A
– –
– –
– –
Ignition coils, spark plugs 15
Oil pump solenoid Electromag- netic relay A/C, Center oxygensensor15
Vacuum regulators, Valve 7.5
Engine control module, Actuator, throttle unit, Turbocharger valve
20
Engine control module 5
– –
Solenoids, Valve, Coolant ther- mostat10
Spoiler shutter control module, Radiator shutter control module 5
Front/rear oxygen sensors 15
Function
A
Engine control module 20
Starter motor 40
Starter motor Shunt
– –
– –
– –
– –
– –
– –
– –
Front USB socket* 5
12-volt socket in the front tun- nel console 15
12-volt socket on the rear side of the tunnel console15
12-volt socket in the trunk 15
– –
– –
Function
A
– –
– –
Heated windshield*, driver side Shunt
Heated windshield
*, driver side 40
Headlight washers
*25
Windshield washer 25
Transmission control module 15
Horn 20
Alarm siren 5
Brake system control module (valves, parking brake) 40
Windshield wipers 30
– –
Heated windshield
*, passenger
side 40
– –
Brake system control module (ABS pump)
40
– –

||
FUSES
* Option/accessory.
134
Function A
Heated windshield*, passenger
side Shunt
Feed when ignition is switched on to: engine control module,transmission components, elec-trical power steering, centralelectrical module; Brake system control module 5
– –
Passenger side headlight 7.5
– –
– –
Battery connection module 5
Air bags; Occupant Weight Sen- sor (OWS)
5
Driver side headlight 7.5
Accelerator pedal sensor 5
Related information
•
Fuses (p. 130)
• Replacing fuses (p. 130)
