2018 TOYOTA YARIS check engine light

313
4
4-7. Driving tips
Driving
YARIS_HV_OM_Europe_OM52J66E
Winter driving tips
●Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine/power control unit coolant
• Washer fluid
● Have a service technician inspect the condition of the 12-volt bat-
tery.
● Have the vehicle fitted with four snow tires or purchase a set of tire
chains for the front tires.
Ensure that all tires are the specified size and brand, and that chains
match the size of the tires.
Perform the following according to the driving conditions:
● Do not try to forcibly open a window or move a wiper that is frozen.
Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
● Check for and remove any excess ice or snow that may have accu-
mulated on the exterior lights, vehicle’s roof, chassis, around the
tires or on the brakes.
● Remove any snow or mud from the bottom of your shoes before
getting in the vehicle.
Carry out the necessary preparations and inspections before
driving the vehicle in winter. Always drive the vehicle in a man-
ner appropriate to the prevailing weather conditions.
Preparation for winter
Before driving the vehicle

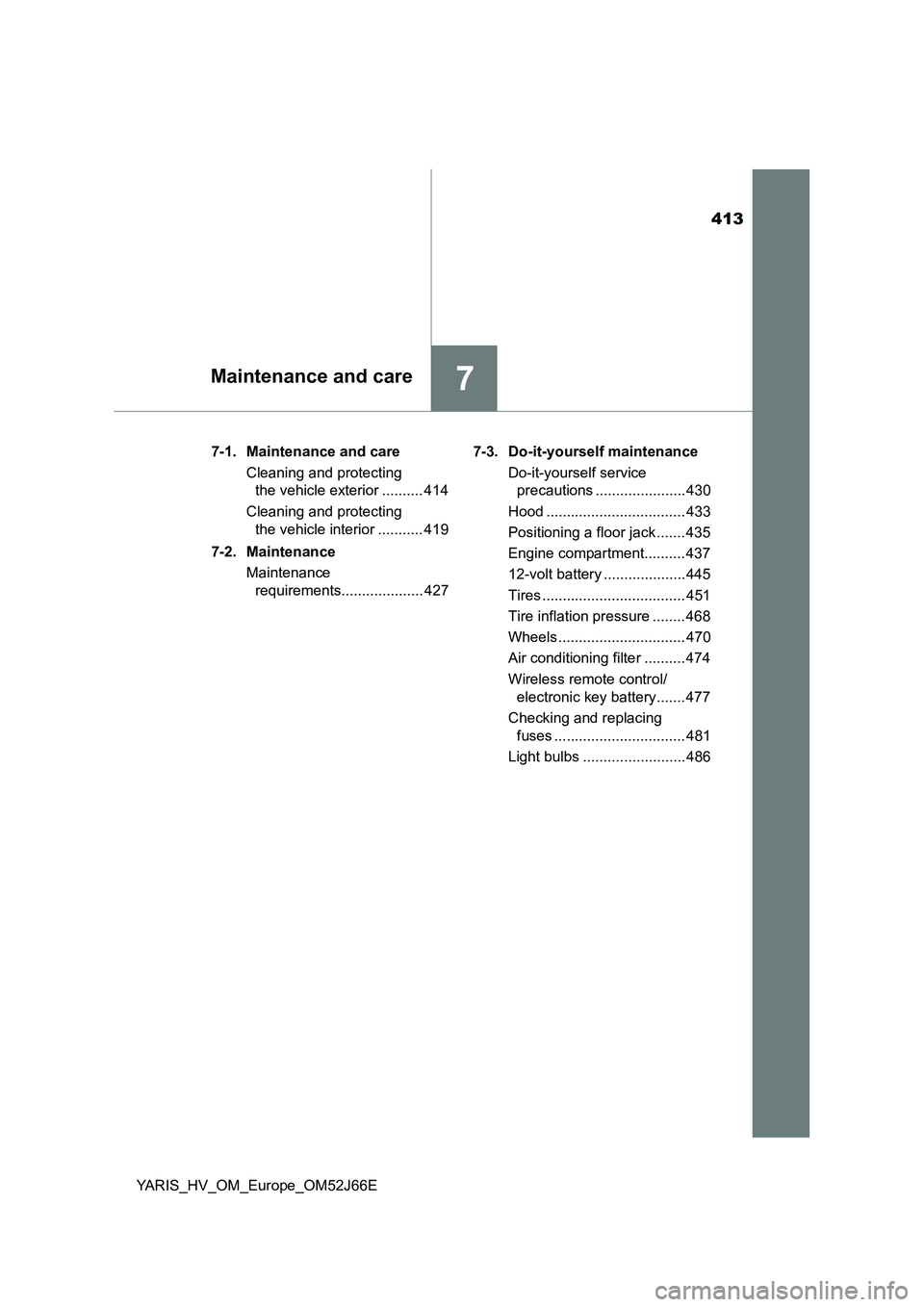

413
7Maintenance and care
YARIS_HV_OM_Europe_OM52J66E
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior .......... 414
Cleaning and protecting
the vehicle interior ........... 419
7-2. Maintenance
Maintenance
requirements.................... 427
7-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ...................... 430
Hood .................................. 433
Positioning a floor jack ....... 435
Engine compartment.......... 437
12-volt battery .................... 445
Tires ................................... 451
Tire inflation pressure ........ 468
Wheels ............................... 470
Air conditioning filter .......... 474
Wireless remote control/
electronic key battery....... 477
Checking and replacing
fuses ................................ 481
Light bulbs ......................... 486

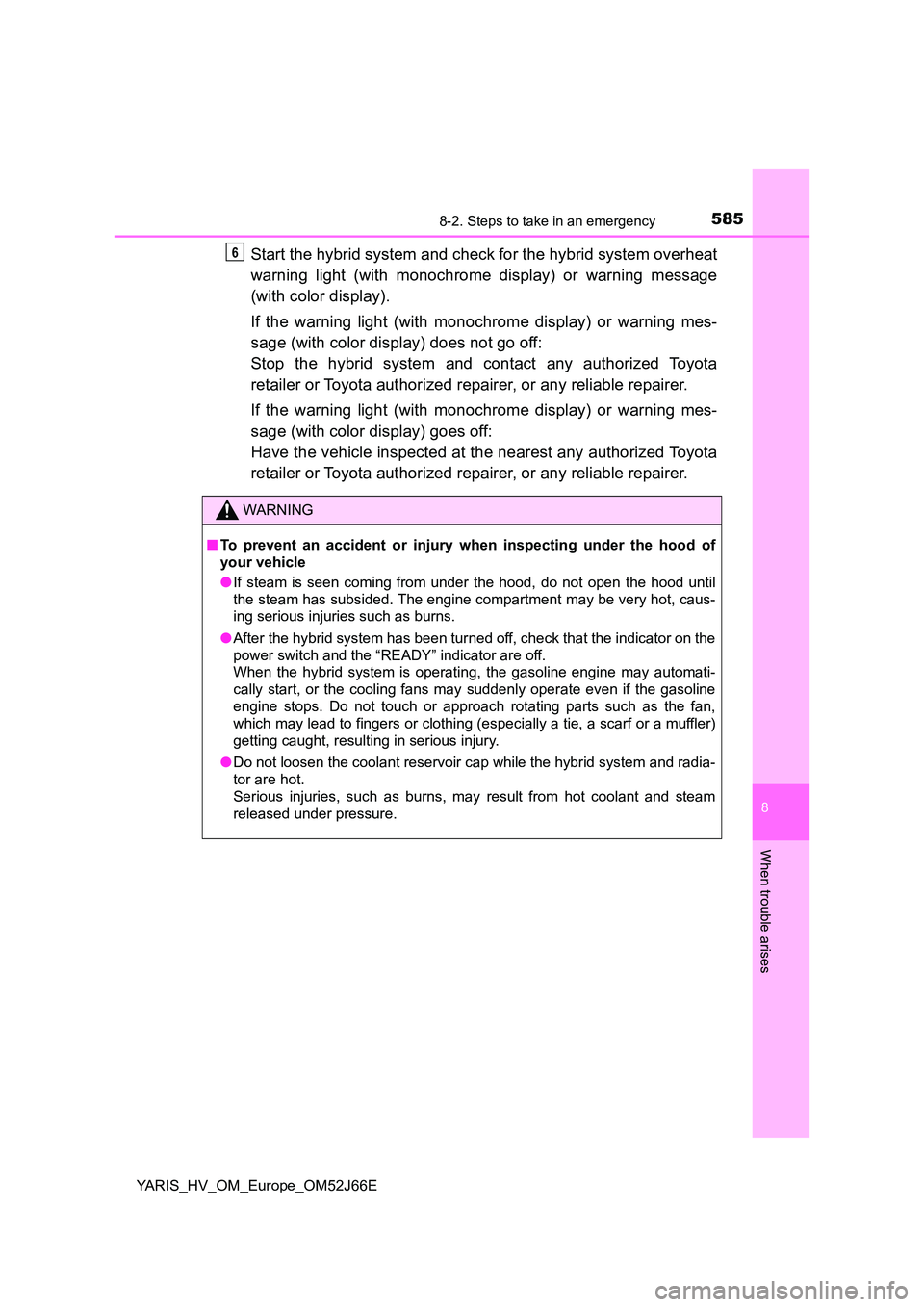

5858-2. Steps to take in an emergency
8
When trouble arises
YARIS_HV_OM_Europe_OM52J66E
Start the hybrid system and check for the hybrid system overheat
warning light (with monochrome display) or warning message
(with color display).
If the warning light (with monochrome display) or warning mes-
sage (with color display) does not go off:
Stop the hybrid system and contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
If the warning light (with monochrome display) or warning mes-
sage (with color display) goes off:
Have the vehicle inspected at the nearest any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
WARNING
■ To prevent an accident or injury when inspecting under the hood of
your vehicle
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot, caus-
ing serious injuries such as burns.
● After the hybrid system has been turned off, check that the indicator on the
power switch and the “READY” indicator are off.
When the hybrid system is operating, the gasoline engine may automati-
cally start, or the cooling fans may suddenly operate even if the gasoline
engine stops. Do not touch or approach rotating parts such as the fan,
which may lead to fingers or clothing (especially a tie, a scarf or a muffler)
getting caught, resulting in serious injury.
● Do not loosen the coolant reservoir cap while the hybrid system and radia-
tor are hot.
Serious injuries, such as burns, may result from hot coolant and steam
released under pressure.
6

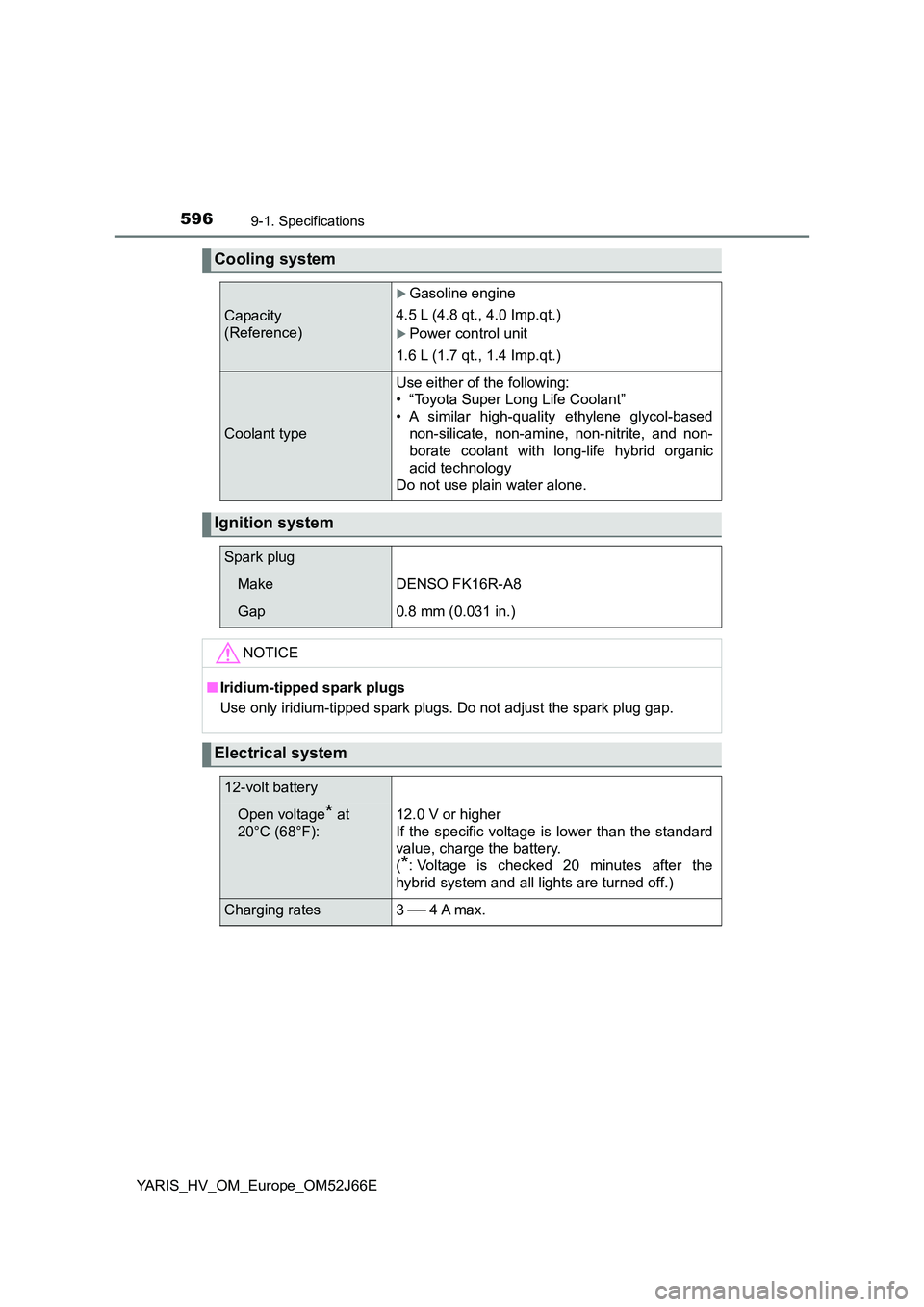

5969-1. Specifications
YARIS_HV_OM_Europe_OM52J66E
Cooling system
Capacity
(Reference)
Gasoline engine
4.5 L (4.8 qt., 4.0 Imp.qt.)
Power control unit
1.6 L (1.7 qt., 1.4 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and non-
borate coolant with long-life hybrid organic
acid technology
Do not use plain water alone.
Ignition system
Spark plug
MakeDENSO FK16R-A8
Gap0.8 mm (0.031 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system
12-volt battery
Open voltage* at
20°C (68°F):
12.0 V or higher
If the specific voltage is lower than the standard
value, charge the battery.
(*: Voltage is checked 20 minutes after the
hybrid system and all lights are turned off.)
Charging rates 3  4 A max.

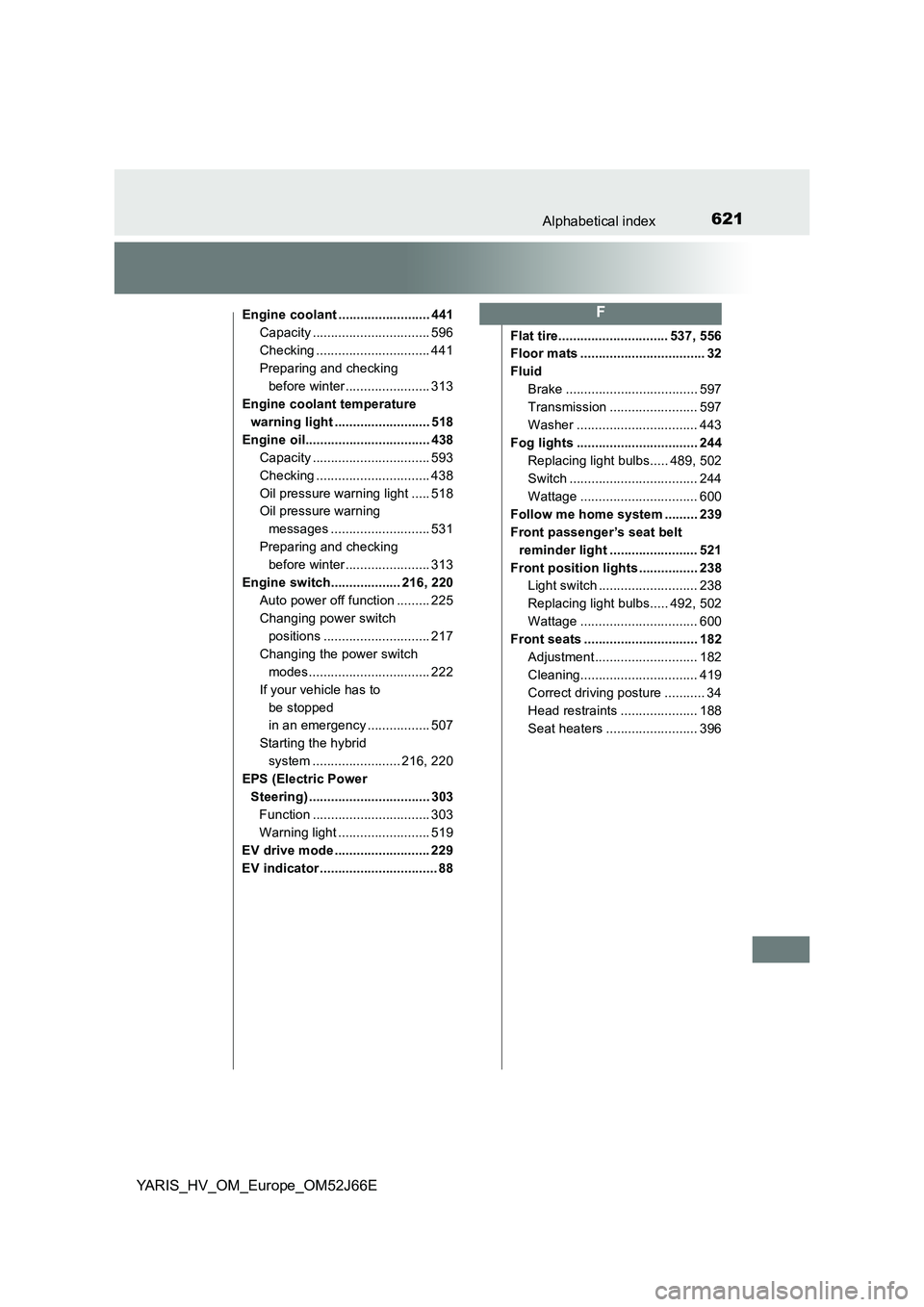

621Alphabetical index
YARIS_HV_OM_Europe_OM52J66E
Engine coolant ......................... 441
Capacity ................................ 596
Checking ............................... 441
Preparing and checking
before winter....................... 313
Engine coolant temperature
warning light .......................... 518
Engine oil.................................. 438
Capacity ................................ 593
Checking ............................... 438
Oil pressure warning light ..... 518
Oil pressure warning
messages ........................... 531
Preparing and checking
before winter....................... 313
Engine switch................... 216, 220
Auto power off function ......... 225
Changing power switch
positions ............................. 217
Changing the power switch
modes................................. 222
If your vehicle has to
be stopped
in an emergency ................. 507
Starting the hybrid
system ........................ 216, 220
EPS (Electric Power
Steering) ................................. 303
Function ................................ 303
Warning light ......................... 519
EV drive mode .......................... 229
EV indicator ................................ 88
Flat tire.............................. 537, 556
Floor mats .................................. 32
Fluid
Brake .................................... 597
Transmission ........................ 597
Washer ................................. 443
Fog lights ................................. 244
Replacing light bulbs..... 489, 502
Switch ................................... 244
Wattage ................................ 600
Follow me home system ......... 239
Front passenger’s seat belt
reminder light ........................ 521
Front position lights ................ 238
Light switch ........................... 238
Replacing light bulbs..... 492, 502
Wattage ................................ 600
Front seats ............................... 182
Adjustment ............................ 182
Cleaning................................ 419
Correct driving posture ........... 34
Head restraints ..................... 188
Seat heaters ......................... 396
F

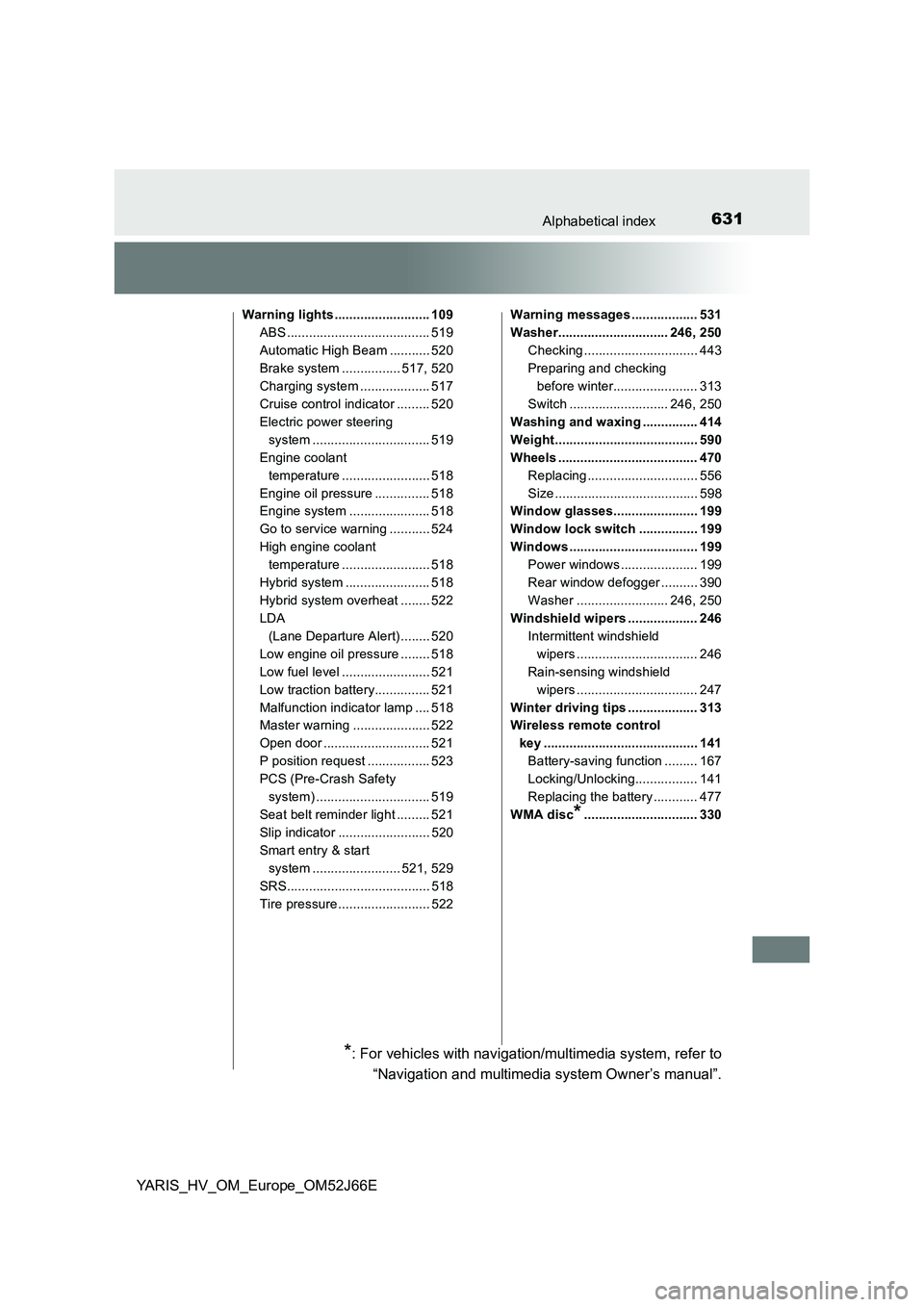

631Alphabetical index
YARIS_HV_OM_Europe_OM52J66E
Warning lights .......................... 109
ABS ....................................... 519
Automatic High Beam ........... 520
Brake system ................ 517, 520
Charging system ................... 517
Cruise control indicator ......... 520
Electric power steering
system ................................ 519
Engine coolant
temperature ........................ 518
Engine oil pressure ............... 518
Engine system ...................... 518
Go to service warning ........... 524
High engine coolant
temperature ........................ 518
Hybrid system ....................... 518
Hybrid system overheat ........ 522
LDA
(Lane Departure Alert) ........ 520
Low engine oil pressure ........ 518
Low fuel level ........................ 521
Low traction battery............... 521
Malfunction indicator lamp .... 518
Master warning ..................... 522
Open door ............................. 521
P position request ................. 523
PCS (Pre-Crash Safety
system) ............................... 519
Seat belt reminder light ......... 521
Slip indicator ......................... 520
Smart entry & start
system ........................ 521, 529
SRS....................................... 518
Tire pressure ......................... 522
Warning messages .................. 531
Washer.............................. 246, 250
Checking ............................... 443
Preparing and checking
before winter....................... 313
Switch ........................... 246, 250
Washing and waxing ............... 414
Weight....................................... 590
Wheels ...................................... 470
Replacing .............................. 556
Size ....................................... 598
Window glasses....................... 199
Window lock switch ................ 199
Windows ................................... 199
Power windows ..................... 199
Rear window defogger .......... 390
Washer ......................... 246, 250
Windshield wipers ................... 246
Intermittent windshield
wipers ................................. 246
Rain-sensing windshield
wipers ................................. 247
Winter driving tips ................... 313
Wireless remote control
key .......................................... 141
Battery-saving function ......... 167
Locking/Unlocking................. 141
Replacing the battery ............ 477
WMA disc*............................... 330
*: For vehicles with navigation/multimedia system, refer to
“Navigation and multimedia system Owner’s manual”.
