2018 TOYOTA SIENNA ESP

SIENNA_AAS_OM08023U_(U)
Pictorial indexSearch by illustration
1AUTO
ACCESS SEATInformation regarding the AUTO ACCESS SEAT,
including usage procedure
2MaintenanceChecking fuses and replacing the battery of the
wireless remote control
3When trouble
arisesPoints to check when you think a malfunction has
occurred
IndexAlphabetical listing of information contained in this
manual
This manual contains information about the AUTO
ACCESS SEAT. Refer to the “OWNER’S MANUAL” for
other information regarding your vehicle.

171-1. AUTO ACCESS SEAT
SIENNA_AAS_OM08023U_(U)
1
AUTO ACCESS SEAT
■Operating conditions
●The effective range of the wireless remote control changes in accordance
with surroundings.
● Interference from other radio wave s may cause the AUTO ACCESS SEAT
to stop moving temporarily even when pressing the wireless remote control
switches. In this event, do the following:
• Stand in a different place and press the switch. Press the switch once again after moving. The AUTO ACCESS SEAT will
not operate if you hold the switch down while changing position.
• Operate the seat raise/lower switch (→P. 34)
■ Battery
●The lifespan of the battery is about 6 months, but this may change in accor-
dance with usage.
● If the battery is discharged, the AUTO ACCESS SEAT may not operate
even if the wireless remote control is operated or the indicator light will stop
flashing. In these events, replace the battery with a new one. ( →P. 40)
■ When riding in an aircraft
When bringing a wireless remote control onto an aircraft, make sure you do\
not press any buttons on the wireless remote control while inside the aircraft
cabin. If you are carrying the wireless remote control in your bag etc., ensure
that the buttons are not likely to be pressed accidentally. Pressing a button
may cause the wireless remote control to emit radio waves that could inter-
fere with the operation of the aircraft.

181-1. AUTO ACCESS SEAT
SIENNA_AAS_OM08023U_(U)■
Conditions affecting operation
If you use the wireless remote control to operate the AUTO ACCESS SEAT at
the same time as doing any of the following, the AUTO ACCESS SEAT may
not operate properly:
●Operating the AUTO ACCESS SEAT using another wireless remote control
● Operating the AUTO ACCESS SEAT using the seat raise/lower switch
● Using the smart key system
● Unlocking and locking the doors using the wireless remote control
■ When replacing either the transmitter or the receiver of the wireless
remote control
It is necessary to replace both the transmitter and the receiver. Contact your
Toyota dealer.
■ Certification for the wi reless remote control
U.S.A.
FCC ID: HYQ12BDF
FCC ID: HYQ13BDH
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.

221-2. Operating the AUTO ACCESS SEAT
SIENNA_AAS_OM08023U_(U)

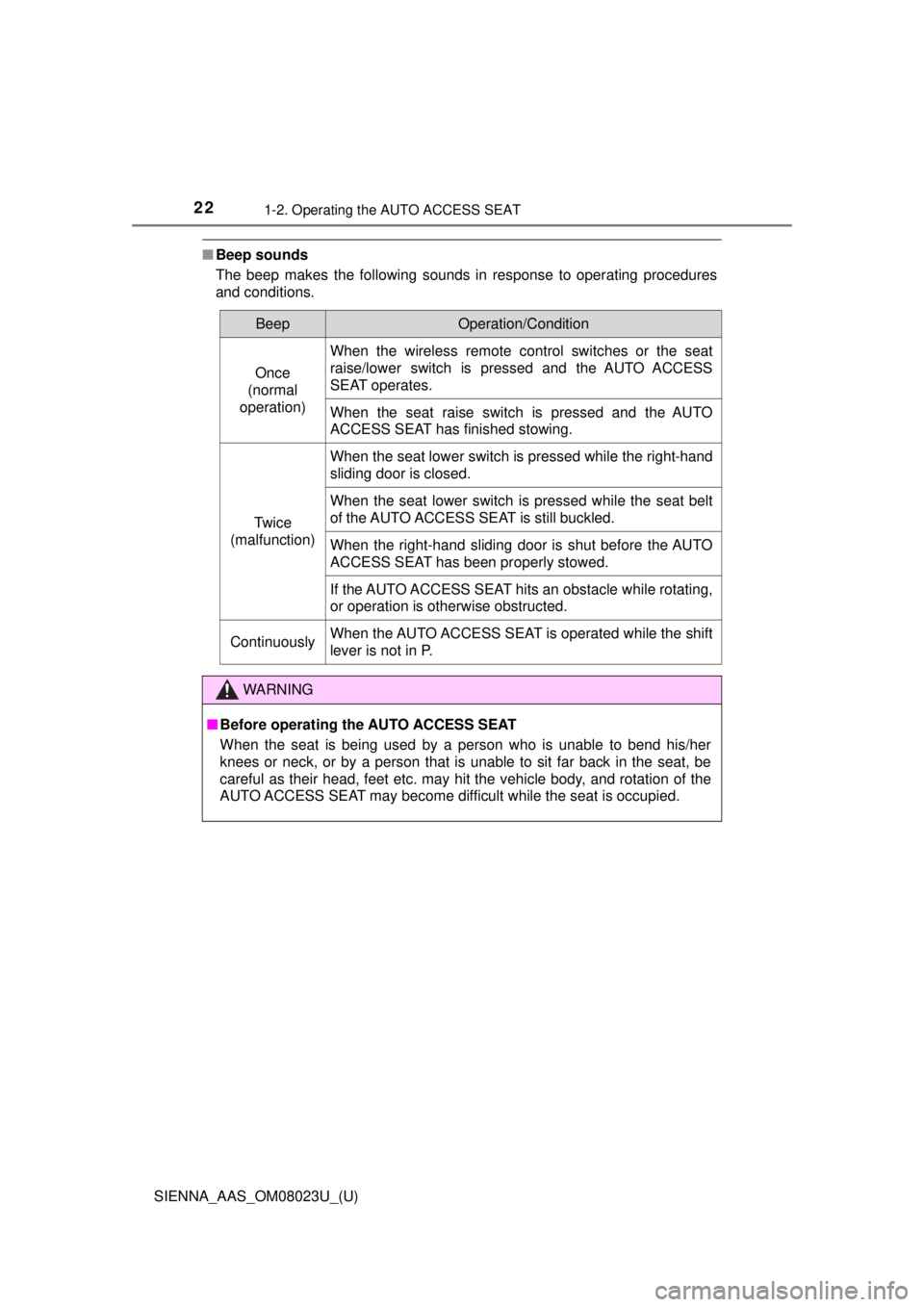

■Beep sounds
The beep makes the following sounds in response to operating procedures
and conditions.
BeepOperation/Condition
Once
(normal
operation)
When the wireless remote control switches or the seat
raise/lower switch is pressed and the AUTO ACCESS
SEAT operates.
When the seat raise switch is pressed and the AUTO
ACCESS SEAT has finished stowing.
Tw i c e
(malfunction)
When the seat lower switch is pressed while the right-hand
sliding door is closed.
When the seat lower switch is pressed while the seat belt
of the AUTO ACCESS SEAT is still buckled.
When the right-hand sliding door is shut before the AUTO
ACCESS SEAT has been properly stowed.
If the AUTO ACCESS SEAT hits an obstacle while rotating,
or operation is otherwise obstructed.
ContinuouslyWhen the AUTO ACCESS SEAT is operated while the shift
lever is not in P.
WARNING
■ Before operating the AUTO ACCESS SEAT
When the seat is being used by a person who is unable to bend his/her
knees or neck, or by a person that is unable to sit far back in the seat, be
careful as their head, feet etc. may hit the vehicle body, and rotation of the
AUTO ACCESS SEAT may become difficult while the seat is occupied.

291-2. Operating the AUTO ACCESS SEAT
SIENNA_AAS_OM08023U_(U)
1
AUTO ACCESS SEAT
WARNING
■Before moving the AUTO ACCE SS SEAT outside the vehicle
● Check that the right-hand third seat occupant is safe.
NOTICE
■To prevent AUTO ACCESS SEAT damage
● Press and hold the wireless remote control switches, instead of pressing
them repeatedly.
● Wait for approximately 1 second before changing to another switch.
● Do not leave the AUTO ACCESS SEAT outside the vehicle.
The seat may deform, freeze or rust, especially if left out in the sun, \
rain or
cold.
●Do not try to close the right-hand sliding
door while operating the AUTO
ACCESS SEAT. Otherwise, the hands
or feet of the occupant may hit the door,
possibly causing injuries.
