2018 TOYOTA PRIUS V Owners Manual

5038-2. Steps to take in an emergency
PRIUS v_OM_OM47B78U_(U)
8
When trouble arises
Once
Sounds
once for
5
seconds
• An attempt was made to lockthe doors using the smart key
system while the electronic
key was still inside the vehi-
cle.
• An attempt was made to lock either front door by opening a
door and putting the inside
lock button into the lock posi-
tion, then closing the door
with the electronic key still
inside the vehicle.
 Retrieve the electronic key
from the vehicle and lock
the doors again.
Once
• When the doors were
unlocked with the mechanical
key and then the power
switch was pressed, the elec-
tronic key could not be
detected in the vehicle.
• The electronic key could not
be detected in the vehicle
even after the power switch
was pressed two consecu-
tive times.
 Touch the electronic key to
the power switch while
depressing the brake
pedal.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)

5048-2. Steps to take in an emergency
PRIUS v_OM_OM47B78U_(U)
Once
The driver’s door was opened
and closed with the power
switch turned off and then the
power switch was put in
ACCESSORY mode twice with-
out the hybrid system being
started.
Press the power switch
while depressing the brake
pedal.
During a hybrid system starting
procedure in the event that the
electronic key was not function-
ing properly ( P. 521), the
power switch was touched with
the electronic key.
 Press the power switch
within 10 seconds of the
buzzer sounding.
Once
An attempt was made to start
the hybrid system with the shift
position in N.
Shift the shift position to P
and start the hybrid sys-
tem.
Once
The electronic key has a low
battery.
Replace the electronic key
battery. ( P. 449)
Once
Indicates a malfunction in the
smart key system
Have the vehicle inspected
by your Toyota dealer.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)

5058-2. Steps to take in an emergency
PRIUS v_OM_OM47B78U_(U)
8
When trouble arises
■Warning messages
P. 500
■ Warning buzzer
P. 483

506
PRIUS v_OM_OM47B78U_(U)
8-2. Steps to take in an emergency
If you have a flat tire
●Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift position to P.
● Stop the hybrid system.
● Turn on the emergency flashers. ( P. 470)
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: P. 4 3 1
WARNING
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Before jacking up the vehicle

5078-2. Steps to take in an emergency
PRIUS v_OM_OM47B78U_(U)
8
When trouble arises

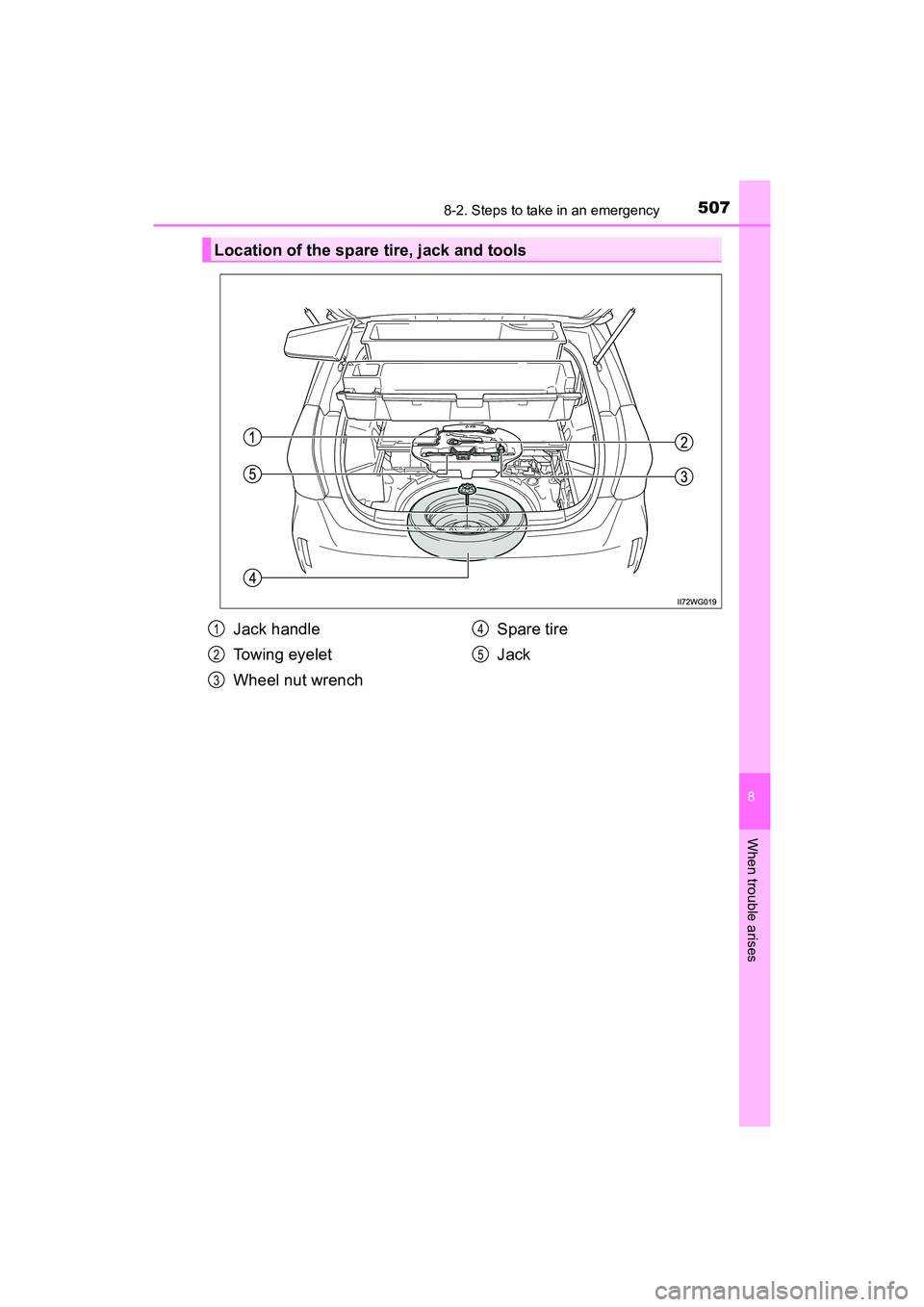

Location of the spare tire, jack and tools
Jack handle
Towing eyelet
Wheel nut wrenchSpare tire
Jack1
2
3
4
5

5088-2. Steps to take in an emergency
PRIUS v_OM_OM47B78U_(U)
WARNING
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to death or serious injury.
●Do not use the tire jack for any purpose other than replacing tires or
installing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat
tire.
Do not use it on other vehicles, and do not use other tire jacks for
replacing tires on this vehicle.
●Put the jack properly in its jack point.
●Do not put any part of your body under the vehicle while it is supported
by the jack.
●Do not start the hybrid system or drive the vehicle while the vehicle is
supported by the jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to
replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●When lowering the vehicle, make sure that there is no-one near the
vehicle. If there are people nearby, warn them vocally before lowering.

5098-2. Steps to take in an emergency
PRIUS v_OM_OM47B78U_(U)
8
When trouble arises
Open the deck board and move
it toward the front of the vehicle.
Remove the left side deck
board and then remove the
center auxiliary boxes.
Take out the jack.
Taking out the jack
1
2
3

5108-2. Steps to take in an emergency
PRIUS v_OM_OM47B78U_(U)
Remove the deck boards and center auxiliary boxes. (P. 509)
Unload the tool holder from the
vehicle and loosen the center
fastener that secures the spare
tire.

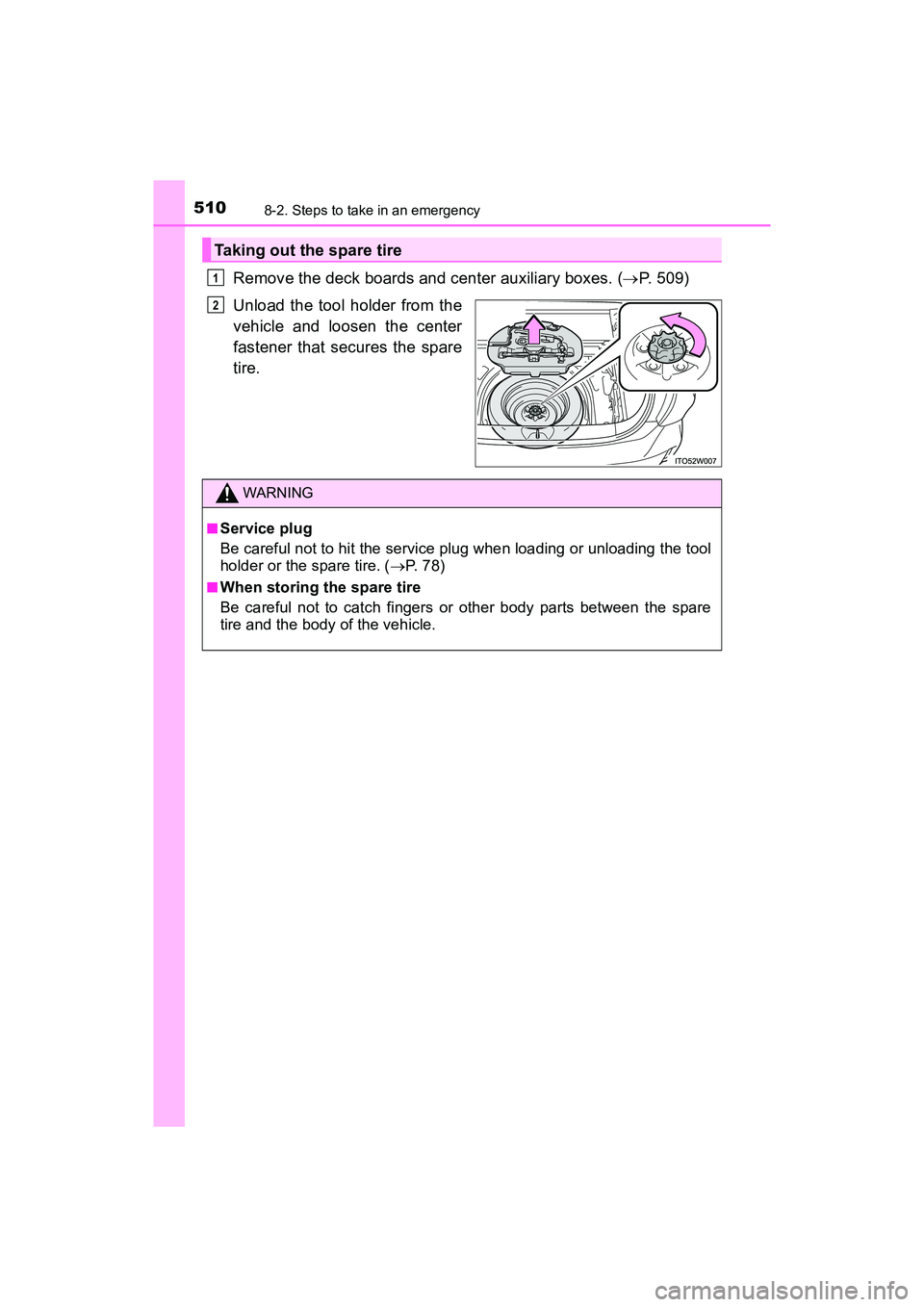

Taking out the spare tire
1
2
WARNING
■Service plug
Be careful not to hit the service plug when loading or unloading the tool
holder or the spare tire. ( P. 7 8 )
■When storing the spare tire
Be careful not to catch fingers or other body parts between the spare
tire and the body of the vehicle.
