952. Instrument cluster
2
Instrument cluster
Clock
Show the current time on the display.
Driving assist system information
The information related to driving assist systems such as the LDA
(Lane Departure Alert with steering control) and dynamic radar cruise
control is displayed. (P. 217, 227)
Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. ( P. 487)
Settings display
Select to change the meter display settings. ( P. 559)

96
PRIUS v_OM_OM47B78U_(U)
2. Instrument cluster
Items displayed can be switched by pressing or of the meter
control switches to select and pressing or .
■Energy monitor
The current vehicle hybrid system condition is displayed. (P. 97)
■Hybrid System Indicator
The hybrid system power output and regenerative charging condi-
tions are displayed. ( P. 9 9 )
■Eco score/Hybrid System Indicator
The eco-driving total count is displayed. ( P. 9 9 )
■Fuel consumption and instantaneous fuel consumption per
minute
The fuel consumption and instantaneous fuel consumption per min-
ute is displayed. ( P. 9 9 )
■Distance to empty/Average vehicle speed after hybrid system
started/Average fuel consumption after hybrid system started
The possible driving range estimated from the remaining fuel
amount, average vehicle speed after the hybrid system is started,
and average fuel consumption are displayed. ( P. 100)
■LDA (Lane Departure Alert with steering control) vehicle sway
warning
Detects the sway of the vehicle within a lane, which is often associ-
ated with a decrease in the driver’s attention level, and displays the
decrease in attention using a bar display.
The shorter the bar length, the more the driver may need to rest.
This display is a part of the LDA (Lane Departure Alert with steering
control) system. The display is enabled when the operating conditions
of the vehicle sway warning function are met. (
P. 217)
■
OFF display
The OFF display is displayed.
Drive information

PRIUS v_OM_OM47B78U_(U)
972. Instrument cluster
2
Instrument cluster
How to read the energy monitor
Energy monitor
When the vehicle is powered by
the electric motor (traction
motor)
When the vehicle is powered by
both the gasoline engine and
the electric motor (traction
motor)
When the vehicle is powered by
the gasoline engine

98
PRIUS v_OM_OM47B78U_(U)
2. Instrument cluster
These images are examples only, and may vary slightly from actual
conditions.
When the vehicle is charging
the hybrid battery (traction bat-
tery)
When there is no energy flow
Hybrid battery (traction battery)
status
Energy monitor
LowFull

PRIUS v_OM_OM47B78U_(U)
992. Instrument cluster
2
Instrument cluster
Hybrid System Indicator displays the hybrid system power output and
regenerative charging and provides Eco-friendly driving assistance in
accordance with the driving conditions and the acceleration.
■Names and meaning of each iconsEV indicator
The EV indicator comes on
when the vehicle is driven using
only the electric motor (traction
motor) or the gasoline engine is
stopped.
Hybrid System Indicator
P. 101
Displays the eco-driving total count to help improve the customer’s
eco-driving techniques and the vehicle’s fuel economy. Score
Totals the counts of Eco-Start, Eco-
Cruise and Eco-Stop and displays
the result.
Eco-Start
Eco-Cruise
Eco-Stop
Fuel consumption in the past 10
minutes
Current fuel consumption
Regenerated energy in the past
10 minutes
One symbol indicates 30 Wh.
Up to 10 symbols are shown.
How to read the Hybrid System Indicator
1
2
How to read the Eco score
1
2
3
4
How to read the fuel consumption and instantaneous fuel con-
sumption per minute
1
2
3

100
PRIUS v_OM_OM47B78U_(U)
2. Instrument cluster
Distance to empty
• Since it is calculated based onthe average fuel consumption in
the past, it may not be the actual
distance that can be driven to be
displayed.
• When only a small amount of
fuel is added to the tank, the dis-
play may not be updated. When
refueling, turn the power switch
off. If the vehicle is refueled
without turning the power switch
off, the display may not be
updated.
Average vehicle speed after hybrid system started
Average fuel consumption after hybrid system started
• Use the displayed average fuel consumption as a reference.
• These images are examples only, and may vary slightly from actual con-ditions.

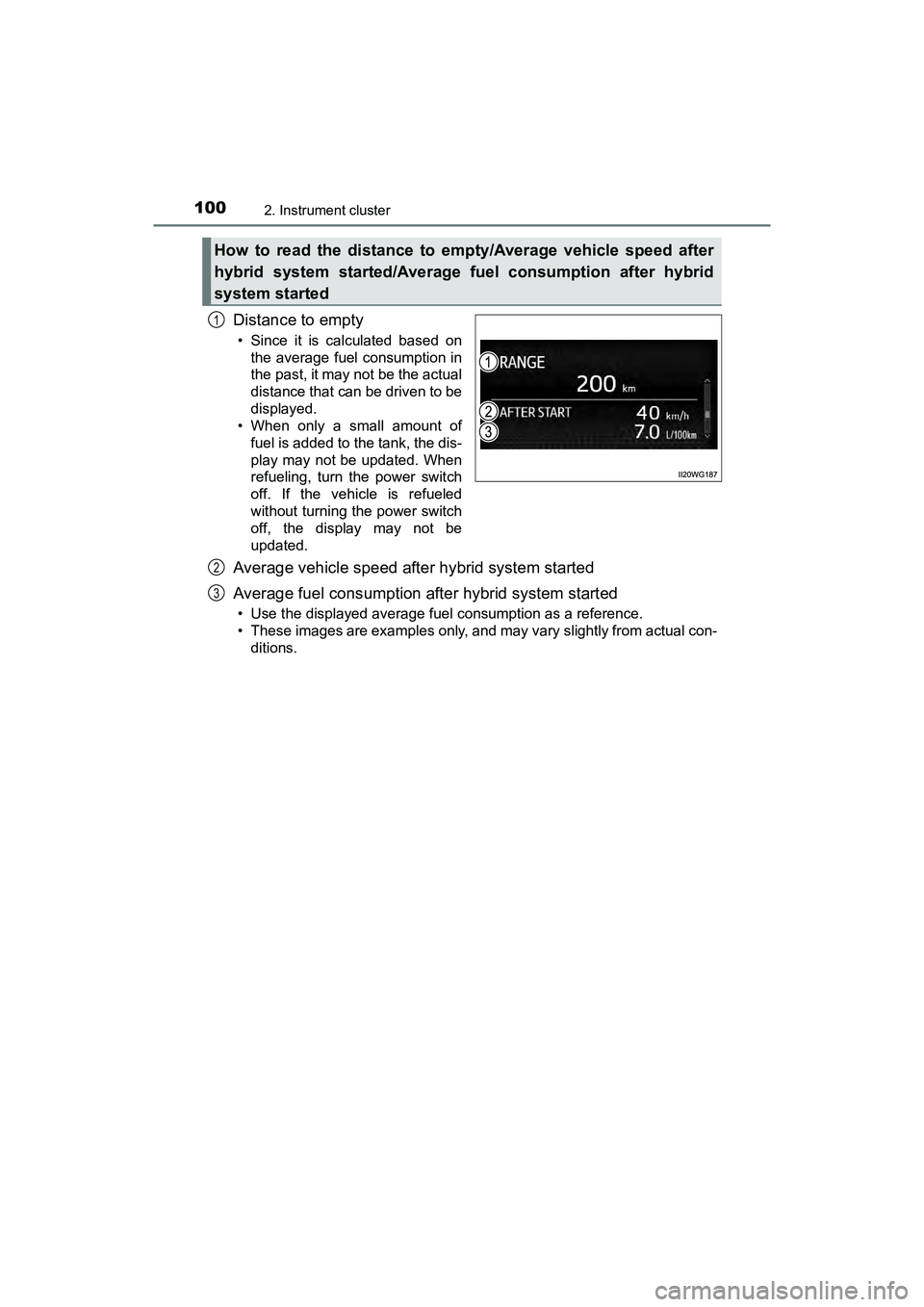

How to read the distance to empty/Average vehicle speed after
hybrid system started/Average fuel consumption after hybrid
system started
1
2
3

PRIUS v_OM_OM47B78U_(U)
1012. Instrument cluster
2
Instrument cluster
■System check display
After turning the power switch to ON mode, opening image is displayed while
system operation is checked. When the system check is complete, the nor-
mal screen will return.
■ Pop-up display
When a system that supports pop-up displays, such as the air conditioning
system, is operated, a pop-up display will be temporarily displayed.
■ When disconnecting and reconnect ing 12-volt battery terminals
The fuel consumption display and average vehicle speed will be reset.
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
■ Hybrid System Indicator
Power area
Shows that an Eco-friendly drivi ng range is being exceeded (during full
power driving etc.)
● By keeping the indicator within Eco area, more Eco-friendly driving can be
achieved.
● Charge area indicates regeneration
* status. Regenerated energy will be
used to charge the hybrid battery (traction battery).
*: When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical energy. Charge area
Shows that energy is being recovered
via the regenerative brake.
Eco area
Shows that the vehicle is being driven in
an Eco-friendly manner.
Hybrid Eco area
Shows that gasoline engine power is
not being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.
1
2
3
4

102
PRIUS v_OM_OM47B78U_(U)
2. Instrument cluster
■Meter display setting initialization
Press or on the meter control switch to select , and then
press .
Press or to select meter setting initialization, press , and then
select “YES”.
■ Customization
The meter settings can be changed. (Customizable features: P. 559)
WARNING
■Caution for use while driving
●When operating the multi-information display while driving, pay extra
attention to the safety of the area around the vehicle.
● Do not look continuously at the multi-information display while driving as
you may fail to see pedestrians, objects on the road, etc. ahead of the
vehicle.
NOTICE
■The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
1
2
