2018 TOYOTA HIGHLANDER Owners Manual (in English)

23
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
For more information, refer to the “Navigation System Owner’s Manual” and “2018
Entune™ Audio Quick Reference Guide.”
Seek station/
CD track select Eject CD
Push to turn
ON/OFFTurn to tune
radio stations
manually or
select tracks or
files
Access
hands-free
system
*
The Entune App Suite may not be pre-installed in your vehicle. In order to activate the Entune App
Suite, download and launch the Entune app on your smartphone, connect the phone to the vehicle via
Bluetooth®, and open the Entune™ App on the phone and sign in. Press the “Apps” button on the audio
unit and accept the prompt to update the Apps. The download process will take up to 15 minutes, and
when it is complete, follow the on-screen prompts to complete installation. Once the update is complete,
the available Apps will be listed on the Apps menu screen.
**
LE models have “SETUP” button while LE Plus models have “APPS” button. SETUP/APPS Button**
Access to Setup or
Apps screen.
APPS Button
Access to Entune
® App Suite, sports, stocks, news,
TRAFlCWEATHERANDDRIVEREASYSPEAK
HOME SCREEN - the home screen offers a two
panel and a three panel layout. Information and
layout will vary depending on selected set up.Map card
insert
AUDIO Button
Access to audio
functions.
AUDIO Button
Access to audio
functions. HOME/CAR Button
Access to home or
vehicle information
screen.
HOME/CAR Button
Access to home or
vehicle information
screen.
ENTUNE™ AUDIO AND ENTUNE™ AUDIO PLUS WITH CONNECTED
NAVIGATION APP*
ENTUNE PREMIUM (JBL®) AUDIO WITH INTEGRATED NAVIGATION
AND APP SUITE* Limited models may be equipped with the JBL upgrade in this unit.
Audio

24
FEATURES & OPERATIONS
Rear windshield
airflow/defogger and
side mirror defogger Front windshield
airflow/defogger
Front windshield
airflow/defogger“SYNC” button*
Fan OFFTemperature selector dial Automatic climate control ON
Adjusting the temperature setting
will cause the airflow vents,
air intake and fan to adjust
automatically.
*Indicator ON: Synchronize temperature settings for driver and all passengers.
Indicator OFF: Separate temperature settings for driver, front passenger and rear
passengers.Air Conditioning ON/OFF
Air Conditioning ON/OFF
Lower airflow mode
Dual airflow mode
Upper airflow mode Recirculate cabin air
(outside air when OFF) Rear windshield airflow/
defogger and side mirror
defogger
Lower airflow mode and
window defoggerRear Air Conditioning ON/OFF
Rear Air Conditioning ON/OFF Temperature selector (rear)
Temperature selector Airflow mode selector Fan speed
Fan speedRecirculate cabin air
(outside air when OFF)
Air conditioning/heating
FRONT AUTOMATIC AIR CONDITIONING (IF EQUIPPED)
FRONT MANUAL AIR CONDITIONING (IF EQUIPPED)

25
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Automatic
Manual
Fan speed
Fan speedFan OFF
Fan OFFAirflow mode selector
Airflow mode selectorAutomatic mode selectorTemperature selector
Temperature selector
REAR AIR CONDITIONING (IF EQUIPPED)

26
FEATURES & OPERATIONS

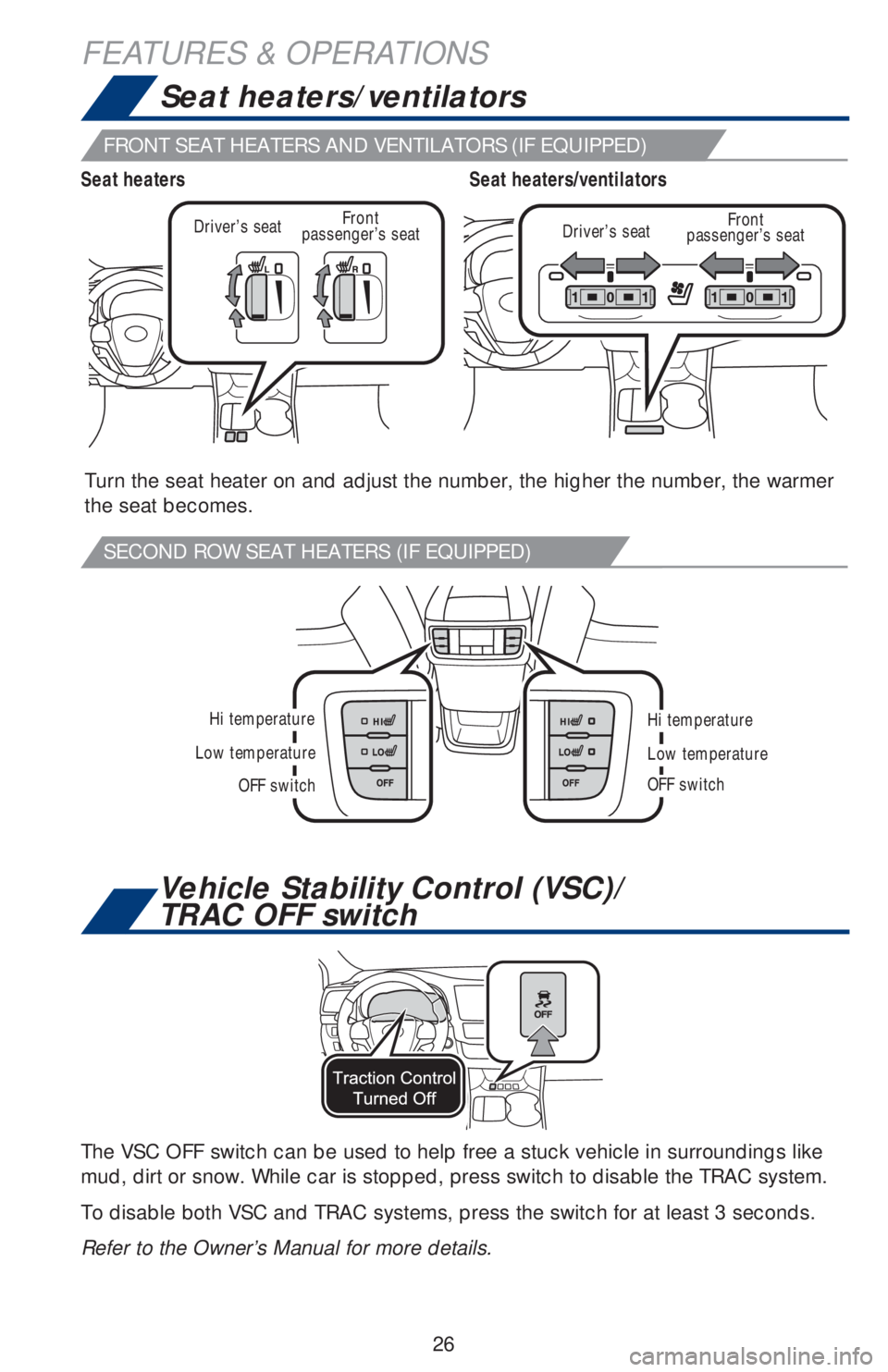

Seat heaters/ventilators
Vehicle Stability Control (VSC)/
TRAC OFF switch
Hi temperature
OFF switch
Low temperature
Hi temperature
OFF switch
Low temperature
Turn the seat heater on and adjust the number, the higher the number, the warmer
the seat becomes.
The VSC OFF switch can be used to help free a stuck vehicle in surroundings like
mud, dirt or snow. While car is stopped, press switch to disable the TRAC system.
To disable both VSC and TRAC systems, press the switch for at least 3 seconds.
Refer to the Owner’s Manual for more details.
Driver’s seatDriver’s seatFront
passenger’s seat Front
passenger’s seat
Seat heaters/ventilators Seat heaters
FRONT SEAT HEATERS AND VENTILATORS (IF EQUIPPED)
SECOND ROW SEAT HEATERS (IF EQUIPPED)

27
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

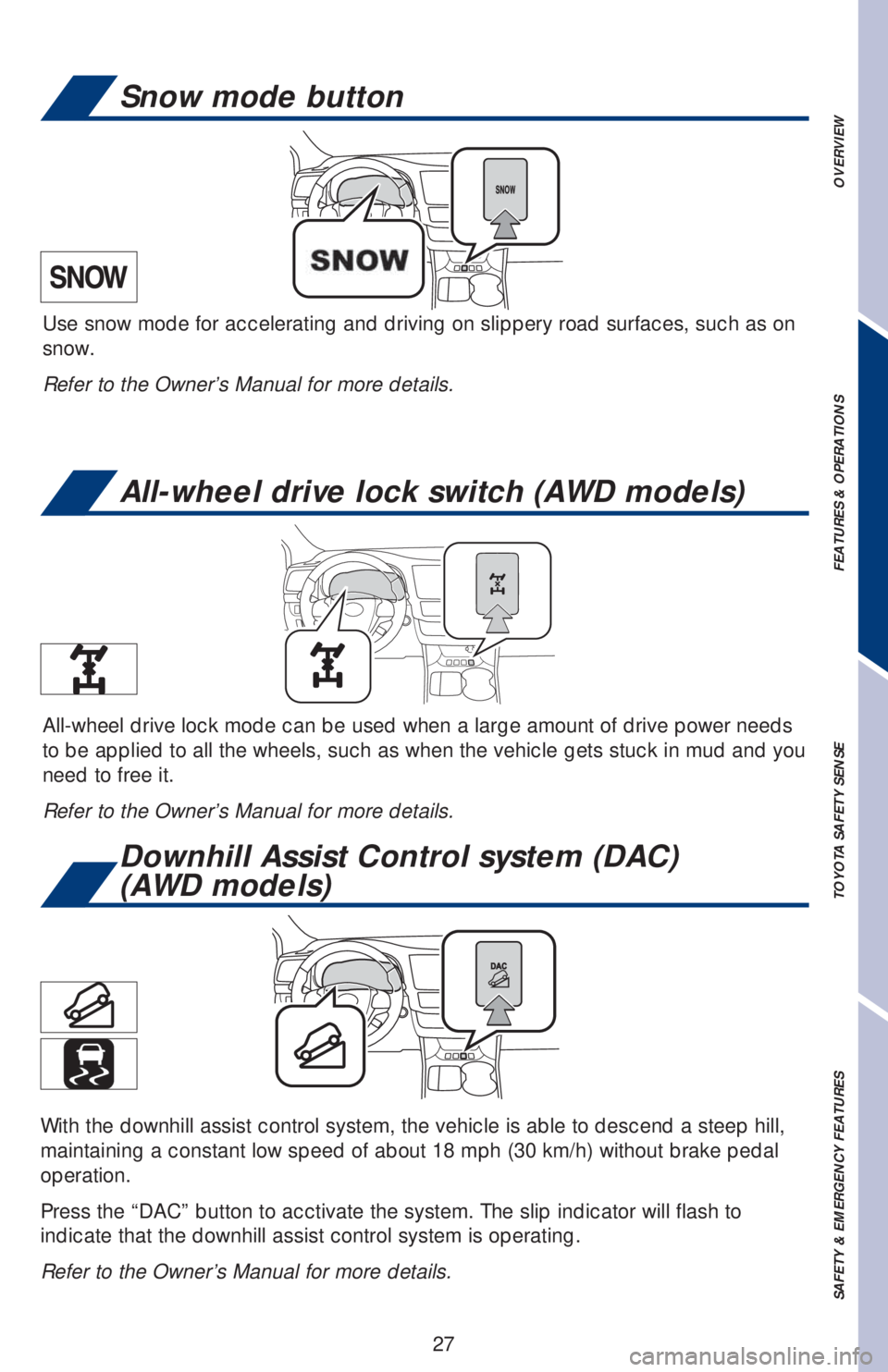

Downhill Assist Control system (DAC)
(AWD models)
All-wheel drive lock switch (AWD models)
Snow mode button
With the downhill assist control system, the vehicle is able to descend a steep hill,
maintaining a constant low speed of about 18 mph (30 km/h) without brake pedal
operation.
Press the “DAC” button to acctivate the system. The slip indicator will flash to
indicate that the downhill assist control system is operating.
Refer to the Owner’s Manual for more details.
Use snow mode for accelerating and driving on slippery road surfaces, such as on
snow.
Refer to the Owner’s Manual for more details.
All-wheel drive lock mode can be used when a large amount of drive power needs
to be applied to all the wheels, such as when the vehicle gets stuck in mud and you
need to free it.
Refer to the Owner’s Manual for more details.

28

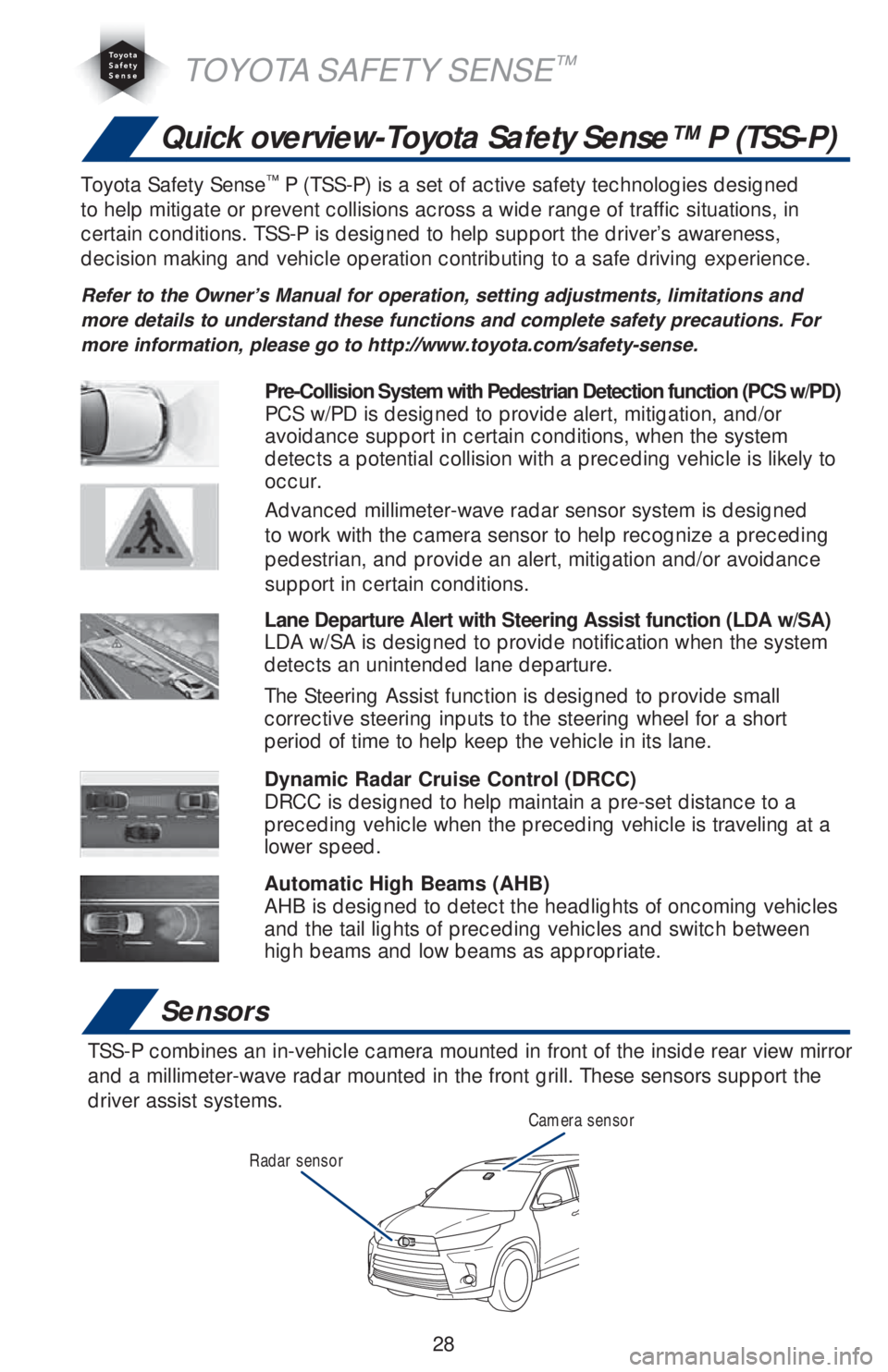

Quick overview-Toyota Safety Sense™ P (TSS-P)
Sensors
TSS-P combines an in-vehicle camera mounted in front of the inside rear view mirror
and a millimeter-wave radar mounted in the front grill. These sensors support the
driver assist systems.
Camera sensor
Radar sensor
TOYOTA SAFETY SENSE™
Toyota Safety Sense™ P (TSS-P) is a set of active safety technologies designed
to help mitigate or prevent collisions across a wide range of traffic situations, in
certain conditions. TSS-P is designed to help support the driver’s awareness,
decision making and vehicle operation contributing to a safe driving experience.
5HIHUWRWKH2ZQHU

29
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
The Pre-Collision System uses a radar sensor and camera sensor to help detect a
vehicle or pedestrian in front of your vehicle.
As there is a limit to the degree of recognition accuracy and control performance
that this system can provide, do not overly rely on this system. This system will not
prevent collisions or lessen collision damage or injury in every situation. Do not use
PCS instead of normal braking operations under any circumstances. Do not attempt
to test the operation of the pre-collision system yourself, as the system may not
operate or engage, possibly leading to an accident. In some situations, such as
when driving in inclement weather such as heavy rain, fog, snow or a sandstorm or
while driving on a curve and for a few seconds after driving on a curve, a vehicle
may not be detected by the radar and camera sensors, preventing the system from
operating or engaging properly.
Refer to a Toyota Owner’s Manual for a list of additional situations in which the
system may not operate properly.
Refer to a Toyota Owner’s Manual for additional information on PCS w/PD operation,
settings adjustments, limitations, and precautions before attempting to use it. Pre-Collision Warning
When the system determines that the possibility of a frontal collision is high, a
buzzer will sound and a warning message will be displayed on the Multi-Information
Display (MID) to urge the driver to take evasive action.
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide additional
braking force using Brake Assist. This system may prime the brakes and may apply
greater braking force in relation to how strongly the brake pedal is depressed.
Pre-Collision Braking
If the driver does not brake in a set time and the system determines that the
possibility of a frontal collision with a preceding vehicle is extremely high, the
system may automatically apply the brakes, reducing speed in order to help the
driver reduce the impact and in certain cases avoid the collision.
Pre-Collision System with Pedestrian
Detection function (PCS w/PD)

30
TOYOTA SAFETY SENSE™
CHANGING THE PCS ALERT TIMING
FarMiddle
(default)Near
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select from the MID and then press “.”
(3) Select “Sensitivity” and then press “
.”
Each time “
” is pressed, the response to the PCS alert timing changes as shown
above. You can press “
” to go back to the menu.
Note: PCS is enabled each time the engine switch is turned to Ignition On.
The system can be disabled/enabled and the alert timing of the system can be
changed. (Alert timing only, brake operation remains the same).
Monocular camera sensor
Millimeter
wave radar
As part of the Pre-Collision System, this function is also designed to first provide an
alert and then automatic braking if needed.In certain conditions, the PCS system included with the TSS-P package may also
help to detect a pedestrian in front of your vehicle. With Toyota Safety Sense™ P,
PCS uses an in-vehicle camera and front-grill mounted millimeter-wave radar to
help detect a pedestrian in front of your vehicle in certain conditions. The in-vehicle
camera of PCS detects a potential pedestrian based on size, profile, and motion of
the detected pedestrian. However, a pedestrian may not be detected depending
on the conditions, including the surrounding brightness and the motion, posture,
size, and angle of the potential detected pedestrian, preventing the system from
operating or engaging. Refer to a Toyota Owner’s Manual for additional information.
THE PCS WITH PEDESTRIAN DETECTION FUNCTION
