Engine Oil and Oil Filter
Replace the oil filter and drain and refill
the engine oil at specified intervals. For
recommended oil grade and viscosity,
refer to the
Owner’s Manual.
NOTE: Your vehicle is certified with
Genuine Toyota 0W-16/0W-20 motor oil.
For VEHICLES CERTIFIED FOR
0W-16/0W-20 motor oil, the oil change
interval is 10,000 miles or 12 months IF
0W-16/0W-20 MOTOR OIL IS BEING
USED. If 0W-16/0W-20 is not available,
5W-20 mineral oil may be used. However,
it must be replaced at A 5,000 miles or
6 month INTERVAL with
0W-16/0W-20 motor oil.
For customers who primarily drive their
vehicle under any of the listed Special
Operating Conditions, the motor oil and
filter should be replaced at 5,000 miles or
6 months, REGARDLESS OF THE OIL
USED (OR CERTIFICATION OF THE
VEHICLE).
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes, muffler
and hangers for cracks, deterioration and
damage. Start the engine and listen
carefully for any exhaust gas leakage.
Tighten connections or replace parts as
necessary.
Fuel Lines and Connections,
Fuel Tank Band and Fuel Tank
Vapor Vent System Hoses
Visually inspect for corrosion, damage,
cracks, and loose or leaking connections.
Tighten connections or replace parts as
necessary.
Fuel Tank Cap Gasket
Visually inspect for cracks, deterioration
and damage and replace if necessary.
Nuts and Bolts on Chassis and
Body
Re-tighten the seat-mounting bolts and
front/rear suspension member retaining
bolts to specified torque.
Radiator and Condenser
Inspect for debris, corrosion and signs of
damage. Have any problem repaired
immediately by a qualified technician.
Spark Plugs
Replace at specified intervals. Install new
plugs of the same type as originally
equipped. A qualified technician should
perform this operation.
Steering Gear
Inspect for signs of leakage. If you
discover any leakage, have it repaired
immediately by a qualified technician.
Explanation of Maintenance Items
Maintenance Log56
MAINTENANCE

JOBNAME: 2870000-en-2018_C-HR PAGE: 57 SESS: 4 OUTPUT: Mon Jan 16 14:35:15 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2870000-en-2018_C\
-HR.00505-18WMG-CHR_/TS_Warr_Maint_v1
Steering Linkage and Boots
With the vehicle stopped, check for
excessive freeplay in the steering wheel.
Inspect the linkage for bending and
damage and the dust boots for
deterioration, cracks and damage. Replace
any damaged parts. A qualified technician
should perform these operations.
Tire Rotation
Tires should be rotated according to the
instructions in the
Owner’s Manual. When
rotating tires, check for damage and
uneven wear. Replace if necessary.
Vacuum Pump For Brake
Booster
Inspect at specified intervals. A qualified
technician should perform this operation.
Wiper Blades
The wiper blades should not show any
signs of cracking, splitting, wear,
contamination or deformation. The wiper
blades should clear the windshield without
streaking or skipping.
Explanation of Maintenance Items
Maintenance Log57
MAINTENANCE

JOBNAME: 2870000-en-2018_C-HR PAGE: 58 SESS: 4 OUTPUT: Mon Jan 16 14:35:15 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2870000-en-2018_C\
-HR.00505-18WMG-CHR_/TS_Warr_Maint_v1
Model
In-service date
Selling dealership
Key number
Body style
Mileage at delivery
Selling dealership phone number
Vehicle Identification Number
Vehicle Identification
MAINTENANCE
Maintenance Log58

JOBNAME: 2870000-en-2018_C-HR PAGE: 59 SESS: 4 OUTPUT: Mon Jan 16 14:35:15 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2870000-en-2018_C\
-HR.00505-18WMG-CHR_/TS_Warr_Maint_v1
Notes
MAINTENANCE
Maintenance Log59

JOBNAME: 2870000-en-2018_C-HR PAGE: 60 SESS: 4 OUTPUT: Mon Jan 16 14:35:15 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2870000-en-2018_C\
-HR.00505-18WMG-CHR_/TS_Warr_Maint_v1
Notes
MAINTENANCE
Maintenance Log60

JOBNAME: 2870000-en-2018_C-HR PAGE: 61 SESS: 4 OUTPUT: Mon Jan 16 14:35:15 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2870000-en-2018_C\
-HR.00505-18WMG-CHR_/TS_Warr_Maint_v1
Notes
MAINTENANCE
Maintenance Log61

JOBNAME: 2870000-en-2018_C-HR PAGE: 62 SESS: 4 OUTPUT: Mon Jan 16 14:35:15 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2870000-en-2018_C\
-HR.00505-18WMG-CHR_/TS_Warr_Maint_v1

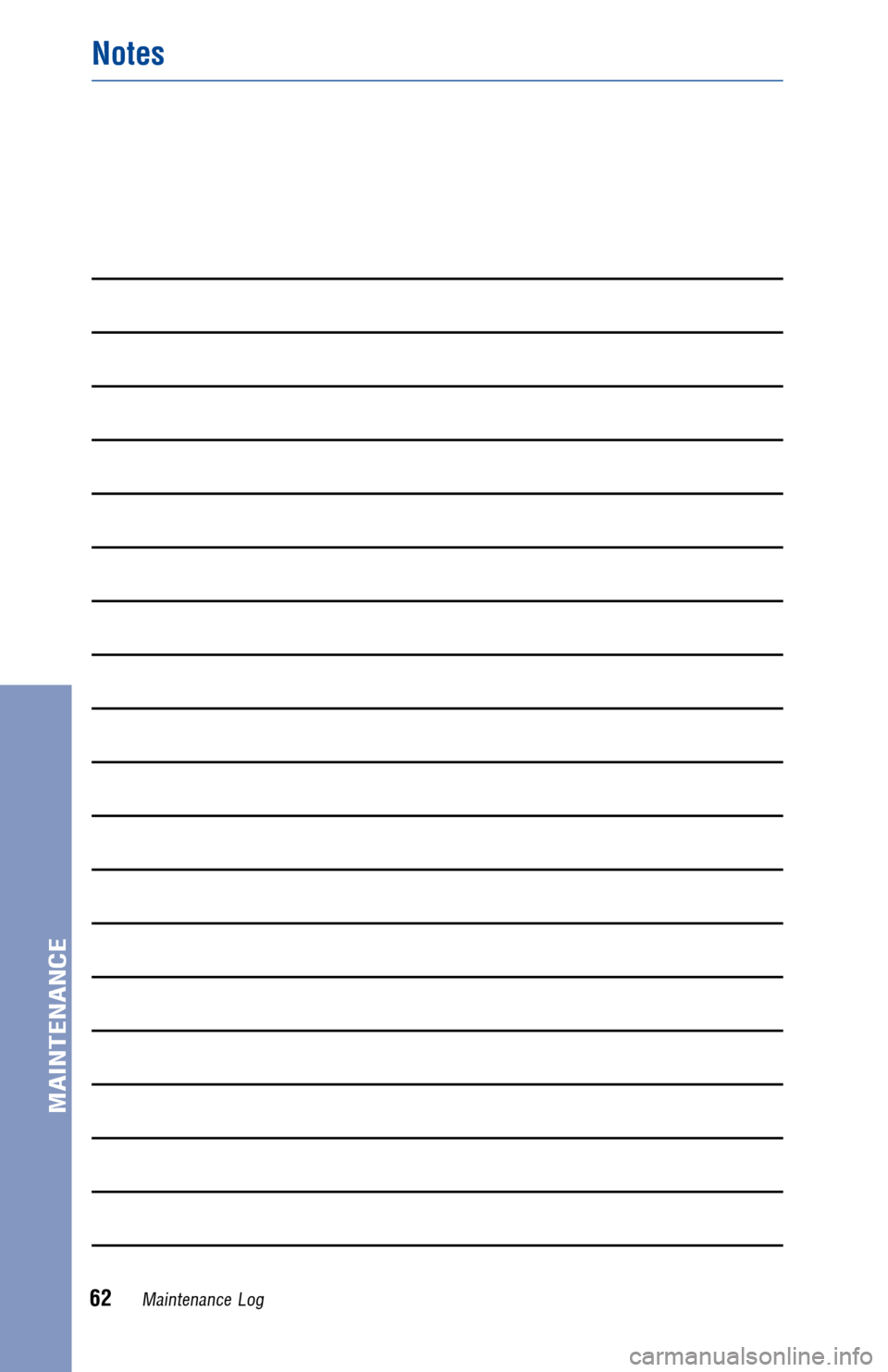

Notes
MAINTENANCE
Maintenance Log62

JOBNAME: 2870000-en-2018_C-HR PAGE: 63 SESS: 4 OUTPUT: Mon Jan 16 14:35:15 2017
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2870000-en-2018_C\
-HR.00505-18WMG-CHR_/TS_Warr_Maint_v1
Notes
MAINTENANCE
Maintenance Log63
