2018 TOYOTA C-HR Quick Reference Guide

C-HR
2018
QUICK REFERENCE GUIDE

C-HR 2018
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and sup-
plementary manuals so you will have a better understanding of
your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
<0036000f0034000f0022000f000d0003002a004f0044000f00030058004a005400490003005a005000560003004e0042004f005a0003005a00460042005300540003005000470003005400420055004a0054006d00460045000300450053004a0057004a00
4f00480003004a004f0003005a0050005600530003004f0046>X
C-HR.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of C-HR operations. Every
C-HR owner should review the Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed
information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of printing.
Toyota reserves the right to make changes at any time without notice.

1
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.
INDEX
Engine maintenance 9
Fuel tank door release & cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1,2 6-7
Light control-Instrument cluster 9
Smart Key system
1,2 7
OVERVIEW
FEATURES & OPERATIONS
Air conditioning/heating 16
Audio 18-22
Auxiliary storage 24
Blind Spot Monitor with Rear Cross
5SBGmD"MFSU #4.X3$5"

Brake hold feature 11
Clock 14
Continuously variable transmission 10
Cup holders-Adjust size 24
Drive modes 15

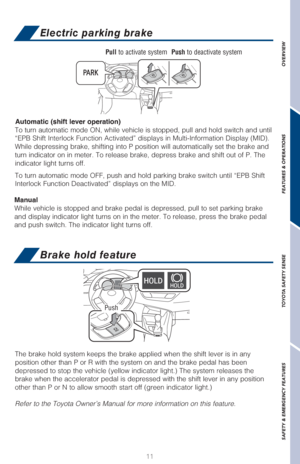

Electric parking brake 11
Lights
1 & turn signals 12
Multi-Information Display (MID)1 15
Power outlet 14
Rear view monitor system 25
Seat adjustments-Front 13
Seat heaters 16
Seats-Folding rear 13
Seats-Head restraints 13
Steering wheel switches &
UFMFQIPOFDPOUSPMT #MVFUPPUI
®

Tilt & telescopic steering wheel 10
TRAC/VSC OFF switch 24
USB/AUX port 25
Windows-Automatic power 14
Windshield wipers & washers 12
SAFETY & EMERGENCY FEATURES TOYOTA SAFETY SENSE™ P (TSS-P)
"VUPNBUJD)JHI#FBNT ")#

Full-Speed Range Dynamic Radar
$SVJTF$POUSPM %3$$

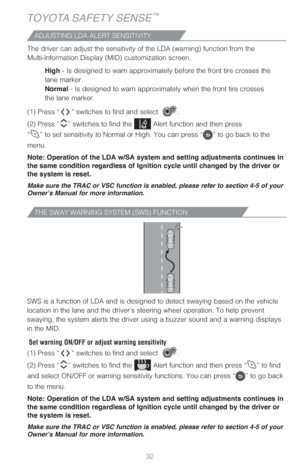

Lane Departure Alert with Steering
"TTJTUGVODUJPO -%"X4"

Pre-Collision System with Pedestrian
%FUFDUJPOGVODUJPO 1$4X1%

Quick overview-
Toyota Safety Sense
™1 5441
26
Sensors 27

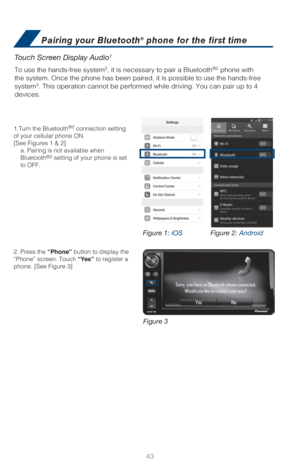

BLUETOOTH® DEVICE
PAIRING SECTION 42-44 Doors-Child safety locks 37
Floor mat installation 41
Seat belts 37
Seat belts-Shoulder belt anchor 37
Spare tire & tools 39
Star Safety System
TM 40-41
Tire Pressure Monitoring
XBSOJOH
4ZTUFN 51.4


2
OVERVIEW
Instrument panel
1
If equipped.
Steering wheel controls
Audio control
switchesMulti-Information
Display (MID) switches
Voice command switchFull-Speed Dynamic Radar
Cruise Control (DRCC) switch
Key ignition
1
Hood lock release leverMulti-Information Display (MID)
Meters Meters
Fog lights
1
Gas tank release
Instrument panel
light control Automatic High Beam
(AHB) controls
Tilt and telescopic steering control leverFull-Speed Dynamic
Radar Cruise Control
(DRCC)
Vehicle-to-vehicle
distance switch Telephone
switches
Lane Departure Alert
with Steering Assist
(LDA w/SA) switch
Headlights, turn signals and
Automatic High Beam (AHB) controls

3
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Air conditioning system and
rear window defoggers
USB/AUX port Windshield wiper and washer switch
Emergency flasher switch
Seat heaters
1
Audio system
Electric parking
brake switch
VSC OFF switch Brake hold switch “ENGINE START STOP” button (Smart Key)
1

4
OVERVIEW

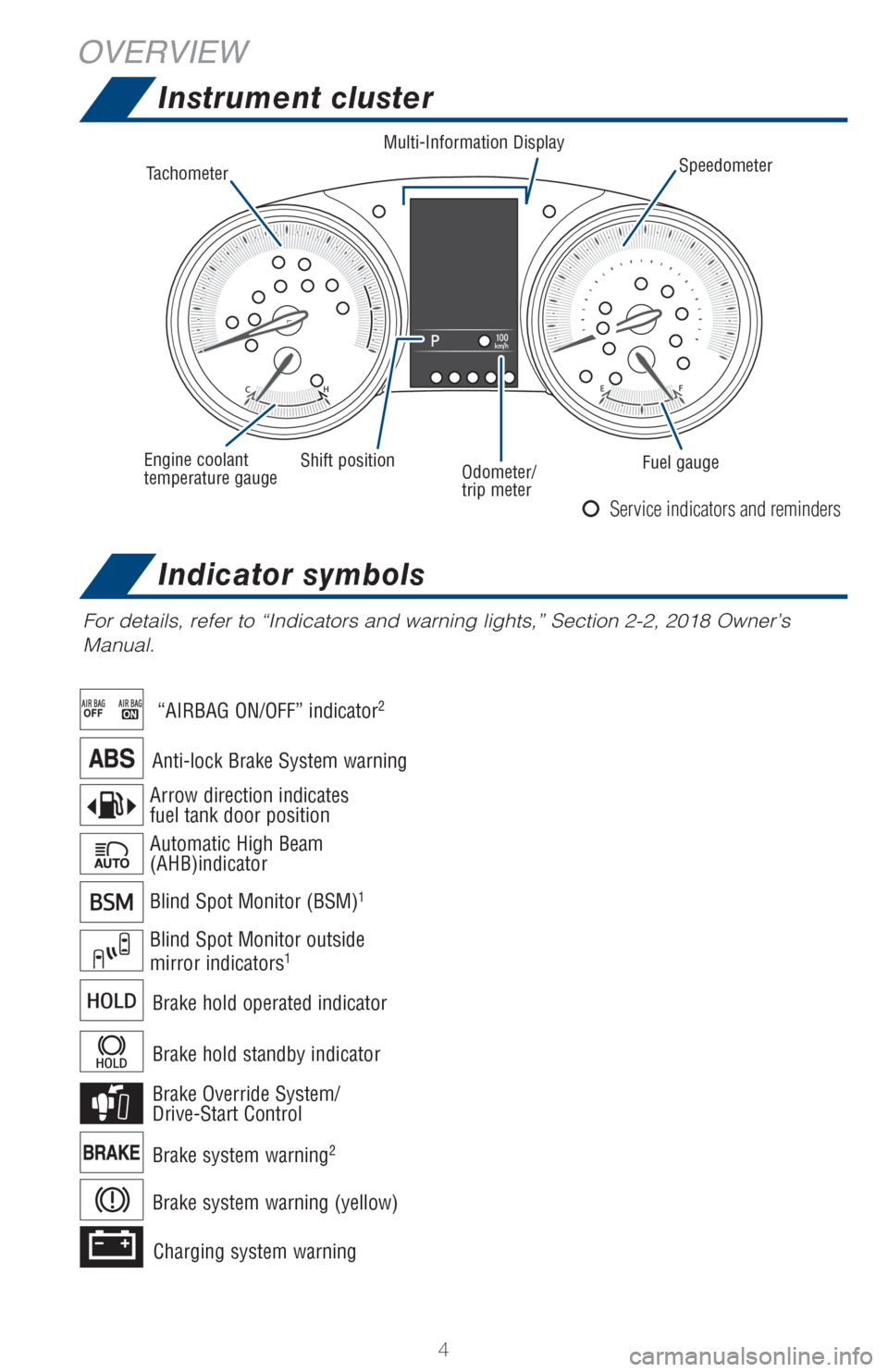

Instrument cluster
Indicator symbols
For details, refer to “Indicators and warning lights,” Section 2-2, 2018 Owner’s
Manual.
Blind Spot Monitor (BSM)1
Anti-lock Brake System warning
Automatic High Beam
(AHB)indicator
Blind Spot Monitor outside
mirror indicators1
Charging system warning
Brake Override System/
Drive-Start Control
Arrow direction indicates
fuel tank door position
Brake system warning2
Brake system warning (yellow)
Brake hold operated indicator
Brake hold standby indicator
“AIRBAG ON/OFF” indicator2
Service indicators and reminders
Tachometer
Fuel gauge Shift position Engine coolant
temperature gaugeOdometer/
trip meter Multi-Information Display
Speedometer

5
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Master warning2
Low fuel level warning
Cruise control indicator/
Cruise control SET indicator
Turn signal indicator
Tire Pressure Warning2
Vehicle Stability Control
(VSC) OFF indicator2
Malfunction/Check Engine
indicator
Electric power steering
system warning
Low engine oil pressure
warning
High engine coolant
temperature warning
Smart key system1
ECO mode indicator
Eco Driving Indicator
SPORT mode indicator
Parking brake indicator
Driver/front passenger seat
belt reminder indicator
SRS airbag warning2
1 If equipped. 2 If indicator does not turn off within a few seconds of starting engine, there may be a malfunction.
Have vehicle inspected by your Toyota dealer.
Headlight low/
high beam indicators
Pre-Collision System (PCS)
warning light2
Rear passenger seat belt reminder
indicator
Lane Departure Alert (LDA) indicator
Slip indicator indicator2
Security indicator
Low outside temperature indicator
Dynamic Radar Cruise Control
(DRCC) indicator
Rear Cross Traffic Alert (RCTA)
1

6
OVERVIEW
Keyless entry
Smart Key1
Smart Key1
Smart Key1
Push
Carry Smart Key1
remote
Carry Smart Key
1
remote
Front door lock
TouchCarry Smart Key
1
remote
Grasp
Front door unlock*
Push
Beep sound can be switched ON or OFF. Refer to the Owner’s Manual for more
details.
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping front passenger door handle will unlock all doors.
NOTE:
If a door is not opened within 60 seconds of unlocking, all doors will relock
for safety.
Doors may also be locked/unlocked using remote.
LOCKING OPERATION
BACK DOOR LOCKING/UNLOCKING
UNLOCKING OPERATION
Push ONCE: Driver door
TWICE: All doors
1 If equipped.
UnlockOpen
