2018 TOYOTA AVENSIS ECO mode

5968-2. Steps to take in an emergency
AVENSIS_OM_OM20C79E_(EE)

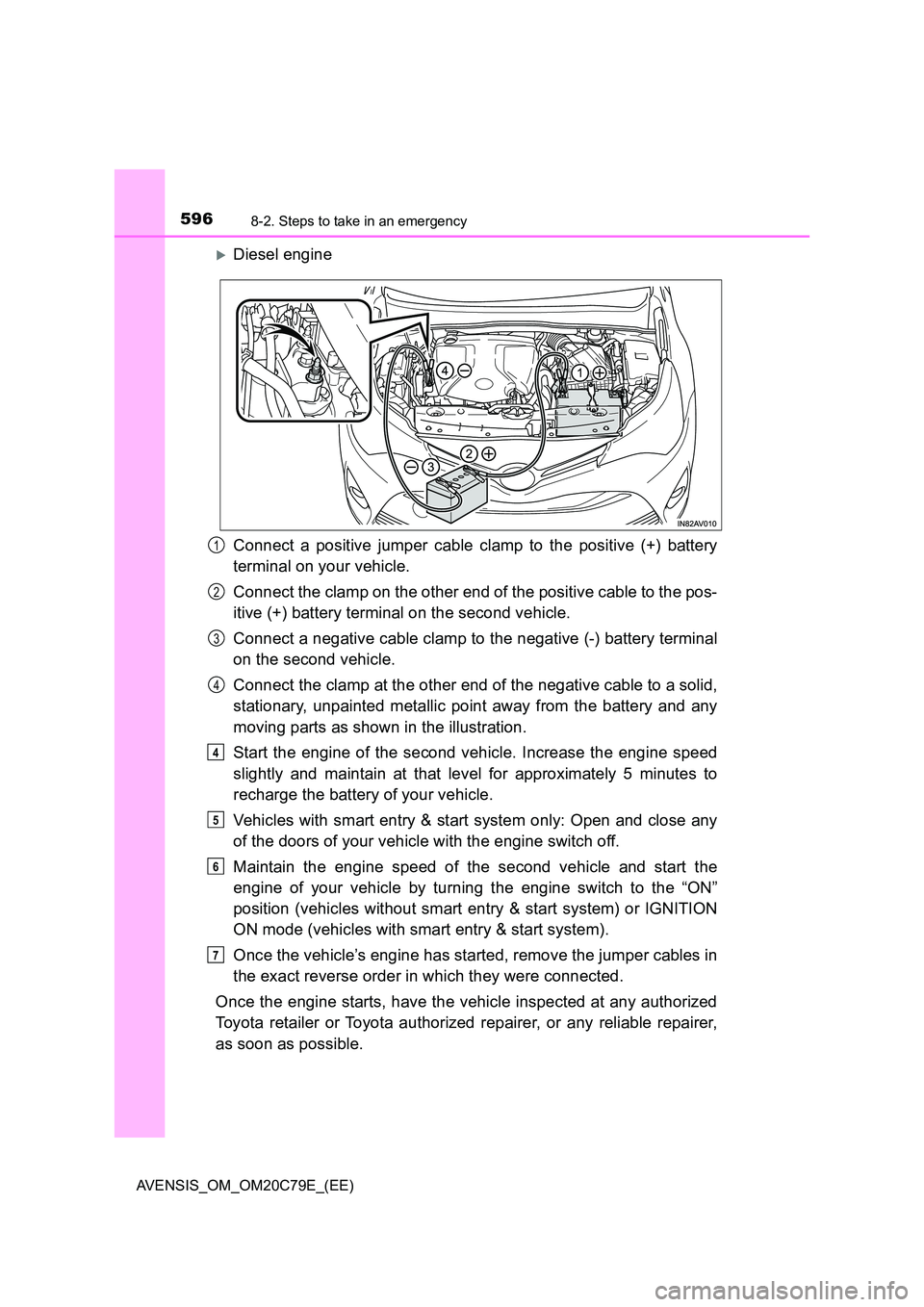

Diesel engine
Connect a positive jumper cable clamp to the positive (+) battery
terminal on your vehicle.
Connect the clamp on the other end of the positive cable to the pos-
itive (+) battery terminal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery terminal
on the second vehicle.
Connect the clamp at the other end of the negative cable to a solid,
stationary, unpainted metallic point away from the battery and any
moving parts as shown in the illustration.
Start the engine of the second vehicle. Increase the engine speed
slightly and maintain at that level for approximately 5 minutes to
recharge the battery of your vehicle.
Vehicles with smart entry & start system only: Open and close any
of the doors of your vehicle with the engine switch off.
Maintain the engine speed of the second vehicle and start the
engine of your vehicle by turning the engine switch to the “ON”
position (vehicles without smart entry & start system) or IGNITION
ON mode (vehicles with smart entry & start system).
Once the vehicle’s engine has started, remove the jumper cables in
the exact reverse order in which they were connected.
Once the engine starts, have the vehicle inspected at any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer,
as soon as possible.
1
2
3
4
4
5
6
7

5978-2. Steps to take in an emergency
AVENSIS_OM_OM20C79E_(EE)
8
When trouble arises
■Starting the engine when the battery is discharged (vehicles with Multid-
rive)
The engine cannot be started by push-starting.
■ To prevent battery discharge
● Turn off the headlights and the audio system while the engine is turned off.
● Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic, etc.
■ Charging the battery
The electricity stored in the battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge, and the engine may be unable to start. (The battery recharges
automatically during driving.)
■ When the battery is removed or discharged
● Vehicles with smart entry & start system: In some cases, it may not be pos-
sible to unlock the doors using the smart entry & start system when the bat-
tery is discharged. Use the wireless remote control or the mechanical key to
lock or unlock the doors.
● Vehicles with smart entry & start system: The engine may not start on the
first attempt after the battery has recharged but will start normally after the
second attempt. This is not a malfunction.
● Vehicles with smart entry & start system: The engine switch mode is memo-
rized by the vehicle. When the battery is reconnected, the system will return
to the mode it was in before the battery was discharged. Before disconnect-
ing the battery, turn the engine switch off. If you are unsure what mode the
engine switch was in before the battery discharged, be especially careful
when reconnecting the battery.
● Vehicles with Stop & Start system:
After charging the battery or reconnecti ng the battery terminals, the Stop &
Start system may not automatically stop the engine for approximately 5 to
40 minutes.
■ When replacing the battery
● Use a battery that the case size is same as the previous one (LN2), 20 hour
rate capacity (20HR) is equivalent (60Ah) or greater, and performance rating
(CCA) is equivalent (356A) or greater.
• If the sizes differ, the battery cannot be properly secured.
• If the 20 hour rate capacity is low, even if the time period where the vehi-
cle is not used is a short time, the battery may discharge and the engine
may not be able to start.

643What to do if... (Troubleshooting)
AVENSIS_OM_OM20C79E_(EE)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. (P. 89)
To stop the alarm, turn the engine switch to IGNITION ON mode or start the
engine.
●Is the message displayed on the multi-information display?
Check the message on the multi-information display. (P. 537)
●When a warning light turns on or a warning message is displayed, refer to
P. 530, 537.
●Vehicles without spare tire
Stop the vehicle in a safe place and repair the flat tire temporarily with the
emergency tire puncture repair kit. (P. 554)
●Vehicles with spare tire
Stop the vehicle in a safe place and replace the flat tire with the spare tire.
(P. 570)
●Try the procedure for when the vehicle becomes stuck in mud, dirt, or
snow. (P. 603)
An alarm is activated and the horn sounds (if equipped)
A warning buzzer sounds when leaving the vehicle
(vehicles with smart entry & start system)
A warning light turns on or a warning message is displayed
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck

647Alphabetical index
AVENSIS_OM_OM20C79E_(EE)
Display
Drive information ........... 108, 112
Fuel consumption
information .......................... 117
LDA (Lane Departure
Alert) ................................... 273
Multi-information
display ........................ 108, 111
Trip information ..................... 117
Warning message ................. 537
Do-it-yourself maintenance .... 446
Door courtesy lights ................ 409
Wattage................................. 625
Doors
Automatic door locking and
unlocking system ................ 136
Back door .............................. 143
Door glasses ......................... 182
Door lock ............................... 132
Outside rear view mirrors ...... 179
Rear door child-protectors .... 136
Side doors ............................. 132
Double locking system.............. 87
Drive information ............. 108, 112
Driver’s seat belt
reminder light ........................ 532
Driving
Break-in tips .......................... 189
Correct posture ....................... 32
Driving in the rain .................. 188
Driving mode select switch ... 220
Procedures............................ 186
Winter driving tips ................. 312
Driving position memory ........ 170
Driving position memory ....... 170
Memory recall function .......... 171Electric power steering
Function ................................ 306
Warning light ......................... 531
Warning message ................. 541
Electronic key
Battery-saving function ......... 152
If the electronic key does not
operate properly ................. 592
Replacing the battery ............ 493
Emergency brake signal ......... 307
Emergency flashers ................ 518
Emergency, in case of
If a warning buzzer
sounds................................ 530
If a warning light turns on...... 530
If a warning message is
displayed ............................ 537
If the electronic key does not
operate properly ................. 592
If the engine will not start ...... 586
If the parking brake cannot
be released......................... 588
If the vehicle battery is
discharged .......................... 595
If you have a flat
tire ............................. 570, 554
If you lose your keys ..... 122, 131
If you think something is
wrong.................................. 528
If your vehicle becomes
stuck ................................... 603
If your vehicle has to be
stopped in an emergency ... 519
If your vehicle needs to be
towed .................................. 521
If your vehicle overheats ....... 600E
*: For vehicles with navigation system or multimedia system, refer to
“Navigation and multimedia system Owner’s manual”.

654Alphabetical index
AVENSIS_OM_OM20C79E_(EE)
Sensor
Automatic headlight
system ................................ 238
Automatic High Beam
system ................................ 278
Inside rear view mirror .......... 178
LDA (Lane Departure
Alert) ................................... 272
Rain-sensing windshield
wipers ................................. 245
Service reminder
indicators ................................ 98
Shift lever
If the shift lever cannot
be shifted from “P” .............. 224
Manual transmission ............. 226
Multidrive............................... 219
Shift lock system ..................... 224
Side airbags ............................... 39
Side doors ................................ 132
Side mirrors.............................. 179
Adjusting and folding............. 179
Heaters ......................... 394, 401
Side turn signal lights
Replacing light bulbs ............. 513
Turn signal lever ................... 229
Wattage................................. 625
Smart entry & start system ..... 148
Antenna location ................... 148
Entry function ........ 132, 139, 143
Starting the engine ................ 212
Snow tires................................. 312
Spare tire
Inflation pressure .................. 623
Storage location ............ 571, 572
Spark plug ................................ 619
Specifications .......................... 606
Speed limiter ............................ 292
Speedometer ............................ 105Sport mode............................... 220
SRS airbags ............................... 39
Steering lock .................... 210, 217
Steering wheel
Adjustment ............................ 174
Audio switches ...................... 321
“DISP” switch ........................ 108
Meter control switches .......... 112
Telephone switches .............. 366
Stop/tail lights .......................... 515
Stop lights
Emergency brake signal ....... 307
Replacing light bulbs............. 515
Wattage ................................ 625
Storage feature ........................ 412
Storage precautions ................ 412
Stuck
If your vehicle becomes
stuck ................................... 603
Sun visors ................................ 427
Switch
Audio remote control
switches.............................. 321
Automatic High Beam
switch ................................. 278
Cruise control switch............. 289
“DISP” switch ........................ 108
Door lock switch.................... 135
Driving mode select switch ... 220
Driving position memory
switches.............................. 170
Emergency flasher switch ..... 518
Engine switch................ 209, 212
Fog light switch ..................... 241
Intrusion sensor cancel
switch ................................... 92
Ignition switch ............... 209, 212
