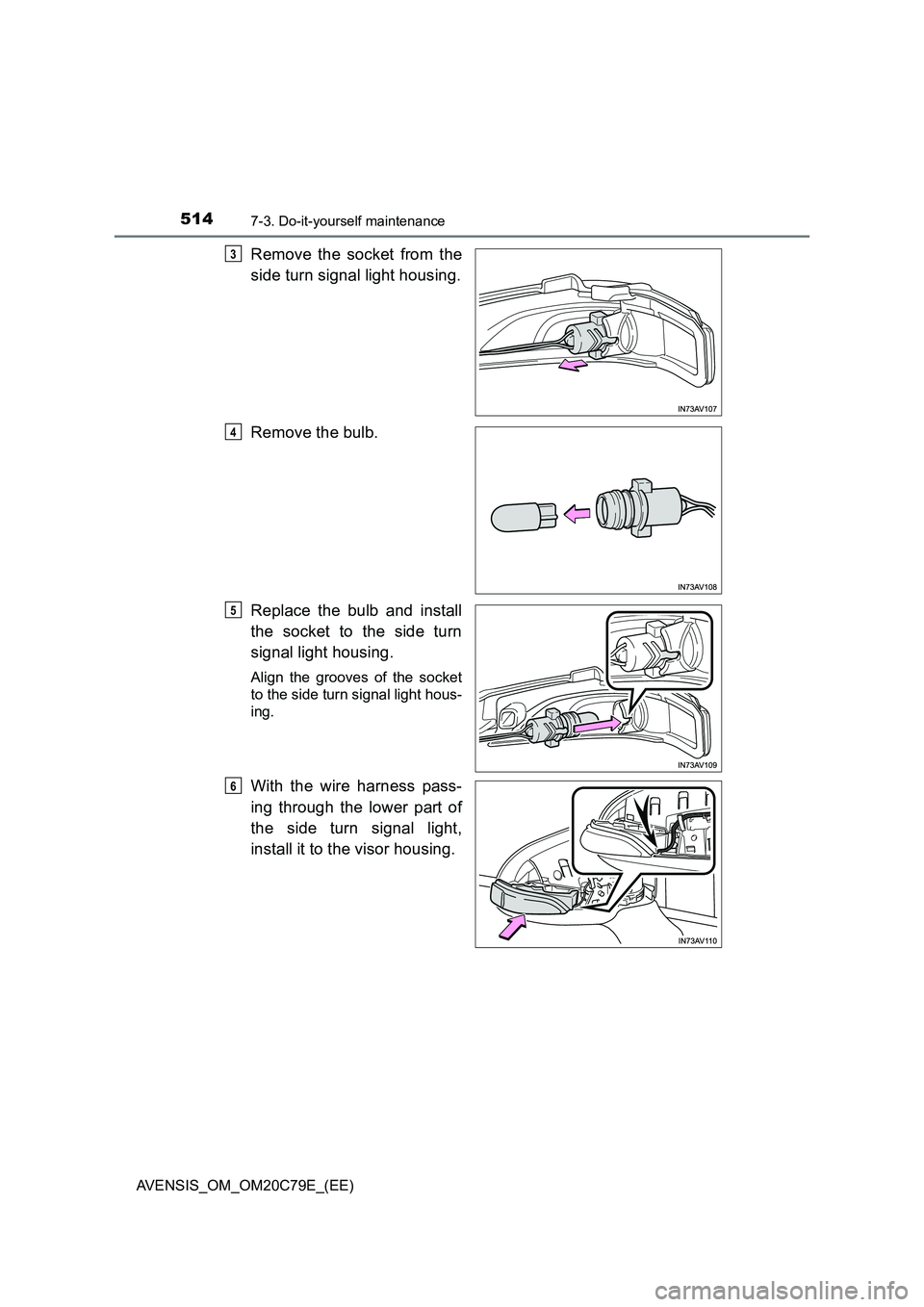

5147-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C79E_(EE)
Remove the socket from the
side turn signal light housing.
Remove the bulb.
Replace the bulb and install
the socket to the side turn
signal light housing.
Align the grooves of the socket
to the side turn signal light hous-
ing.
With the wire harness pass-
ing through the lower part of
the side turn signal light,
install it to the visor housing.
3
4
5
6

6259-1. Specifications
AVENSIS_OM_OM20C79E_(EE)
9
Vehicle specifications
Compact spare tire
■When towing a trailer
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation
pressure, and drive at speeds below 100 km/h (62 mph).
Tire size T145/70D17 106M
Tire inflation pressure
(Recommended cold tire
inflation pressure)420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size 17  4T
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
Light bulbs
Light bulbsWTyp e
ExteriorHeadlights (halogen bulbs) 55 A
Front turn signal lights 21 B
Front fog lights 19 C
Cornering/fog lights 55 D
Side turn signal lights 5 B
Rear turn signal lights 21 E
Back-up lights 16 F
License plate lights 5 F
InteriorPersonal/interior lights 8 F
Vanity lights 8 F
Door courtesy lights 5 G
Trunk/luggage compartment light 5 G
A: HIR2 halogen bulbs
B: Wedge base bulbs (amber)
C: H16 halogen bulbs
D: H11 halogen bulbsE: Single end bulbs (clear)
F: Wedge base bulbs (clear)
G: Double end bulbs

649Alphabetical index
AVENSIS_OM_OM20C79E_(EE)
Front position lights
Light switch ........................... 233
Wattage................................. 625
Front seats ............................... 166
Adjustment ............................ 166
Cleaning ................................ 440
Correct driving posture............ 32
Driving position memory ....... 170
Head restraints...................... 172
Seat heaters.......................... 407
Seat position memory ........... 170
Front turn signal lights
Replacing light bulbs ............. 508
Turn signal lever ................... 229
Wattage................................. 625
Fuel
Capacity ................................ 611
Fuel filter ............................... 467
Fuel gauge ............................ 105
Fuel pump shut off system .... 529
Gas station information ......... 660
Information ............................ 626
Refueling ............................... 248
Type ...................................... 611
Warning light ......................... 532
Fuel consumption
information............................. 117
Fuel filler door .......................... 248
Refueling ............................... 248
When the fuel filler door
cannot be opened ............... 250
Fuel filter................................... 467
Fuel pump shut off system ..... 529
Fuses ........................................ 496Gas station information .......... 660
Gauges ..................................... 104
Gear Shift Indicator ................. 226
Glove box ................................. 413
Glove box light......................... 413
Hands-free system
(for cellular phone)
*............. 360
Head restraint .......................... 172
Headlight cleaner..................... 243
Headlights ................................ 233
Adaptive front-lighting
system ................................ 235
Automatic headlight
leveling ............................... 240
Automatic High Beam
system ................................ 278
Follow me home system ....... 237
Light switch ........................... 233
Manual headlight leveling ..... 236
Replacing light bulbs..... 503, 515
Wattage ................................ 625
Heaters
Air conditioning
system ........................ 392, 398
Automatic air conditioning
system ................................ 398
Manual air conditioning
system ................................ 392
Outside rear view
mirrors ........................ 394, 401
Power heater ........................ 405
Seat heaters ......................... 407
G
H
*: For vehicles with navigation system or multimedia system, refer to
“Navigation and multimedia system Owner’s manual”.

651Alphabetical index
AVENSIS_OM_OM20C79E_(EE)
Language (multi-information
display) ................................... 631
LDA (Lane Departure Alert) .... 272
Lever
Auxiliary catch lever .............. 450
Hood lock release lever ........ 450
Shift lever ...................... 219, 226
Turn signal lever ................... 229
Wiper lever .................... 243, 247
License plate lights
Light switch ........................... 233
Replacing light bulbs ............. 513
Wattage................................. 625
Light
Automatic High Beam
system ................................ 278
Door courtesy lights .............. 409
Engine switch light ................ 409
Fog light switch ..................... 241
Follow me home system ....... 237
Headlight switch .................... 233
Illuminated entry system ....... 411
Interior lights ......................... 410
Interior light list ...................... 409
Luggage compartment
light ..................................... 144
Personal lights ...................... 410
Replacing light bulbs ............. 501
Trunk light ............................ 140
Turn signal lever ................... 229
Vanity lights........................... 427
Wattage................................. 625
Light bulbs
Replacing .............................. 501
Wattage................................. 625Lock steering column ..... 210, 217
Luggage compartment
Auxiliary box ......................... 421
Cargo hooks ......................... 420
Extending a space ................ 430
Luggage cover ...................... 422
Separation net ...................... 424
Luggage cover ......................... 422
Maintenance
Do-it-yourself maintenance ... 446
Maintenance data ................. 606
Maintenance requirements ... 443
Malfunction indicator lamp ..... 530
Manual air conditioning
system .................................... 392
Manual headlight leveling
dial .......................................... 236
Manual transmission ............... 226
Meter
Indicators ................................ 98
Instrument cluster light
control......................... 106, 114
Meters ................................... 104
Multi-information
display ........................ 108, 111
Warning lights ....................... 530
Warning messages ............... 537
Microphone .............................. 363
Mirrors
Inside rear view mirror .......... 176
Outside rear view mirror
defoggers ................... 394, 401
Outside rear view mirrors...... 179
Vanity mirrors........................ 427
L
M

653Alphabetical index
AVENSIS_OM_OM20C79E_(EE)
Radiator .................................... 463
Radio
*....................................... 325
Radio data system (RDS)
*...... 329
Rear fog light
Replacing light bulbs ............. 515
Switch ................................... 241
Wattage................................. 625
Rear passenger’s seat belt
reminder ................................. 532
Rear seat
Folding down the rear
seatbacks ........................... 168
Rear turn signal lights
Replacing light bulbs ..... 511, 512
Turn signal lever ................... 229
Wattage................................. 625
Rear view mirror
Inside rear view mirror .......... 176
Outside rear view mirrors ...... 179
Rear view monitor system
*
Rear window defogger .... 394, 401
Rear window wiper .................. 247
Refueling .................................. 248
Capacity ................................ 611
Fuel types ............................. 611
Opening the fuel tank cap ..... 250
When the fuel filler door
cannot be opened ............... 250
Replacing
Electronic key battery............ 493
Fuses .................................... 496
Light bulbs............................. 501
Tires ...................................... 570
Wireless remote control
battery................................. 493
Reset the maintenance data ... 459
RSA (Road Sign Assist) .......... 284Seat belts.................................... 34
Adjusting the seat belt ............ 35
Child restraint system
installation ............................ 64
Cleaning and maintaining
the seat belts ...................... 441
Emergency Locking
Retractor............................... 36
How to wear your seat belt ..... 34
How your child should wear
the seat belt.......................... 36
Pregnant women, proper seat
belt use ................................. 37
Reminder light and
buzzer................................. 532
Seat belt pretensioners ........... 35
SRS warning light ................. 530
Seat heaters ............................. 407
Seat position memory ............. 170
Seats
Adjustment ............................ 166
Adjustment
precautions......................... 167
Child seats/child restraint
system installation ................ 55
Cleaning................................ 440
Driver’s seat position
memory .............................. 170
Folding down the rear
seatbacks ........................... 168
Head restraint ....................... 172
Properly sitting in the seat ...... 32
Seat heaters ......................... 407
Seat position memory ........... 170
RS
*: For vehicles with navigation system or multimedia system, refer to
“Navigation and multimedia system Owner’s manual”.

654Alphabetical index
AVENSIS_OM_OM20C79E_(EE)
Sensor
Automatic headlight
system ................................ 238
Automatic High Beam
system ................................ 278
Inside rear view mirror .......... 178
LDA (Lane Departure
Alert) ................................... 272
Rain-sensing windshield
wipers ................................. 245
Service reminder
indicators ................................ 98
Shift lever
If the shift lever cannot
be shifted from “P” .............. 224
Manual transmission ............. 226
Multidrive............................... 219
Shift lock system ..................... 224
Side airbags ............................... 39
Side doors ................................ 132
Side mirrors.............................. 179
Adjusting and folding............. 179
Heaters ......................... 394, 401
Side turn signal lights
Replacing light bulbs ............. 513
Turn signal lever ................... 229
Wattage................................. 625
Smart entry & start system ..... 148
Antenna location ................... 148
Entry function ........ 132, 139, 143
Starting the engine ................ 212
Snow tires................................. 312
Spare tire
Inflation pressure .................. 623
Storage location ............ 571, 572
Spark plug ................................ 619
Specifications .......................... 606
Speed limiter ............................ 292
Speedometer ............................ 105Sport mode............................... 220
SRS airbags ............................... 39
Steering lock .................... 210, 217
Steering wheel
Adjustment ............................ 174
Audio switches ...................... 321
“DISP” switch ........................ 108
Meter control switches .......... 112
Telephone switches .............. 366
Stop/tail lights .......................... 515
Stop lights
Emergency brake signal ....... 307
Replacing light bulbs............. 515
Wattage ................................ 625
Storage feature ........................ 412
Storage precautions ................ 412
Stuck
If your vehicle becomes
stuck ................................... 603
Sun visors ................................ 427
Switch
Audio remote control
switches.............................. 321
Automatic High Beam
switch ................................. 278
Cruise control switch............. 289
“DISP” switch ........................ 108
Door lock switch.................... 135
Driving mode select switch ... 220
Driving position memory
switches.............................. 170
Emergency flasher switch ..... 518
Engine switch................ 209, 212
Fog light switch ..................... 241
Intrusion sensor cancel
switch ................................... 92
Ignition switch ............... 209, 212

656Alphabetical index
AVENSIS_OM_OM20C79E_(EE)
Towing
Emergency towing ................ 521
Towing eyelet ........................ 524
Trailer towing ........................ 200
Toyota Safety Sense................ 252
Traction control ....................... 306
Transmission
Driving mode select switch ... 220
If the shift lever cannot be
shifted from P ..................... 224
Manual transmission ............. 226
Multidrive............................... 219
Paddle shift switches .... 221, 222
Selecting a driving mode....... 220
TRC (Traction Control)
Function ................................ 306
TRC OFF switch ................... 307
Trip information ....................... 117
Trip meter ................................. 106
Trunk
Open trunk warning
message ............................. 541
Smart entry & start system.... 132
Trunk features ....................... 139
Trunk handle ......................... 140
Trunk light ............................. 140
Trunk opener switch.............. 139
Trunk storage
extension ............................ 430
Wireless remote control ........ 121
Trunk light
Trunk light ............................. 140
Wattage................................. 625
Turn signal lights
Replacing light
bulbs ........... 508, 511, 512, 513
Turn signal lever ................... 229
Wattage................................. 625USB memory
*.......................... 351
USB port
*................................. 322
Vanity lights
Vanity lights .......................... 427
Wattage ................................ 625
Vanity mirrors .......................... 427
Vanity lights .......................... 427
Wattage ................................ 625
Vehicle identification
number ................................... 608
Vehicle Stability Control
(VSC) ...................................... 306
VSC (Vehicle Stability
Control) .................................. 306
Warning buzzers
Downshifting ......................... 223
Electric power steering ......... 531
Key reminder ........................ 211
Open back door .................... 541
Open door ............................. 541
Open trunk ............................ 541
Parking brake........................ 532
Rear passenger’s seat belt
reminder ............................. 532
Seat belt reminder ................ 532
U
V
W
