2018 TOYOTA AVENSIS wheel

6048-2. Steps to take in an emergency
AVENSIS_OM_OM20C79E_(EE)

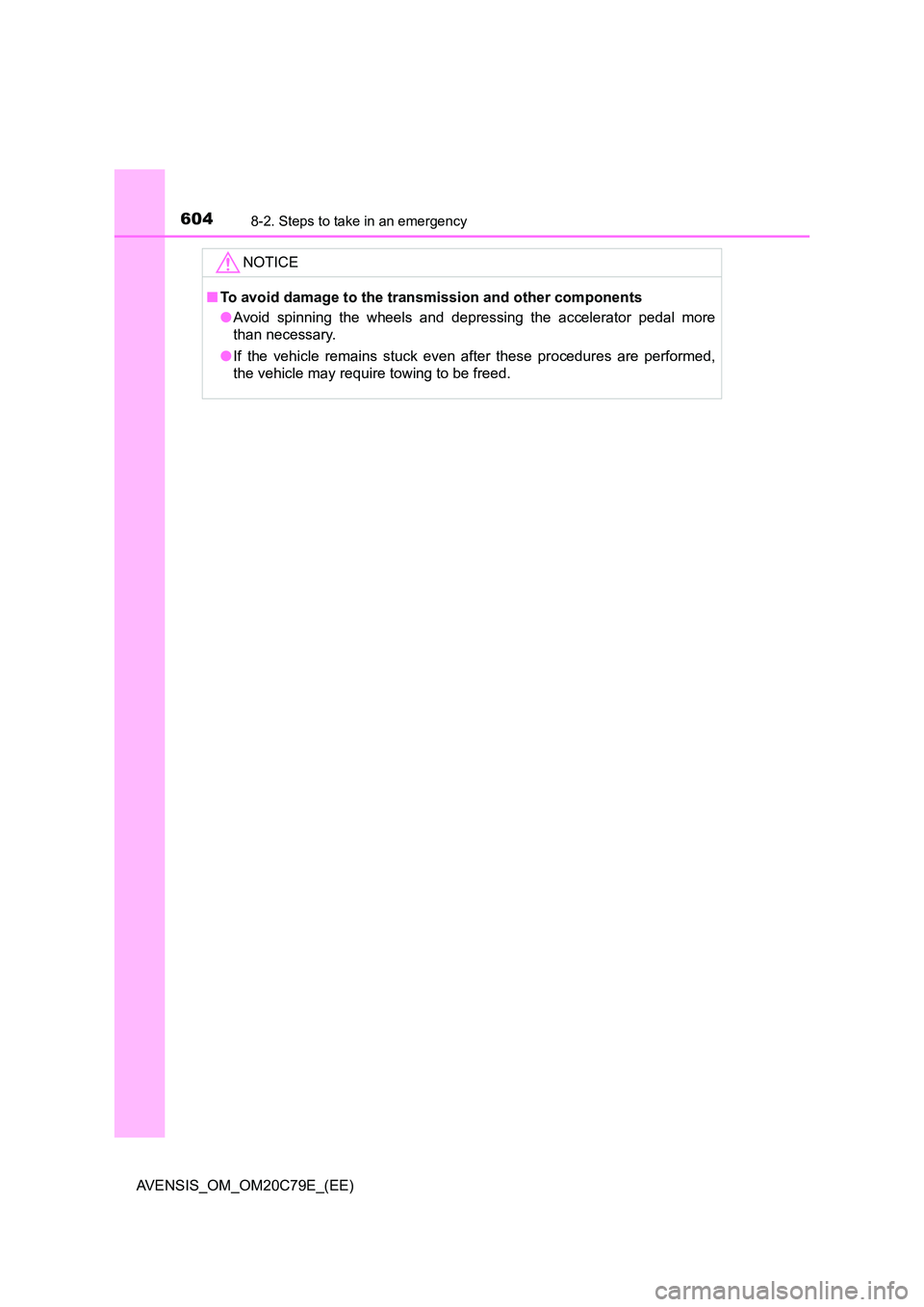

NOTICE
■To avoid damage to the transmission and other components
● Avoid spinning the wheels and depressing the accelerator pedal more
than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

6069-1. Specifications
AVENSIS_OM_OM20C79E_(EE)
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall lengthSedan 4750 mm (187.0 in.)
Wagon 4820 mm (189.8 in.)
Overall width 1810 mm (71.3 in.)
Overall height*11480 mm (58.3 in.)
Wheelbase 2700 mm (106.3 in.)
Tread
Front1560 mm (61.4 in.)*2
1550 mm (61.0 in.)*3
Rear1560 mm (61.4 in.)*2
1550 mm (61.0 in.)*3
Gross vehicle
mass
1ZR-FAE engine 1970 kg (4343.1 lb.)
2ZR-FAE engine2020 kg (4453.3 lb.)*4
2000 kg (4409.2 lb.)*5
3ZR-FAE engine 2050 kg (4519.5 lb.)
1WW engine 2040 kg (4497.4 lb.)
2WW engine 2100 kg (4629.7 lb.)
Maximum permis-
sible axle capacityFront 1215 kg (2678.6 lb.)
Rear 1135 kg (2502.2 lb.)

6239-1. Specifications
AVENSIS_OM_OM20C79E_(EE)
9
Vehicle specifications
225/45R18 95W
215/55R17 94W

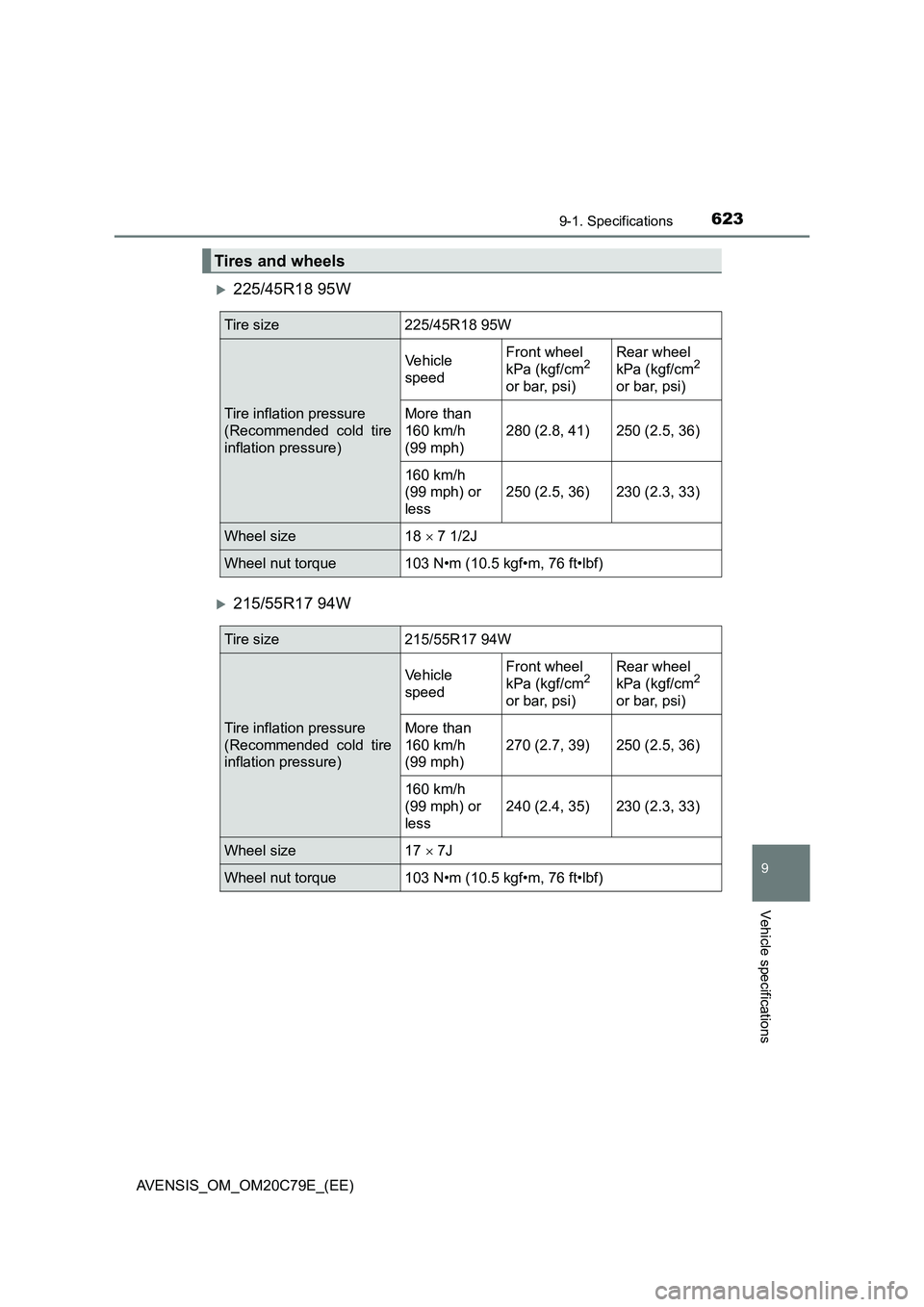

Tires and wheels
Tire size 225/45R18 95W
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph)280 (2.8, 41) 250 (2.5, 36)
160 km/h
(99 mph) or
less250 (2.5, 36) 230 (2.3, 33)
Wheel size 18  7 1/2J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size 215/55R17 94W
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph)270 (2.7, 39) 250 (2.5, 36)
160 km/h
(99 mph) or
less240 (2.4, 35) 230 (2.3, 33)
Wheel size 17  7J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)

6249-1. Specifications
AVENSIS_OM_OM20C79E_(EE)
205/60R16 92V (Diesel engine)
205/60R16 92V (Gasoline engine)
Tire size 205/60R16 92V
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph)270 (2.7, 39) 250 (2.5, 36)
160 km/h
(99 mph) or
less
250 (2.5, 36) 230 (2.3, 33)
Wheel size 16  6 1/2J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size 205/60R16 92V
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph)270 (2.7, 39) 250 (2.5, 36)
160 km/h
(99 mph) or
less240 (2.4, 35) 220 (2.2, 32)
Wheel size 16  6 1/2J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)

6259-1. Specifications
AVENSIS_OM_OM20C79E_(EE)
9
Vehicle specifications
Compact spare tire
■When towing a trailer
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation
pressure, and drive at speeds below 100 km/h (62 mph).
Tire size T145/70D17 106M
Tire inflation pressure
(Recommended cold tire
inflation pressure)420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size 17  4T
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
Light bulbs
Light bulbsWTyp e
ExteriorHeadlights (halogen bulbs) 55 A
Front turn signal lights 21 B
Front fog lights 19 C
Cornering/fog lights 55 D
Side turn signal lights 5 B
Rear turn signal lights 21 E
Back-up lights 16 F
License plate lights 5 F
InteriorPersonal/interior lights 8 F
Vanity lights 8 F
Door courtesy lights 5 G
Trunk/luggage compartment light 5 G
A: HIR2 halogen bulbs
B: Wedge base bulbs (amber)
C: H16 halogen bulbs
D: H11 halogen bulbsE: Single end bulbs (clear)
F: Wedge base bulbs (clear)
G: Double end bulbs

6389-3. Items to initialize
AVENSIS_OM_OM20C79E_(EE)
Items to initialize
*1: Diesel engine only
*2: If equipped
The following items must be initialized for normal system opera-
tion after such cases as the battery is reconnected, or mainte-
nance is performed on the vehicle.
ItemWhen to initializeReference
Engine oil mainte-
nance data
*1After changing engine oil P. 459
Panoramic roof
shade
*2
When the automatic open/
close function does not
operateP. 4 3 1
Tire pressure warn-
ing system
*2
• When rotating the tires
• When changing the tire size
• When the tire inflation pres-
sure is changed such as
when changing traveling
speed
• When changing between
two registered wheel setsP. 4 7 0

641What to do if... (Troubleshooting)
AVENSIS_OM_OM20C79E_(EE)
●Vehicles with Multidrive
Is the shift lever in P? ( P. 2 0 9 )
●Vehicles with manual transmission
Do you turn the key with the clutch pedal depressed firmly? ( P. 209)
●Is the battery discharged? (P. 595)
●Vehicles with Multidrive
Did you press the engine switch while firmly depressing the brake pedal?
( P. 212)
●Vehicles with manual transmission
Did you press the engine switch while firmly depressing the clutch pedal?
( P. 212)
●Vehicles with Multidrive
Is the shift lever in P? ( P. 2 1 2 )
●Is the electronic key anywhere detectable inside the vehicle? (P. 149)
●Is the steering wheel unlocked? (P. 217)
●Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way. ( P. 592)
●Is the battery discharged? (P. 595)
●Vehicles without smart entry & start system
Is the engine switch in the “ON” position?
If you cannot release the shift lever by depressing the brake pedal with the
engine switch in the “ON” position. ( P. 224)
●Vehicles with smart entry & start system
Is the engine switch in IGNITION ON mode?
If you cannot release the shift lever by depressing the brake pedal with the
engine switch in IGNITION ON mode. ( P. 224)
If you think something is wrong
The engine does not start
(vehicles without smart entry & start system)
The engine does not start
(vehicles with smart entry & start system)
The shift lever cannot be shifted from P even if you depress
the brake pedal (vehicles with Multidrive)

642What to do if... (Troubleshooting)
AVENSIS_OM_OM20C79E_(EE)
●Vehicles without smart entry & start system
It is locked to prevent theft of the vehicle if the key is removed from the
engine switch. ( P. 2 1 0 )
●Vehicles with smart entry & start system
It is locked automatically to prevent theft of the vehicle. ( P. 217)
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be oper-
ated if the window lock switch is pressed. ( P. 182)
●The auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not operating) for a period of
time. ( P. 216)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? ( P. 532)
●The brake system warning light is on
Is the parking brake released? ( P. 230)
Depending on the situation, other types of warning buzzer may also sound.
( P. 530, 537)
The steering wheel cannot be turned after the engine is
stopped
The windows do not open or close by operating the power
window switches
The engine switch is turned off automatically
(vehicles with smart entry & start system)
A warning buzzer sounds during driving
