2018 SUBARU LEGACY Quick Guide

15
Windshield Wipers
To turn on the wipers, press the wiper control lever down one level for intermittent,
two levels for low, or three levels for high speed. Return the lever to the “OFF”
position to stop the wipers. For a single wipe, move the lever up. To spray washer
fluid, pull and hold the lever toward you.
Daytime Running Lights
Daytime running lights are standard on your vehicle. Only a reduced brightness
high beam will be automatically turned on when the engine has started, the parking
brake is fully released and the light switch is in the “OFF” or “
” position. The
brightness of the illumination of the high beam headlights is reduced by the daytime
running light system. You must always switch on your headlights when it is dark
outside by turning the light switch to the “
” position.
1
2
3
INT.
LOW
HIGH OFF
Controls
2926965_18a_Subaru_Legacy_QRG_050417.indd 155/4/17 3:13 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

16
Controls
5
2
316
4
7
Manual Climate Control (if equipped)
1. Fan Speed Control Dial Rotate the fan speed control dial to select
one of four fan speeds.
2. Air Conditioning Button Press the “A/C” button to activate the air
conditioning. Press it again to turn off the
air conditioning.
3. Air Flow Mode Selection Button Press the “MODE” button to select the
desired air flow mode. The selected air
flow mode – either ventilation, bi-level,
heat or heat-defrost – is shown on
the display.
4. Recirculated/Outside Air Button Press the air inlet selection button to
prevent outside air from being drawn
into the passenger compartment. If the
button is pushed in, press it again to draw
outside air into the compartment.
TO PREVENT WINDSHIELD FOGGING,
DO NOT REMAIN IN THE RECIRCULATED
MODE FOR AN EXTENDED PERIOD
OF TIME. 5. Temperature Control Dial
Rotate the temperature control dial from
blue for cool, to red for warm. Rotate the
dial all the way left for MAX A/C.
6. Defrost/Defog To clear the windshield and front
door windows of fog or frost, press the
defrost button, set the temperature control
to the red position, and set the fan speed
control to the fastest speed.
While in defrost mode, the air inlet
selection and A/C will operate
automatically (although the A/C indicator
will illuminate if the button was depressed
prior to or during defrost mode).
7. Rear Window Defogger Button Press the rear window defogger button
to turn on the defogger. The defogger
will automatically shut off after about
15 minutes. If the window clears before
that time, you can press the button again
to turn it off.
2926965_18a_Subaru_Legacy_QRG_050417.indd 165/4/17 3:13 PM

17
122
3
457
89106
Dual Zone Automatic Climate Control System (if equipped)
1. Automatic On and Off This system automatically controls
outlet air temperature, fan speed, air
flow distribution, air inlet control, and
air conditioner compressor operation.
Press “AUTO” to activate. Press
“OFF” to turn off the system.
2. Temperature Control Dial Rotate the dial clockwise to increase
the temperature or rotate the dial
counterclockwise to decrease the
temperature. The temperature is
displayed digitally on the screen.
Separate temperature settings can
be adjusted for the driver’s side and
passenger’s side.
3. SYNC Button Press the button to synchronize both
the driver’s side and passenger’s side
temperatures using the driver’s side
temperature control.
Operation in Manual Mode
4. Air Conditioner Button Press the “A/C” button to activate
the air conditioning. Press it again to
turn off the air conditioning.
5. MAX Air Conditioner Button For quicker cooling, press the MAX
A/C button. 6.
Air Flow Mode Selection Button
Press the button to select the
desired air flow mode. The selected
air flow mode – either ventilation,
bi-level, heat, heat-defrost or
defrost – is shown on the display.
7. Fan Speed Control Buttons
Press the fan speed control buttons
to select the desired fan speed.
8. Recirculated/Outside Air Button
Press the air inlet selection button to
prevent outside air from being drawn
into the passenger compartment.
Press the button again to allow
outside air into the compartment.
TO PREVENT WINDSHIELD
FOGGING, DO NOT REMAIN IN
THE RECIRCULATED MODE FOR
AN EXTENDED PERIOD OF TIME.
9. Defroster Button
Press the button to defrost or
dehumidify the windshield and front
door windows.
10. Rear Window Defogger Button
Press the button to turn on the
defogger. It will automatically shut
off after about 15 minutes. If the
window clears before that time, you
can press the button again to turn
it off.
Controls
2926965_18a_Subaru_Legacy_QRG_050417.indd 175/4/17 3:13 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

18
Controls

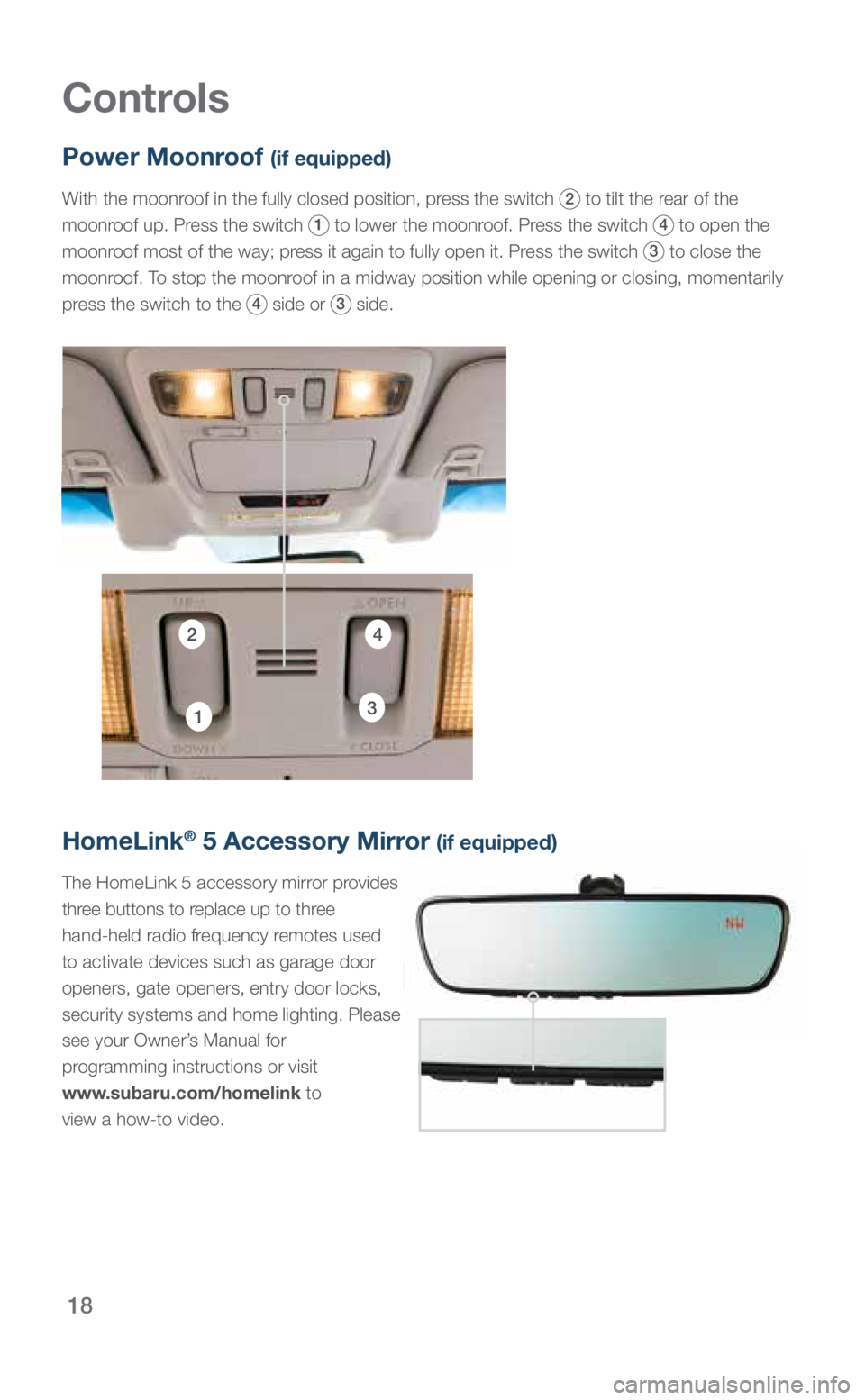

Power Moonroof (if equipped)
With the moonroof in the fully closed position, press the switch 2 to tilt the rear of the
moonroof up. Press the switch
1 to lower the moonroof. Press the switch 4 to open the
moonroof most of the way; press it again to fully open it. Press the switch
3 to close the
moonroof. To stop the moonroof in a midway position while opening or closing, momentarily
press the switch to the
4 side or 3 side.
1
2
3
4
HomeLink® 5 Accessory Mirror (if equipped)
The HomeLink 5 accessory mirror provides
three buttons to replace up to three
hand-held radio frequency remotes used
to activate devices such as garage door
openers, gate openers, entry door locks,
security systems and home lighting. Please
see your Owner’s Manual for
programming instructions or visit
www.subaru.com/homelink to
view a how-to video.
2926965_18a_Subaru_Legacy_QRG_050417.indd 185/4/17 3:14 PM

19
Controls
Instrument Panel Switches (lower left)
Please refer to your Owner’s Manual for details on these switches.
1. Trunk lid opener switch
2. Vehicle Dynamics Control OFF switch
3. Blind Spot Detection/Rear Cross Traffic Alert OFF switch
(if equipped)
4. Lane Departure Warning OFF switch (if equipped)
5. Pre-Collision Braking System OFF switch (if equipped)
1
5342
2926965_18a_Subaru_Legacy_QRG_050417.indd 195/4/17 3:14 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

20
Auxiliary Input Jack
The 3.5 mm auxiliary input jack is located in the
front of the center console. You can connect a
portable music player to the auxiliary jack and
hear the music stored on it through the vehicle
speakers. Press the “SOURCE” button located
on the audio system to select the auxiliary mode.
USB Port
The USB port(s) is/are located in the front of the center console. You can connect a
USB-equipped portable music player to the USB port and hear the music st\
ored on it
through the vehicle speakers. Press the “SOURCE” button located on the audio system
repeatedly until the USB mode is selected.
Controls
Steering Wheel Audio Controls (if equipped)
Talk switch; please refer to
the “Bluetooth audio” section
in your Owner’s Manual.
Press the button to select
the desired audio mode –
FM, AM, SAT, CD, AUX, MEDIA. With any of the radio modes
selected, press the left or
right arrow button to skip
through your presets. In CD
mode, press the buttons to
skip forward or back a track.
Push the switch
up (+) to increase
volume or down (–)
to decrease volume.
2926965_18a_Subaru_Legacy_QRG_050417.indd 205/4/17 3:14 PM

21
Controls
Cruise Control
Increase Speed
Push up the “RES/SET” switch to
the “RES” side; hold until your vehicle
reaches the desired speed and
release. To increase speed using the
accelerator pedal, press the pedal
until you reach the desired speed.
Push down the “RES/SET” switch to
the “SET” side to set the speed.Decrease Speed
Push down the “RES/SET” switch to
the “SET” side; hold until your vehicle
slows to the desired speed and release.
To decrease the speed using the brake
pedal, press the pedal to release
cruise control temporarily. When the
speed decreases to the desired speed,
push down the “RES/SET” switch to
the “SET” side to set the speed.To activate the cruise control,
press the “
” button.
The indicator light on the
instrument panel will turn on.
To deactivate cruise control,
press the “
” button again.
Press the accelerator pedal until your
vehicle reaches the desired speed. Push
the switch to the “SET” side and release.
Ease off the accelerator pedal. Your
vehicle will maintain the desired speed. To cancel the cruise control,
push the brake pedal or press
the “CANCEL” button. If you
have a manual transmission, you
can push in the clutch pedal.
To resume your speed after
canceling, push the switch
to the “RES” side.
2926965_18a_Subaru_Legacy_QRG_050417.indd 215/4/17 3:14 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

22
Electronic Parking Brake
To apply, push the brake pedal and pull up the parking
brake switch. The brake system warning light on
the instrument panel and the indicator light on the
parking brake switch will illuminate.
To release, make sure all doors are closed and your
seatbelt is fastened, then gently push the accelerator
pedal. Or, while the ignition switch is in the ON position
and the brake pedal is pushed in, push down the parking
brake switch.
Hill Holder™ Function
To activate, press the Hill Holder switch. To deactivate,
press the Hill Holder switch again. When the Hill
Holder function is activated, the parking brake will be
automatically applied when stopped on an uphill or
downhill slope with the brake pedal pushed down.
The brake system warning light on the instrument
panel and the indicator light on the parking brake
switch will illuminate.
While Operating
Paddle Shift Control Switches (if equipped)
• Temporary use: Even when the selector is in the
“D” (Drive) position, you can temporarily shift the
gear by pulling the “+” or “–” paddle shift control
switch. The transmission will automatically
switch back to Normal Mode.
• When the selector lever is in Manual Mode,
shift to the next higher gear by pulling the “+” paddle shift cont\
rol switch on the steering
wheel. Pull the “–” paddle shift control switch to shift into the next lower gear.
Manual Shifting Operation
Arrow-shaped lights in the center of the instrument panel show whether an u\
pshift is possible
and whether a downshift is possible.
