2018 SUBARU LEGACY Quick Guide

7

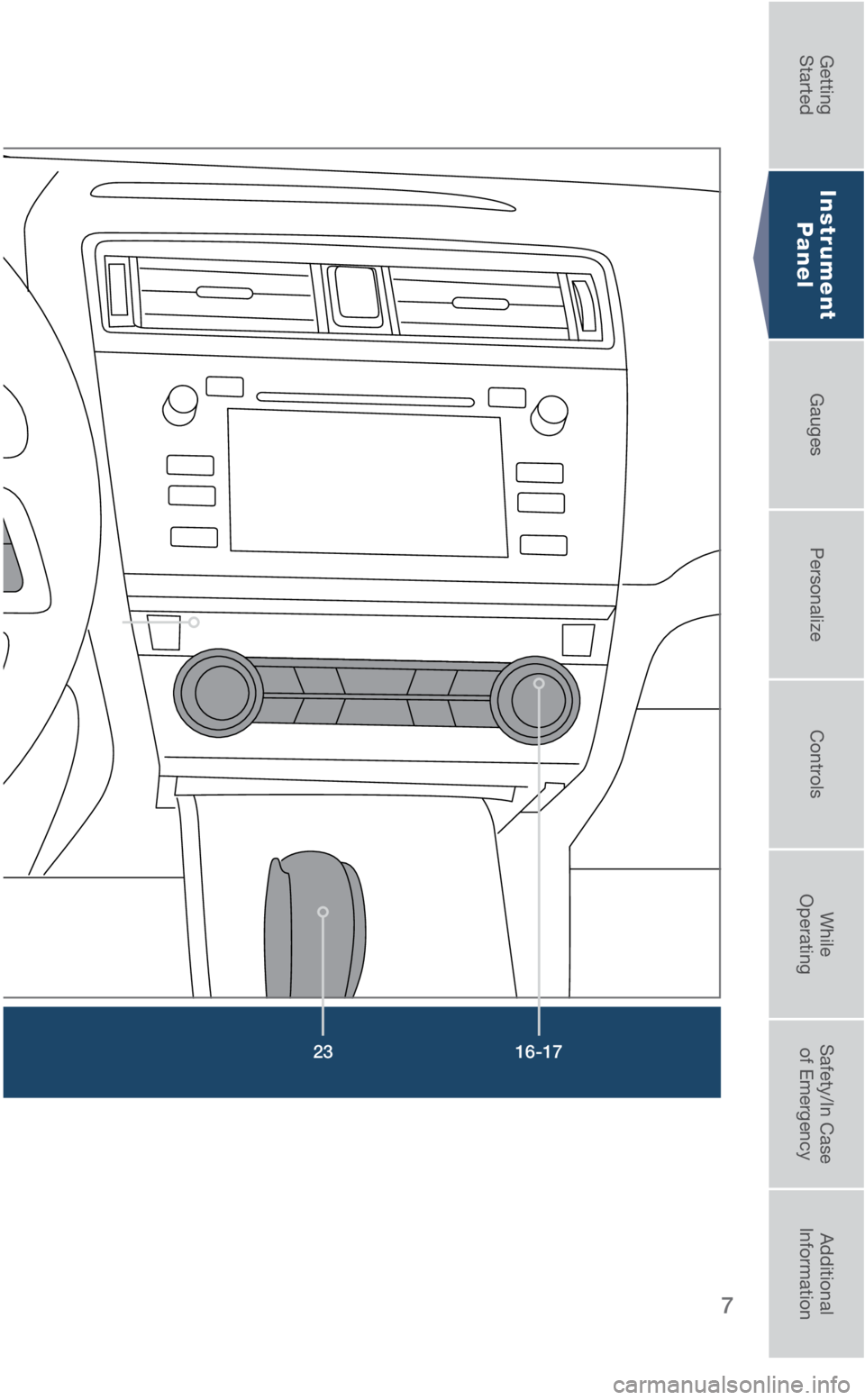

Instrument Panel
Instrument
Panel
16-17
23
2926965_18a_Subaru_Legacy_QRG_050417.indd 75/4/17 3:13 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

8
Seatbelt warning
Front passenger
seatbelt warning
SRS airbag system
Security indicator light
Charge warning
Oil pressure warning
Brake system
Power steering warning
High beam indicator light
Engine oil level warning
AT OIL TEMP
(Automatic Transmission)
ABS warning
Low fuel
All-Wheel Drive
(Automatic Transmission)
Immediate Attention
Caution
Informational
Legacy 2.5i
Gauges
TachometerECO gauge
Temperature gaugeTrip meter and odometerTrip meter reset button
2926965_18a_Subaru_Legacy_QRG_050417.indd 85/4/17 3:13 PM

9
Gauges
Speedometer
Fuel gauge
Vehicle Dynamics Control/
Vehicle Dynamics Control
operation
Vehicle Dynamics Control OFF
CHECK ENGINE/
Malfunction indicator
Tire pressure warning light
Front passenger airbag ON
(Located on overhead
console)
Front passenger airbag OFF (Located on overhead
console)
Low windshield washer fluid
Hill Holder
Turn signals
Front fog light indicator
light (if equipped)
Headlight indicator light
Cruise control
indicator light
Cruise control SET
indicator light
2926965_18a_Subaru_Legacy_QRG_050417.indd 95/4/17 3:13 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

10
Gauges
Legacy 2.5i Premium
Legacy 2.5i Sport
Legacy 2.5i Limited
Legacy 3.6R Limited
Immediate Attention
Caution
Informational
Tachometer
Temperature gauge Trip meter and odometer
Trip meter reset buttonECO gauge
Seatbelt warning
Front passenger
seatbelt warning
SRS airbag system
Security indicator light
Charge warning
Oil pressure warning
Brake system
Power steering warning
Door open (if equipped)
High beam indicator light
Engine oil level warning
AT OIL TEMP
(Automatic Transmission)
ABS warning
Low fuel
All-Wheel Drive
(Automatic Transmission)
2926965_18a_Subaru_Legacy_QRG_050417.indd 105/4/17 3:13 PM

11
Gauges
SpeedometerFuel gauge
Vehicle Dynamics Control/
Vehicle Dynamics Control
operation
Vehicle Dynamics Control OFF
CHECK ENGINE/
Malfunction indicator
Tire pressure warning light
Front passenger airbag ON
(Located on overhead
console)
Front passenger airbag OFF (Located on overhead
console)
Low windshield washer fluid
Hill Holder
Turn signals
Front fog light indicator
light (if equipped)
Headlight indicator light
Cruise control
indicator light
Cruise control SET
indicator light
2926965_18a_Subaru_Legacy_QRG_050417.indd 115/4/17 3:13 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

12
Personalize
Heated Steering Wheel (if equipped)
To activate, pull the Heated Steering Wheel switch while the ignition is \
in the ON position.
The indicator light on the switch will illuminate.
To deactivate, pull the Heated Steering Wheel switch again.
Tilt and Telescopic Steering Column
Push the lever down firmly to adjust the height and lengthwise positio\
n of the column; firmly
push the lever back up to lock the column in place. Do not adjust while \
driving.
2926965_18a_Subaru_Legacy_QRG_050417.indd 125/4/17 3:13 PM

13
Personalize
Power Exterior Mirrors
Turn the knob to the “L” side to adjust the left-hand mirror or to the “R” side to adjust
the right-hand mirror. Move the knob in the direction you want to move the mirror.
Then return the knob to the neutral/center position.
Combination Meter Display Controls (if equipped)
Use the i/SET controls to display and switch selected items in the Combination Meter
Display located between the tachometer and odometer. Please refer to your Owner’s
Manual for details on these controls.
2926965_18a_Subaru_Legacy_QRG_050417.indd 135/4/17 3:13 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

14
While the light switch is on, rotate the dial downward to dim the instrument panel illumination.
Rotate the dial upward to make the illumination brighter. When the dial is fully rotated upward,
the instrument panel illumination becomes full bright.
Controls
