2018 SKODA CITIGO Owners Manual

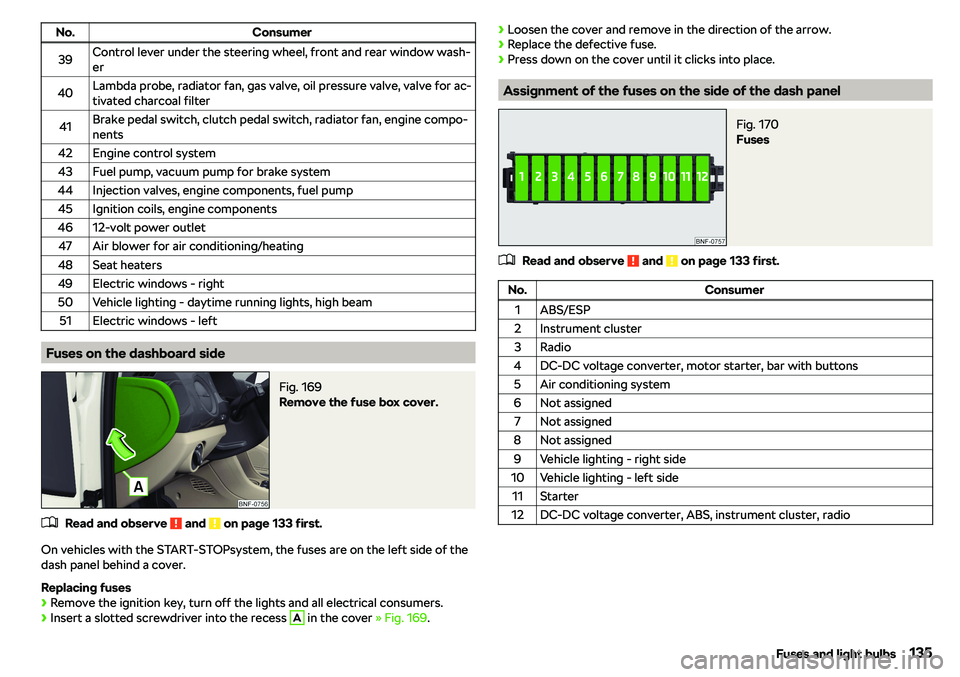

No.Consumer39Control lever under the steering wheel, front and rear window wash-
er40Lambda probe, radiator fan, gas valve, oil pressure valve, valve for ac-
tivated charcoal filter41Brake pedal switch, clutch pedal switch, radiator fan, engine compo- nents42Engine control system43Fuel pump, vacuum pump for brake system44Injection valves, engine components, fuel pump45Ignition coils, engine components4612-volt power outlet47Air blower for air conditioning/heating48Seat heaters49Electric windows - right50Vehicle lighting - daytime running lights, high beam51Electric windows - left
Fuses on the dashboard side
Fig. 169
Remove the fuse box cover.

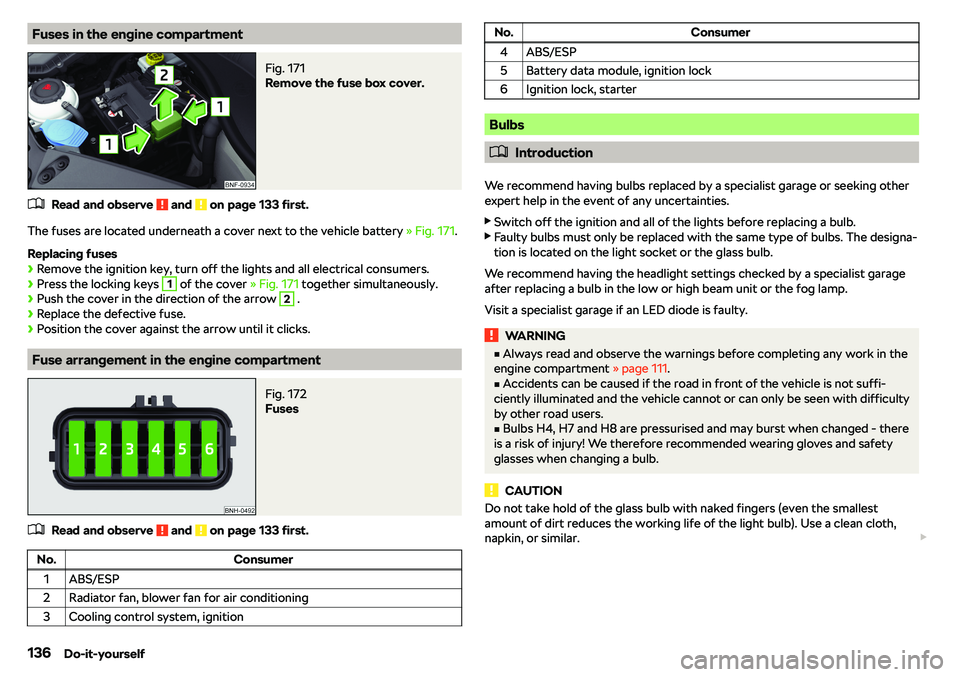

Fuses in the engine compartmentFig. 171
Remove the fuse box cover.

Note
vThis Owner

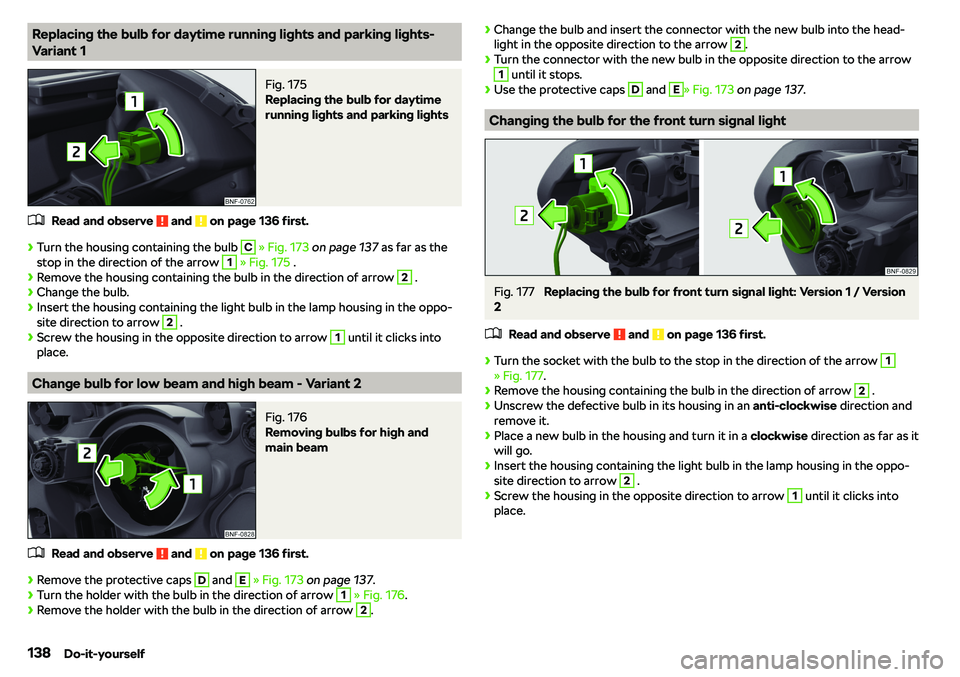

Replacing the bulb for daytime running lights and parking lights-
Variant 1Fig. 175
Replacing the bulb for daytime
running lights and parking lights

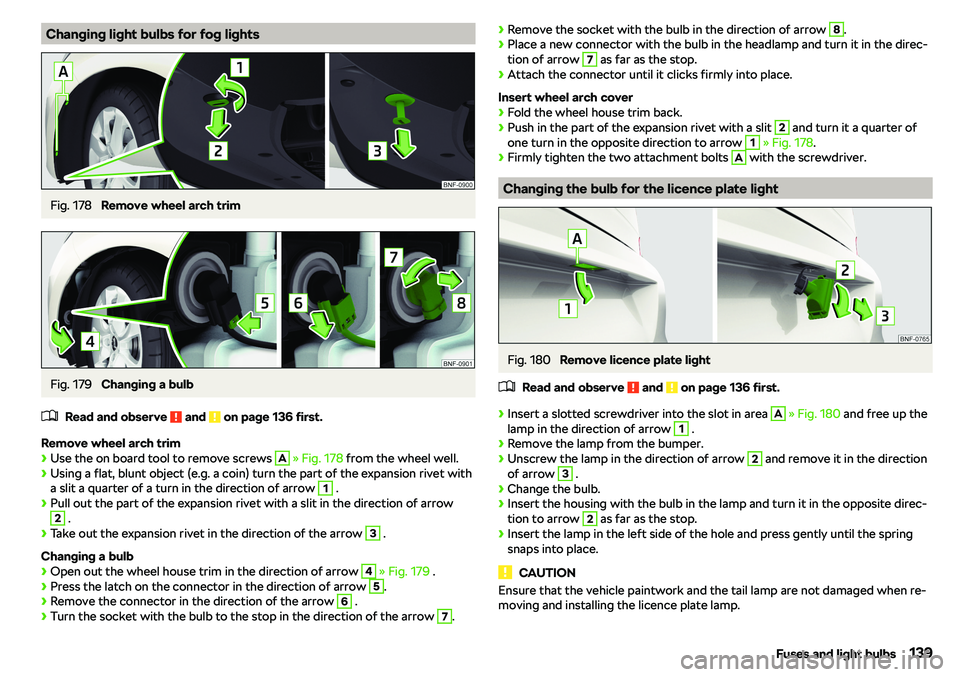

Changing light bulbs for fog lightsFig. 178
Remove wheel arch trim
Fig. 179
Changing a bulb

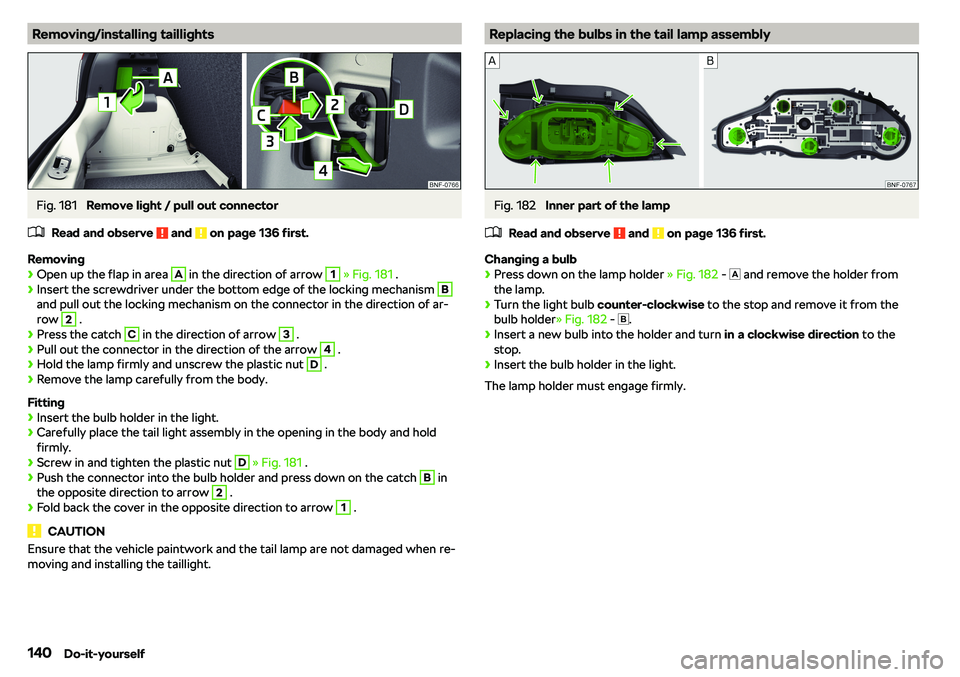

Removing/installing taillightsFig. 181
Remove light / pull out connector

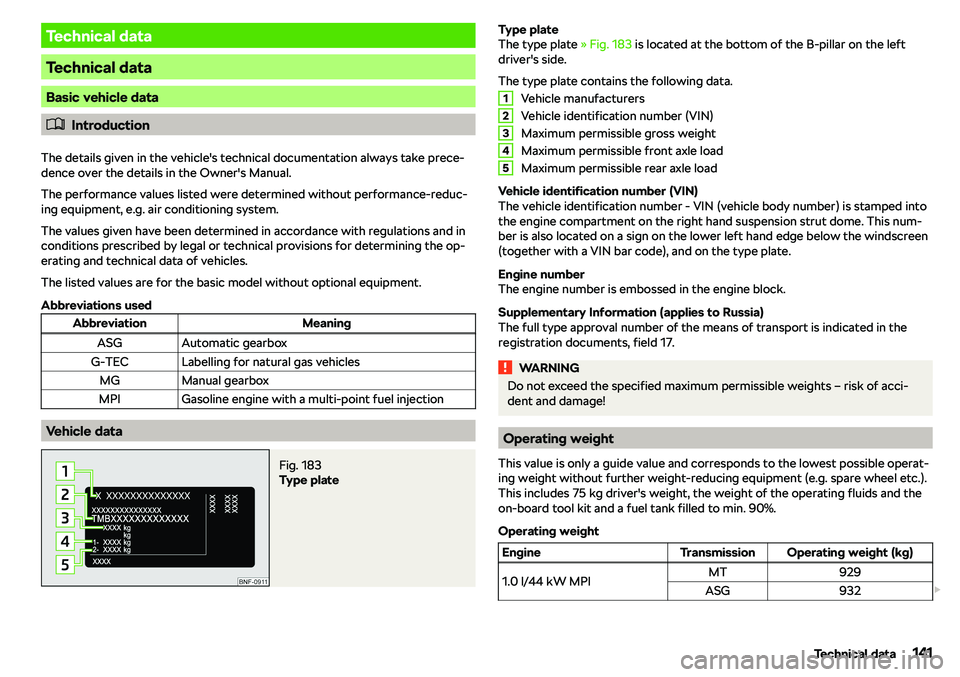

Technical data
Technical data
Basic vehicle data

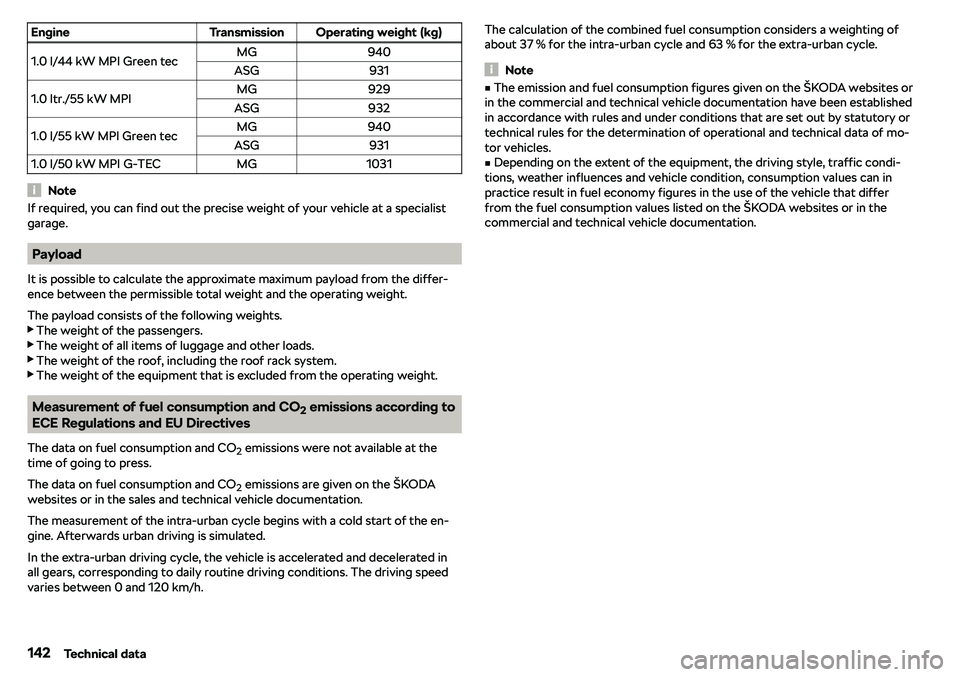

EngineTransmissionOperating weight (kg)1.0 l/44 kW MPI Green tecMG940ASG9311.0 ltr./55 kW MPIMG929ASG9321.0 l/55 kW MPI Green tecMG940ASG9311.0 l/50 kW MPI G-TECMG1031
Note
If required, you can find out the precise weight of your vehicle at a specialist
garage.
Payload
It is possible to calculate the approximate maximum payload from the differ-
ence between the permissible total weight and the operating weight.
The payload consists of the following weights.
