2018 SKODA CITIGO Owners Manual

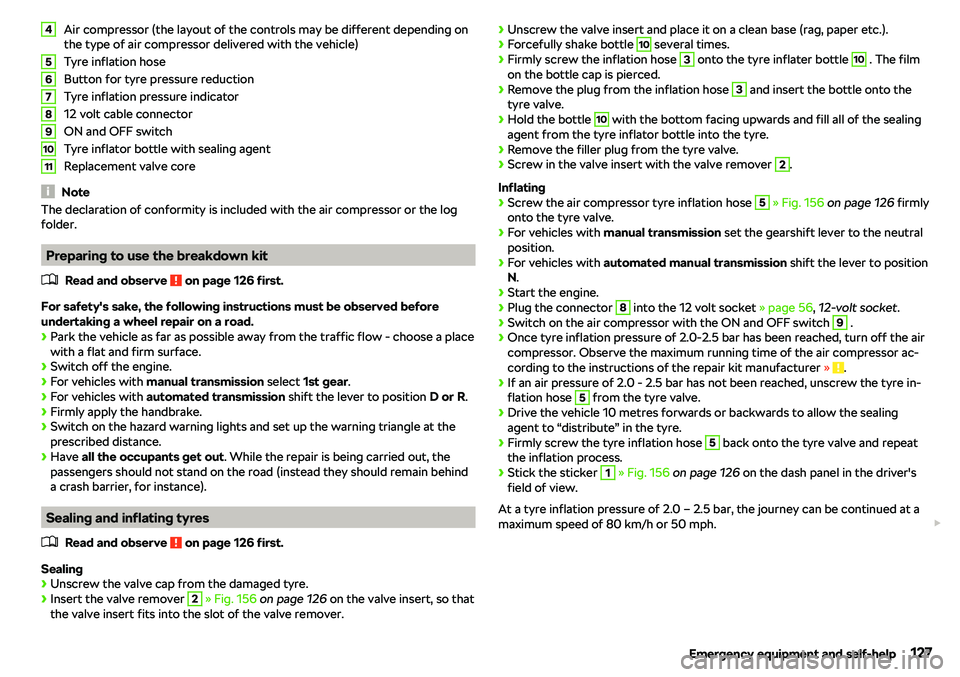

Air compressor (the layout of the controls may be different depending on
the type of air compressor delivered with the vehicle)
Tyre inflation hose
Button for tyre pressure reduction
Tyre inflation pressure indicator
12 volt cable connector
ON and OFF switch
Tyre inflator bottle with sealing agent
Replacement valve core
Note
The declaration of conformity is included with the air compressor or the log
folder.
Preparing to use the breakdown kit

WARNING
vIf the tyre does not inflate to at least. 2.0 bar, the damage is too great.
The sealing agent cannot be used to seal the tyre.

The jump-start cables must be attached in the following sequence.

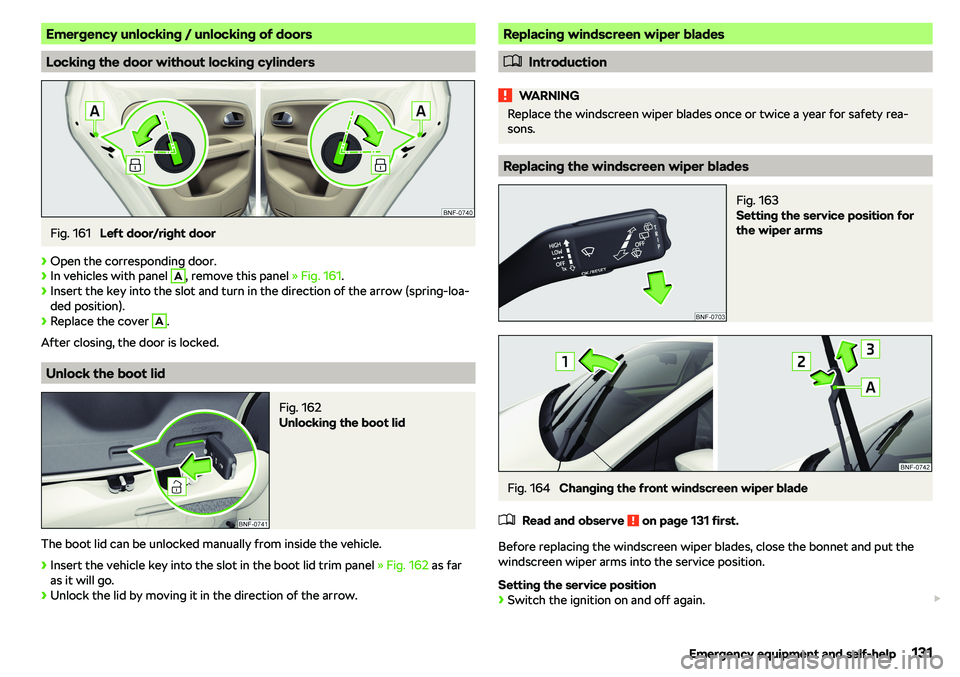

Emergency unlocking / unlocking of doors
Locking the door without locking cylinders
Fig. 161
Left door/right door

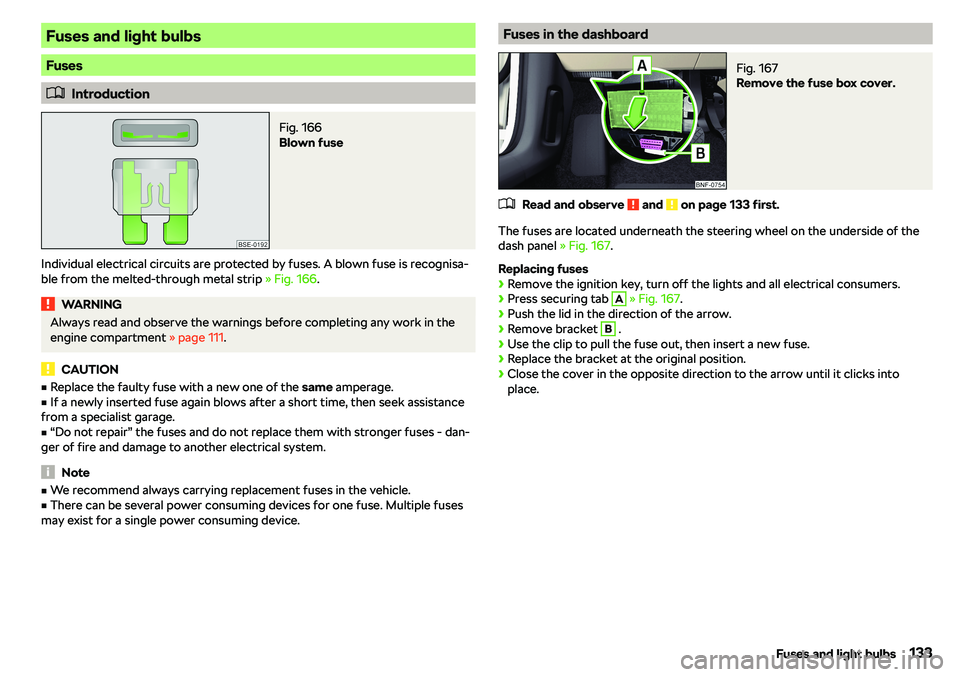

Fuses and light bulbs
Fuses

Fuse assignment in the dashboardFig. 168
Fuses
