2018 Seat Mii YOU&MII COLOUR CONNECTION

Audio ModeAudio Mode
Radio mode Introduction
The radio system is supplied in different ver-
sions depending on the country and the fea- tures of the vehicle. Some systems also have
a DAB radio receiver

Audio ModeRDS is not available in all places or all radiostations.
Depending on the country and unit, the RDS and the alternative frequency (AF) switch can
be disabled under system settings

Audio ModeThis setting will also apply to future an-
nouncements.

Audio ModeSaving stations in preset buttonsFig. 7
Station on the FM frequency band stor-
ed in preset button 6.
Fig. 8
Additional radio functions.
Stations that are already saved are overwrit-
ten if another station is stored in the samepreset button.
Assigning different preset buttons manual- ly

Audio ModeThe DAB radio tuner admits transmission
standards DAB, DAB+ and DMB audio.
In Europe, digital radio broadcasts on the band III frequencies (174 MHz to 240 MHz)
and band L (1,452 MHz to 1,492 MHz).
The frequencies of the two bands are refer-
red to as “ channels” and have a channel
name (e.g. 12
A
).
Several available DAB stations with additional
services are combined into one channel in an
“ ensemble ”.
DAB is currently not available in all areas . In
areas without DAB,  is displayed in DAB ra-
dio mode. In this case, it is possible to change to an FM station from system and function
settings

Audio ModeStarting station updateFig. 13
Additional DAB services
Fig. 14
Active station update.
During station update, the unit searches for
available station sets in the current location.

Audio ModeThe audio files

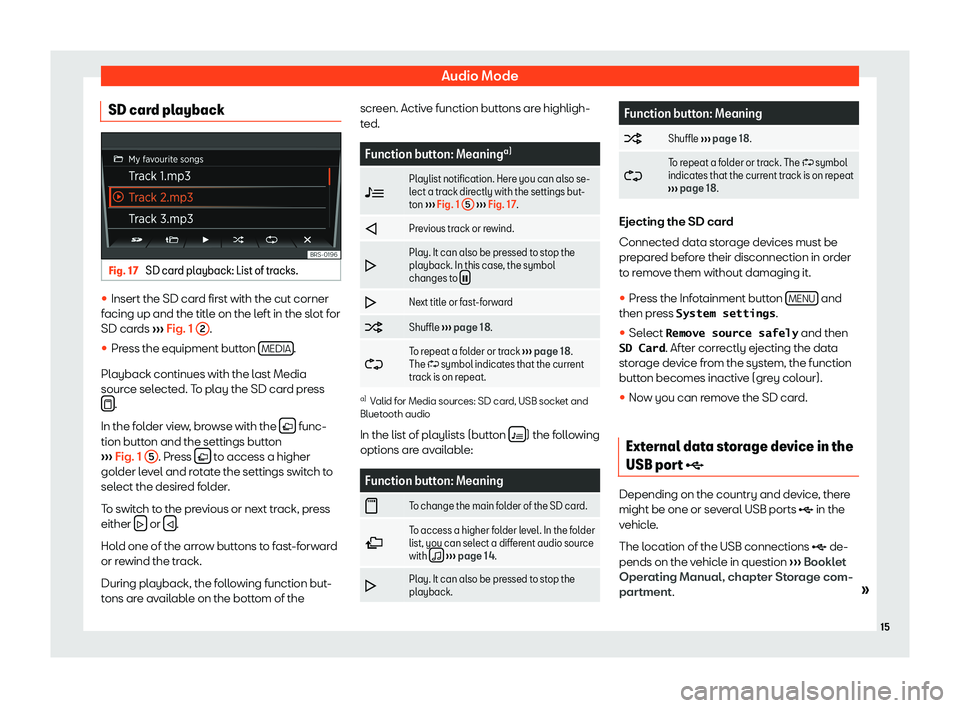

Audio ModeSD card playbackFig. 17
SD card playback: List of tracks.
