Page 33 of 58
Phone Mode*Infotainment system. The next time that themobile telephone is connected (e.g. on thenext journey) the phonebook is updated au-
tomatically.
If any entries in the mobile phonebook have been modified while connected, a manualupdate of the phonebook data can be initi-ated from the U s e r p r o f i l e s e t t i n g s
menu .
Telephone management can store a maxi-
mum of 4 user profiles for mobile telephones. If you wish to link/connect another mobilephone, the oldest user profile will automati-
cally be replaced.
Telephone management system function buttons
Page 34 of 58
Phone Mode*Display: Meaning
Page 35 of 58

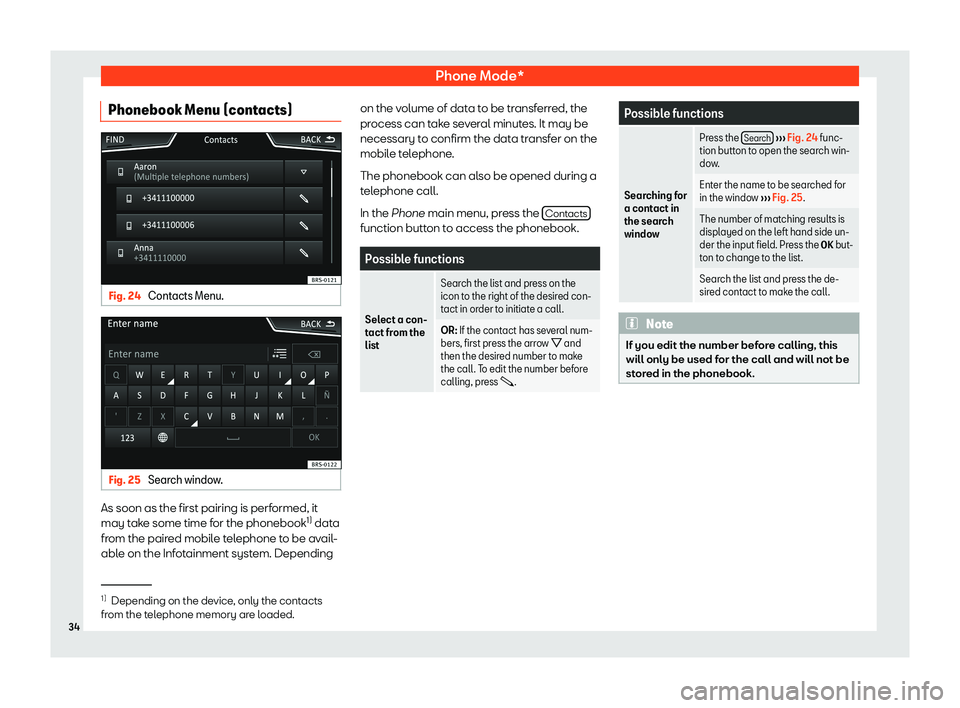

Phone Mode*Phonebook Menu (contacts)Fig. 24
Contacts Menu.
Fig. 25
Search window.
As soon as the first pairing is performed, itmay take some time for the phonebook 1)
data
from the paired mobile telephone to be avail- able on the Infotainment system. Depending
on the volume of data to be transferred, theprocess can take several minutes. It may be necessary to confirm the data transfer on themobile telephone.
The phonebook can also be opened during a
telephone call.
In the Phone main menu, press the Contacts
function button to access the phonebook.
Possible functions
Select a con-
tact from the
list
Search the list and press on the icon to the right of the desired con-
tact in order to initiate a call.OR: If the contact has several num-
bers, first press the arrow B and
then the desired number to make
the call. To edit the number before calling, press .Possible functions
Searching for
a contact in
the search
window
Press the Search
Page 36 of 58

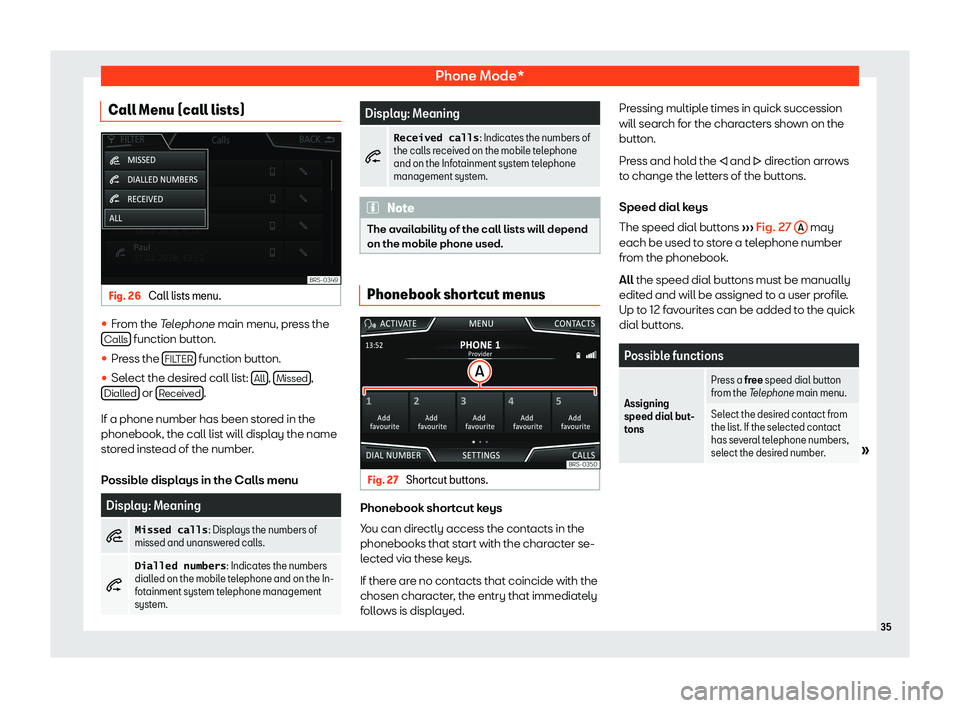

Phone Mode*Call Menu (call lists)Fig. 26
Call lists menu.
Page 37 of 58
Phone Mode*Possible functions
Editing as-
signed speed
dial buttons
Press and hold a used speed di-
al button in the Telephone main
menu until the Contacts menu
opens.Select the desired contact from
the list. If the selected contact
has several telephone numbers, select the desired number.To close the Contacts menu
without applying the changes,
press the BACK
function button.Deleting as-
signed speed
dial buttons
The telephone numbers stored in the speed dial buttons can be
deleted in the menu U s e r p r o -
f i l e s e t t i n g s >
M a n a g e
f a v o u r i t e s
Page 38 of 58
Phone Mode*Function button: function Speed dial button free: Press to assign a num-
ber from the phonebook to the speed dial button
in question.Mailbox number: To enter or edit the voice mail num-
ber.Sort by: To set the order of appearance of the entries
in the phonebook ( F o r e n a m e and
s u r n a m e or vice-
versa).Import contacts: Press to import the phonebook of the
connected telephone, or to update the imported
phonebook.Select ringtonea) : To select a ringtone from a list of
predefined melodies (tones). The selected ringtone is
played and set up when exiting the submenu. Remember your mobile telephone: If there is already
an active Bluetooth
Page 39 of 58

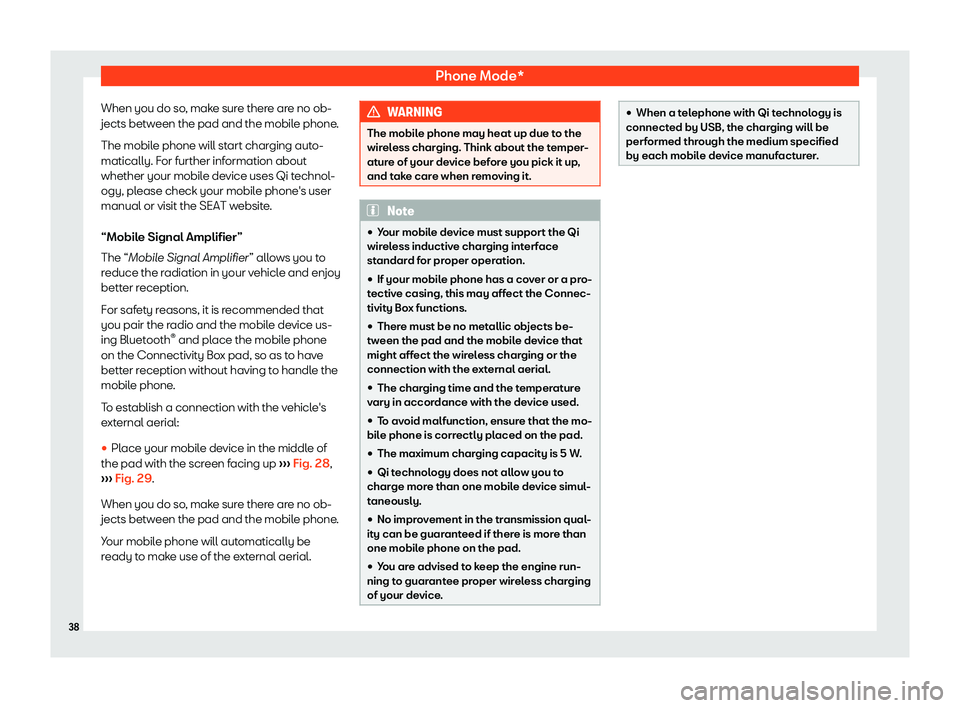

Phone Mode*When you do so, make sure there are no ob-
jects between the pad and the mobile phone.
The mobile phone will start charging auto- matically. For further information about
whether your mobile device uses Qi technol- ogy, please check your mobile phone
Page 40 of 58

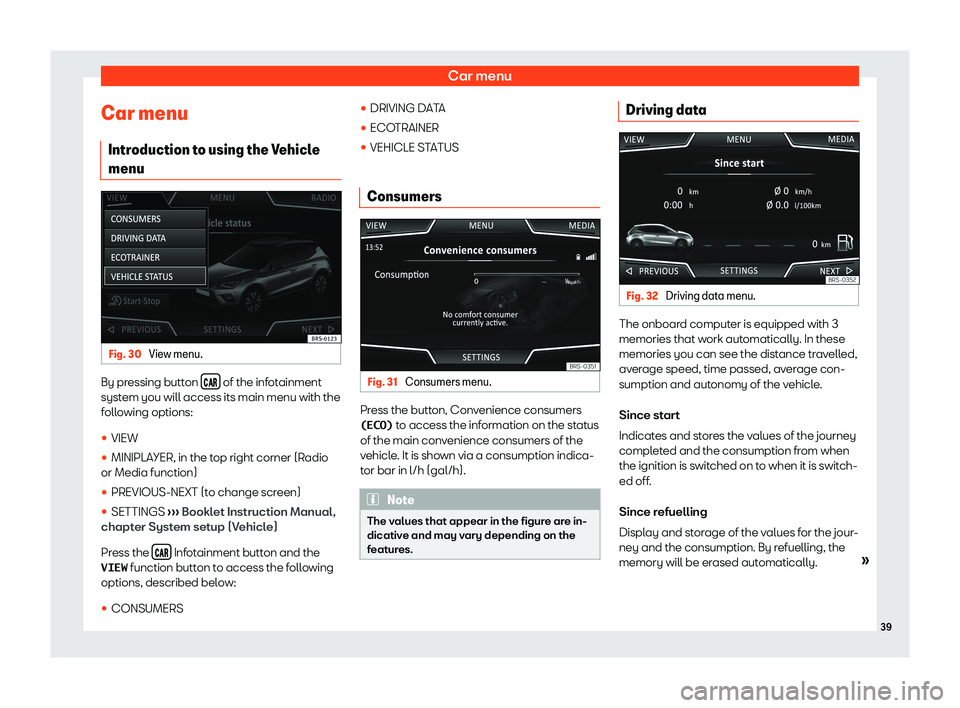

Car menuCar menuIntroduction to using the Vehicle
menuFig. 30
View menu.
By pressing button ! of the infotainment
system you will access its main menu with the
following options:
