5.2
In case of puncture
Depending on the vehicle, a tyre infla-
tion kit or emergency spare wheel is
provided (refer to the following pages).
Special note
The Tyre Pressure Monitor function
does not check the emergency spare
wheel (the wheel replaced by the emer-
gency spare wheel disappears from the
instrument panel display).
Refer to the information on the “Tyre
pressure monitoring system” in
Section 2.
If the emergency spare wheel has been stored for several years, have it \
checked by your Dealer to ensure that it is safe to use.
Vehicles fitted with an emergency spare wheel smaller than the
four other wheels:
– Never fit more than one emergency spare wheel to the same vehicle.
– Replace the emergency spare wheel as soon as possible with a wheel with \
the same dimensions as the original.
– When this is fitted to the vehicle, which must only be a temporary measu\
re, the driving speed must not exceed the speed indicated on the label on the wh\
eel.
– Fitting an emergency spare wheel may alter the way the vehicle usually r\
uns. Avoid sudden acceleration or deceleration and reduce your speed when cor-\
nering.
– If you need to use snow chains, fit the emergency spare wheel to the rea\
r axle and check the tyre pressure.
PUNCTURE, EMERGENCY SPARE WHEEL (1/3)
If the vehicle is parked on
the hard shoulder, you must
warn other road users of
your vehicle’s presence
with a warning triangle or with other
devices as per the legislation apply-
ing to the country you are in.

5.4
8
C
From the exterior of the vehicle, stand
the wheel up, pass the cable and the
component 8 through the wheel rim and
release the wheel.
To put the spare wheel back C
To carry out this operation, the cable
must be unwound.
Stand the wheel up with the valve to-
wards you. Thread the cable and the
component 8 through the wheel rim. Lie
the wheel down with the valve towards
the ground.

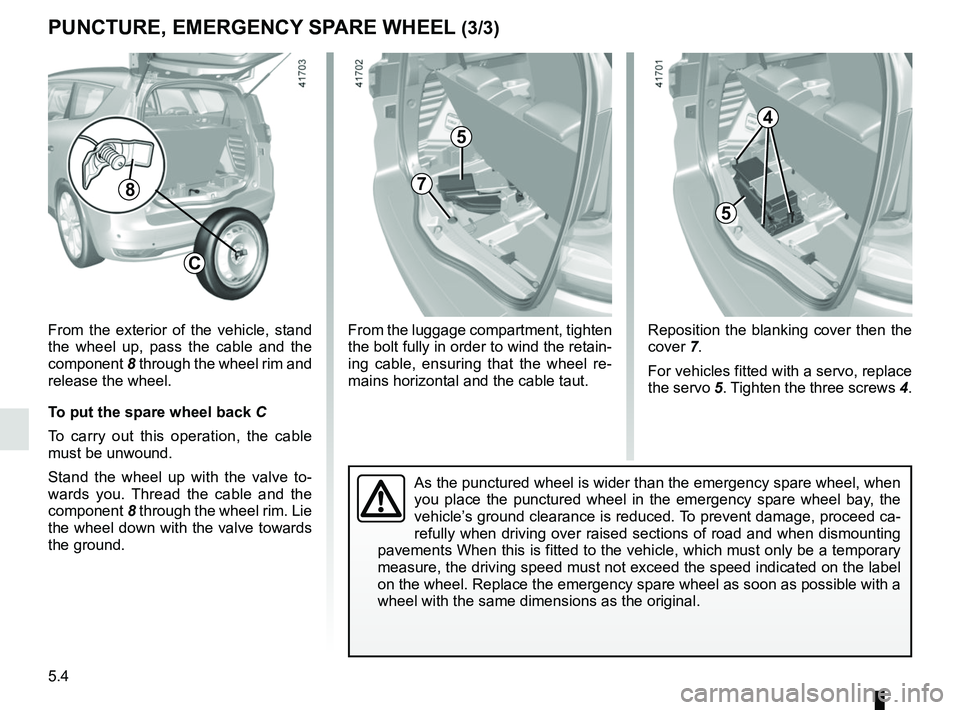

PUNCTURE, EMERGENCY SPARE WHEEL (3/3)
Reposition the blanking cover then the
cover 7.
For vehicles fitted with a servo, replace
the servo 5. Tighten the three screws 4.
5
7
From the luggage compartment, tighten
the bolt fully in order to wind the retain-
ing cable, ensuring that the wheel re-
mains horizontal and the cable taut.
As the punctured wheel is wider than the emergency spare wheel, when
you place the punctured wheel in the emergency spare wheel bay, the
vehicle’s ground clearance is reduced. To prevent damage, proceed ca-
refully when driving over raised sections of road and when dismounting
pavements When this is fitted to the vehicle, which must only be a tempo\
rary
measure, the driving speed must not exceed the speed indicated on the la\
bel
on the wheel. Replace the emergency spare wheel as soon as possible with\
a
wheel with the same dimensions as the original.
4
5

6.1
Section 6: Technical specifications
Vehicle identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . 6.2
Engine identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . 6.3
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.4
Engine specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . 6.6
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.7
Towing weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.7
Replacement parts and repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . 6.8
Service sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.9
Anticorrosion check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . 6.15

6.4

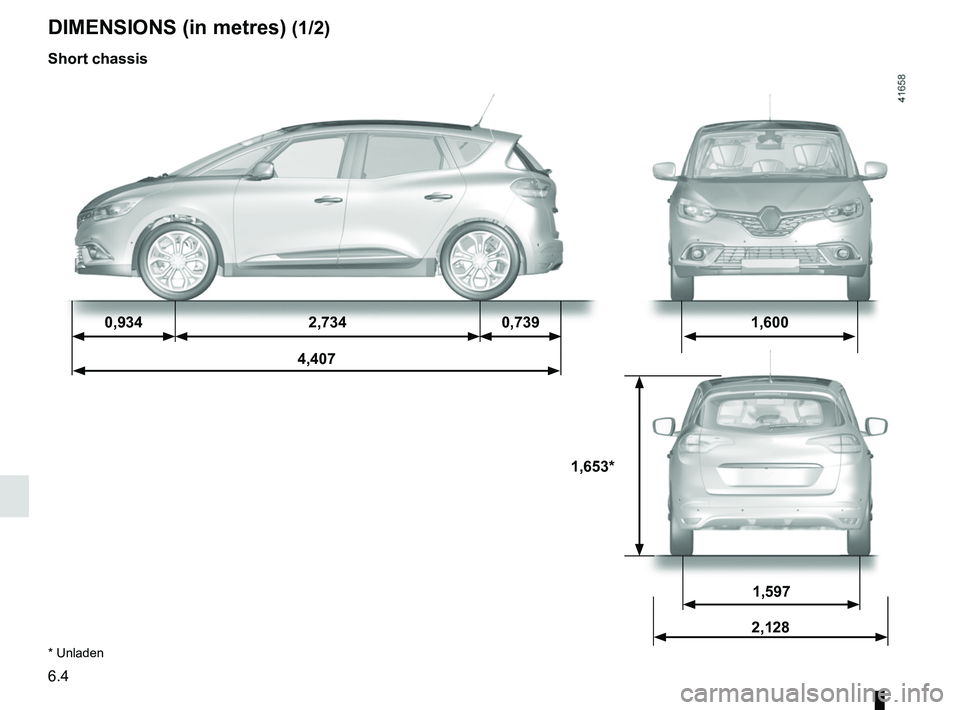

DIMENSIONS (in metres) (1/2)
0,9342,7340,739 1,600
4,407
1,653*
1,597
2,128
* Unladen
Short chassis

6.5

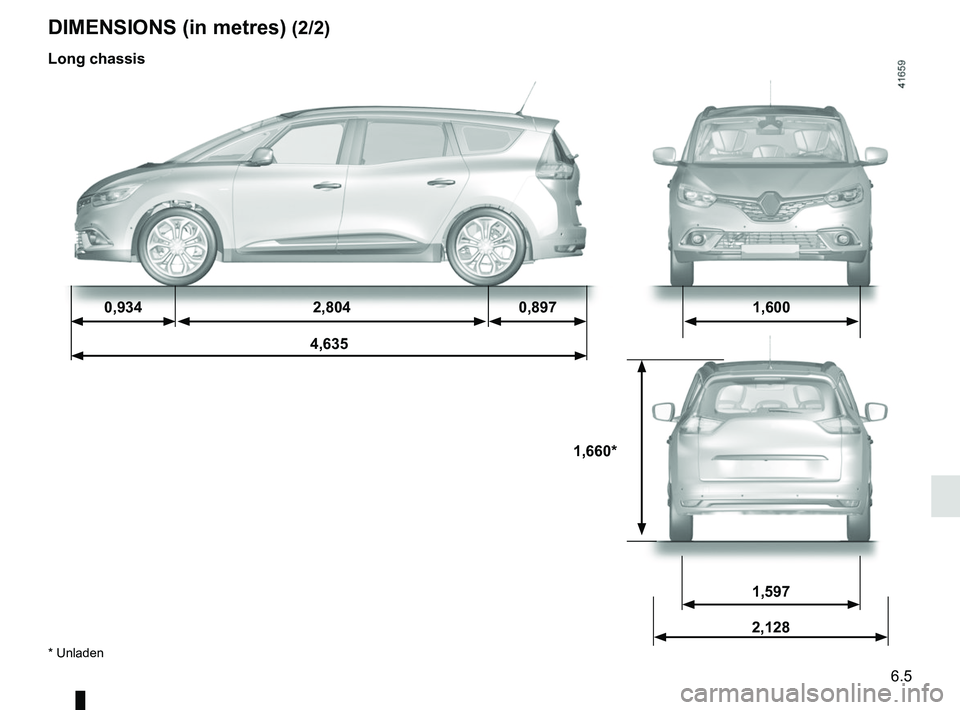

DIMENSIONS (in metres) (2/2)
0,9342,8040,897 1,600
4,635
1,660*
1,597
2,128
* Unladen
Long chassis

7.2
ALPHABETICAL INDEX (2/6)
deadlocking the doors ................................................ 1.5, 1.12
demistingrear screen ...........................................................3.6 → 3.8
windscreen ...........................................................3.6 → 3.8
dimensions ................................................................. 6.4 – 6.5
dipstick................................................................\
........ 4.5 – 4.6
display ..........................................................1.66 → 1.77, 3.22
doors......................................................................1.16 → 1.18
doors/tailgate .........................................................\
..... 1.4, 1.12
driver assistance........ 2.35 → 2.39, 2.47 → 2.61, 2.64 → 2.92
driver’s position .....................................................1.62 → 1.71
driving ....... 2.2 → 2.7, 2.12 – 2.13, 2.20 → 2.29, 2.32 → 2.39,
2.67 → 2.86, 2.93 → 2.95
driving aids ...................................... 2.35 → 2.39, 2.47 → 2.92
driving position settings ...............................................................\
......... 1.28
driving recommendations ......................................2.24 → 2.29
E
ECO driving ...........................................................2.24 → 2.29
ECO mode ........................................................................\
. 2.27
electric beam height adjustment ...................................... 1.100
electric windows ..................................................... 3.24 – 3.25
electronic parking brake ........................................2.21 → 2.23
electronic stability control: ESC .............................2.35 → 2.39
emergency active braking......................................2.40 → 2.46
emergency brake assist.........................................2.35 → 2.39
emergency braking ................................................2.35 → 2.39
emergency key ........................................................... 1.6 – 1.7
emergency spare wheel ............................................5.2 → 5.4
E
energy consumption/recovery indicator .................2.17 → 2.19E
engine
technical specifications .................................................. 6.6
engine oil ...................................................4.4 → 4.7, 4.6 – 4.7
engine oil level ...........................................4.5 → 4.7, 4.6 – 4.7
engine specifications ........................................................... 6.6
engine start/stop button .............................................2.5 → 2.7
environment ............................................................\
........... 2.31
ESC: electronic stability control .............................2.35 → 2.39
external temperature ......................................................... 1.90
F
fatigue detection warning........................................ 2.62 – 2.63
fatigue detector ....................................................... 2.62 – 2.63
F
faults operating faults ................................................5.38 → 5.44
filter air filter ........................................................................\
. 4.10
diesel filter .................................................................... 4.10
oil filter ........................................................................\
. 4.10
passenger compartment filter ...................................... 4.10
fittings ...............................................................\
.....3.30 → 3.37
fixed sunroof ...................................................................... 3.26
front passenger air bag deactivation ................................. 1.59
front seat driver

’s position memory .............................................. 1.27
front seat adjustment .............................................1.20 → 1.22
front seats adjustment .......................................................1.20 → 1.22
with electric controls ......................................... 1.23 – 1.24
with manual controls .................................................... 1.20
fuel advice on fuel economy ...................................2.24 → 2.29
capacity ...............................................................\
........1.111
