2018 Peugeot Boxer Owner's Manual

175
Dimensions of the floor cab
The dimensions are given in millimetres.L1L2L2S L3L4
L Overall length 5,293
5 ,74 36,093 6,3286,693
A Wheelbase 3,000
3,450 3,800 4,035 4,035
B Front overhang 948
C Rear overhang 1,3 4 5
1,710
D Width (with/without mirrors) - / 2 ,1 0 0
- Body width -
- Max. permitted body width -
E Front track 1,810
- Rear track 1,79 0
- Increased rear track 1,9 8 0
F Overall height 2 ,1 5 3
- Max. permitted body height -
10
Special features

176
Double cab
The double cab, available on
the chassis cab and floor cab
models, has a bench seat, seat
belts, a storage space and side
windows.
Rear bench seat Storage space
Do not tilt the bench seat cushion during
transportation.
Do not attach anything to the cab fixing
structure.
Do not exceed the number of passengers
indicated on the registration certificate.
Sliding side windows
While driving, the window must be closed
or secured in an intermediate position.
Do not project long objects outside the
vehicle through the window.
This ergonomic bench seats four people. Depending on the vehicle's equipment, the side
windows can be opened.
Squeeze the two controls then slide the
window.
A storage space is provided under the bench
seat.
Tilt the seat cushion for ward for access to it.
Special features

177
Seat belts
Fastening
F Pull the strap in front of you, with an even movement, ensuring that it does not twist.
F

S
ecure the tongue in its buckle.
F

C
heck that the seat belt is fastened
securely and that the automatic locking
system is operating correctly by pulling the
strap rapidly.
Unfastening
F Press the red button on the buckle, the seat belt rolls up automatically but you are
advised to guide it. Use the seat belt to restrain only one
person per seat.
Child seats
Do not install child seats, booster
cushions or carry-cots on the rear seats
of the cab.
Each rear seat is fitted with a

three-point inertia
reel seat belt.
10
Special features

178

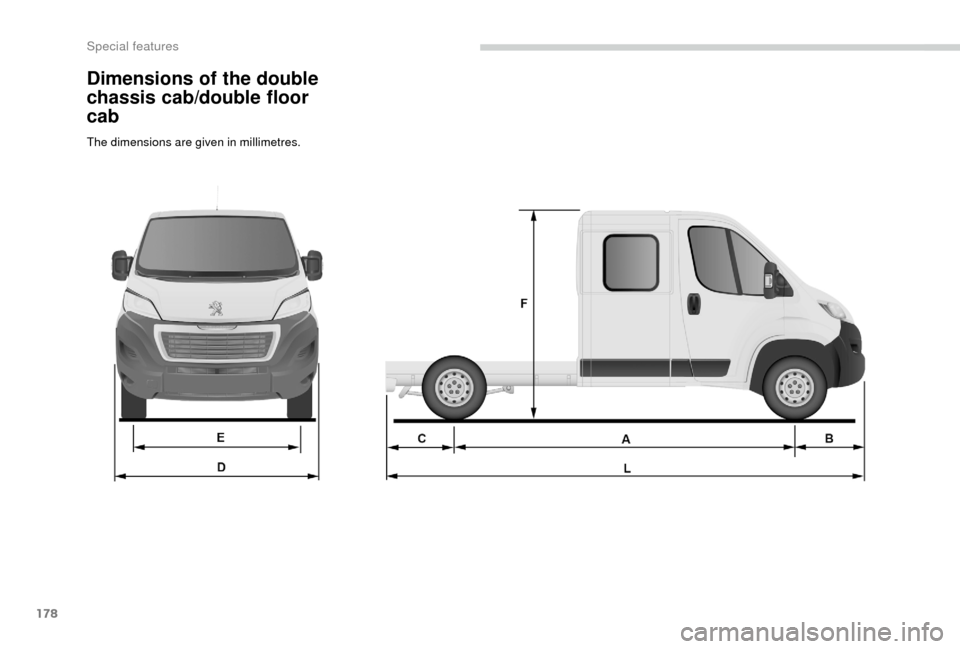

Dimensions of the double
chassis cab/double floor
cab
The dimensions are given in millimetres.
Special features

179
DOUBLE CHASSIS CABDOUBLE FLOOR CAB
L3 L4 L2 L3L4
L Overall length 5,8436,208 5,7386,228 6,678
A Wheelbase 4,0353,450 4,035
B Front overhang 948948
C Rear overhang 8601, 2 25 1,3 4 0 1, 24 51,6 9 5
D Width (with/without mirrors) 2,508/2,050- / 2 ,1 0 0
- Body width --
- Max. permitted body width --
E Front track 1,8101,810
- Rear track 1,79 01,79 0
- Increased rear track 1,9 8 01,9 8 0
F Overall height 2,2542 ,1 5 3
- Max. permitted body height --
10
Special features

180
Tipper
Safety recommendations
The tipper body is raised by an electro-
hydraulic unit powered by the vehicle's battery.The tipper body is raised and lowered by
pressing and holding the corresponding
buttons on the magnetic and portable remote
control situated on a
support in the cab.
The tipper body is raised by the motor in the
electro-hydraulic unit.
The tipper body is lowered by a solenoid valve
that opens the fluid return of the ram.
A safety device prevents the tipper body from
dropping when it is not moving or is being
raised. •
N
ever drive with a drop panel lowered.
•
E
nsure that there is no person or
obstacle nearby (below or above)
when unloading.
•
N
ever leave the tipper body raised
when not in use.
•
A
lways discharge the load with the
upper part of the rear drop panel
secured.
•
O
bser ve the maximum payload on the
weight plate on the vehicle.
•
C
heck regularly that the suspension
is in good condition and that the tyres
are inflated to the recommended
pressures.
•

D
istribute the load uniformly in the
tipper body.
•
T

ransport similar products that
discharge easily.
•

N
ever drive, even slowly, with the
tipper body raised.
Tip onto a
sur face that is flat
and hard: a sur face that is
sloping or loose could cause
the centre of gravity to shift,
making the whole vehicle
unstable.
Special features

181
Characteristics
EquipmentDetails
Tipper Tipper base made of 2
strips of 2.5 mm thick zinc-coated high tensile
steel, joined by central and longitudinal laser welding.
Tipper body painted vehicle body colour.
Tipper structure 2
main longerons in galvanised high tensile steel.
1
tubular steel ram head cross member.
Cross members in galvanised high tensile steel. Protected against
corrosion by application of a
powder coating.
Sub-frame 2 "C" section longerons made of 2.5
mm thick high tensile steel, interior
strengthening by enlarged lower wings.
Fixing to the base vehicle by high tensile steel brackets.
1
machine-welded tubular steel ram foot cross member, hot galvanised.
1
rear articulation cross member in galvanised steel.
Stop brackets at the ends of the longerons.
Rear lamp protection grille.
Cycle guard and wing supports in galvanised steel.
Body sides Body sides in high tensile steel, 15/10
thickness, cold formed, assembled
by continuous laser welding.
Anti-corrosion protection assured by a
powder coating paint finish.
Catches with reinforced zinc protection integrated into the form of the
sides.
Ladder carrier Galvanised steel uprights. Panels and cross members in painted steel
with clinched bolts.
Electro-pump unit 12
Volts/2 kW.
Operating temperature range: -20
to +70°C.
Hydraulic ram Expansion type, nitride ram, 3 -section, dia.: 107
mm
Maximum pressure: 20
bar.
Hydraulic fluid Mineral type ISO HV 46
or equivalent.
Dimensions
This conversion is only available on the
L2 single cab; refer to the table below for the
characteristics of the tipper.
Tipper (in mm)
Load length 3,200
Overall length 3,248
Load width 2,000
Overall width 2 ,1 0 0
Height of body sides 350
Conversion weight (in kg) 550
For information on the characteristics
of the L2
chassis cab, refer to the
"Dimensions" section for the floor cab
model.
10
Special features

182
Weights and towed loads
(kg)
With load transfer, the braked trailer weight can
be increased, on condition that the equivalent
of this load is removed from the vehicle so that
the GTW is not exceeded. Warning: towing with
a lightly loaded towing vehicle may have an
adverse effect on its road holding.
The kerb weight is equal to the weight without
load + driver (75
kg) + fuel tank filled to 90%.
Hydraulic system
These precautions are mandator y for any
work on the hydraulic system. Before towing a trailer, check that:
-
t
he nose weight on the towbar ball does
not exceed the value (S) indicated on the
trailer's weight plate,
-
t
he maximum trailer weight is less than
the value indicated on the trailer's weight
plate and the Gross Vehicle Weight (GV W)
does not exceed the value indicated on the
vehicle's weight plate.
-
i
n the case of a self-supporting trailer,
the Gross Train Weight (GTW) must not
exceed the value indicated on the vehicle's
weight plate.
• N ever work under a tipper body that is not
supported,
•

S
witch off the power supply to the electro-
hydraulic unit using the circuit breaker,
•

V
ehicle stationary, engine off.
•

W
hen carrying out maintenance work
under the tipper body, place the tipper body
in the safety position secured with its stay
(position indicated by a red arrow under the
back of the tipper body),
