Instruments and controls10.Driver's front airbag/Horn.
11. Steering wheel mounted audio system
controls.
Centre console
3.Storage/portable ashtray.
4. 12
Volt accessory socket (180 W max).
5. USB port/Cigarette lighter.
6. Dynamic stability control (DCS/ASR)/
Intelligent traction control.
7. Hill descent control.
8. Lane Departure Warning System.
9. Hazard warning lamps.
10. Central locking/Locking indicator lamp.
11. Demisting/Defrosting.
12 . Gear lever.
1. Fusebox.
2. Programmable additional heating.
3. Pneumatic suspension/Reading lamps/
Additional rear ventilation.
4. Cruise control/speed limiter controls.
5. Vehicle configuration/Headlamp beam
height/Front/rear foglamps.
6. Lighting and direction indicator control
stalk.
7. Instrument panel with display.
8. Wiper/screenwash/trip computer stalk.
9. Ignition switch.
1.Audio system/Navigation.
2. Heating/Air conditioning.
Over view

12
Indicator lampStateIndicates Actions/Comments
+ Electronic brake
force distribution
Fixed.
There is a
fault with the system.You must stop as soon as it is safe to do so.
Contact a
PEUGEOT dealer or a qualified
workshop.
Orange warning/indicator lamps Anti-lock Braking
System (ABS) Fixed.
The anti-lock braking system has
a


fault.The vehicle retains conventional braking.
Drive carefully at reduced speed and contact
a
PEUGEOT dealer or a qualified workshop without
d e l ay.
Service Temporarily on. Minor faults are present. Contact a
PEUGEOT dealer or a qualified workshop.
Fixed, accompanied
by a
message in the
screen. Major faults are present.
Make a
note of the warning message and call
a
PEUGEOT dealer or a qualified workshop.
Brake pads Fixed. The front brake pads are worn. Have the brake pads replaced by a
PEUGEOT dealer
or a


qualified workshop.
DSC/ASR Flashing. It is operating. The system optimises traction and allows improved
directional stability of the vehicle.
Fixed, accompanied
by an audible signal
and a
message in the
screen. There is a
fault with the system
or the hill start assist. Contact a
PEUGEOT dealer or a qualified workshop.
For more information on Dynamic Stability Control
or Anti-Slip Regulation , refer to the corresponding
sections.
Fixed. There is a
fault with the
Intelligent Traction Control.
Dashboard instruments

46

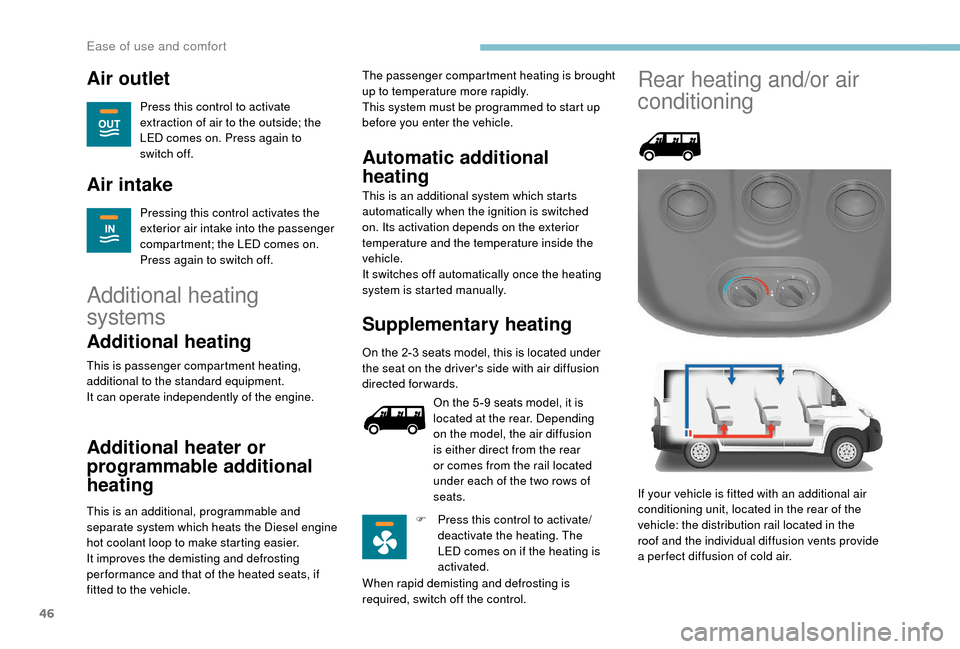

Air outlet
Press this control to activate
extraction of air to the outside; the
LED comes on. Press again to
switch off.
Air intake
Pressing this control activates the
exterior air intake into the passenger
compartment; the LED comes on.
Press again to switch off.
Additional heating
systems
Additional heating
This is passenger compartment heating,
additional to the standard equipment.
It can operate independently of the engine.
Additional heater or
programmable additional
heating
This is an additional, programmable and
separate system which heats the Diesel engine
hot coolant loop to make starting easier.
It improves the demisting and defrosting
per formance and that of the heated seats, if
fitted to the vehicle.
Automatic additional
heating
This is an additional system which starts
automatically when the ignition is switched
on. Its activation depends on the exterior
temperature and the temperature inside the
vehicle.
It switches off automatically once the heating
system is started manually. The passenger compartment heating is brought
up to temperature more rapidly.
This system must be programmed to start up
before you enter the vehicle.
Supplementary heating
On the 2-3 seats model, this is located under
t he seat on the driver's side with air diffusion
directed forwards.
On the 5 -9
seats model, it is
located at the rear. Depending
on the model, the air diffusion
is either direct from the rear
or comes from the rail located
under each of the two rows of
seats.
F

P
ress this control to activate/
deactivate the heating. The
LED comes on if the heating is
activated.
When rapid demisting and defrosting is
required, switch off the control.
Rear heating and/or air
conditioning
If your vehicle is fitted with an additional air
conditioning unit, located in the rear of the
vehicle: the distribution rail located in the
roof and the individual diffusion vents provide
a
per fect diffusion of cold air.
Ease of use and comfort

68
Hazard warning lamps
Visual warning by means of the direction
indicators to alert other road users to a vehicle
breakdown, towing or accident.
F

P
ress this button, the direction indicators
flash.
This can operate with the ignition off.
Electronic stability control
(ESC)
Electronic stability control (ESC) integrating the
following systems:
-

a
nti-lock braking system (ABS) and
electronic brake force distribution (EBFD),
-
em

ergency braking assistance (EBA),
-

w
heel anti-slip regulation (ASR) or traction
control,
-
d

ynamic stability control (DSC).
Horn
F Press the central part of the steering wheel.
Definitions
Anti-lock braking system (ABS)
and electronic brake force
distribution (EBFD)
This system improves the stability and
manoeuvrability of your vehicle when braking
and contributes towards improved control on
corners, in particular on poor or slippery road
surfaces.
The ABS prevents wheel lock in the event of
emergency braking.
The electronic brake force distribution system
(EBFD) manages the braking pressure wheel
by wheel.
Emergency braking assistance
(EBA)
In an emergency, this system permits the
optimum braking pressure to be reached
more quickly, therefore reducing the stopping
distance.
It is triggered in relation to the speed at which
the brake pedal is pressed. The effect of this is
a reduction in the resistance of the pedal and
an increase in braking efficiency.
Anti-slip regulation (ASR)
The ASR system (also known as Traction
Control) optimises traction in order to limit
wheel slip by acting on the brakes of the driving
wheels and on the engine. It also improves
the directional stability of the vehicle on
acceleration.
Safety

71
Intelligent Traction Control
System to improve traction on slippery sur faces
(snow, ice, mud, etc.)
This system checks for situations of difficult
sur face grip that could make it difficult to move
off or make progress.
In these situations, Intelligent Traction
Control takes over from the ASR system, by
transferring drive to the wheel with the best grip
on the ground to provide the best traction and
trajectory control.
Switching on
On starting the vehicle, this system is
deactivated.
F
Press this button to switch the system on; the warning lamp in the button comes on.
This system is active up to about 19
mph (30 km/h).
Once the speed exceeds 19
mph (30 km/h),
the system is deactivated automatically, but the
warning lamp in the button stays on. The system is reactivated automatically as soon as
the speed drops below 19
mph (30 km/h).
Deactivation
F Press this button to deactivate the system;
the warning lamp in the button goes off and
the ASR system is active again.
Malfunction
If a fault occurs with the intelligent
t raction control, this warning lamp
comes on.
Have it checked by a
PEUGEOT dealer or by
a


qualified workshop.
Load inertia control
All such variations have an effect on braking,
traction, the behaviour of the vehicle when
cornering and the tendency to overturn.
The true total weight of a

commercial vehicle
can vary considerably depending on the load
carried. As a

result, the centre of gravity of the
vehicle can move, both longitudinally and in
height. Load inertia control estimates the true total
weight of the vehicle by analysing its behaviour
under acceleration and braking.
This system then adapts the operation of the
DSC and ASR systems according to the weight
distribution in the vehicle. In critical situations,
your vehicle therefore remains more securely
on its intended trajectory.
Hill Descent Control
System that provides assistance when
descending on sur faces with poor grip (mud,
gravel, etc.) or on a
steep gradient.
This system reduces the risk of slip or loss of
control of the vehicle while descending a
hill.
It keeps the vehicle at a
steady speed during
a


descent by acting independently and with
varying force on each of the brakes.
5
5
Safety

107
The system is automatically deactivated
if the Stop & Start system is active.
The system will restart and check the
operating conditions again when the
vehicle moves off. Detection may be impeded:
-
i
f the markings on the road are worn,
-
i
f there is little contrast between the
markings on the road and the road
sur face.
The system may suffer inter ference or not
work correctly:
-
w
hen the vehicle is carrying a very
heavy load (even more so if the load is
not evenly spread),
-

w
hen the conditions of visibility are
poor (rain, fog, snow, etc.),
-

w
hen the lighting conditions are poor
(dazzling sun, shade, etc.),
-

i
f the windscreen is dirty or damaged
near the camera,
-

i
f any of the ABS, DSC, ASR or
Intelligent Traction Control systems are
out of service.
Malfunction
If a malfunction occurs, this warning
l amp comes on, accompanied by
an audible signal and confirmed by
a
message in the screen.
Have the system checked by a
PEUGEOT
dealer or a
qualified workshop.
6
Driving

186
Hazard warning lamps ....................................68
Headlamp flash ............................................... 61
Headlamps, dipped beam


...............................61
Headlamps, main beam


............................16, 61
Head restraints, front
...................................... 37
Heating
............................................................ 43
H

eating, additional

.................................... 46 - 47
Hill Descent Control


................................... 71-72
Hill start assist
................................................. 95
Horn ................................................................. 68
Immobiliser, electronic


....................................89
Indicator, coolant temperature


........................20
Indicator, engine oil level
...........................18 -19
Indicator lamps, operation
................................ 9
I

ndicators, direction

........................................ 61
Information, vehicle ......................................... 14
Instrument panels


............................................. 7
Instruments and controls
..................................4
Intelligent Traction Control


..............................71Kit, hands-free
.......................................
1
2-13, 5
Jack
...............................
................................
7, 4Pads, brake

............................................
12 9 -131
Parking brake

........................
11, 91-92, 129 -131
Player, USB ................................................
6 - 7, 4
Port, USB ...................................................
6 - 7, 4
Pre-tensioning seat belts

................................
74
Protecting children

..............................
75, 77, 79
Radio ......................................................4, 7, 2-3
Radio, digital (Digital Audio Broadcasting – DAB)
......................................5
Range, AdBlue


................................................21
Regeneration of the particle filter
..........12 9 -13 0
Remote control


..........................................30, 89
Replacing bulbs
..................................... 14

3 -14 4
Replacing the air filter
................................... 12

9
Replacing the oil filter
................................... 12

9
Replacing the passenger compartment filter


....12 9
Resetting the service indicator


..................18 -19
Rev counter


.......................................................7
Safety, children


...................................75, 77, 79
Screen, colour
................................................... 4
S

creen menu map

.........................4, 6, 9, 12, 14
Screenwash fluid


...................................126 -128
SCR (Selective Catalytic Reduction)


............132
Seat belts


...................................................7 2 -74
Seat belts, rear


................................................73
Seats, heated


..................................................38
Service indicator


........................................18 -19
Servicing
.................................................... 1

8 -19
Settings, equipment


..................................22, 27
Oil, engine


..............................................126 -128
On-board tools


.......................................137-142
Opening the bonnet


......................................125
Overhead storage
............................... 5

2-54, 56
Menu


.......................................22, 4, 6, 9, 12, 14
Menus (audio)


...............................................4, 6
Mirrors, door .................................................... 42
Lane Departure Warning
System (LDWS)


...................................10 6 -107
Level, engine coolant


......................................20
Levels


.....................................................126 -128
Levels and checks

..............................
..........126
Lighting dimmer


................................................8
Low fuel level

..........................................2

0, 116
Lumbar


............................................................37H
I
K
JP
R
S
O
M
L
Gauge, fuel.............................................. 20, 116
Gearbox, manual .............................. 92, 94, 130
Gear shift indicator ~ Gear efficiency indicator


....................................... 17
Glove box
.................................................. 52-55G
Alphabetical index

187
Sidelamps .......................................................61
S now chains .................................................. 11 9
Socket, auxiliary
............................................ 7,

4
Socket, Jack


.................................................. 7, 4
Sockets, auxiliary
...............................

.......52-55
Speed limiter
........................................... 9

9 -10 0
Speed limit recognition
............................. 9

6-98
Speedometer


.................................................... 7
Stability control (ESC)............................... 68 -70
Starting a


Diesel engine
............................... 11

8
Starting the vehicle
......................................... 90
St

ation, radio
...............................
..............4, 2-3
Steering wheel mounted controls, audio


......3, 2
Steering wheel adjustment


.............................41
Stop & Start


............................. 17, 51-52, 66, 73,
93 -95, 125, 129, 155
Storage


...................................................... 52-55
Switching off the vehicle
.................................90
Tables of engines


.......................................... 15 8
Table, writing


............................................. 52-54
Ta n k , f u e l


....................................................... 11 6
Technical data
............................................... 15

8
Telephone
..............................

............12-14, 5 - 6
Temperature, coolant


...................................... 20
To o l s


....................................................... 137-142
Touch screen ..................................................... 1
Touch screen audio-telematic system


..............1
To w b a r
...............................

........................88-89
Towbar with quickly detachable towball


...120 -123
Towed loads


.................................................. 157
Traction control (ASR)


..............................68 -70
Traffic information (TA)


.....................................3
Tr a i l e r
...............

......................................... 88-89Trip computer
..................................................28
Type of bulbs
............................... ..................14 4
Tyre under-inflation detection


................11 0 -111
Under-inflation (detection)


.....................11 0 -111
UREA warning lamp


.....................................132
USB


............................................................6 - 7, 4
Ventilation


.................................................43, 50
Voice commands


.............................16 -24, 6 -14
Warning and indicator lamps
........................ 8

-9
Warning lamp, seat belts


...........................72-73
Weights
...............

..........................................157
Wheel, spare
...............................

...........137-142
Window controls


.............................................36
Wipers


.............................................................65
Wipers, automatic rain sensitive


.....................65
T
U
V
W
.
Alphabetical index
