2018 PEUGEOT 5008 engine

265
For right-hand drive vehicles, when the
total distance recorder has reached
62 miles (100 km), it is necessary to wait
approx. 15
minutes before starting the
engine.
However, if minor problems persist following
this operation, contact a
PEUGEOT dealer or
a


qualified workshop.
Referring to the corresponding section, you
must yourself reinitialise or reset certain
systems, such as:
-

t

he key with remote control or electronic key
(depending on version),
-

t

he sunroof and its electric blind,
-

t

he electric windows,
-

t

he date and time,
-

t

he preset radio stations. The Stop & Start system may not be
operational during the trip following the
first engine start.
In this case, the system will only be
available again after a


continuous
period of immobilisation of the vehicle,
a period which depends on the exterior
temperature and the state of charge of the
battery (up to about 8 hours).
Do not force the lever as locking will not
be possible if the clamp is not positioned
correctly; start the procedure again.
Following reconnection of the
battery
After reconnecting the battery, turn on the
ignition and wait 1
minute before starting
the engine, in order to enable the electronic
systems to initialise.
Towing the vehicle
Procedure for having your vehicle towed or
for towing another vehicle using a removable
towing eye.
Access to the tools
Depending on version, the towing eye is stored
either in the interior trim of the boot sill, left
hand side, or in a
bag behind the left rear seat.
For more information on Access to the tools ,
refer to the corresponding section.
Towing your vehicle
To access the front screw thread:
Model with halogen headlamps
F

P
ress on the indicated zone until the cover
plate is unclipped.
8
In the event of a breakdown

266
F Screw in the towing eye until it tightens fully.
F I nstall the towbar.
F

P
lace the gearbox in neutral.
Failure to follow this instruction could
result in damage to some components
(brakes, transmission, etc.) and the
absence of braking assistance when the
engine is restarted.
Model with "
Full LED" headlamps
F
P
ress on the top right corner, then, while
still pressing, slide your finger to the left
until the cover plate is unclipped.
Automatic gearbox: never tow the vehicle
with front wheels on the ground with the
engine off. F

U
nlock the steering and release the parking
brake.
F
S
witch on the hazard warning lamps on
both vehicles.
F
S
et off gently and drive slowly for a short
distance.
Towing another vehicle
To access the rear screw thread:
F

P
ress the top left corner of the cover plate
then press the bumper to the right of the
cover plate, until it unclips.
F

S
crew the towing eye in fully.
F

I
nstall the towbar.
F

S
witch on the hazard warning lamps on
both vehicles.
F

S
et off gently and drive slowly for a short
distance. General recommendations
Obser ve the legislation in force in your
c o u nt r y.
Ensure that the weight of the towing
vehicle is higher than that of the towed
vehicle.
The driver must remain at the wheel of
the towed vehicle and must have a
valid
driving licence.
When towing a vehicle with all four
wheels on the ground, always use an
approved towing arm; rope and straps are
prohibited.
The towing vehicle must move off gently.
When the vehicle is towed with its engine
off, there is no longer braking and steering
assistance.
In the following cases, you must always
call on a
professional recovery ser vice:
-

v
ehicle broken down on a motor way or
fast road,
-
f

our-wheel drive vehicle,
-

w
hen it is not possible to put the
gearbox into neutral, unlock the
steering, or release the parking brake,
-

w
hen it is not possible to tow a vehicle
with an automatic gearbox, engine
running,
-

t
owing with only two wheels on the
ground,
-

w
here there is no approved towbar,
etc. available.
In the event of a breakdown

267
Engine technical data and
towed loads
Engines
The engine characteristics are given in the
vehicle's registration document, as well as in
sales brochures.The maximum power corresponds to the
value type-approved on a
test bed, under
conditions defined in European legislation
(Directive 1999/99/EC).
For more information, contact a
PEUGEOT
dealer or a
qualified workshop.
Weights and towed loads
The weights and towed loads relating to your
vehicle are given in the registration document,
as well as in sales brochures.
These values are also given on the
manufacturer's plate or label.
For more information, contact a PEUGEOT
dealer or a
qualified workshop. The GTW values and the towable loads
listed are valid for a
maximum altitude of
1,000 metres. The towable load must be
reduced by steps of 10% for each additional
1,000

metres.
The maximum authorised nose weight
corresponds to the weight permitted on the
towbar.
GT W: Gross train weight.
When exterior temperatures are high,
the vehicle per formance may be limited
in order to protect the engine. When the
exterior temperature is higher than 37°C,
limit the towed weight.
Towing using a lightly loaded vehicle can
adversely affect roadholding.
Braking distances are increased when
towing a trailer.
When using a
vehicle to tow, never
exceed a
speed of approximately 60 mph
(100
km/h) (obser ve the local legislation in
f o r c e). If the exterior temperature is high, it is
recommended that the engine be allowed
to idle for 1
to 2 minutes after the vehicle
comes to a stop, to facilitate its cooling.
9
Technical data

268

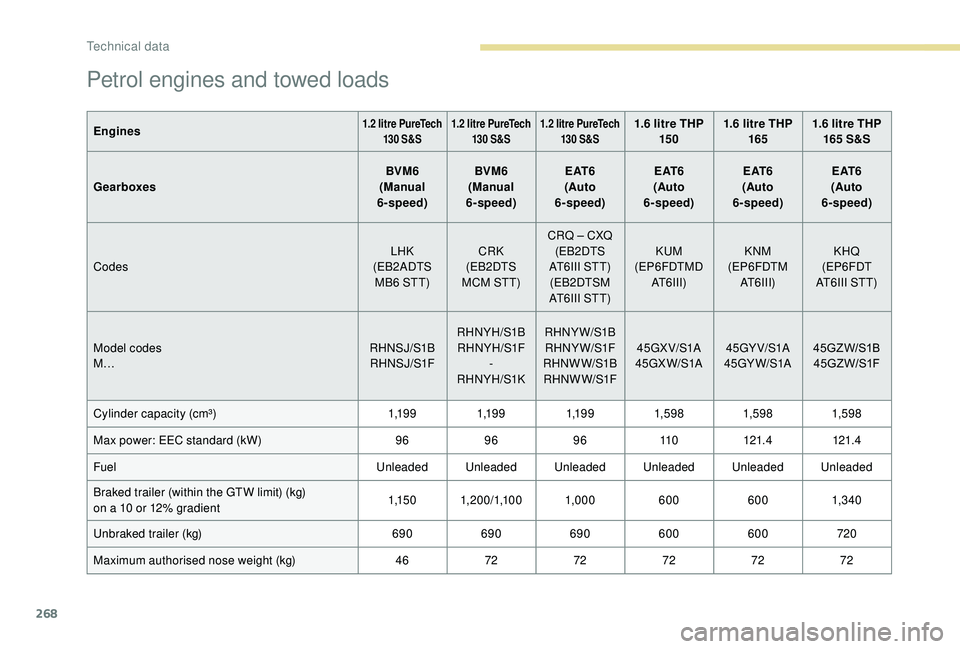

Petrol engines and towed loads
Engines1.2 litre PureTech
130 S&S 1.2
litre PureTech
130 S&S1.2
litre PureTech
130 S&S1.6 litre THP 15 0 1.6
litre THP
165 1.6
litre THP
165 S&S
Gearboxes BVM6
(Manual
6-speed) BVM6
(Manual
6-speed) E AT 6
(Auto
6-speed) E AT 6
(Auto
6-speed) E AT 6
(Auto
6-speed) E AT 6
(Auto
6-speed)
Codes LHK
(EB2ADTS MB6


STT) CRK
(EB2DTS
MCM STT) CRQ – CXQ
(EB2DTS
AT6III STT) (EB2DTSM
AT6III STT) KUM
(EP6FDTMD AT6III) KNM
(EP6FDTM AT6III) KHQ
(EP6FDT
AT6III STT)
Model codes
M… RHNSJ/S1B
RH NS J/S1F RHNYH/S1B
RHNYH/S1F -
RHNYH/S1K RHNYW/S1B
RHNYW/S1F
RHNW W/S1B RH NW W/S1F 45GX V/S1A
45GX W/S1A 45GY V/S1A
45GY W/S1A 45GZ W/S1B
45G Z W/S1F
Cylinder capacity (cm³) 1,1 9 91,1 9 91,1 9 91,59 8 1,59 81,59 8
Max power: EEC standard (kW) 96969611 0121.4 121.4
Fuel Unleaded Unleaded Unleaded Unleaded Unleaded Unleaded
Braked trailer (within the GTW limit) (kg)
on a

10

or 12% gradient 1,1 5 0
1, 20 0/1,10 0 1,0006006001,3 4 0
Unbraked trailer (kg) 690690690600 600 720
Maximum authorised nose weight (kg) 467272727272
Technical data

269

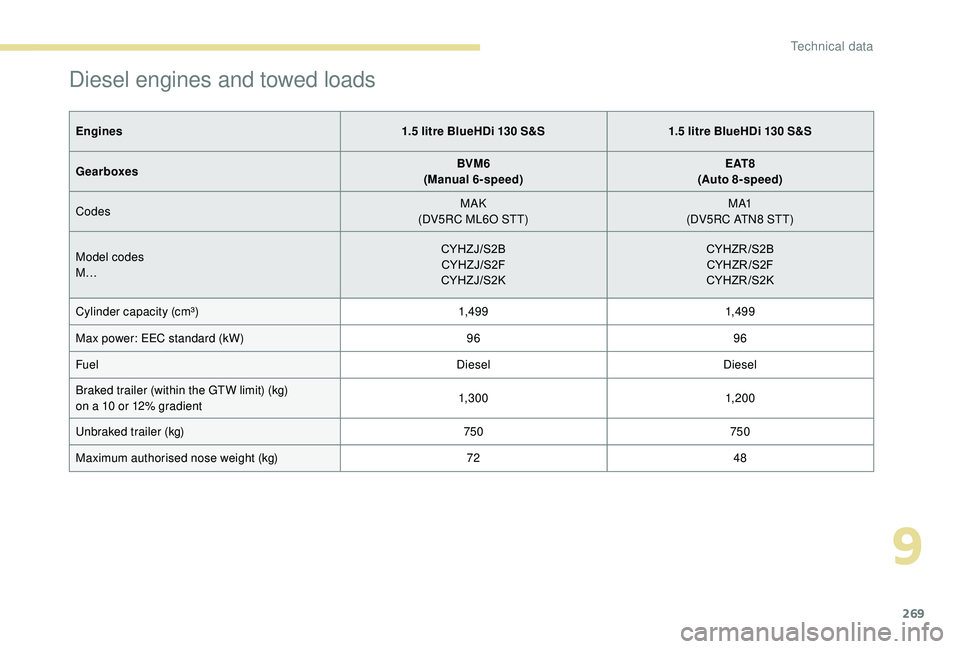

Diesel engines and towed loads
Engines1.5 litre BlueHDi 130 S&S1.5 litre BlueHDi 130 S&S
Gearboxes BVM6
(Manual 6-speed) E AT 8
(Auto 8-speed)
Codes MAK
(DV5RC ML6O STT) M A1
(DV5RC ATN8
STT)
Model codes
M… CYHZJ/S2B
CYHZJ/S2F
CYHZJ/S2K CYHZR /S2B
CYHZR /S2F
CYHZR /S2K
Cylinder capacity (cm³) 1,49 91,49 9
Max power: EEC standard (kW) 9696
Fuel DieselDiesel
Braked trailer (within the GTW limit) (kg)
on a
10 or 12% gradient 1,3 0 0
1, 20 0
Unbraked trailer (kg) 750750
Maximum authorised nose weight (kg) 7248
9
Technical data

270

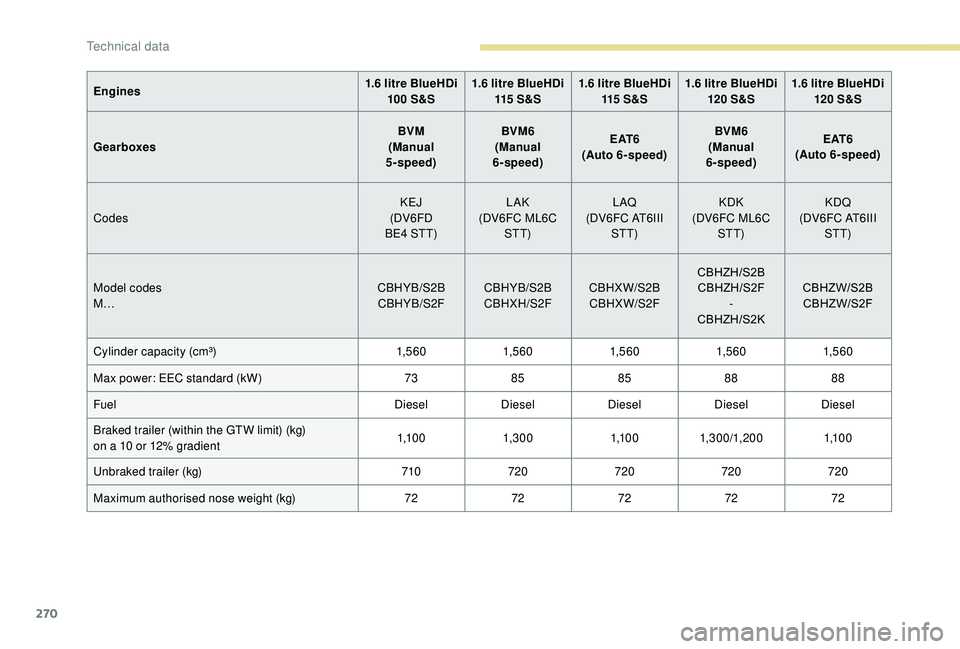

Engines1.6 litre BlueHDi
100 S&S1.6
litre BlueHDi
115 S & S1.6
litre BlueHDi
115 S & S1.6
litre BlueHDi
120 S&S1.6
litre BlueHDi
120 S&S
Gearboxes BVM
(Manual
5-speed) BVM6
(Manual
6-speed) E AT 6
(Auto 6-speed) BVM6
(Manual
6-speed) E AT 6
(Auto 6-speed)
Codes KEJ
(DV6FD
BE4
STT)LAK
(DV6FC ML6C STT) L AQ
(DV6FC AT6III STT) KDK
(DV6FC ML6C STT) KDQ
(DV6FC AT6III STT)
Model codes
M… CBHYB/S2B
CBHYB/S2F CBHYB/S2B
CBHXH/S2F CBHXW/S2B
CBHXW/S2F CBHZH/S2B
CBHZH/S2F -
CBHZH/S2K CBHZW/S2B
CBHZW/S2F
Cylinder capacity (cm³) 1,5 6 01,5 6 01,5 6 01,5 6 01,5 6 0
Max power: EEC standard (kW) 7385 8588 88
Fuel DieselDieselDieselDieselDiesel
Braked trailer (within the GTW limit) (kg)
on a
10 or 12% gradient 1,1 0 0
1,3 0 0 1,1 0 01,3 0 0/1, 20 0 1,1 0 0
Unbraked trailer (kg) 710720 720720720
Maximum authorised nose weight (kg) 7272727272
Technical data

271

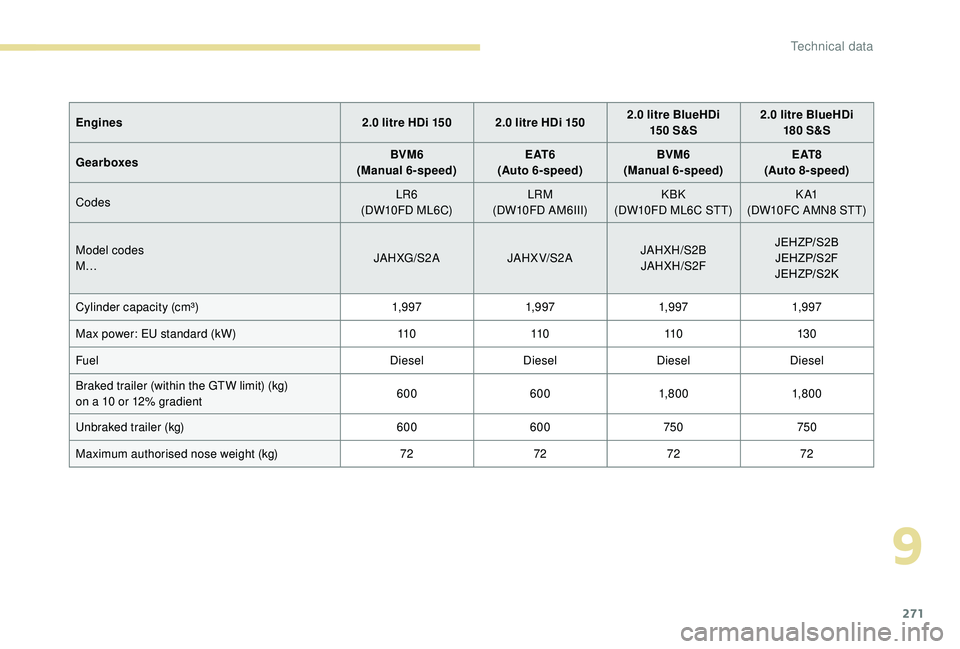

Engines2.0 litre HDi 150 2.0 litre HDi 1502.0 litre BlueHDi
15 0 S&S2.0
litre BlueHDi
180 S&S
Gearboxes BVM6
(Manual 6-speed) E AT 6
(Auto 6-speed) BVM6
(Manual 6-speed) E AT 8
(Auto 8-speed)
Codes LR6
(DW10FD ML6C) LRM
(DW10FD AM6III) KBK
(DW10FD ML6C STT) K A1
(DW10FC AMN8
STT)
Model codes
M… JAHXG/S2 A
JAHX V/S2 AJAHXH/S2B
JAHXH/S2F JEHZP/S2B
JEHZP/S2F
JEHZP/S2K
Cylinder capacity (cm³) 1,9 971,9 971,9 971,9 97
Max power: EU standard (kW) 11 011 011 013 0
Fuel DieselDieselDieselDiesel
Braked trailer (within the GTW limit) (kg)
on a
10 or 12% gradient 600
6001,8 0 0 1,8 0 0
Unbraked trailer (kg) 600600 750750
Maximum authorised nose weight (kg) 72727272
9
Technical data

2
12:13
18,5 21,5
23 °CFirst steps
With the engine running, a press
mutes the sound.
With the ignition off, a press turns
the system on.
Adjustment of the volume.
Use the buttons on either side of or below the
touch screen for access to the menus, then
press the virtual buttons in the touch screen.
Depending on the model, use the "Source" or
"Menu" buttons on the left-hand side of the
touch screen for access to the menus, then
press the virtual buttons in the touch screen.
You can display the menus at any time by
pressing the screen briefly with three fingers.
All of the touch areas of the screen are white.
Press the cross to go back a
level.
Press "OK" to confirm. The touch screen is of the "capacitive"
type.
To clean the screen, use a
soft, non-
abrasive cloth (e.g. spectacles cloth) with
no additional product.
Do not use sharp objects on the screen.
Do not touch the screen with wet hands.
*
D

epending on equipment.
Certain information is displayed permanently in
the upper band of the touch screen:
-

R
eminder of the air conditioning information
(depending on version), and direct access to
the corresponding menu.
-

G
o directly to the selection of the audio
source, to the list of radio stations (or list of
titles depending on the source).
-

G
o to the message notifications, emails,
map updates and, depending on the
services, the navigation notifications.
-

G
o to the settings for the touch screen and
the digital instrument panel. Selecting the audio source (depending on
version):
-

F
M/DAB*/AM* radio stations.
-

U
SB memory stick.
-

C
D player (depending on model).
-

M
edia player connected via the auxiliary
socket (depending on model).
-

T
elephone connected via Bluetooth* and
Bluetooth multimedia broadcast* (streaming).
