To avoid any playback or display issues, it is
advisable to create file names that have less
than 20

characters and without using any
special characters ((e.g. : " " ?.; ù).
The system supports mobile USB Mass
Storage players or Apple
® players at
the USB ports. An adapter cable is not
supplied.
Device management is done by the audio
system controls.
Other devices not recognised by the
system during connection must be
connected to the auxiliary socket using
a


Jack cable (not supplied).
The system can play audio files alternately
via the Bluetooth
® system and the USB
port.
It is recommended that the USB cable for
the mobile device is used.
Audio streaming
Streaming allows music files on the
telephone to be played via the vehicle's
loudspeakers. Connect the telephone: see the "
Telephone"
section, then " Bluetooth".
Choose the profile " Connect all" or "Connect
as audio player ".
If playback does not start automatically, it may
be necessary to start the audio playback from
the telephone.
Control is from the portable device or by using
the audio system's buttons.
Once connected in streaming mode, the
telephone is considered to be a media
source.
It is recommended that you activate
" Repeat " on the Bluetooth portable device.
Connecting Apple® players
Control is via the audio system. Connect the Apple
® player to the USB port
using a
suitable cable (not supplied).
Play starts automatically. The classifications available are those of
the portable device connected (artists/
albums/genres/tracks/playlists/audio
books/podcasts).
The default classification used is by artist.
To modify the classification used, return
to the first level of the menu then select
the desired classification (playlists for
example) and confirm to go down through
the menu to the desired track.
The version of software in the audio
system may not be compatible with the
generation of your Apple
® p l aye r.
Telephone
Pairing a
Bluetooth® telephone
As a safety measure and because it
r equires sustained attention by the
driver, the pairing of a
Bluetooth mobile
telephone with the hands-free kit of your
audio system must be done with the
vehicle stationary .
.
7-inch touch screen tablet

12
Activate the Bluetooth function on the
telephone and ensure that it is "visible to all"
(telephone configuration).Press "Audio source " to show the
rolling display of audio sources.
Select " Bluetooth audio ".
Select "configuration-Bluetooth"
Select the " Add" tab on the system.
A standby screen is displayed with the system's
Bluetooth settings and a
default Bluetooth PIN.
Once detected, select the system name on
your telephone.
If the pairing procedure fails, it is recommended
that you deactivate and then reactivate the
Bluetooth function in your telephone.
Enter the PIN on the telephone and accept the
connection (depending on telephone).
The system displays that the ser vices to use
on the device are: " Telephone" and "Audio
player ". The system offers to connect the telephone:
-

a
s "
Connect all",
-
a
s "
Connect as telephone " (hands-free kit,
telephone only)
-
a
s "
Connect as audio player " (streaming:
wireless playing of the telephone's audio
f i l e s).
To change the connection choice,
select " Telephone ".
Select the " Telephone/message
configuration " tab.
Select " Connect the telephone ".
Select the telephone in the list.
Select your choice. Press "OK" to confirm.
In the Bluetooth configuration, the system
allows you to connect two devices in
telephone mode at the same time.
It also allows you to connect multiple
devices in audio mode, but with only one
device playing. The services available depend on
the network, the SIM card and the
compatibility of the Bluetooth devices
used. Check the instructions for your
telephone and with your service provider
for the ser vices to which you have access.
The profiles compatible with the system
are: HFP, OPP, PBAP, A 2DP, AVRCP,
M A P.
Automatic reconnection
When the ignition is switched on, the telephone
connected when the ignition was last switched
off reconnects automatically, if this connection
mode had been set during the pairing
procedure (see previous pages).
The connection is confirmed by the display of
a
message and the name of the telephone.
Managing paired
telephones
This function allows the connection or
disconnection of a peripheral device as
well as the deletion of a
pairing.
Press " Telephone ".
7-inch touch screen tablet

13

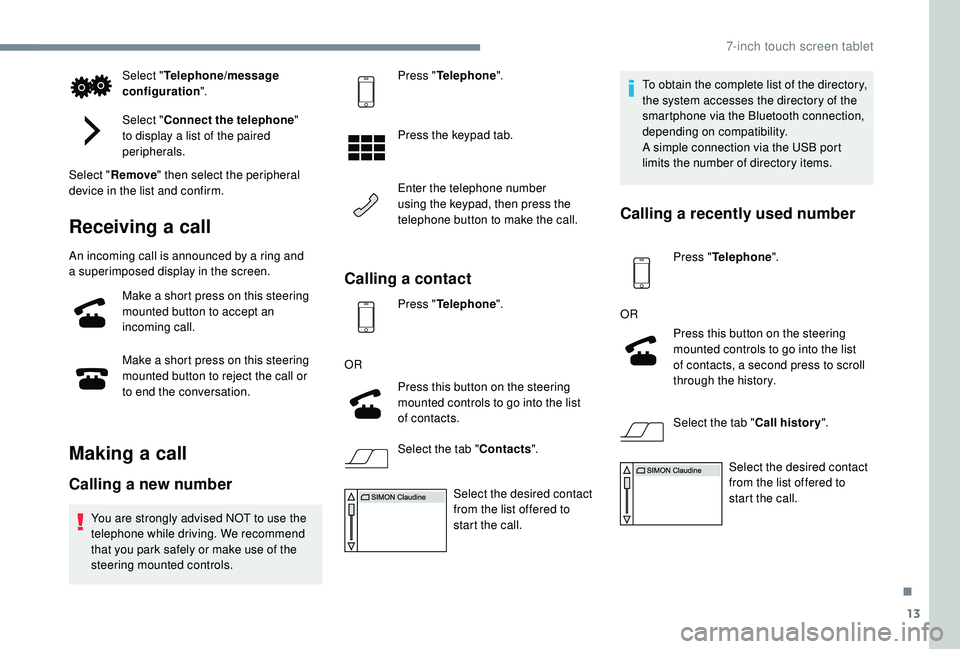

Select "Telephone/message
configuration ".
Select " Connect the telephone "
to display a
list of the paired
peripherals.
Select " Remove " then select the peripheral
device in the list and confirm.
Receiving a call
An incoming call is announced by a ring and
a superimposed display in the screen.
Make a
short press on this steering
mounted button to accept an
incoming call.
Make a
short press on this steering
mounted button to reject the call or
to end the conversation.
Making a call
Calling a new number
You are strongly advised NOT to use the
telephone while driving. We recommend
that you park safely or make use of the
steering mounted controls. Press "
Telephone ".
Press the keypad tab.
Enter the telephone number
using the keypad, then press the
telephone button to make the call.
Calling a contact
Press "Telephone ".
OR Press this button on the steering
mounted controls to go into the list
of contacts.
Select the tab " Contacts".
Select the desired contact
from the list offered to
start the call. To obtain the complete list of the directory,
the system accesses the directory of the
smartphone via the Bluetooth connection,
depending on compatibility.
A simple connection via the USB port
limits the number of directory items.
Calling a
recently used number
Press "Telephone ".
OR Press this button on the steering
mounted controls to go into the list
of contacts, a second press to scroll
through the history.
Select the tab " Call history".
Select the desired contact
from the list offered to
start the call.
.
7-inch touch screen tablet

14

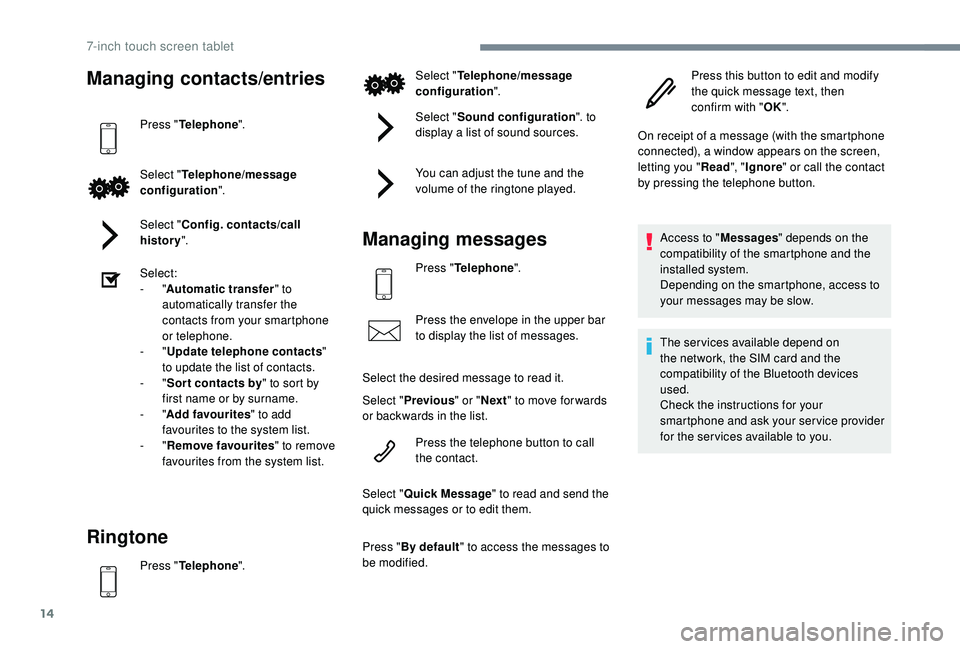

Managing contacts/entries
Press "Telephone ".
Select " Telephone/message
configuration ".
Select " Config. contacts/call
history ".
Select:
-
"Automatic transfer " to
automatically transfer the
contacts from your smartphone
or telephone.
-
"Update telephone contacts "
to update the list of contacts.
-
"Sor t contacts by " to sort by
first name or by surname.
-
"Add favourites " to add
favourites to the system list.
-
"Remove favourites " to remove
favourites from the system list.
Ringtone
Press " Telephone ". Select "
Telephone/message
configuration ".
Select " Sound configuration ". to
display a list of sound sources.
You can adjust the tune and the
volume of the ringtone played.
Managing messages
Press " Telephone ".
Press the envelope in the upper bar
to display the list of messages.
Select the desired message to read it.
Select " Previous " or "Next " to move for wards
or backwards in the list.
Press the telephone button to call
the contact.
Select " Quick Message " to read and send the
quick messages or to edit them.
Press " By default " to access the messages to
be modified. Press this button to edit and modify
the quick message text, then
confirm with "
OK".
On receipt of a message (with the smartphone
connected), a window appears on the screen,
letting you " Read", "Ignore " or call the contact
by pressing the telephone button.
Access to " Messages" depends on the
compatibility of the smartphone and the
installed system.
Depending on the smartphone, access to
your messages may be slow.
The services available depend on
the network, the SIM card and the
compatibility of the Bluetooth devices
used.
Check the instructions for your
smartphone and ask your ser vice provider
for the ser vices available to you.
7-inch touch screen tablet

15

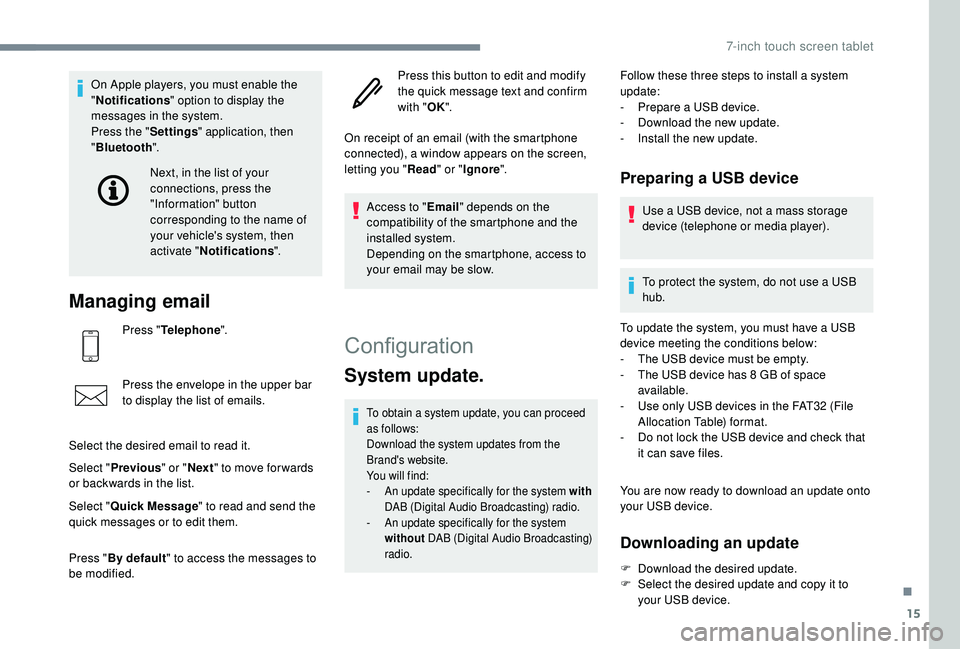

On Apple players, you must enable the
"Notifications " option to display the
messages in the system.
Press the " Settings" application, then
" Bluetooth ".
Managing email
Press "Telephone ".
Press the envelope in the upper bar
to display the list of emails.
Select the desired email to read it.
Select " Previous " or "Next " to move for wards
or backwards in the list. Next, in the list of your
connections, press the
"Information" button
corresponding to the name of
your vehicle's system, then
activate "
Notifications ".
Select " Quick Message " to read and send the
quick messages or to edit them.
Press " By default " to access the messages to
be modified. Press this button to edit and modify
the quick message text and confirm
with "
OK".
On receipt of an email (with the smartphone
connected), a window appears on the screen,
letting you " Read" or "Ignore ".
Access to " Email" depends on the
compatibility of the smartphone and the
installed system.
Depending on the smartphone, access to
your email may be slow.
Configuration
System update.
To obtain a system update, you can proceed
a s follows:
Download the system updates from the
Brand's website.
You will find:
-

A
n update specifically for the system with
DAB (Digital Audio Broadcasting) radio.
-

A
n update specifically for the system
without DAB (Digital Audio Broadcasting)
radio.
Follow these three steps to install a system
u pdate:
-

P
repare a USB device.
-

D
ownload the new update.
-

I
nstall the new update.
Preparing a USB device
Use a USB device, not a mass storage
d evice (telephone or media player).
To protect the system, do not use a
USB
hub.
To update the system, you must have a
USB
device meeting the conditions below:
-

T
he USB device must be empty.
-

T
he USB device has 8 GB of space
available.
-

U
se only USB devices in the FAT32 (File
Allocation Table) format.
-

D
o not lock the USB device and check that
it can save files.
You are now ready to download an update onto
your USB device.
Downloading an update
F Download the desired update.
F S elect the desired update and copy it to
your USB device.
.
7-inch touch screen tablet

20
Frequently asked questions
Telephone, Bluetooth®
QUESTIONRESPONSESOLUTION
I'm not able to connect my Bluetooth telephone. The Bluetooth on your telephone may be
disabled or invisible.-

C
heck that the Bluetooth on your telephone
is enabled.
-

C
heck in the telephone settings that it is
"visible to all".
The Bluetooth telephone is not compatible with
the system. You can check the compatibility of your
telephone at www.peugeot.co.uk (services).
CarPlay
® and Android Auto do not work. CarPlay® and Android Auto may not activate if
the USB cables are of poor quality. Use authentic USB cables to ensure
compatibility.
No sound can be heard from the connected
Bluetooth telephone. The sound depends on both the system and
the telephone.Increase the volume of the audio system, if
required to maximum, and increase the sound
from the telephone if required.
Ambient noise affects the quality of the
telephone call. Reduce ambient noise (close windows, reduce
ventilation, slow down, etc.).
The contacts are not listed in alphabetical
o r d e r. Some telephones offer display options.
Depending on the settings chosen, contacts
can be transferred in a
specific order. Modify the telephone directory display settings.
The system does not receive SMS. The Bluetooth mode of your telephone does
not allow transmission of SMS text messages
to the system.
7-inch touch screen tablet

21

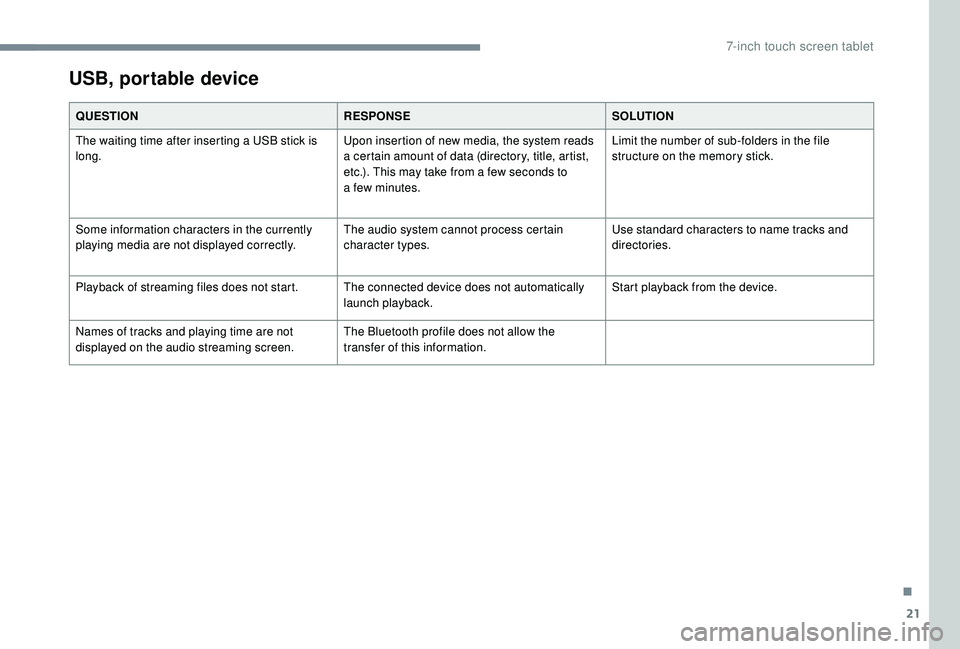

USB, portable device
QUESTIONRESPONSESOLUTION
The waiting time after inserting a USB stick is
long. Upon insertion of new media, the system reads
a
certain amount of data (directory, title, artist,
etc.). This may take from a
few seconds to
a


few minutes.Limit the number of sub-folders in the file
structure on the memory stick.
Some information characters in the currently
playing media are not displayed correctly. The audio system cannot process certain
character types.Use standard characters to name tracks and
directories.
Playback of streaming files does not start. The connected device does not automatically launch playback.Start playback from the device.
Names of tracks and playing time are not
displayed on the audio streaming screen. The Bluetooth profile does not allow the
transfer of this information.
.
7-inch touch screen tablet

170
ABS .................................................................52
Accessories .................................................... 51
Access to rear seats (3 -door)
.........................33
Active City Brake

...............................
..15, 8 6 - 89
Adjusting seat


........................................... 32, 34
Adjusting the air distribution


...........................37
Adjusting the air flow
....................................... 37
A

djusting the temperature

........................37- 4 0
Adjusting the time


..................................... 20 -21
Advice on care and maintenance


...................99
Advice on driving


............................................ 72
Airbags
...............................

...........14, 56 -58, 60
Airbags, curtain


............................................... 58
Airbags, front ....................................... 57- 5 8 , 61
Airbags, lateral


.......................................... 57- 5 8
Air conditioning


........................................... 6, 38
Air conditioning, automatic


.......................38-40
Air conditioning, manual
........................... 3

7, 4 0
Air intake


................................................... 38-40
Air vents


.......................................................... 36
Anti-lock braking system (ABS)
......................52
Apple CarPlay connection


................................4
Audible warning
.............................................. 51
A

udio streaming (Bluetooth)

................10, 10 -11
Audio system
..................................................... 1Boot
.................................................................27
Brake discs
....................................................103
Brake lamps
...............................

...................113
Brakes


.....................................................11, 1 0 3
Bulbs (changing)


.....................................111 -112
Battery


............................................ 102, 121-123
Battery, charging


........................................... 123
Battery, electronic key


....................................26
Battery, remote control


...................................23
Bluetooth (hands-free)
......................... 1

0 , 11 -12
Bluetooth (telephone)
........................... 1

0 , 11 -12
Bonnet


....................................................... 98-99 Control stalk, lighting
......................................46
Control stalk, wipers
.......................................49
C
ourtesy lamp .................................................41
Cup holder
.......................................................42
DAB (Digital Audio Broadcasting) – Digital radio


..................8, 8 -9
Daytime running lamps


...................................46
Deactivating the passenger airbag


.....5 7, 6 0 - 6 1
Defrosting


.......................................36-37, 40-41
Defrosting, front


..............................................40
Demisting


..................................................36-40
Demisting, front
............................................... 40
D

emisting, rear

................................................41
Demisting, rear screen


...................................41
Dimensions
..............................

.....................126
Dipstick
................

...................................10 0 -101
Direction indicators


..........................4 8 , 112 -113
Display screen


................................................18
Display screen, instrument panel


.................8-9
Door pockets
...............................

....................42
Doors


.........................................................26-27
Driving economically ......................................... 6
DSC


.................................................................14
Dynamic stability control (DSC)


.....13 -14, 52- 5 3
Cable, audio


......................................................9
Cable, Jack


.......................................................9
Capacity, fuel tank


..........................................96
CD


...................................................................10
CD, MP3


..........................................................10
Central locking
.......................................... 2

2-24
Changing a


bulb
......................................111

-112
Changing a


fuse
..............................11

4 -11 6 , 11 9
Changing a


wheel
...................1

0 7-1 0 8 , 11 0 -111
Changing a


wiper blade
..................................50
C

hanging the electronic key battery
...............26
C

hanging the remote control battery

..............23
Checking the levels


.................................9 9 -10 2
Checking tyre pressures (using the kit) ...104, 10 6
Checks
............................................. 99, 102-103
Checks, routine


...................................... 102-103
Children


.......................................... 66-68, 70-71
Children (safety)


.............................................. 71
Child seats

................. 5

5 -56, 59 - 60, 64- 65, 70
Child seats, conventional


................................ 64
Child seats, i-Size

........................................... 70
Child seats, ISOFIX

.................................. 66 -70
Closing the boot

.............................................. 27
Closing the doors


............................................ 24
Clutch


...................................................... 12, 102
Connection, MirrorLink


..................................... 5
Control, emergency boot release


................... 28
Control, heated seats


...................................... 33
A
B
DC
Alphabetical index
