Seats, restraints63IL:suitable for particular ISOFIX restraint systems of the 'specific-vehicle', 'restricted' or 'semi-universal' categories.The ISOFIX restraint system must be approved for the specific vehicle type (refer to the vehicle type list of the child
restraint system)IUF:suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this weight classX:no ISOFIX child restraint system approved in this weight class1:move the respective front seat ahead of the child restraint system forwards and the sliding rear seat backwards as far as necessary2:adjust the respective headrest as necessary or remove if requiredISOFIX size class and seat deviceA – ISO/F3:forward-facing
child restraint
system for
children of
maximum size in
the weight class
9 to 18 kgB – ISO/F2:forward-facing
child restraint
system for smaller
children in the
weight class
9 to 18 kgB1 – ISO/F2X:forward-facing
child restraint
system for smaller
children in the
weight class
9 to 18 kgC – ISO/R3:rear-facing child
restraint system
for children of
maximum size in
the weight class
up to 18 kgD – ISO/R2:rear-facing child
restraint system
for smaller
children in the
weight class up to
18 kgE – ISO/R1:rear-facing child
restraint system
for young children
in the weight class
up to 13 kgF– ISO/L1:left lateral facing
position child
restraint system
(carry-cot)G – ISO/L2:right lateral facing
position child
restraint system
(carry-cot)

64Seats, restraintsPermissible options for fitting an i-Size child restraint system with ISOFIX bracketsOn front passenger seat
On rear outboard seatsOn rear centre seat
activated airbagdeactivated airbagi-Size child restraint systemsXXi - UXi - U:suitable for i-Size 'universal' forward and rearward facing child restraint systemsX:seating position not suitable for i-Size 'universal' child restraint systems

Storage65StorageStorage compartments................65
Glovebox ................................... 65
Cupholders ................................ 65
Centre console storage .............66
Load compartment .......................66
Load compartment cover ...........69
Rear floor storage cover ............69
Lashing eyes ............................. 70
Warning triangle ........................71
First aid kit ................................. 71
Roof rack system .........................72
Roof rack ................................... 72
Loading information .....................72Storage compartments9Warning
Do not store heavy or sharp
objects in the storage
compartments. Otherwise, the
storage compartment lid could
open and vehicle occupants could be injured by objects being thrown
around in the event of hard
braking, a sudden change in
direction or an accident.
Glovebox
On some versions the glovebox is
ventilated. Air ventilation and
temperature depend on the settings
of the climate control system. The air
vent in the glove box can be closed
3 129.
Other versions may have a CD player
in the glove box.
The glovebox should be closed whilst driving.
Cupholders
Cupholders are located in the centre
console.

66Storage
Additional cupholders are located in
the rear armrest. Fold down armrest.
Centre console storage
The storage container can be used to
store small items.Depending on the version, the
storage compartment is located
under a cover.
Load compartment
The rear seat backrest is divided in
two parts. Both parts can be folded
down.
Before folding rear seat backrests,
execute the following if necessary:
● Remove the load compartment cover 3 69.
● Press and hold the catch to push
the head restraints down 3 43.
Load compartment extension
(version with fixed rear seats)
● Pull the release lever on one or both outer sides and fold down

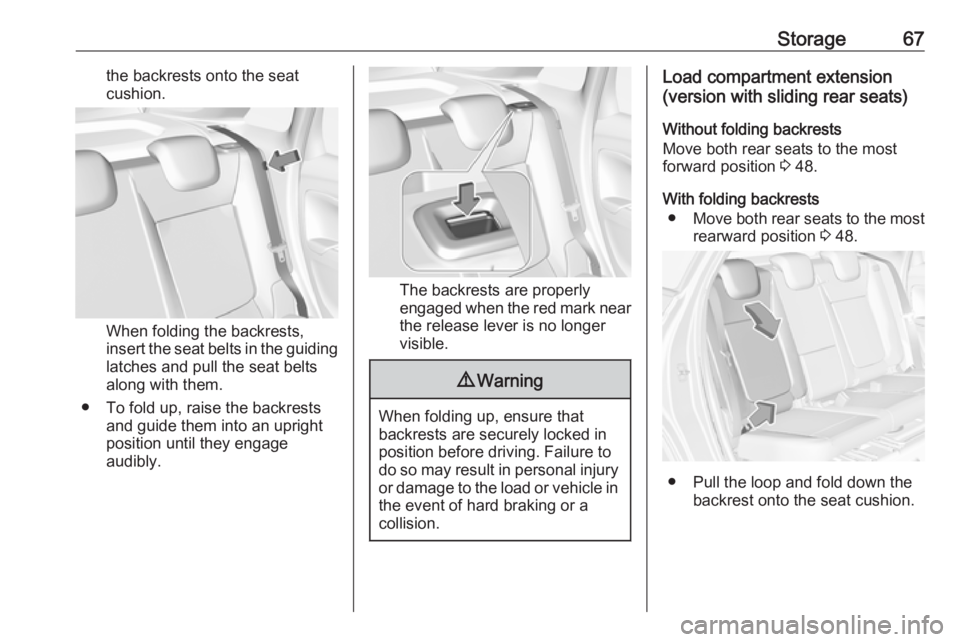

Storage67the backrests onto the seat
cushion.
When folding the backrests,
insert the seat belts in the guiding
latches and pull the seat belts
along with them.
● To fold up, raise the backrests and guide them into an upright
position until they engage
audibly.
The backrests are properly
engaged when the red mark near the release lever is no longer
visible.
9 Warning
When folding up, ensure that
backrests are securely locked in
position before driving. Failure to
do so may result in personal injury or damage to the load or vehicle in the event of hard braking or a
collision.
Load compartment extension
(version with sliding rear seats)
Without folding backrests
Move both rear seats to the most
forward position 3 48.
With folding backrests ● Move both rear seats to the most
rearward position 3 48.
● Pull the loop and fold down the
backrest onto the seat cushion.

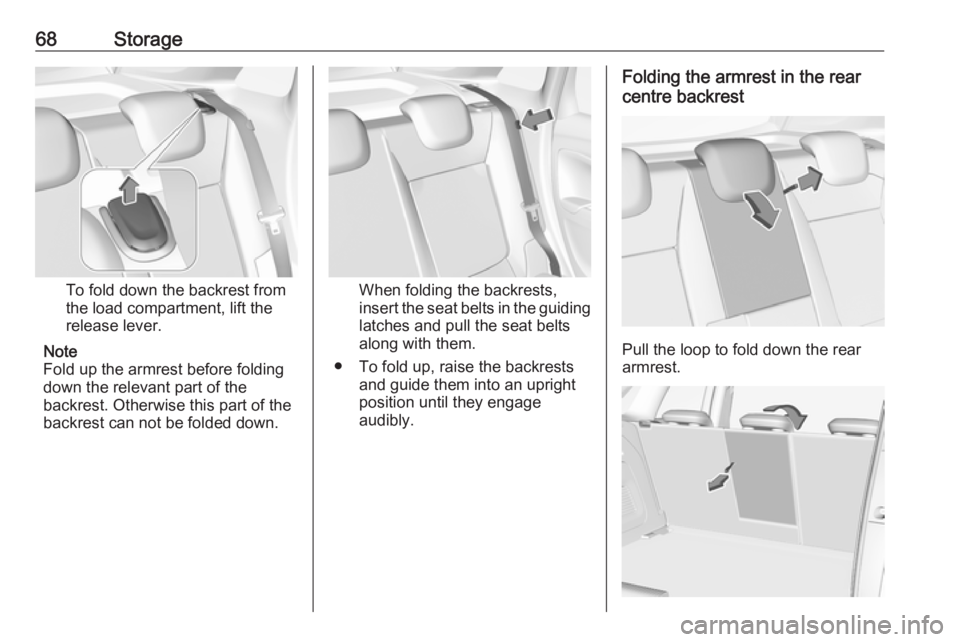

68Storage
To fold down the backrest from
the load compartment, lift the
release lever.
Note
Fold up the armrest before folding
down the relevant part of the
backrest. Otherwise this part of the backrest can not be folded down.When folding the backrests,
insert the seat belts in the guiding
latches and pull the seat belts along with them.
● To fold up, raise the backrests and guide them into an upright
position until they engage
audibly.
Folding the armrest in the rear
centre backrest
Pull the loop to fold down the rear
armrest.

Storage69The armrest can also be folded down
from the rear by pulling the loop.
Suitable for loading long, narrow
objects.
Ensure that the armrest engages
after folding up.
Load compartment cover Do not place any objects on the cover.
Removing cover
Unhook retaining straps from tailgate.
Lift cover, slightly angle and turn it.
Remove the cover.
Stowing
The load compartment cover can be
stored behind the rear seat backrests.
Unhook retaining straps and lift the
cover backwards until it unlatches.
Then slide it down in the guides
behind the seat backrests.
Fitting cover Engage cover in side guides and fold downwards. Attach the retainingstraps to the tailgate.
Rear floor storage cover
The rear floor cover can be removed.
Raise cover at the recess and
remove.

70StorageThe cover can also be stored behind
the rear seats.
Double load floor
The double load floor can be inserted
in the load compartment in two
positions:
● lower position above the spare wheel well cover
● upper position interlocked with the grab handle into back panel
trim
To remove, press the handle to
unlock the load floor and lift it up while
using the handle.
If mounted in the upper position, the
space between the load floor and the spare wheel well cover can be used
as a storage compartment.
In this position, if the rear seat
backrests are folded forwards, an
almost completely flat load bay is
created.
In the upper position, the double load
floor is able to withstand a maximum
load of 100 kg. In the lower position,
the double load floor is able to
withstand the maximum permissible
load.
Lashing eyes
The lashing eyes are designed to
secure items against slippage, e.g.
using lashing straps or luggage net.
