2018 NISSAN VERSA lights

∙ Make sure the area around the vehicle is
clear.
∙ Check fluid levels such as engine oil,
coolant, brake and clutch fluid (if so
equipped), and windshield-washer fluid
as frequently as possible, or at least
whenever you refuel.
∙ Check that all windows and lights are
clean.
∙ Visually inspect tires for their appear-
ance and condition. Also check tires for
proper inflation.
∙ Lock all doors.
∙ Position seat and adjust head
restraints/headrests.
∙ Adjust inside and outside mirrors.
∙ Fasten seat belts and ask all passen-
gers to do likewise.
∙ Check the operation of warning lights
when the ignition switch is placed in the
ON position. For additional information,
refer to “Warning lights, indicator lights
and audible reminders” in the “Instru-
ments and controls” section of this
manual.1. Apply the parking brake.
2.Continuously Variable Transmission
models:
Move the shif t lever to P (Park) or N
(Neutral). P (Park) is recommended.
The shif t lever cannot be moved out
of P (Park) and into any of the other
gear positions if the ignition key is
turned to the OFF position or if the
key is removed from the ignition
switch.
The starter is designed not to oper-
ate if the shif t lever is in any of the
driving positions.
Manual transmission (M/T) models:
For best practice when operating an
M/T, depressing the clutch before
moving the shif t lever is ideal.
Move the shif t lever to N (Neutral). De-
press the clutch pedal to the floor
while cranking the engine.
The starter is designed not to oper-
ate unless the clutch pedal is fully
depressed.3. Crank the enginewith your foot off
the accelerator pedalby turning the
ignition key to the START position. Re-
lease the key when the engine starts. If
the engine starts, but fails to run, repeat
the above procedure.
∙ If the engine is very hard to start in
extremely cold weather or when re-
starting, depress the accelerator
pedal a little (approximately 1/3 to the
floor) and hold it and then crank the
engine. Release the key and the ac-
celerator pedal when the engine
starts.
∙ If the engine is very hard to start be-
cause it is flooded, depress the accel-
erator pedal all the way to the floor
and hold it. Crank the engine for
5-6 seconds. Af ter cranking the en-
gine, release the accelerator pedal.
Crank the enginewith your foot off
the accelerator pedalby turning the
ignition key to the START position. Re-
lease the key when the engine starts.
If the engine starts, but fails to run,
repeat the above procedure.
BEFORE STARTING THE ENGINE STARTING THE ENGINE
5-10Starting and driving

Follow these easy-to-use Fuel Efficient
Driving Tips to help you achieve the most
fuel economy from your vehicle.
1.Use Smooth Accelerator and Brake
Pedal Application
∙ Avoid rapid starts and stops.
∙ Use smooth, gentle accelerator and
brake application whenever possible.
∙ Maintain constant speed while com-
muting and coast whenever pos-
sible.
2.Maintain Constant Speed
∙ Look ahead to try and anticipate and
minimize stops.
∙ Synchronizing your speed with traffic
lights allows you to reduce your num-
ber of stops.
∙ Maintaining a steady speed can mini-
mize red light stops and improve fuel
efficiency.
3.Use Air Conditioning (A/C) at Higher
Vehicle Speeds
∙ Below 40 mph (64 km/h), it is more
efficient to open windows to cool the
vehicle due to reduced engine load.∙ Above 40 mph (64 km/h), it is more
efficient to use A/C to cool the vehicle
due to increased aerodynamic drag.
∙ Recirculating the cool air in the cabin
when the A/C is on reduces cooling
load.
4.Drive at Economical Speeds and Dis-
tances
∙ Observing the speed limit and not
exceeding 60 mph (97 km/h) (where
legally allowed) can improve fuel effi-
ciency due to reduced aerodynamic
drag.
∙ Maintaining a safe following distance
behind other vehicles reduces un-
necessary braking.
∙ Safely monitoring traffic to anticipate
changes in speed permits reduced
braking and smooth acceleration
changes.
∙ Select a gear range suitable to road
conditions.
5.Use Cruise Control
∙ Using cruise control during highway
driving helps maintain a steady
speed.∙ Cruise control is particularly effective
in providing fuel savings when driving
on flat terrains.
6.Plan for the Shortest Route
∙ Utilize a map or navigation system to
determine the best route to save
time.
7.Avoid Idling
∙ Shutting off your engine when safe
for stops exceeding 30–60 seconds
saves fuel and reduces emissions.
8.
Buy an Automated Pass for Toll Roads
∙ Automated passes permit drivers to
use special lanes to maintain cruis-
ing speed through the toll and avoid
stopping and starting.
9.Winter Warm Up
∙ Limit idling time to minimize impact
to fuel economy.
∙ Vehicles typically need no more than
30 seconds of idling at start-up to
effectively circulate the engine oil be-
fore driving.
∙ Your vehicle will reach its ideal oper-
ating temperature more quickly
while driving versus idling.
FUEL EFFICIENT DRIVING TIPS
Starting and driving5-21

Push the switch on to warn other drivers
when you must stop or park under emer-
gency conditions. All turn signal lights flash.
WARNING
∙ If stopping for an emergency, be sure
to move the vehicle well off the road.
∙ Do not use the hazard warning flash-
ers while moving on the highway un-
less unusual circumstances force you
to drive so slowly that your vehicle
might become a hazard to other
traffic.
∙ Turn signals do not work when the
hazard warning flasher lights are on.
The flashers will operate with the ignition
switch placed in any position.
Some jurisdictions may prohibit the use
of the hazard warning flasher switch
while driving.
TIRE PRESSURE MONITORING
SYSTEM (TPMS)
This vehicle is equipped with the Tire Pres-
sure Monitoring System (TPMS). It monitors
tire pressure of all tires except the spare.
When the low tire pressure warning light is
lit, and the CHECK TIRE PRES (pressure)
warning message is displayed in the
odometer, one or more of your tires is sig-
nificantly under-inflated. If the vehicle is be-
ing driven with low tire pressure, the TPMS
will activate and warn you of it by the low
tire pressure warning light. This system will
activate only when the vehicle is driven at
speeds above 16 mph (25 km/h). For addi-
tional information, refer to “Warning lights,
indicator lights and audible reminders” in
the “Instruments and controls” section, and
“Tire Pressure Monitoring System (TPMS)” in
the “Starting and driving” section of this
manual.
LIC0394
HAZARD WARNING FLASHER SWITCH FLAT TIRE
6-2In case of emergency

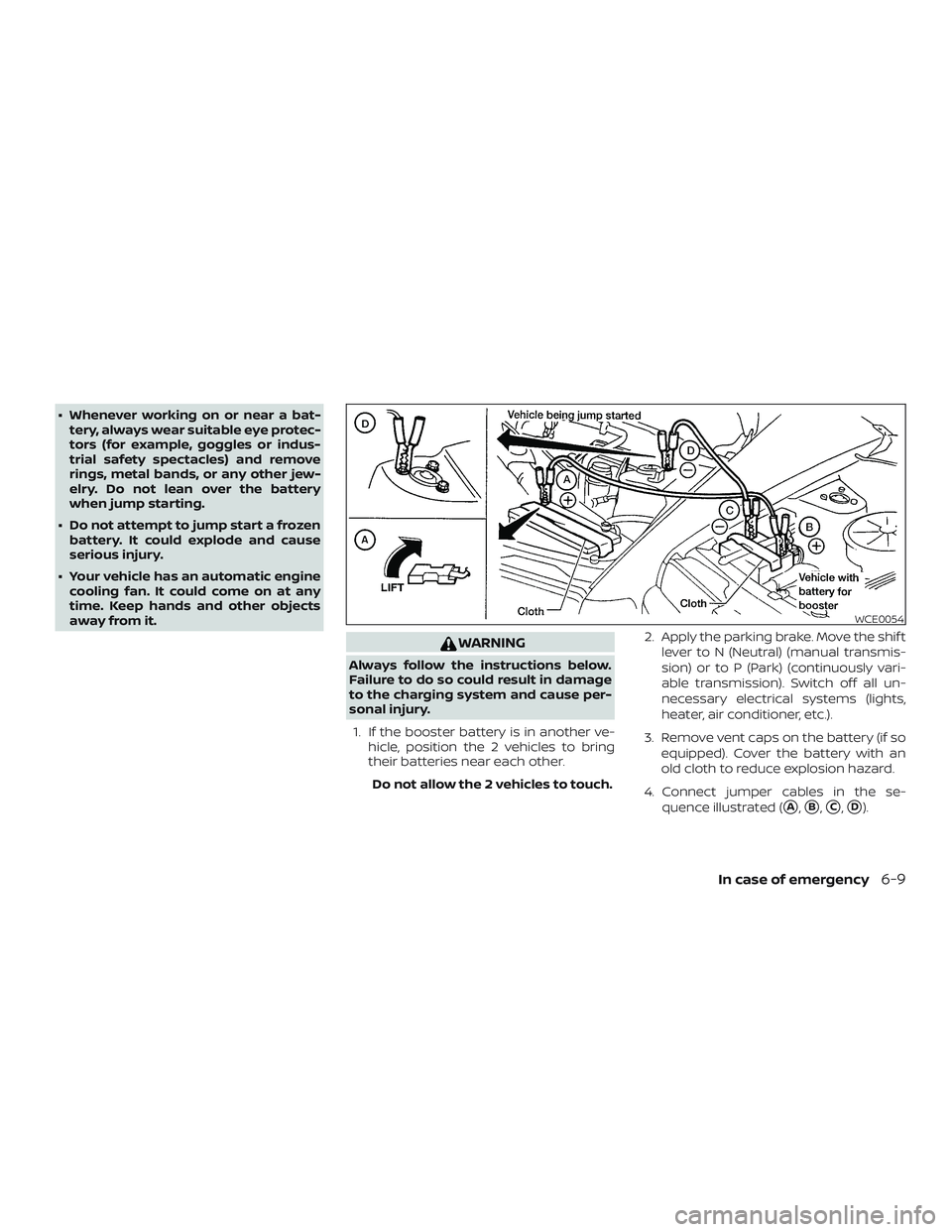

∙ Whenever working on or near a bat-
tery, always wear suitable eye protec-
tors (for example, goggles or indus-
trial safety spectacles) and remove
rings, metal bands, or any other jew-
elry. Do not lean over the battery
when jump starting.
∙ Do not attempt to jump start a frozen
battery. It could explode and cause
serious injury.
∙ Your vehicle has an automatic engine
cooling fan. It could come on at any
time. Keep hands and other objects
away from it.
WARNING
Always follow the instructions below.
Failure to do so could result in damage
to the charging system and cause per-
sonal injury.
1. If the booster battery is in another ve-
hicle, position the 2 vehicles to bring
their batteries near each other.
Do not allow the 2 vehicles to touch.2. Apply the parking brake. Move the shif t
lever to N (Neutral) (manual transmis-
sion) or to P (Park) (continuously vari-
able transmission). Switch off all un-
necessary electrical systems (lights,
heater, air conditioner, etc.).
3. Remove vent caps on the battery (if so
equipped). Cover the battery with an
old cloth to reduce explosion hazard.
4. Connect jumper cables in the se-
quence illustrated (
A,B,C,D).
WCE0054
In case of emergency6-9

8 Do-it-yourself
Maintenance precautions.......................8-2
Engine compartment check locations...........8-3
Engine cooling system..........................8-4
Checking engine coolant level................8-5
Changing engine coolant.....................8-5
Engine oil........................................8-6
Checking engine oil level.....................8-6
Changing engine oil..........................8-7
Changing engine oil filter.....................8-8
Continuously Variable Transmission (CVT)
fluid (if so equipped).............................8-9
Brake and clutch (if so equipped) fluid...........8-9
Brake fluid...................................8-10
Clutch (if so equipped) fluid..................8-10
Windshield-washer fluid........................8-10
Windshield-washer fluid reservoir............8-10
Battery..........................................8-11
Jump starting...............................8-13
Variable voltage control system
(if so equipped).................................8-13
Drive belt.......................................8-14
Spark plugs....................................8-14Replacing spark plugs.......................8-14
Air cleaner......................................8-15
Windshield wiper blades........................8-16
Cleaning....................................8-16
Replacing...................................8-16
Brakes..........................................8-17
Fuses...........................................8-18
Engine compartment.......................8-18
Passenger compartment....................8-19
Battery replacement...........................8-20
Key fob (if so equipped)......................8-21
Lights..........................................8-22
Headlights...................................8-22
Fog lights (if so equipped)...................8-23
Exterior and interior lights...................8-24
Wheels and tires................................8-28
Tire pressure................................8-28
Tire labeling
.................................8-31
Types of tires................................8-34
Tire chains..................................8-35
Changing wheels and tires..................8-36

For Canada:
This device complies with Industry
Canada licence-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must ac-
cept any interference, including interfer-
ence that may cause undesired opera-
tion of the device.HEADLIGHTS
For additional information on headlight
bulb replacement, refer to the instructions
outlined in this section.
Replacing the halogen headlight
bulb
The headlight is a semi-sealed beam type
which uses a replaceable headlight (halo-
gen) bulb. They can be replaced from inside
JVM0002X
LIGHTS
8-22Do-it-yourself

the engine compartment without remov-
ing the headlight assembly.
CAUTION
∙ High-pressure halogen gas is sealed
inside the bulb. The bulb may break if
the glass envelope is scratched or the
bulb is dropped.
∙ Aiming should not be necessary af ter
replacing the H4 bulb. When aiming
adjustment is necessary, it is recom-
mended that you visit a NISSAN dealer
for this service.
∙ Do not leave the headlight assembly
open without a bulb installed for a
long period of time. Dust, moisture,
smoke, etc. entering the headlight
body may affect bulb performance.
Remove the bulb from the headlight
assembly just before a replacement
bulb is installed.
∙ Only touch the base when handling
the bulb. Never touch the glass enve-
lope. Touching the glass could signifi-
cantly affect bulb life and/or head-
light performance.
∙ Use the same number and wattage as
shown in the chart.1. Disconnect the battery negative cable.
2. Disconnect the electrical connector
A
from the rear end of the bulb.
3. Pull off the rubber cap
B.
4. Push and turn the retaining pin
Cto
loosen it.
5. Remove the headlight bulb. Do not
shake or rotate the bulb when remov-
ing it.
6. Install the new bulb in the reverse order
of removal.
Fog may temporarily form inside the lens
of the exterior lights in the rain or in a car
wash. A temperature difference between
the inside and the outside of the lens
causes the fog. This is not a malfunction. If
large drops of water collect inside the lens,
it is recommended that you visit a NISSAN
dealer for servicing.
FOG LIGHTS (if so equipped)
For additional information on fog light bulb
replacement, refer to the instructions out-
lined in this section.
Replacing the fog light bulb
If fog light bulb replacement is required, it is
recommended that you visit a NISSAN
dealer for this service.
CAUTION
∙ High pressure halogen gas is sealed
inside the halogen bulb. The bulb may
break if the glass envelope is
scratched or the bulb is dropped.
∙ When handling the bulb, do not touch
the glass envelope.
∙ Use the same number and wattage as
originally installed as shown in the
chart.
∙ Do not leave the bulb out of the fog
light for a long period of time as dust,
moisture and smoke may enter the
fog light body and affect the perfor-
mance of the fog light.
Do-it-yourself8-23

EXTERIOR AND INTERIOR LIGHTS
Item Wattage (W) Bulb No.
Headlight assembly
High/Low (Halogen) 60/55 HB2
Turn/Position 28/8 3457A
Side marker 5 W5W
Fog light (if so equipped) 55 H11
Room light 8 —
Map light (if so equipped) 5 W5W
Trunk compartment light 3.4 158
High-mounted stop light*
Inside (if so equipped) 16 W16W
Spoiler (if so equipped) — —
Rear combination light*
Turn signal light 21 PY21W
Stop/Tail 21/5 P21/5W
Backup (reversing) 21 P21W
License plate light* 5 W5W
Always check with the Parts Department at a NISSAN dealer for the latest parts informa-
tion.
* It is recommended that you visit a NISSAN dealer for replacement.
8-24Do-it-yourself
