2018 NISSAN VERSA lights

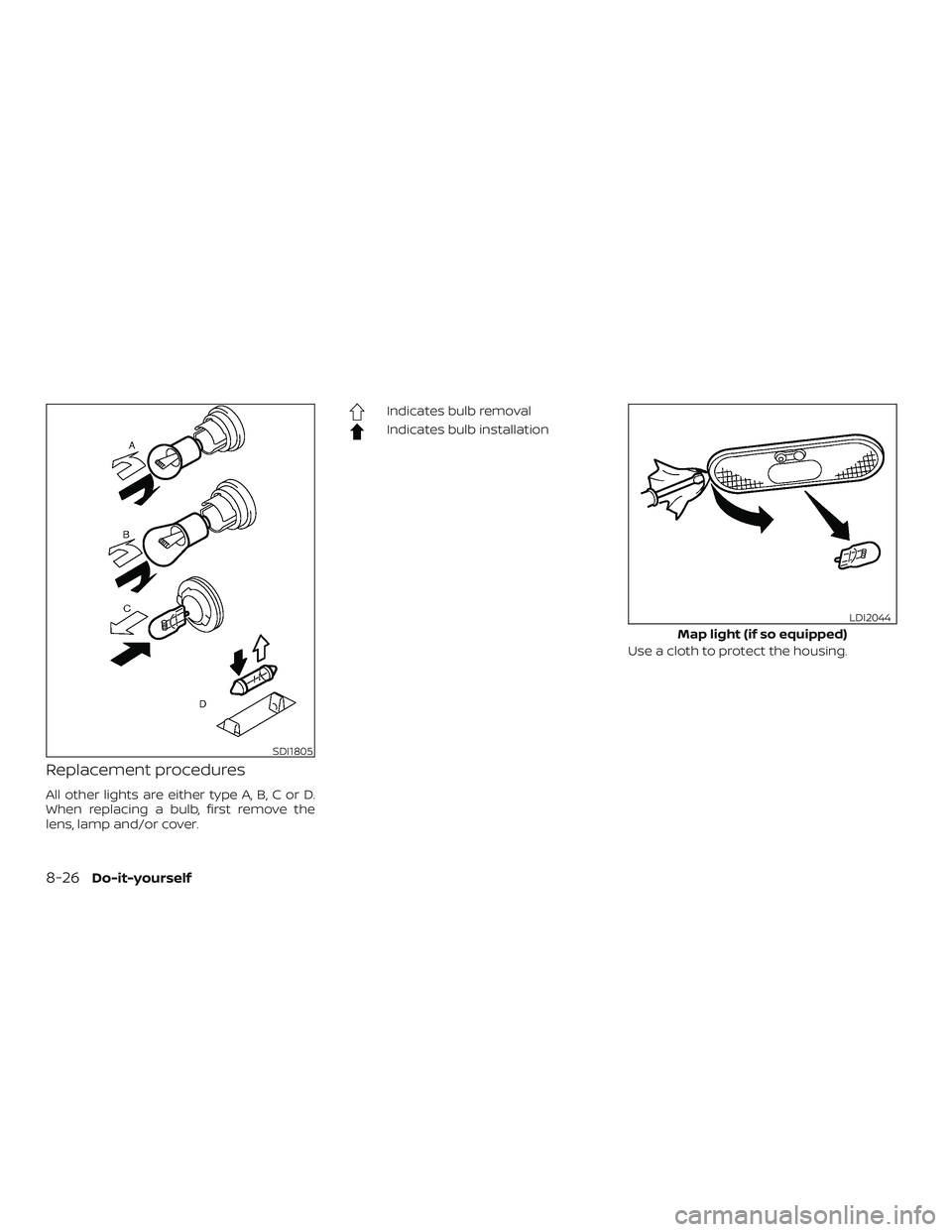

Replacement procedures
All other lights are either type A, B, C or D.
When replacing a bulb, first remove the
lens, lamp and/or cover.
Indicates bulb removal
Indicates bulb installation
Use a cloth to protect the housing.
SDI1805
Map light (if so equipped)
LDI2044
8-26Do-it-yourself

Doors and engine hood:Check that the
doors and engine hood operate properly.
Also ensure that all latches lock securely.
Lubricate hinges, latches, latch pins, rollers
and links if necessary. Make sure that the
secondary latch keeps the hood from
opening when the primary latch is re-
leased.
When driving in areas using road salt or
other corrosive materials, check lubrica-
tion frequently.
Lights*:Clean the headlights on a regular
basis. Make sure that the headlights, stop
lights, tail lights, turn signal lights, and other
lights are all operating properly and in-
stalled securely. Also check headlight aim.
Road wheel nuts (lug nuts)*:When check-
ing the tires, make sure no wheel nuts are
missing, and check for any loose wheel
nuts. Tighten if necessary.
Tire rotation*:Tires should be rotated ev-
ery 5,000 miles (8,000 km).
Tires*:Check the pressure with a gauge
of ten and always prior to long distance
trips. If necessary, adjust the pressure in all
tires, including the spare, to the pressure
specified. Check carefully for damage, cuts
or excessive wear.Tire Pressure Monitoring System (TPMS)
transmitter components:Replace the
TPMS transmitter grommet seal, valve core
and cap when the tires are replaced due to
wear or age.
Wheel alignment and balance:If the ve-
hicle should pull to either side while driving
on a straight and level road, or if you detect
uneven or abnormal tire wear, there may
be a need for wheel alignment. If the steer-
ing wheel or seat vibrates at normal high-
way speeds, wheel balancing may be
needed.
For additional information regarding tires,
refer to “Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada) in
the Warranty Information Booklet.
Windshield:Clean the windshield on a
regular basis. Check the windshield at least
every six months for cracks or other dam-
age. Have a damaged windshield repaired
by a qualified repair facility.
Windshield wiper blades*:Check for
cracks or wear if they do not wipe properly.
Inside the vehicle
The maintenance items listed here should
be checked on a regular basis, such aswhen performing scheduled maintenance,
cleaning the vehicle, etc.
Accelerator pedal:Check the pedal for
smooth operation and make sure the
pedal does not catch or require uneven
effort. Keep the floor mat away from the
pedal.
Brake pedal:Check the pedal for smooth
operation. If the brake pedal suddenly goes
down further than normal, the pedal feels
spongy or the vehicle seems to take longer
to stop, have your vehicle checked imme-
diately. It is recommended that you visit a
NISSAN dealer for this service. Keep the
floor mat away from the pedal.
Brakes:Check that the brakes do not pull
the vehicle to one side when applied.
Continuously Variable Transmission
(CVT) P (Park) position mechanism (if so
equipped):On a fairly steep hill check that
the vehicle is held securely with the shif t
lever in the P (Park) position without apply-
ing any brakes.
Parking brake:Check the parking brake
operation regularly. The vehicle should be
securely held on a fairly steep hill with only
the parking brake applied. If the parking
Maintenance and schedules9-3

brake needs adjustment, it is recom-
mended that you visit a NISSAN dealer for
this service.
Seats:Check seat position controls such
as seat adjusters, seatback recliner, etc., to
ensure they operate smoothly and all
latches lock securely in every position.
Check that the head restraints/headrests
move up and down smoothly and the locks
(if so equipped) hold securely in all latched
positions.
Seat belts:Check that all parts of the seat
belt system (for example, buckles, anchors,
adjusters and retractors) operate properly
and smoothly, and are installed securely.
Check the belt webbing for cuts, fraying,
wear or damage.
Steering wheel:Check for changes in the
steering system, such as excessive free
play, hard steering or strange noises.
Warning lights and chimes:Make sure all
warning lights and chimes are operating
properly.
Windshield defroster:Check that the air
comes out of the defroster outlets properly
and in sufficient quantity when operating
the heater or air conditioner.Windshield wiper and washer*:Check
that the wipers and washer operate prop-
erly and that the wipers do not streak.
Under the hood and vehicle
The maintenance items listed here should
be checked periodically (for example, each
time you check the engine oil or refuel).
Battery*:Check the fluid level in each cell.
The fluid should be at the bottom of the
filler opening. Vehicles operated in high
temperatures or under severe conditions
require frequent checks of the battery fluid
level.
NOTE:
Care should be taken to avoid situations
that can lead to potential battery dis-
charge and potential no-start conditions
such as:
1.Installation or extended use of elec-
tronic accessories that consume bat-
tery power when the engine is not
running (Phone chargers, GPS, DVD
players, etc.).
2.Vehicle is not driven regularly and/or
only driven short distances.In these cases, the battery may need to
be charged to maintain battery health.
Brake and clutch (if so equipped) fluid
level*:Make sure that the brake and clutch
fluid levels are between the MIN and MAX
lines on the reservoir.
Engine coolant level*:Check the coolant
level when the engine is cold.
Engine drive belts*:Make sure the drive
belts are not frayed, worn, cracked or oily.
Engine oil level*:Check the level af ter
parking the vehicle on a level surface with
the engine off. Wait more than 15 minutes
for the oil to drain back into the oil pan.
Exhaust system:Make sure there are no
loose supports, cracks or holes. If the
sound of the exhaust seems unusual or
there is a smell of exhaust fumes, immedi-
ately have the exhaust system inspected. It
is recommended that you visit a NISSAN
dealer for this service. For additional infor-
mation, refer to “Exhaust gas (carbon mon-
oxide)” in the “Starting and driving” section
of this manual.
9-4Maintenance and schedules

Continuously Variable Transmission
(CVT) fluid...................8-9
Engine coolant...............8-4
Engine oil...................8-6
F.M.V.S.S. certification label..........10-11
Foglightswitch................2-25
Front air bag system (See supplemental
restraint system)................1-51
Frontseats....................1-2
Fuel
Capacities and recommended
fuel/lubricants...............10-2
Fuel economy...............5-22
Fuel-filler cap................3-13
Fuel-filler door lock opener lever....3-13
Fuel-filler lid.................3-13
Fuel gauge..................2-9
Fueloctanerating.............10-5
Fuel recommendation..........10-4
Loose fuel cap warning..........2-6
Fuelefficientdrivingtips...........5-21
Fuel-filler door.................3-13
Fuel gauge....................2-9
Fuses.......................8-18
Fusiblelinks...................8-18
G
Gascap .....................3-13
Gauge
Engine coolant temperature gauge . .2-8
Fuel gauge..................2-9
Odometer..................2-6
Speedometer................2-5
Tachometer.................2-8Trip computer...............2-10
Trip odometer.............2-5,2-6
General maintenance.............9-2
Glovebox....................2-28
H
Hands-free phone system,
Bluetooth®................4-50,4-65
Hazard warning flasher switch........6-2
Headlight and turn signal switch......2-22
Headlightcontrolswitch...........2-22
Headlights ...................8-22
Headrestraints .................1-5
Heater
Heater and air conditioner controls . . .4-9
Heater operation..............4-11
Hood.......................3-10
Horn.......................2-25
I
Ignition switch..................5-8
Important vehicle information label. . . .10-11
Increasing fuel economy...........5-22
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders)....................2-18
Instrument brightness control.......2-23
Instrument panel.............0-6,2-2
Instrument panel dimmer switch.....2-23
Interiorlight ...............2-32,2-33
Interiortrunklidrelease ...........3-12
iPod®Player ..................4-44ISOFIX child restraints.............1-23
J
Jumpstarting...............6-8,8-13
K
Key.........................3-2
Key fob battery replacement.....8-20,8-21
Keyless entry
Without Intelligent Key system
(See remote keyless entry system). .3-6, 3-7
L
Labels
Air conditioner specification label . . .10-12
Emission control information label . .10-11
Engine serial number...........10-11
F.M.V.S.S. certification label........10-11
Tire and Loading Information label . .10-12
Vehicle identification number (VIN) . .10-10
Vehicle identification number (VIN)
plate.....................10-10
Warning labels (for SRS)..........1-59
LATCH (Lower Anchors and Tethers for
CHildren)System................1-23
License plate
Installing the license plate.......10-12
Light
Airbagwarninglight........1-60, 2-17
Brakelight(Seestoplight)........8-24
11-3

Bulb check/instrument panel......2-12
Bulb replacement.............8-24
Charge warning light...........2-14
ExteriorandInteriorlights........8-24
Foglights..................8-23
Foglightswitch..............2-25
Headlight and turn signal switch....2-22
Headlightcontrolswitch.........2-22
Headlights .................8-22
Interiorlight .............2-32,2-33
Lightbulbs.................8-22
Low tire pressure warning light.....2-15
Passenger air bag and status light . . .1-51
Warning/indicator lights and audible
reminders..................2-18
Lights ......................8-22
Lock
Child safety rear door lock........3-5
Door locks................3-3,3-4
Fuel-filler door lock opener lever....3-13
Power door locks..............3-5
Trunk lid lock opener lever........3-11
Loose fuel cap warning............2-6
Lowfuelwarninglight ............2-15
Low tire pressure warning light.......2-15
Luggage
(See vehicle loading information).....10-13
M
Maintenance
General maintenance...........9-2
Insidethevehicle..............9-3
Maintenance precautions.........8-2
Outsidethevehicle.............9-2Seat belt maintenance..........1-17
Under the hood and vehicle.......9-4
Maintenance log................9-13
Maintenance requirements..........9-2
Maintenance schedules............9-7
Maintenance under severe operation
conditions....................9-12
Malfunctionindicatorlight..........2-18
Manual front seat adjustment........1-3
Manual windows................2-32
Map pocket...................2-27
Meters and gauges...............2-3
Instrument brightness control.....2-23
Mirror
Outsidemirrorcontrol ..........3-17
Outsidemirrors...............3-17
Rearview...................3-17
Vanitymirror................3-16
Mirrors......................3-17
O
Octane rating (See fuel octane rating). . .10-5
Odometer....................2-6
Oil
Capacities and recommended
fuel/lubricants...............10-2
Changing engine oil............8-7
Changing engine oil filter.........8-8
Checking engine oil level.........8-6
Engine oil...................8-6
Engine oil and oil filter
recommendation.............10-6
Engine oil viscosity.............10-7One shot call..............4-54,4-68
Outsidemirrorcontrol ............3-17
Outsidemirrors.................3-17
Overheat
Ifyourvehicleoverheats.........6-11
Owner's manual order form........10-21
Owner's manual/service manual order
information ..................10-21
P
Parking
Parking brake operation.........5-18
Parking/parkingonhills.........5-23
Parkingbrake..................5-18
Phone, Bluetooth® hands-free
system..................4-50,4-65
Power
Power door locks..............3-5
Poweroutlet................2-26
Powerrearwindows............2-31
Power steering system..........5-24
Powerwindows..............2-30
Rearpowerwindows...........2-31
Poweroutlet..................2-26
Powersteering.................5-24
Precautions
Maintenance precautions.........8-2
Precautions on booster
seats............1-20, 1-27, 1-33, 1-38
Precautions on child
restraints .........1-20, 1-27, 1-33, 1-38
Precautionsonseatbeltusage.....1-10
Precautions on supplemental restraint
system....................1-42
11-4

Precautions on supplemental restraint
system....................1-42
Supplemental restraint system
(Supplemental air bag system).......1-42
Switch
Automatic power window switch . . .2-31
Foglightswitch..............2-25
Hazard warning flasher switch......6-2
Headlight and turn signal switch....2-22
Headlightcontrolswitch.........2-22
Ignition switch................5-8
Instrument brightness control.....2-23
Power door lock switch..........3-5
Rearwindowdefrosterswitch.....2-22
Turn signal switch.............2-24
Vehicle dynamic control (VDC) off
switch....................2-25
T
Tachometer...................2-8
Temperature gauge
Engine coolant temperature gauge . .2-8
Three-waycatalyst...............5-2
Tilting steering wheel.............3-15
Tire
Flattire..................6-2,6-3
Spare tire...............6-4,8-39
Tire and Loading Information label . .10-12
Tire chains.................8-35
Tire pressure................8-28
Tirerotation ................8-36
Types of tires................8-34
Uniform tire quality grading......10-18
Wheels and tires..........8-28,10-9Wheel/tire size...............10-9
Tire pressure
Low tire pressure warning light.....2-15
Tire Pressure Monitoring System (TPMS) . .5-3
Towing
2-wheel drive models...........6-14
4-wheel drive models...........6-13
Flattowing.................10-17
Towtrucktowing .............6-12
Trailertowing ...............10-17
Towingatrailer................10-17
Transmission
Continuously Variable Transmission (CVT)
fluid......................8-9
Driving with Continuously Variable
Transmission (CVT)..........5-8,5-11
Driving with manual
transmission..............5-9,5-16
Travel (See registering a vehicle in another
country).....................10-10
Trip computer.................2-10
Trip odometer...............2-5,2-6
Trunk lid lock opener lever..........3-11
Turn signal switch...............2-24
U
Uniform tire quality grading........10-18
USBinterface..................4-42
Audio file operation............4-42
V
Vanitymirror..................3-16Variable voltage control system......8-13
Vehicle dimensions and weights......10-9
Vehicle dynamic control (VDC) off
switch......................2-25
Vehicle dynamic control (VDC) system . .5-27
Vehicle Dynamic Control (VDC) system . .5-27
Vehicle identification.............10-10
Vehicle identification number (VIN). . . .10-10
Vehicle identification number (VIN)
(Chassis number)...............10-10
Vehicle identification number (VIN)
plate.......................10-10
Vehicle loading information........10-13
Vehiclerecovery................6-14
Ventilators....................4-9
Visors.......................3-16
Voice Prompt Interrupt........4-54,4-68
W
Warning
Airbagwarninglight........1-60, 2-17
Anti-lock brake warning light......2-13
Battery charge warning light.....
.2-14
Brakewarninglight............2-13
Door open warning light.........2-14
Engine oil pressure warning light....2-14
Hazard warning flasher switch......6-2
Loosefuelcapwarning..........2-6
Lowfuelwarninglight ..........2-15
Low tire pressure warning light.....2-15
Passenger air bag and status light . . .1-51
Seatbeltwarninglight .......1-13, 2-17
Supplemental air bag warning
light...................1-60, 2-17
11-6

Warning/indicator lights and audible
reminders..................2-18
Warning labels (for SRS)..........1-59
Warning/indicator lights and audible
reminders....................2-18
Audible reminders.............2-18
Indicatorlights...............2-18
Warninglights ...............2-18
Warninglights .................2-18
Warning lights, indicator lights and audible
reminders....................2-12
Weights (See dimensions and weights) . .10-9
Wheels and tires............8-28,10-9
Wheel/tire size.................10-9
When traveling or registering in another
country.....................10-10
Windows.....................2-30
Locking passengers' windows.....2-30
Manual windows..............2-32
Powerrearwindows............2-31
Powerwindows..............2-30
Rearpowerwindows...........2-31
Windshield-washer fluid...........8-10
Windshield wiper blades...........8-16
Wiper
Wiper blades................8-16
Wiper and washer switch..........2-21
11-7
