2018 NISSAN MURANO Owner´s Manual

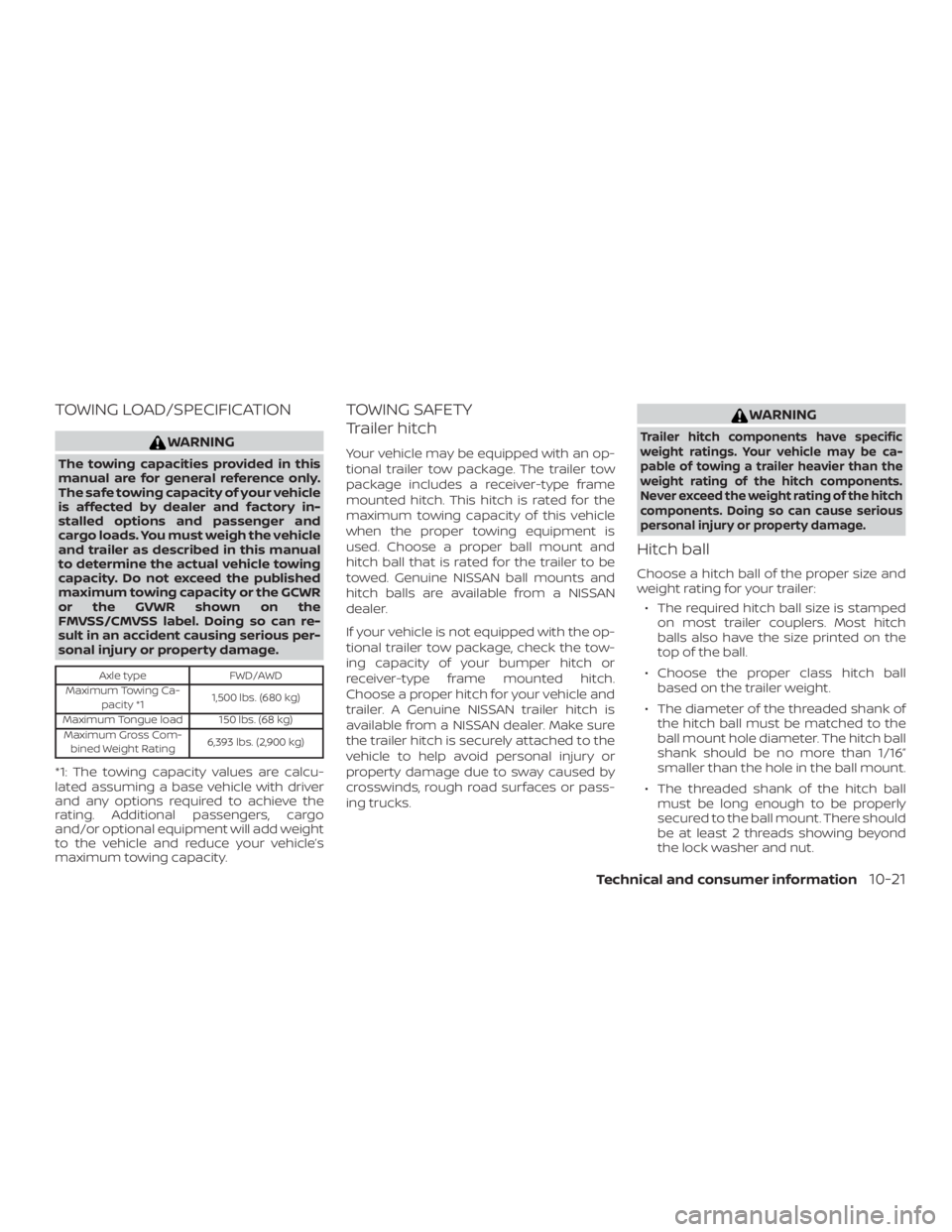

Page 433 of 460

NISSAN MURANO 2018  Owner´s Manual TOWING LOAD/SPECIFICATION
WARNING
The towing capacities provided in this
manual are for general reference only.
The safe towing capacity of your vehicle
is affected by dealer and factory in-
stalled o

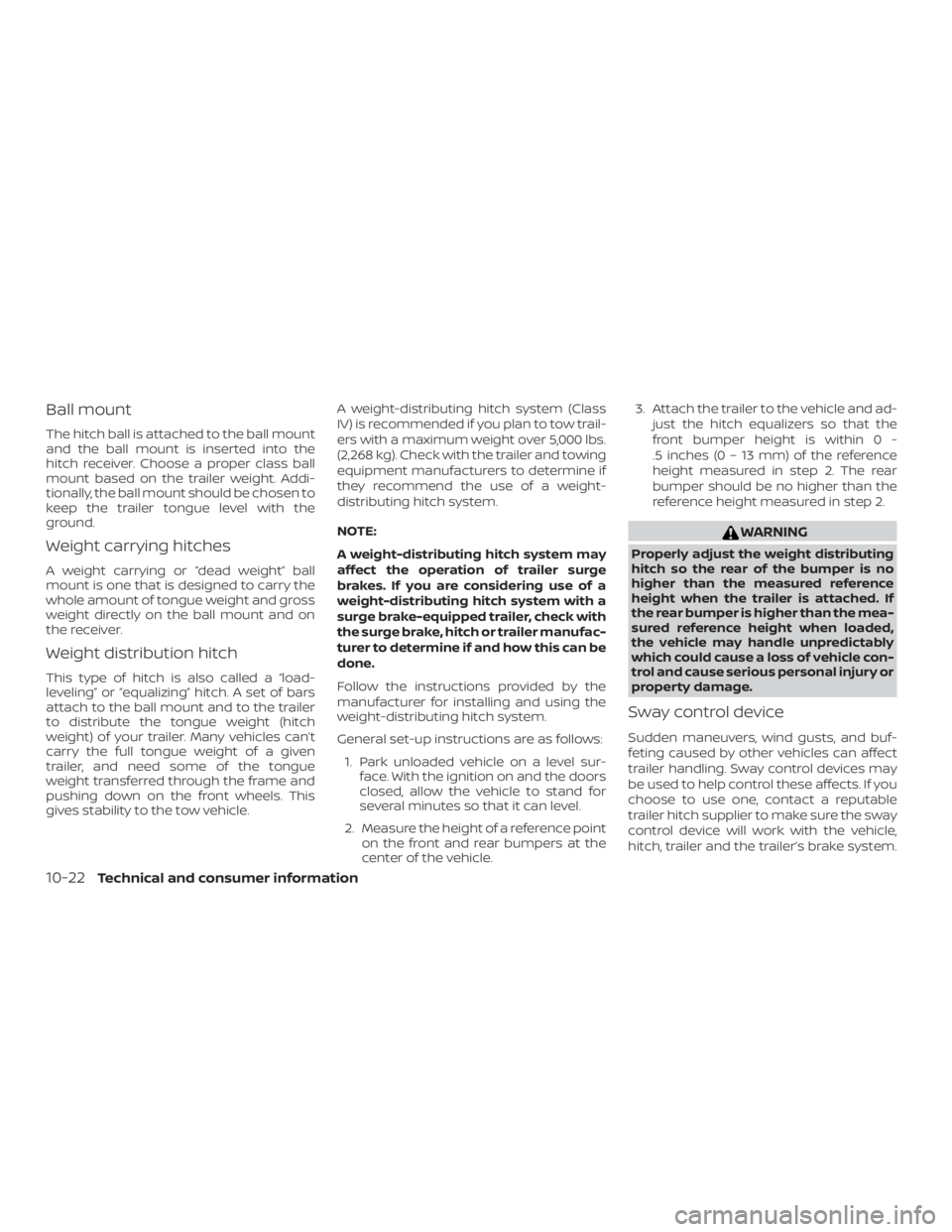

Page 434 of 460

NISSAN MURANO 2018  Owner´s Manual Ball mount
The hitch ball is attached to the ball mount
and the ball mount is inserted into the
hitch receiver. Choose a proper class ball
mount based on the trailer weight. Addi-
tionally, the ball m

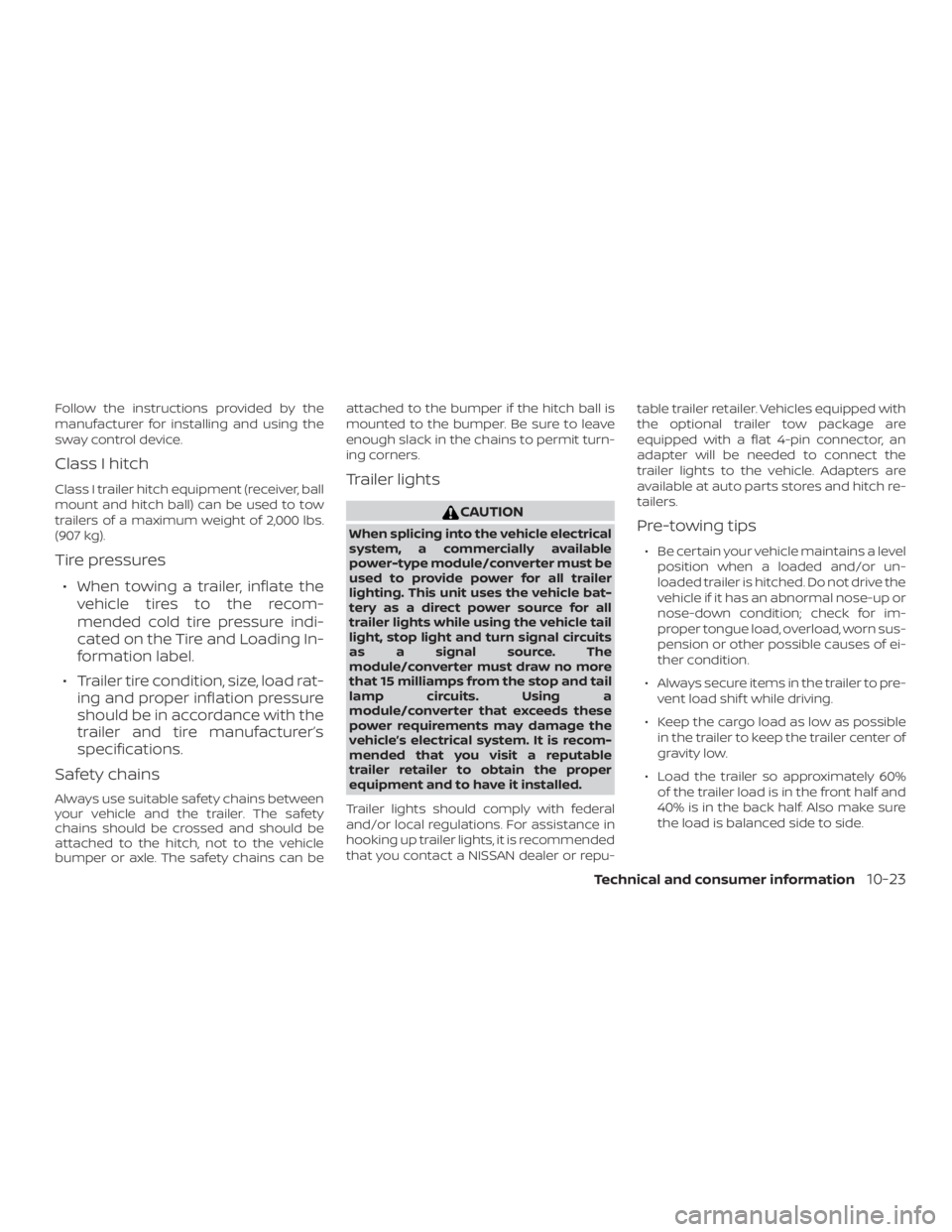

Page 435 of 460

NISSAN MURANO 2018  Owner´s Manual Follow the instructions provided by the
manufacturer for installing and using the
sway control device.
Class I hitch
Class I trailer hitch equipment (receiver, ball
mount and hitch ball) can be used t

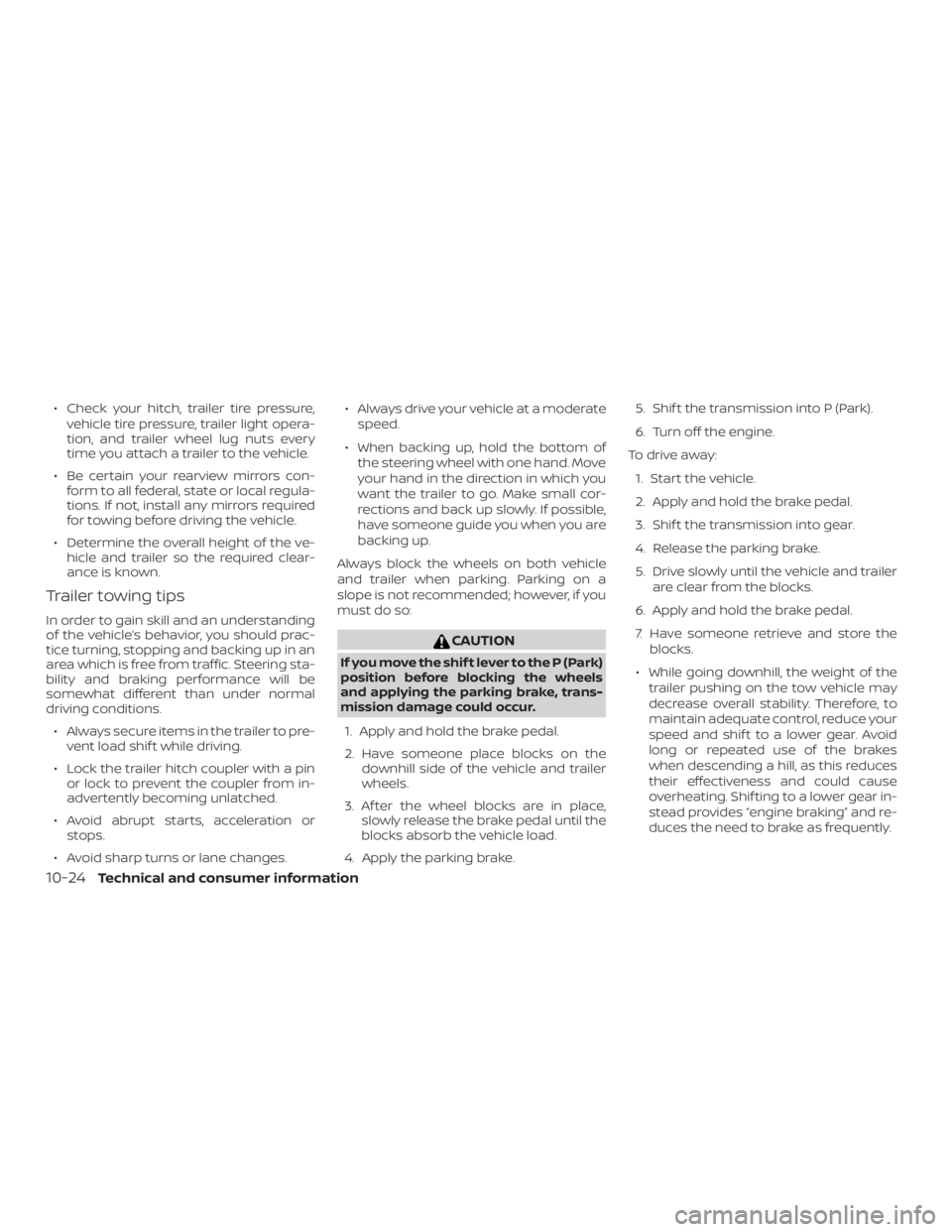

Page 436 of 460

NISSAN MURANO 2018  Owner´s Manual ∙ Check your hitch, trailer tire pressure,vehicle tire pressure, trailer light opera-
tion, and trailer wheel lug nuts every
time you attach a trailer to the vehicle.
∙ Be certain your rearview mi

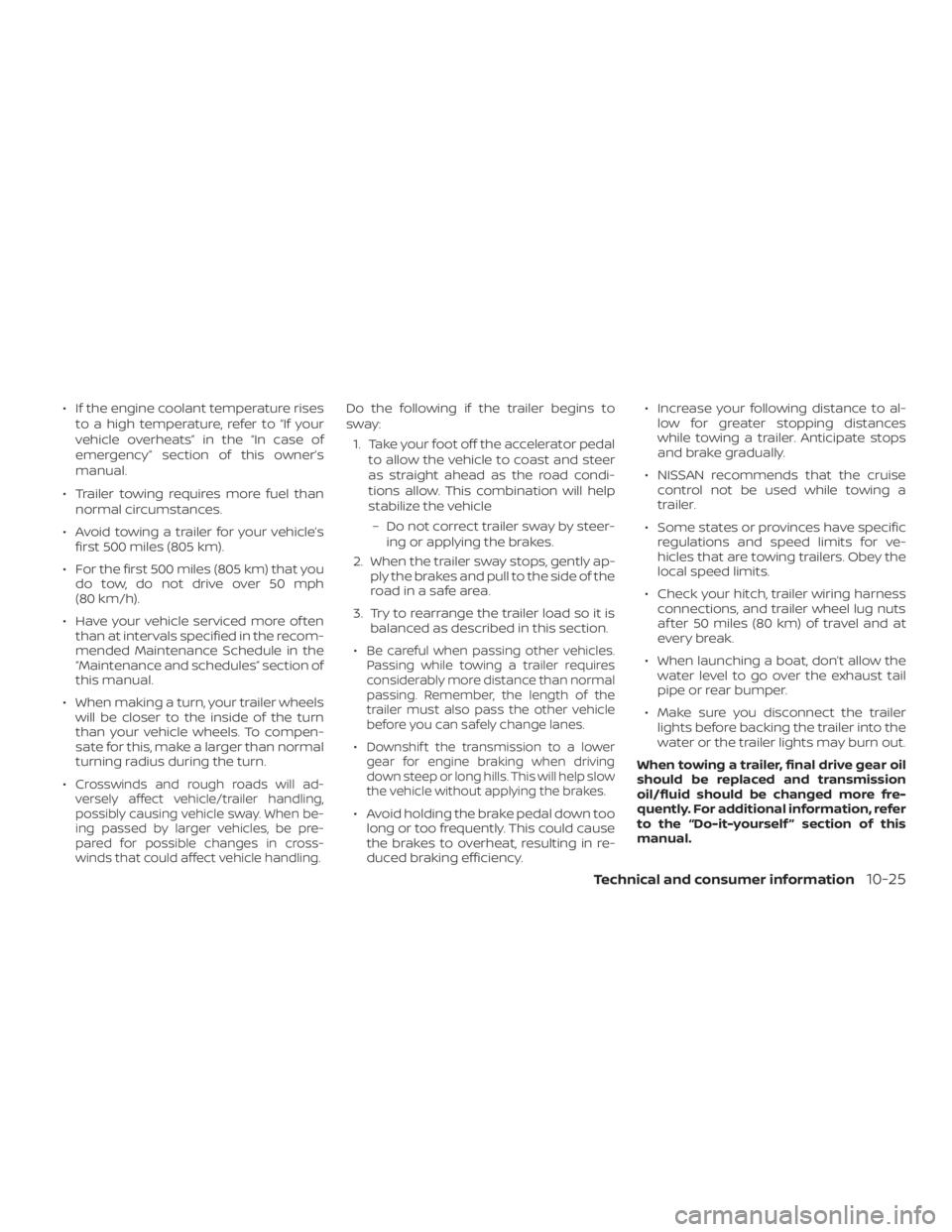

Page 437 of 460

NISSAN MURANO 2018  Owner´s Manual ∙ If the engine coolant temperature risesto a high temperature, refer to “If your
vehicle overheats” in the “In case of
emergency” section of this owner’s
manual.
∙ Trailer towing requir

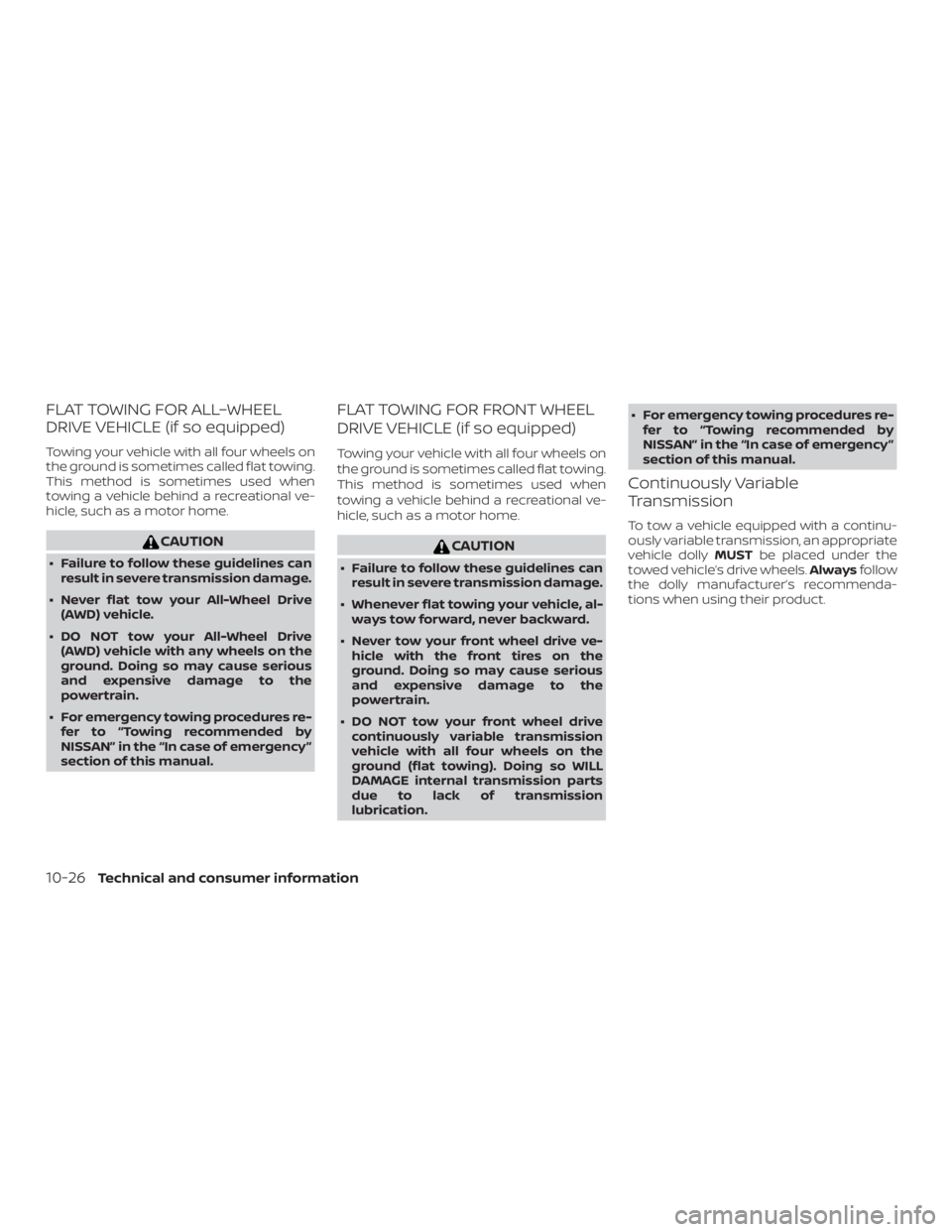

Page 438 of 460

NISSAN MURANO 2018  Owner´s Manual FLAT TOWING FOR ALL–WHEEL
DRIVE VEHICLE (if so equipped)
Towing your vehicle with all four wheels on
the ground is sometimes called flat towing.
This method is sometimes used when
towing a vehicle b

Page 439 of 460

NISSAN MURANO 2018  Owner´s Manual DOT (Department of Transportation) Qual-
ity Grades: All passenger car tires must
conform to federal safety requirements in
addition to these grades.
Quality grades can be found where appli-
cable on

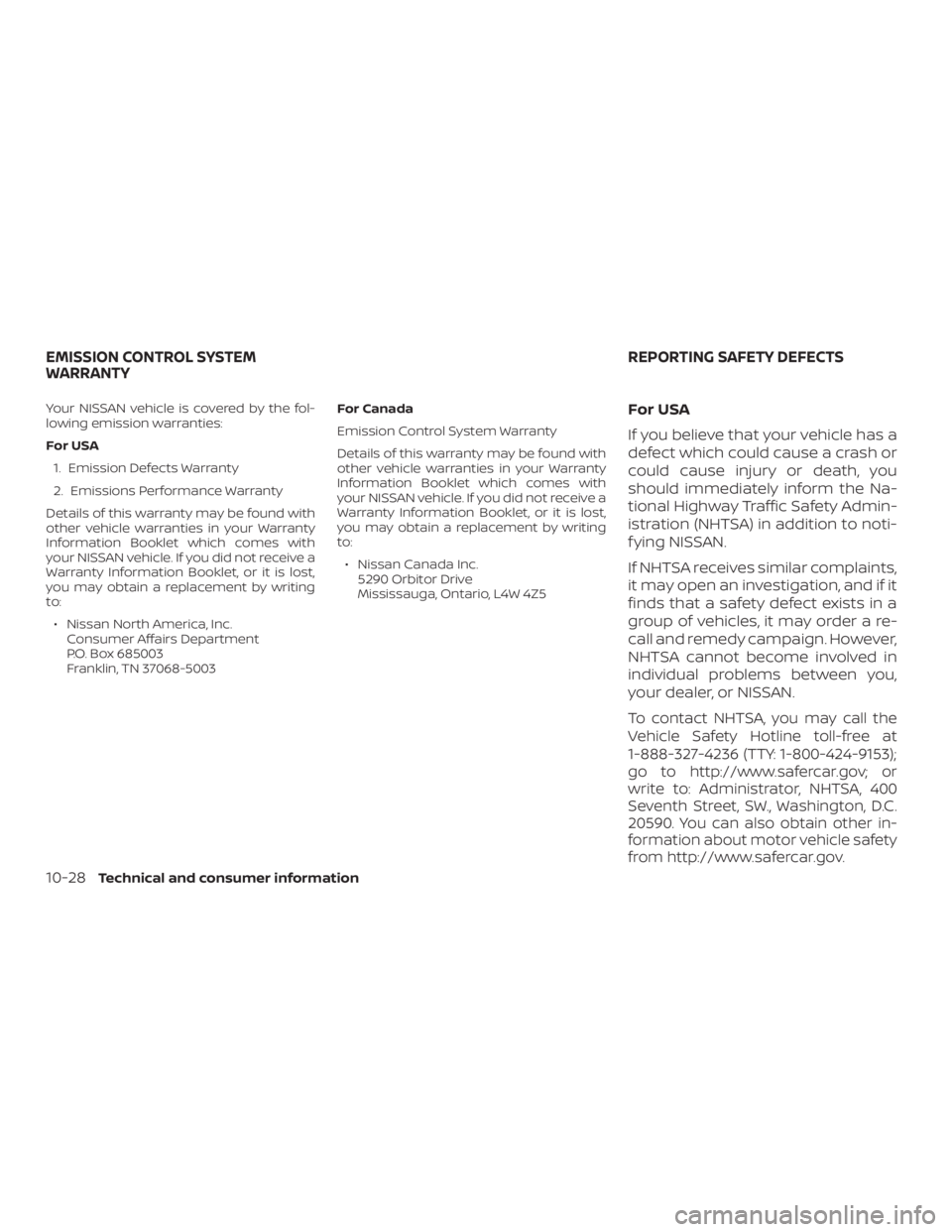

Page 440 of 460

NISSAN MURANO 2018  Owner´s Manual Your NISSAN vehicle is covered by the fol-
lowing emission warranties:
For USA1. Emission Defects Warranty
2. Emissions Performance Warranty
Details of this warranty may be found with
other vehicle wa
