2018 MITSUBISHI OUTLANDER III engine

Cleaning the outside of your vehicle9-44 Vehicle care and maintenance
9
N00946600054
The window glass can
usually be cleaned
using only a sponge and
water. Glass cleaner
can be used to remove
wax, oil, grease, dead
insects, etc. After washing the glass, wipe itdry with a clean, dry, soft cloth.
N00946700068
Use a soft cloth and glass cleaner to removegrease, dead insects,
etc., from the wiper
blades.Replace the wiper blades when they no longerclean the windshield a
nd rear window prop-
erly.
N00946800069
Clean the inside of the sunroof with a softcloth. Hard deposits
should be wiped away
with a cloth dipped in
warm, neutral deter-
gent solution. Wipe away the solution with asponge dipped in fresh water.
N00947000071
Never spray or splash
water on the electrical
accessories in the engine compartment. Thisputs the engine at ri
sk of being damaged.
Do not bring the circum
ferential parts, the
plastic parts and so on in
to contact with sulfu-
ric acid (battery electrolyte) which maycrack, stain or discolor them.If they are in contact, wipe off with soft cloth,chamois or the like and an aqueous solutionof neutral detergent then immediately rinsethe affected parts with plenty of water.
Window glass Wiper blades Cleaning the sunroof (if so equipped)
NOTE
The surface treatment on the inside of theglass may be removed
if a hard cloth or
organic solvent is used.
Engine compartment
BK0249100US.book 44 ページ ２０１７年５月１０日　水曜日　午前８時４９分

11

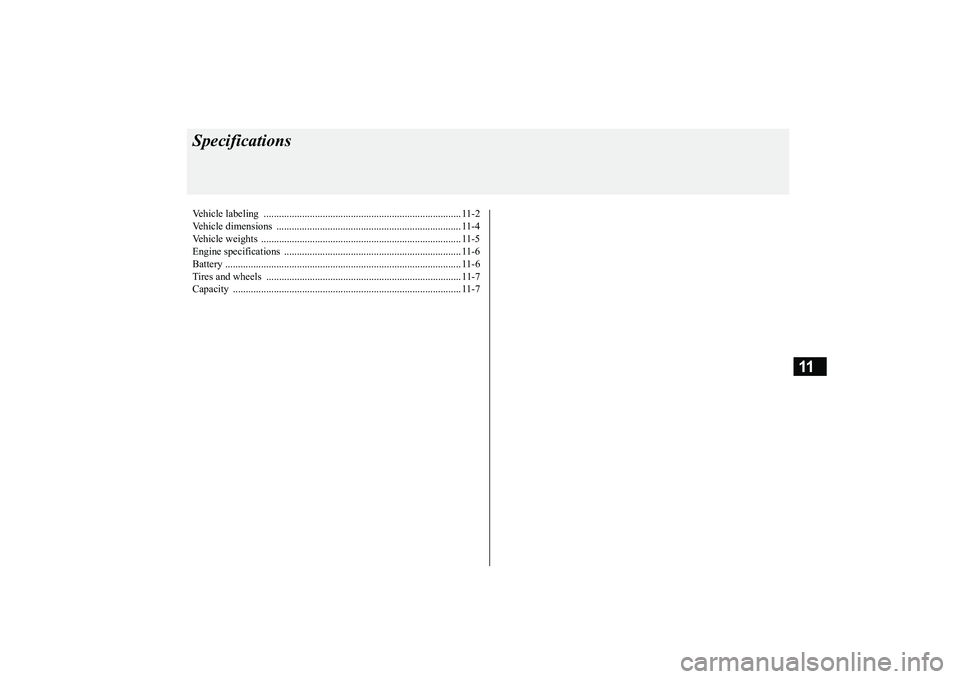

SpecificationsVehicle labeling ............................................................................. 11-2Vehicle dimensions ........................................................................ 11-4Vehicle weights .............................................................................. 11-5Engine specifications ..................................................................... 11-6Battery ............................................................................................ 11-6Tires and wheels ............................................................................ 11-7Capacity ......................................................................................... 11-7
BK0249100US.book 1 ページ ２０１７年５月１０日　水曜日　午前８時４９分

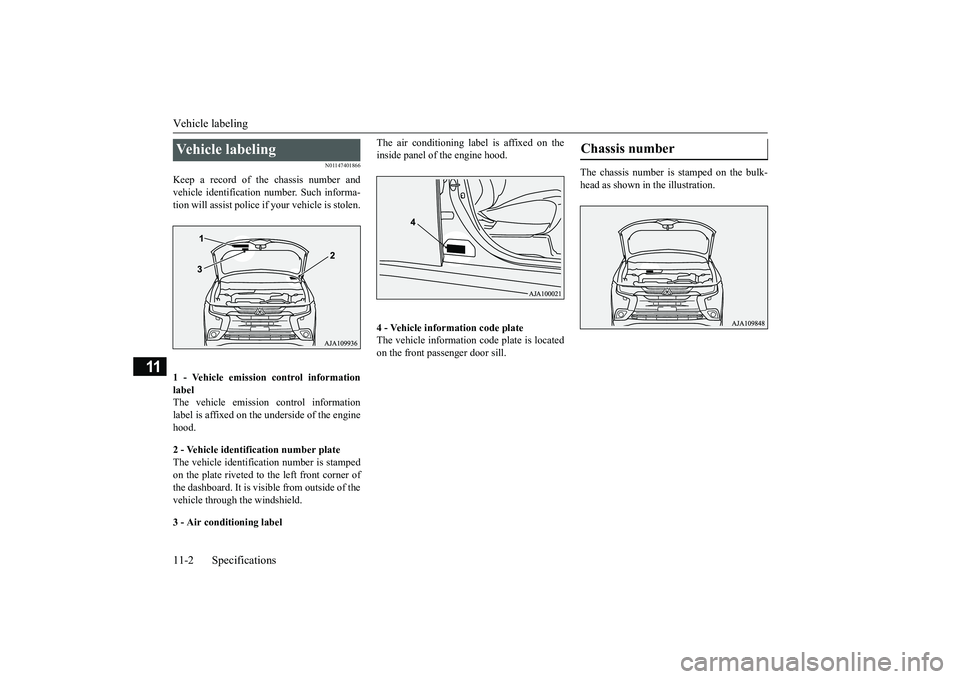

Vehicle labeling11-2 Specifications
11
N01147401866
Keep a record of the chassis number andvehicle identification
number. Such informa-
tion will assist police if
your vehicle is stolen.
1 - Vehicle emission control informationlabelThe vehicle emission control informationlabel is affixed on the underside of the enginehood.2 - Vehicle identification number plateThe vehicle identification number is stampedon the plate riveted to the left front corner ofthe dashboard. It is visible from outside of thevehicle through the windshield.3 - Air conditioning label
The air conditioning label is affixed on theinside panel of the engine hood.4 - Vehicle information code plateThe vehicle information code plate is locatedon the front passenger door sill.
The chassis number is stamped on the bulk-head as shown in the illustration.
Vehicle labeling
Chassis number
BK0249100US.book 2 ページ ２０１７年５月１０日　水曜日　午前８時４９分

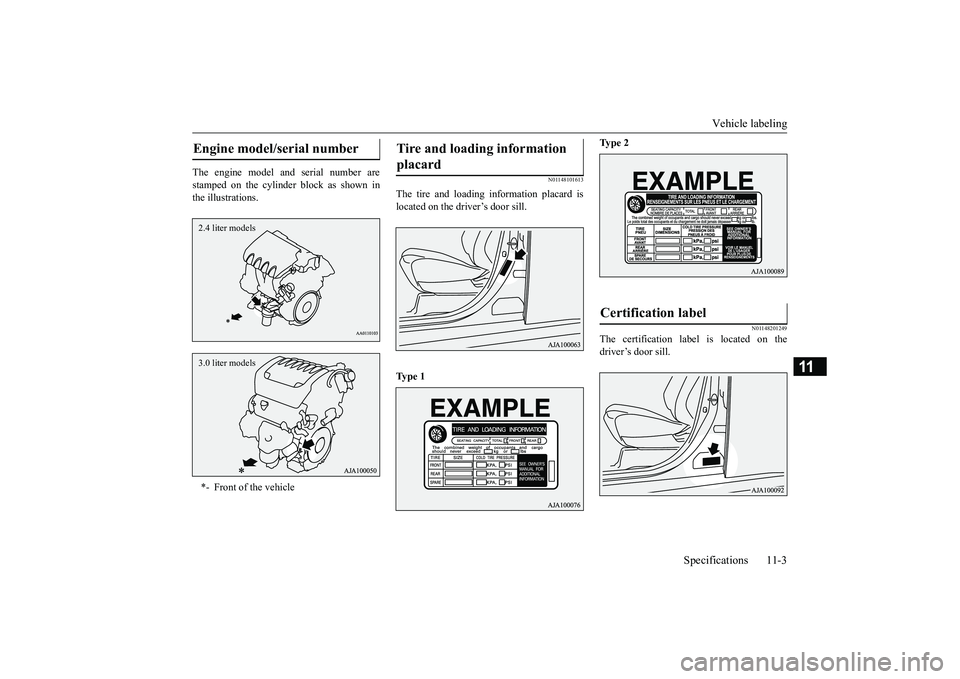

Vehicle labeling
Specifications 11-3
11
The engine model a
nd serial number are
stamped on the cylinder block as shown inthe illustrations.
N01148101613
The tire and loading information placard islocated on the driver’s door sill. Ty p e 1
Ty p e 2
N01148201249
The certification label is located on thedriver’s door sill.
Engine model/serial number *- Front of the vehicle2.4 liter models3.0 liter models
Tire and loading information placard
Certification label
BK0249100US.book 3 ページ ２０１７年５月１０日　水曜日　午前８時４９分

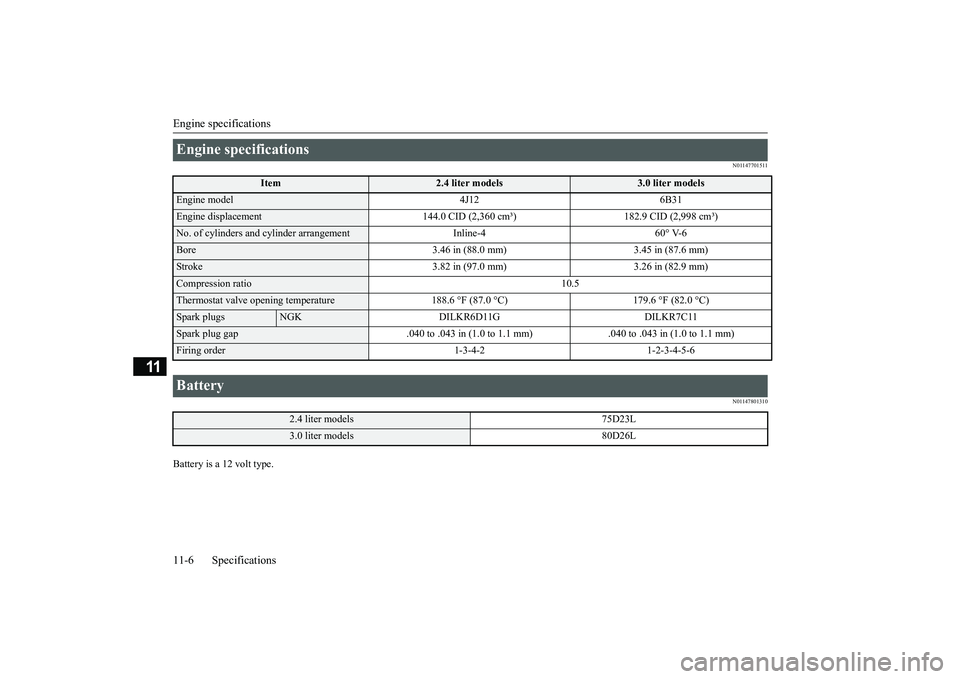

Engine specifications11-6 Specifications
11
N01147701511N01147801310
Battery is a 12 volt type.Engine specifications
Item
2.4 liter models
3.0 liter models
Engine model 4J12 6B31Engine displacement 144.0 CID (2
,360 cm

Tires and wheels
Specifications 11-7
11
N01147901744
PCD: Pitch Circle
Diameter (ins
tallation holes)
N01148002257
Tires and wheels Tire P215/70R16 99H P225/55R18 97HWheel
Size 16 x 6 1/2JJ 16 x 6 1/2J 18 x 7JPCD 4.5 in (114.3 mm)Offset 1.5 in (38 mm)
NOTE
Contact an authorized Mitsubishi
Motors dealer for de
tails on the combinati
on used on your vehicle.
These tires satisfy vehicle loading condi
tions described in
this owner’s manual.
Capacity
Item
Capacity
Lubricants
Fuel (approximate)
Front-wheel drive ve
hicles 16.6 gal (63 L)
Refer to “Fuel selection” on page 3-2
All-wheel drive vehicles 15.8 gal (60 L)
Engine oil
2.4 liter models
Oil pan 4.5 qt (4.3 L)
ng the ILSAC certification mark (“star-
burst” symbol) on the container.If these oils are not available,
and API classification SN can be
used.
Oil filter .32 qt (0.3 L)
3.0 liter models
Oil pan 4.2 qt (4.0 L)
Automatic transaxle 8.7 qt (8.2 L) Refer to
“Automatic transaxle fluid” on page 9-11.
Continuously variable transm
ission (CVT) 7.2 qt (6.9 L)
Refer to “Continuously variable
transmission (CVT) fluid” on
page 9-11.
BK0249100US.book 7 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Capacity11-8 Specifications
11
Transfer oil
Vehicles without S-
AWC .50 qt (0.47 L)
Mitsubishi Motors Genuine S
uper Hypoid Gear Oil API GL-5
SAE 80
Vehicles with S-AW
C .48 qt (0.45 L)
Differential
Rear axle .42 qt (0.4 L)
Mitsubishi Motors Genuine S
uper Hypoid Gear Oil API GL-5
SAE 80
Brake As required Conforming to Brake fluid DOT3 or DOT4Hood lock release mechanism and safety catch A
s required Multipurpose type
grease NLGI Grade 2
Engine coolant{Includes .69 qt (0.65 L) in reserve tank}
2.4 liter models 6.3 qt (6.0 L)
Mitsubishi Motors Genuine
Super Long Life Coolant
Premium or equivalent
*
3.0 liter models 9.5 qt (9.0 L)
Washer fluid 4.8 qt (4.5 L) —
Refer to the “Air con-ditioning label” on
page 11-2.
HFO-1234yf
*:similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrate
and non-borate coolant with long life hybrid o
rganic acid tech-
nology
Item
Capacity
Lubricants
BK0249100US.book 8 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Alphabetical index12-2
12
Fluid
....................................
9-11
, 11-7
Selector lever operation
...................
5-75
Selector le
ver positions
...................
5-79
Sports mode
...................................
5-80
Coolant (engine)
..........................
9-8
, 11-7
Cruise control
...................................
5-103
Cup holder
.......................................
5-242
D
Daytime running lights
Bulb capacity
.................................
9-32
Replacement
..................................
9-36
Defogger (rear window)
....................
5-225
Defrosting or defogging (windshield, door windows)
..................................
7-8
, 7-12
Dimensions
........................................
11-4
Dimmer (high/lo
w beam change)
.......
5-210
Disc brake pads
..................................
9-24
Dome light (front)/Reading lights
.......
5-236
Bulb capacity
.................................
9-33
Dome light (rear)
..............................
5-237
Bulb capacity
.................................
9-33
Doors
Lock
..............................................
5-34
Power door locks
............................
5-36
Driving during cold weather
..................
6-5
Driving precaution
................................
6-2
Driving, alcohol and drugs
.....................
6-2
Dual-zone automatic climate control air conditioner
........................................
7-5
E
ECO mode switch
.............................
5-218
Electric parking brake
..........................
5-54
Electric power steering system (EPS)
....
5-99
Electric rear window
defogger switch
..5-225
Electronic immobilizer (Anti-theft starting system)
.....................................
5-4
, 5-28
Electronically cont
rolled 4WD system
..5-82
Emission-control system maintenance
...
9-23
Engine
Compartment
...................................
9-5
Coolant
...................................
9-8
, 11-7
Hood
...............................................
9-3
Malfunction indicator light
.............
5-204
MIVEC
.................................
5-26
, 5-67
Oil and oil filter
.......................
9-6
, 11-7
Overheating
.....................................
8-4
Serial number
.................................
11-2
Specification
...................................
11-6
Engine hood
........................................
9-3
Engine switch
.....................................
5-18
Exhaust system
...................................
9-24
F
Floor console box
..............................
5-240
Floor mat
.............................................
6-3
Fluid
Automatic transaxle fluid
.......
9-11
, 11-7
Brake fluid
............................
9-13
, 11-7
Continuously variable transmission (CVT)fluid
...................................
9-11
, 11-7
Engine coolant
........................
9-8
, 11-7
Engine oil
...............................
9-6
, 11-7
Rear axle oil
..........................
9-12
, 11-7
Transfer oil
...........................
9-12
, 11-7
Washer fluid
.........................
9-12
, 11-7
Fluid capacities and lubricants
.............
11-7
Forward Collision Miti
gation System (FCM)
5-118Free-hand advanced security transmitter (F.A.S.T.-key)
..................................
5-13
Front fog lights
Bulb capacity
.................................
9-32
Indicators
.....................................
5-202
Replacement
..................................
9-36
Switch
.........................................
5-218
Front side-marker lights
Bulb capacity
.................................
9-32
Replacement
..................................
9-35
Front turn signal light
Bulb capacity
.................................
9-32
Replacement
..................................
9-36
Fuel
Filling the fuel tank
...........................
3-3
Fuel economy
...................................
6-2
BK0249100US.book 2 ページ ２０１７年５月１０日　水曜日　午前８時４９分
