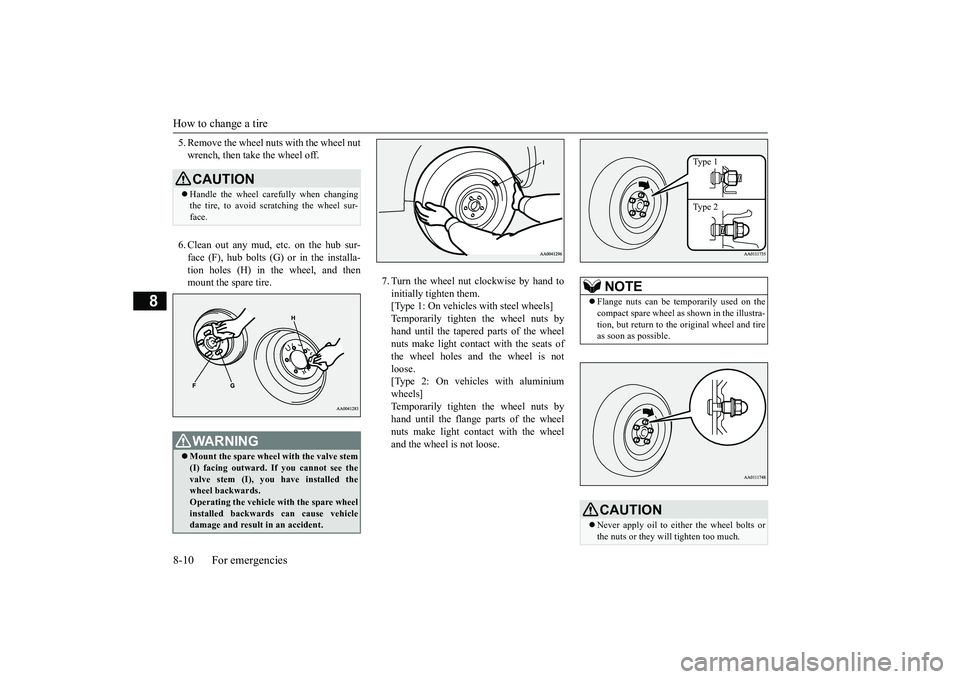

How to change a tire8-10 For emergencies
8
5. Remove the wheel nuts with the wheel nutwrench, then take the wheel off.6. Clean out any mud, etc. on the hub sur-face (F), hub bolts (G)
or in the installa-
tion holes (H) in the wheel, and thenmount the spare tire.
7. Turn the wheel nut clockwise by hand toinitially tighten them.[Type 1: On vehicles
with steel wheels]
Temporarily tighten the wheel nuts byhand until the tapered parts of the wheelnuts make light contac
t with the seats of
the wheel holes and the wheel is notloose.[Type 2: On vehicles with aluminiumwheels]Temporarily tighten the wheel nuts byhand until the flange parts of the wheelnuts make light cont
act with the wheel
and the wheel is not loose.
CAUTIONHandle the wheel carefully when changingthe tire, to avoid scratching the wheel sur-face.WA R N I N GMount the spare wheel with the valve stem(I) facing outward. If
you cannot see the
valve stem (I), you
have installed the
wheel backwards.Operating the vehicle with the spare wheelinstalled backwards can cause vehicledamage and result
in an ac
cident.
NOTE
Flange nuts can be te
mporarily used on the
compact spare wheel as shown in the illustra-tion, but return to the original wheel and tireas soon as possible.CAUTIONNever apply oil to either the wheel bolts orthe nuts or they will tighten too much.
Type 1Type 2
BK0249100US.book 10 ページ ２０１７年５月１０日 水曜日 午前８時４９分

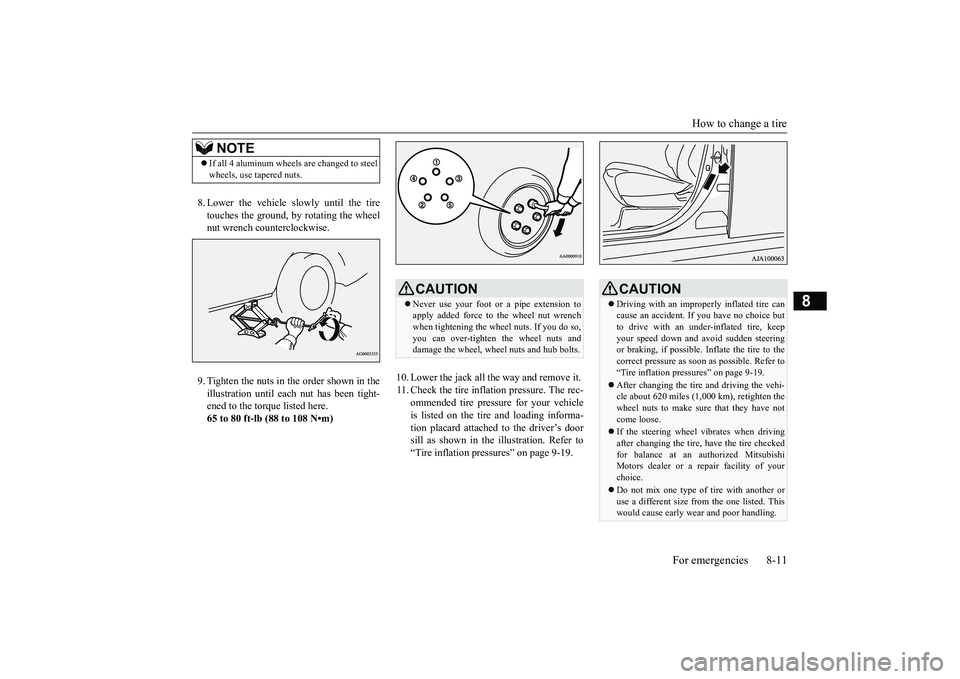

How to change a tire
For emergencies 8-11
8
8. Lower the vehicle slowly until the tiretouches the ground, by rotating the wheelnut wrench counterclockwise.9. Tighten the nuts in the order shown in theillustration until each
nut has been tight-
ened to the torque listed here.65 to 80 ft-lb (88 to 108 N•m)
10. Lower the jack all the way and remove it.11. Check the tire inflation pressure. The rec-
ommended tire pressure for your vehicleis listed on the tire
and loading informa-
tion placard attached to the driver’s doorsill as shown in the illustration. Refer to“Tire inflation pressures” on page 9-19.
NOTE
If all 4 aluminum wheels are changed to steelwheels, use tapered nuts.
CAUTIONNever use your foot or a pipe extension toapply added force to the wheel nut wrenchwhen tightening the wheel nuts. If you do so,you can over-tighten the wheel nuts anddamage the wheel, wheel nuts and hub bolts.
CAUTIONDriving with an imprope
rly inflated tire can
cause an accident. If
you have no choice but
to drive with an under-inflated tire, keepyour speed down and avoid sudden steeringor braking, if possible. Inflate the tire to thecorrect pressure as s
oon as possible. Refer to
“Tire inflation pressures” on page 9-19.After changing the tire
and driving the vehi-
cle about 620 miles (1,000 km), retighten thewheel nuts to make sure
that they have not
come loose.If the steering wheel vibrates when drivingafter changing the tire, have the tire checkedfor balance at an authorized MitsubishiMotors dealer or a repair facility of yourchoice.Do not mix one type of tire with another oruse a different size from the one listed. Thiswould cause ea
rly wear and poor handling.
