2018 MITSUBISHI OUTLANDER III key battery

Keyless entry system (if so equipped)
Features and controls 5-11
5
5. To register the ID codes of additionalremote control transmitters, repeat step 4within 60 seconds after step 4.6. If no ID code of a remote control trans-mitter is registered within 60 secondsafter step 4, the regi
stration mode is can-
celed and the normal mode returns.
N00546101124
Your keyless entry system operates on a radiofrequency subject to
Federal Communica-
tions Commission (FCC)
Rules (For vehicles
sold in U.S.A.) and Industry Canada Rules
(For vehicles sold in Canada). This devicecomplies with Part 15 of FCC Rules andIndustry Canada licenc
e-exempt RSS stan-
dard(s).Operation is subject to the following two con-ditions.This device may not
cause harmful inter-
ference.This device must ac
cept any interference
received, including interference that maycause undesired operation.
N00544101205
1. Before replacing the battery, remove staticelectricity from your body by touching ametal grounded object.
NOTE
For verification purposes, try to lock andunlock the doors after the registration iscompleted.The indicator light (4)
comes on each time a
button is pressed.The keyless entry system does not work ifthe key is in the ignition switch.The remote control tr
ansmitter can be used
from approximately 40
feet (12 m) away.
However, this distan
ce may change if your
vehicle is near a TV transmitting tower, apower station, or a radio station.If the UNLOCK button (2) is pressed whenall doors and the liftgate are locked and nodoors or the liftgate are opened withinapproximately 30 seconds, the doors and theliftgate will automatically re-lock.On a vehicle equipped with the SmartphoneLink Display Audio, the functions can beadjusted on the screen. For details, refer tothe separate owner’s manual.
If the following conditi
ons are observed after
pressing the LOCK (1) or UNLOCK (2) but-ton on the remote control transmitter, thebattery in the remote control transmitter mayneed to be replaced.• The doors and the lift
gate cannot be locked
or unlocked.• The panic alarm cannot be operated.• The indicator light
(4) is dim or does not
come on.
If you lose your remote control transmitter,please contact an au
thorized Mitsubishi
Motors dealer for a replacement.If you wish to obtain
an additional remote
control transmitter, please contact an autho-rized Mitsubishi Moto
rs dealer. A maximum
of 8 remote control tr
ansmitters can be pro-
grammed for your vehicle.To use the new remote control transmitters, itis necessary to register
the key with both the
electronic immobilizer and keyless entry sys-tem.Also refer to “Electronic immobilizer (Anti-theft starting system): Customer key pro-gramming” on page 5-6.
General information

NOTE
CAUTIONChanges or modifica
tions not expressly
approved by the manufacturer for compli-ance could void the user
’s authority to oper-
ate the equipment.
Procedure for replacing the remote control transmitter bat-tery

BK0249100US.book 11 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Keyless entry system (if so equipped)5-12 Features and controls
5
2. Remove the screw (A) from the remotecontrol transmitter.3. With the Mitsubishi mark facing you,insert the cloth-cov-ered tip of a flat bladescrewdriver into the notch in the remotecontrol transmitter case and use it to openthe case.
4. Remove the old battery.
5. Install a new battery with the +side (B)up.6. Close the remote control transmitter casefirmly.7. Attach the screw (A) removed in step 2.8. Check the keyless entry system to see thatit works.
NOTE
Be sure to perform the procedure with theMitsubishi mark facing you. If the Mitsubi-shi mark is not facing you when you open theremote control transmitter case, the buttonsmay come out.The Federal Communications Commission(FCC) ID number, the Industry Canada (IC)number and the model
number (radio certifi-
cation) are indicated in
the illustrated posi-
tion.
NOTE
You may purchase a replacement battery atan electric appliance store.An authorized Mitsubishi Motors dealer canreplace the battery for you if you prefer.CAUTIONWhen the remote control transmitter case isopened, be careful to
keep water, dust, etc.
out. Also, do not touch the internal compo-nents.
+ side- sideCoin type bat-tery CR1620
BK0249100US.book 12 ページ ２０１７年５月１０日　水曜日　午前８時４９分

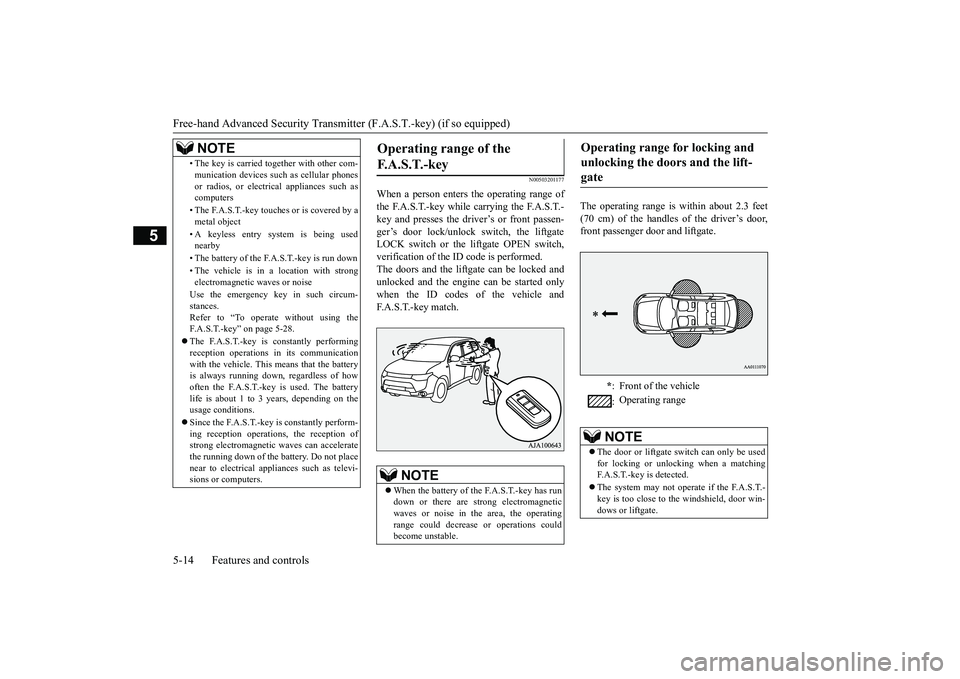

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5
N00503201177
When a person enters the operating range ofthe F.A.S.T.-key while carrying the F.A.S.T.-key and presses the driver’s or front passen-ger’s door lock/unlock switch, the liftgateLOCK switch or the liftgate OPEN switch,verification of the ID
code is performed.
The doors and the liftgate can be locked andunlocked and the engine
can be started only
when the ID codes of the vehicle andF.A.S.T.-key match.
The operating range is
within about 2.3 feet
(70 cm) of the handles of the driver’s door,front passenger door and liftgate.
• The key is carried together with other com-munication devices such
as cellular phones
or radios, or electrical appliances such ascomputers• The F.A.S.T.-key touches or is covered by ametal object• A keyless entry system is being usednearby• The battery of the F.A.S.T.-key is run down• The vehicle is in
a location with strong
electromagnetic
waves or noise
Use the emergency key in such circum-stances.Refer to “To operate
without using the
F.A.S.T.-key” on page 5-28.The F.A.S.T.-key is constantly performingreception opera
tions in its communication
with the vehicle. This means that the batteryis always running down, regardless of howoften the F.A.S.T.-key is used. The batterylife is about 1 to 3 years, depending on theusage conditions.Since the F.A.S.T.-key is constantly perform-ing reception operati
ons, the reception of
strong electrom
agnetic waves
can accelerate
the running down of the ba
ttery. Do not place
near to electrical appliances such as televi-sions or computers.NOTE
Operating range of the F. A . S . T. - k e y

NOTE
When the battery of the F.A.S.T.-key has rundown or there are st
rong electromagnetic
waves or noise in the area, the operatingrange could decrease
or operations could
become unstable.
Operating range for locking and unlocking the doors and the lift-gate
*: Front of the vehicle:Operating range
NOTE
The door or liftgate switch can only be usedfor locking or unlocking when a matchingF.A.S.T.-key is detected.The system may not operate if the F.A.S.T.-key is too close to the windshield, door win-dows or liftgate.
BK0249100US.book 14 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-19
5
The indicator light on the engine switch turnsoff.The operation mode cannot be put in OFFwhen the selector lever is in any positionother than the “P” (PARK) position.Allows operation of el
ectrical accessories.
The indicator light on
the engine switch illu-
minates orange.All electrical accessories can be used.The indicator light on
the engine switch illu-
minates green.The indicator light goes off when the engineis running.
N00568001035
If you press the engine
switch without press-
ing the brake pedal whil
e the vehicle is sta-
tionary, you can change the operation modein the order of OFF, ACC, ON, OFF.
If the engine switch
operation is not smooth
and feels like it is st
icking, do not operate the
switch.Immediately contact an authorized Mitsubi-shi Motors dealer.NOTE
When operating the engi
ne switch, press the
switch all the way in. If the switch is notfully pressed, the engine may not start or theoperation mode may
not change. If the
engine switch is presse
d correctly, there is no
need to hold the e
ngine switch down.
Operation mode of the engine switch and its function


OFF

ACC CAUTION

ON NOTE
Your vehicle is equippe
d with an electronic
immobilizer. To start
the engine, the ID code
which the F.A.S.T.-key sends must match theone registered to the immobilizer computer.(Refer to “Electronic immobilizer (Anti-theftstarting system)” on page 5-18)
Changing the operation mode

CAUTIONWhen the engine is not running, put the oper-ation mode in OFF. Leaving the operationmode in ON or ACC for a long time whenthe engine is not running may cause the bat-tery to be discharged
, making it impossible
to start the engine.When the battery is disconnected, the currentoperation mode is memo
rized. After recon-
necting the battery, the memorized mode isselected automaticall
y. Before disconnect-
ing the battery for re
pair or replacement,
make sure to put the operation mode in OFF.Be careful if you are not sure which opera-tion mode the vehicle is in when the batteryis run down.The operation mode cannot be changed fromOFF to ACC or ON if the F.A.S.T.-key is notdetected to be in the
vehicle. Refer to “Oper-
ating range for star
ting the engine and
changing the operation mode” on page 5-15.
BK0249100US.book 19 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-21
5
Fall of battery voltage
Inner buzzer sounds once
Blinks
No sounds The battery of the F.A.S.T.-key is
run down.
The warning is not activated if the battery is completely dead.
F. A . S . T. - k e y take-out mon-itoring system
Inner buzzer sounds onceOuter buzzer sounds intermit-tently
Blinks
Inner buzzer sounds onceOuter buzzer sounds intermit-tently
When the vehicle is parked with the operation mode in any mode other than OFF, if you close the door after opening any of the doors and taking the F.A.S.T.-key out of the vehicle, a warning is issued until the F.A.S.T.-key is detected in the vehicle.
•The F.A.S.T.-key take-out moni-toring system does
not function if
the F.A.S.T.-key is removed through a window without open-ing a door.This setting can be changed.Contact an authorized Mitsubishi Motors dealer for details.•The warning may display even if the F.A.S.T.-key is in the operating range for starting the engine and changing the operation mode. The surrounding environment or elec-tromagnetic waves may make it impossible to verify the ID codes of the F.A.S.T.-key and vehicle.
Item
Ty p e 1
Ty p e 2
Solution
Note
Display
Buzzer
Indicator
Buzzer
BK0249100US.book 21 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-25
5
N00514601399
The operation mode can be in any modeto start the engine.The starter motor will be turning for up toapproximately 15 seconds if the engineswitch is released at once. Pressing theengine switch again while the startermotor is still turning will stop the startermotor.The starter motor will be turning for up toapproximately 30 seconds while theengine switch
is pressed.
If the engine does not start, wait for awhile and then attempt to start the engineagain. Trying repeatedly with the engineor starter motor still turning will damagethe starter mechanism.If the engine will not start because the bat-tery is weak or discharged, refer to“Jump-starting the engine” on page 8-2for instructions.A longer warm up period will only con-sume extra fuel.The engine is warmed up enough for driv-ing when the bar graph of engine coolanttemperature display starts to move or thelow coolant temperature indicator goesout. Refer to “Engine
coolant temperature
display” on page 5-161 or “Low coolanttemperature indica
tor” on page 5-202.
Your vehicle is equipped with an electroni-cally controlled fuel injection system. Thissystem automatically controls fuel injection.There is usually no need
to depress the accel-
erator pedal when starting the engine.To prevent battery drai
n, wait a few seconds
between attempts to restart the engine.1. Make sure all occupants are properlyseated with seat belts fastened.2. Make sure the parking brake is applied.3. Press and hold the brake pedal downfirmly with your right foot.4. Make sure the selector
lever is in the “P”
If there is a fault in the steering wheel lock,the warning display will
appear. Immediately
stop the vehicle in a sa
fe place and contact
an authorized Mitsubishi Motors dealer.Warning display
Starting and stopping the engine

Tips for starting

NOTE
WA R N I N GNever run the engine in
a closed or poorly
ventilated area any longer than is neededto move your vehicle
out of the area. Car-
bon monoxide gas, wh
ich is odorless and
extremely poisonous, could build up andcause serious injury or death.CAUTIONDo not push-start the vehicle.
Do not run the engine at high rpms or driveat high speeds until the engine has had achance to warm up.
Starting the engine

NOTE
After the engine has not started for a while,the brake pedal effort needed to start theengine may become grea
ter. If this occurs,
depress the brake pedal more firmly thanusual.CAUTION
BK0249100US.book 25 ページ ２０１７年５月１０日　水曜日　午前８時４９分

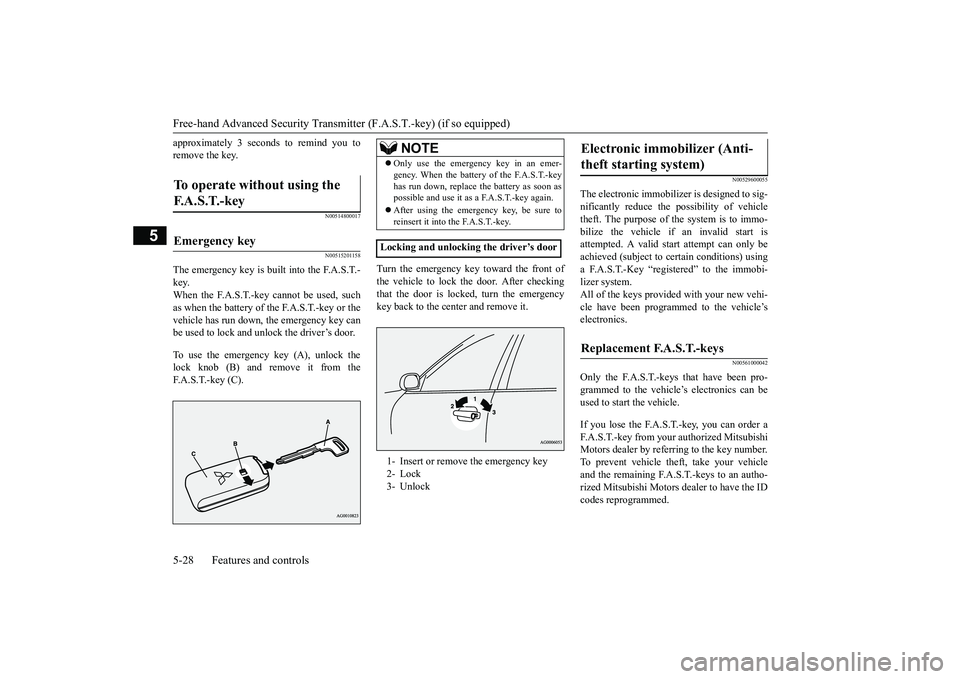

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5
approximately 3 seconds to remind you toremove the key.
N00514800017N00515201158
The emergency key is built into the F.A.S.T.-key.When the F.A.S.T.-key cannot be used, suchas when the battery of the F.A.S.T.-key or thevehicle has run down, the emergency key canbe used to lock and unlock the driver’s door.To use the emergency key (A), unlock thelock knob (B) and remove it from theF.A.S.T.-key (C).
Turn the emergency key toward the front ofthe vehicle to lock the door. After checkingthat the door is locked, turn the emergencykey back to the center and remove it.
N00529600055
The electronic immobilize
r is designed to sig-
nificantly reduce the
possibility of vehicle
theft. The purpose of the system is to immo-bilize the vehicle if
an invalid start is
attempted. A valid st
art attempt can only be
achieved (subject to ce
rtain conditions) using
a F.A.S.T.-Key “registered” to the immobi-lizer system.All of the keys provided with your new vehi-cle have been program
med to the vehicle’s
electronics.
N00561000042
Only the F.A.S.T.-keys that have been pro-grammed to the vehicl
e’s electronics can be
used to start the vehicle.If you lose the F.A.S.T.-key, you can order aF.A.S.T.-key from your authorized MitsubishiMotors dealer by refe
rring to the key number.
To prevent vehicle theft, take your vehicleand the remaining F.A.S.T.-keys to an autho-rized Mitsubishi Motors
dealer to have the ID
codes reprogrammed.
To operate without using the F. A . S . T. - k e y

Emergency key

NOTE
Only use the emergency key in an emer-gency. When the battery of the F.A.S.T.-keyhas run down, replace
the battery as soon as
possible and use it as a F.A.S.T.-key again.After using the emergency key, be sure toreinsert it into the F.A.S.T.-key.
Locking and unlocking the driver’s door1- Insert or remove
the emergency key
2- Lock3- Unlock
Electronic immobilizer (Anti-theft starting system)

Replacement F.A.S.T.-keys

BK0249100US.book 28 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-33
5
N00562001062
N00562101076
1. Before replacing the battery, remove staticelectricity from your body by touching ametal grounded object.2. With the Mitsubishi mark facing you,insert the cloth-covered tip of a flat bladescrewdriver into the notch in the case anduse it to open the case.3. Remove the old battery.
If the UNLOCK button (2) is pressed whenall doors and the liftgate are locked and nodoors or the liftgate are opened withinapproximately 30 seconds, the doors and theliftgate will automatically re-lock.On a vehicle equipped with the SmartphoneLink Display Audio, the functions can beadjusted on the screen. For details, refer tothe separate owner’s manual.If the following conditions are observed afterpressing the LOCK (1) or UNLOCK (2) but-ton on the remote control transmitter, thebattery in the F.A.S.T.-key may need to bereplaced.• The doors and the liftgate cannot be lockedor unlocked.• The panic alarm
cannot be operated.
• The indicator light
(5) is dim or does not
come on.
If you lose your F.A.S.T.-key, please contactan authorized Mitsubishi Motors dealer for areplacement.If you wish to obtain an additional F.A.S.T.-key, please contact an
authorized Mitsubishi
Motors dealer. A maximum of four F.A.S.T.-key can be programmed for your vehicle.To use the new remote control transmitters, itis necessary to register the key with both theelectronic immobilizer
and keyless entry sys-
tem.Also refer to “Electr
onic immobilizer (Anti-
theft starting system): Customer F.A.S.T.-key programming” on page 5-29.NOTE
General information

Your F.A.S.T.-key operates on a radio fre-quency subject to Fe
deral Communications
Commission (FCC) Rules (For vehicles soldin U.S.A.) and Industr
y Canada Rules (For
vehicles sold in Canada). This device com-plies with Part 15 of FCC Rules and IndustryCanada licence-exem
pt RSS standard(s).
Operation is subject to
the following two con-
ditions.
•This device may
not cause harmful
interference.•This device must ac
cept any interference
received, including interference thatmay cause undesired operation.CAUTIONChanges or modifica
tions not expressly
approved by the manufacturer for compli-ance could void the user’s authority to oper-ate the equipment.
Procedure for replacing the remote control transmitter bat-tery
NOTE
Be sure to perform the procedure with theMitsubishi mark facing you. If the Mitsubi-shi mark is not facing you when you open thecase, the transmitter may come out.
BK0249100US.book 33 ページ ２０１７年５月１０日　水曜日　午前８時４９分
