2018 MITSUBISHI OUTLANDER III engine

If this problem occurs...
Quick index 2-7
2
Problem
Do this
Ref. Page
The information screen in the multi information display will be interrupted and the engine coolant temperature warning display will appear. Also “ ” will blink. (Type 1: Color liquid crystal display type)The high coolant temperature warning light will illuminate. (Type 2: Mono-color liquid crystal display type)Steam comes out of the engine compartment.
The engine is overheated.Carefully stop the vehicle in a safe place.
P. 8 - 4
Ty p e 1Ty p e 2
and
BK0249100US.book 7 ページ ２０１７年５月１０日　水曜日　午前８時４９分

If this problem occurs...2-8 Quick index
2
If your vehicle becomes stuck in sand, mud or snow
1. Slowly press down on the accelerator pedal to
get your vehicle moving again. For an all-
wheel drive vehicle, set the drive mode-sel
ector to the “4WD AUTO” or “4WD LOCK”
position (Electronically cont
rolled 4WD), “SNOW” or “L
then slowly press down on the accelera
tor pedal to get your vehicle moving.
2. If there is nothing to stop your tires from sli
pping, rock your vehicle out of the stuck posi-
tion.
P. 8-15
WA R N I N GWhen attempting to rock your vehi
cle out of a stuck position, be su
re that no one is near the ve
hicle. The rocking motion may c
ause the vehicle to
suddenly lurch forward or backward, possibly injuring bystanders.Avoid revving the engine or spinning the wh
eels. Prolonged efforts to free a stuck ve
hicle may result in
overheating and transa
xle failure.
If the vehicle remains stuck after
several rocking attempts
, have a towing service pull the vehicle out.
Problem
Do this
Ref. Page
The brakes are not functioning properly after crossing a puddle or stream.
Dry out the brakes by driving slowly
while lightly pressing the brake pedal.
P. 5-90,6-5
The automatic transaxle makes no gear change when accelerat-ing. The initial movement of the vehicle is slow when the vehicle starts moving.(for vehicles with automatic transaxle)
There may be a problem in the automatic transaxle.Have the system inspected by your
authorized Mitsubishi Motors de
aler or a repair facility of
your choice.
P. 5-74
Problem
Do this
Ref. Page
BK0249100US.book 8 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Fuel selection3-2 General information
3
N00301001951
Your vehicle is designe
d to use unleaded gas-
oline only. It is equipped with a fuel tankfiller pipe specifically
designed to accept only
a small diameter unlea
ded gasoline dispens-
ing nozzle.In the United States, fuel suppliers arerequired by law to add detergents to their gas-
oline to minimize fuel-injector clogging andminimize intake-valve
deposits. Detergent
gasoline helps keep your engine in tune andyour emission-control system working prop-erly.Your vehicle is de
signed to operate on
unleaded gasoline having a minimum octanenumber of 87 [(MON+RON)/2] or 91 RON.Unleaded gasoline having a minimum octanenumber of 87 [(MON+RON)/2] or 91 RONmay be used, though it is recommended yourvehicle be operated on premium gradeunleaded gasoline having a minimum octanenumber of 91 [(MON+RON)/2], or 95 RON. To obtain maximum performance, premiumgasoline is recommended. Gasoline sold at some
service stations con-
tains oxygenates such as ethanol, although
the oxygenates may not be identified by thosenames. Oxygenates are required in someareas of the country. Oxygenated fuel can beused in your vehicle.A mixture of up to 10 % ethanol (grain alco-hol) and 90 % unleaded gasoline may be usedin your vehicle, provided the octane numberis at least as high as
that recommended for
unleaded gasoline.Do not operate your vehicle on gasoline con-taining methanol (wood alcohol). Using thistype of alcohol could adversely affect thevehicle’s performance
and damage critical
parts of the vehicl
e’s fuel system.
Many areas of the country require the use ofcleaner burning fuel referred to as “Reformu-lated Gasoline”.
contains oxygenates
and is specially ble
nded to reduce vehicle
emissions and improve air quality.
Fuel selection
WA R N I N GGasoline is highly flammable and explo-sive. You could be burned, seriouslyinjured or killed when handling it. When-ever you refuel your
vehicle, stop the
engine and keep fl
ames, sparks, and
smoking materials away from the vehicle.Always handle fuel in well-ventilated out-door areas.CAUTIONUsing leaded gasoline
in your vehicle will
damage the engine, ca
talytic converter, and
the oxygen sensors. Also, using leaded gaso-line is illegal, and
will void your warranty
coverage of the engine
, catalytic converter,
and oxygen sensors.
Gasoline detergent additives
Octane requirement 2.4 liter engine model 3.0 liter engine model Oxygenated gasoline
Ethanol (Gasohol) Methanol Reformulated gasoline
BK0249100US.book 2 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Filling the fuel tank
General information 3-3
3
Mitsubishi Motors Corporation strongly sup-ports the use of reform
ulated gasoline. Prop-
erly blended reformul
ated gasoline has no
adverse effect on vehicle performance or thedurability of the engine and the fuel system.MMT is a manganese-containing metallicadditive that is blende
d into some gasolines
to increase the octa
ne number. Mitsubishi
Motors Corporation recommends using gaso-lines without MMT.Use of gasolines blended with MMT mayadversely affect performance, and cause themalfunction indicator on your instrumentpanel to come on. If this happens, contact anauthorized Mitsubishi Motors dealer or arepair facility of your
choice for assistance.
Your vehicle may have
been designed to sat-
isfy California’s low-emission regulationsbased on clean-burning low-sulfur gasoline.Gasoline sold in parts of the country otherthan California is allowed to have a highersulfur content. Using such gasoline couldadversely affect the ve
hicle’s catalytic con-
verter and cause the e
ngine malfunction indi-
cator (“SERVICE ENGINE SOON” or“Check engine light”)
to come on. Illumina-
tion of this indicator
while using high-sulfur
gasoline does not necessa
rily mean the vehi-
cle’s emission-control
system is malfunction-
ing. Your authorized Mitsubishi Motorsdealer may suggest using a different, lower-sulfur brand of unleaded gasoline to deter-mine if the problem is fuel-related.
N00301101994
MMT (methylcyclopentadienyl manganese tricarbonyl) Sulfur in gasoline
NOTE
Poor-quality gasoline
can cause problems
such as hard starting, stalling during idling,abnormal engine noise
, and poor accelera-
tion. If you experience any of these prob-lems, try using a differ
ent brand of gasoline.
If the engine malfunc
tion indicator (“SER-
VICE ENGINE SOON” light”) flashes, have
the vehicle inspected as
soon as possible by the nearest authorizedMitsubishi Motors dealer
or a repair facility
of your choice.
Repeatedly driving s
hort distances at low
speeds can cause deposits to form in the fuelsystem and engine, resu
lting in hard starting
and poor acceleration.
If these problems
occur, you are advised to add a detergentadditive to the gasoline when you refuel thevehicle. The additive
will remove the depos-
its, thereby returning the engine to a normalcondition. Be sure
to use a Mitsubishi
Motors Genuine cleani
ng additive. Using an
unsuitable additive could make an enginemalfunction. For details,
please contact the
nearest authorized Mitsubishi Motors dealer.
Filling the fuel tank
WA R N I N GWhen handling fuel, comply with thesafety regulations displayed by garagesand filling stations.Gasoline is highly flammable and explo-sive. You could be burned, seriouslyinjured or killed when handling it. Whenrefueling your vehicle,
always turn the
engine off and keep
away from flames,
sparks, and smoking materials. Alwayshandle fuel in well-ventilated outdoorareas.NOTE
BK0249100US.book 3 ページ ２０１７年５月１０日　水曜日　午前８時４９分

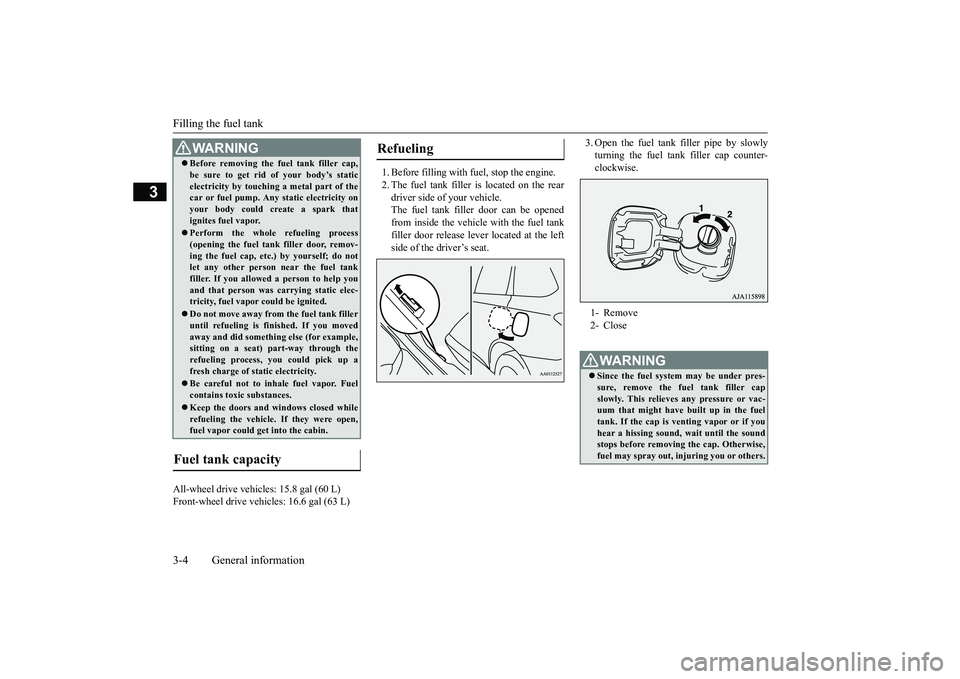

Filling the fuel tank3-4 General information
3
All-wheel drive vehicles: 15.8 gal (60 L)Front-wheel drive vehi
cles: 16.6 gal (63 L)
1. Before filling with fuel, stop the engine.2. The fuel tank filler is located on the reardriver side of your vehicle.The fuel tank filler door can be openedfrom inside the vehicle with the fuel tankfiller door release lever located at the leftside of the driver’s seat.
3. Open the fuel tank filler pipe by slowlyturning the fuel tank filler cap counter-clockwise.
Before removing the fuel tank filler cap,be sure to get rid of your body’s staticelectricity by touching a metal part of thecar or fuel pump. Any
static electricity on
your body could create a spark thatignites fuel vapor.Perform the whole
refueling process
(opening the fuel tank filler door, remov-ing the fuel cap, etc.) by yourself; do notlet any other
person near the fuel tank
filler. If you allowed
a person to help you
and that person was ca
rrying static elec-
tricity, fuel vapor could be ignited.Do not move away from
the fuel tank filler
until refueling is fi
nished. If you moved
away and did somethin
g else (for example,
sitting on a seat) part-way through therefueling process, you could pick up afresh charge of st
atic electricity.
Be careful not to inhale fuel vapor. Fuelcontains toxic substances.Keep the doors and wi
ndows closed while
refueling the vehicle. If they were open,fuel vapor could ge
t into the cabin.
Fuel tank capacity
WA R N I N G
Refueling
1- Remove2- CloseWA R N I N GSince the fuel system may be under pres-sure, remove the fuel tank filler capslowly. This relieves
any pressure or vac-
uum that might have built up in the fueltank. If the cap is venting vapor or if youhear a hissing sound, wait until the soundstops before removing the cap. Otherwise,fuel may spray out, in
juring you or others.
BK0249100US.book 4 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Modifications to and racing of your vehicle
General information 3-5
3
4. Fueling correctly depends mainly on cor-rect handling of the fuel filler nozzle. Donot tilt the nozzle. Insert the nozzle in thefuel tank filler port as far as it goes.
5. When the nozzle stops automatically, donot add more fuel.6. To re-install, turn the fuel tank filler pipecap slowly clockwise until you hear click-ing sounds, then gently push the fuel tankfiller door closed.
N00301601205
This vehicle should not be modified withnon-Mitsubishi Motors
genuine parts. Mit-
subishi Motors desi
gns and manufactures
high quality vehicles
with an emphasis on
safety and durability.
Modifications using
non-Mitsubishi Motors genuine parts mayaffect the performance,
safety and/or durabil-
ity of your vehicle, a
nd may violate applica-
ble state and/or fe
deral regulations.
DAMAGE OR PERFORMANCE PROB-LEMS RESULTING FROM MODIFICA-TIONS TO OR RACING OF YOUR
NOTE
While filling with fuel, hang the fuel cap onthe hook (A) located on the inside surface ofthe fuel tank filler door.CAUTIONYour vehicle can only be operated usingunleaded gasoline. Seri
ous engine and cata-
lytic converter damage will result if leadedgasoline is filled into these vehicles, andconsequently, this must
never be attempted.
CAUTIONTo avoid fuel spillage and overfilling, do not“top-off” the fuel tank.
Spilled fuel could
discolor, stain, or crack the vehicle’s paint-work. If fuel spills on the paintwork, wipe itoff with a soft cloth.WA R N I N GMake sure the fuel tank filler cap issecurely closed. If the fuel cap were loose,fuel could leak, re
sulting in a fire.
CAUTIONIf you need to replace th
e fuel tank filler cap,
use only the cap specified for your modelvehicle.
NOTE
If the fuel tank filler
cap is not tight while
driving, the engine malfunction indicator(

Modifications to and racing of your vehicle3-6 General information
3
VEHICLE ARE NOT COVEREDUNDER WARRANTY.Examples of modifica
tions to your vehicle
that can cause damage or performance prob-lems include the following:Failure to use
Mitsubishi Motors genuine
partsFailure to use required fuel and fluidsFailure to use proper
size tires and wheels
Modification of the fuel, intake, exhaust,emission, suspension, engine, drive trainor electrical wiring systemsModification of any onboard com-puter/control module, including repro-gramming, or replacing/adding chips toany onboard computer/control module
Review the Warranty and Maintenance Man-ual for further details
regarding warranty cov-
erage.
N00301701251
The installation of ac
cessories, optional
parts, etc., shoul
d only be performed
within the limits prescribed by law, and inaccordance with the
guidelines and warn-
ings contained within the documentsaccompanying this vehicle.Only Mitsubishi Motors approved acces-sories should be fitted to your vehicle.Improper installation of electrical partscould cause a fire. Re
fer to the “Modifica-
tion/alterations to the electrical or fuelsystems” section with
in this owner’s man-
ual.Using a cellular phone or radio set insidethe vehicle without an
external antenna
may cause electrical system interference,which could lead to unsafe vehicle opera-tion.Tires and wheels whic
h do not meet spec-
ifications must not be used.
Refer to the “Specifi
cations” section for
information regarding wheel and tiresizes.
Due to the large number of accessory andreplacement parts provided by different man-ufacturers in the market, it is not always pos-sible for an authorized Mitsubishi Motorsdealer to check whether the attachment orinstallation of a non-Mitsubishi Motors genu-ine parts affects the driving safety of yourMitsubishi-vehicle.
Installation of accessories
CAUTIONBefore any electrical or electronic accesso-ries are installed, cons
ult an authorized Mit-
subishi Motors dealer.
Your vehicle is equi
pped with a diagnosis
connector (data link c
onnector) for checking
and servicing the elec
tronic control system.
Mitsubishi Motors does not recommend con-necting a device other than the Scan Tool forinspections and servic
e to this connector
because an unexpected
problem could result.
In addition, malfuncti
ons caused by connect-
ing a device other than the Scan Tool maynot be covere
d under warranty.
CAUTION
WA R N I N GWhile driving, do not use a cellular phonein a way that hinders safe driving. Any-thing, including cellu
lar phone usage, that
distracts you from the safe operation ofyour vehicle increases you
r risk of an acci-
dent.Refer to and follow al
l state and local laws
in your area regarding cellular phoneusage while driving.
Important point!
BK0249100US.book 6 ページ ２０１７年５月１０日　水曜日　午前８時４９分

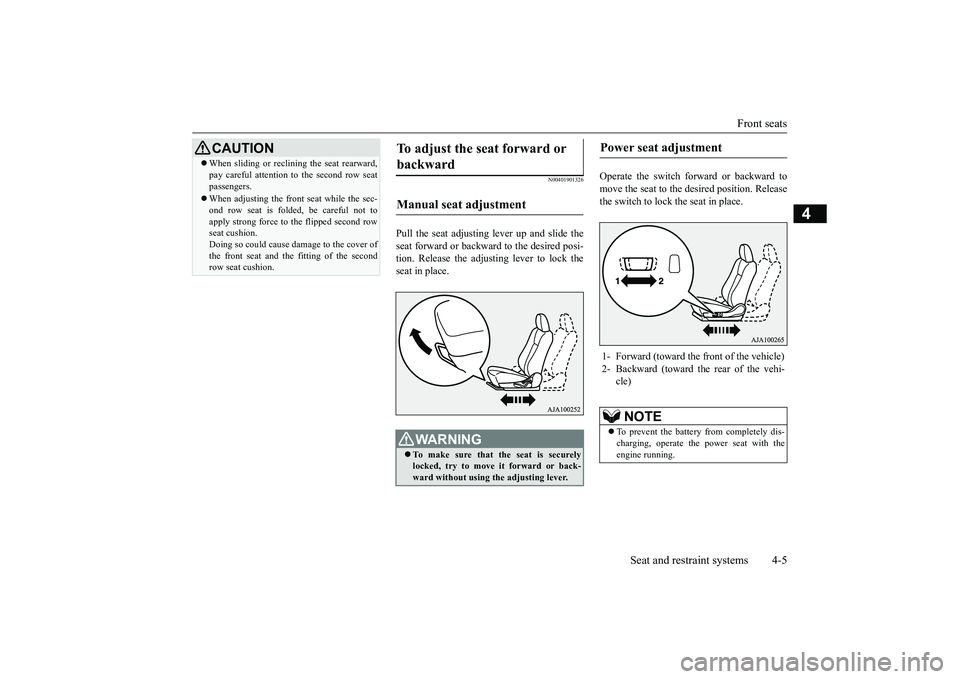

Front seats
Seat and restraint systems 4-5
4
N00401901326
Pull the seat adjusting lever up and slide theseat forward or backward to the desired posi-tion. Release the adjusting lever to lock theseat in place.
Operate the switch forward or backward tomove the seat to the de
sired position. Release
the switch to lock the seat in place.
When sliding or reclin
ing the seat rearward,
pay careful attention
to the second row seat
passengers.When adjusting the front seat while the sec-ond row seat is folded, be careful not toapply strong force to the flipped second rowseat cushion.Doing so could cause da
mage to the cover of
the front seat and the
fitting of the second
row seat cushion.CAUTION
To adjust the seat forward or backward Manual seat adjustment
WA R N I N GTo make sure that the seat is securelylocked, try to move
it forward or back-
ward without using
the adjusting lever.
Power seat adjustment 1- Forward (toward the front of the vehicle)2- Backward (toward the rear of the vehi-
cle)NOTE
To prevent the battery from completely dis-charging, operate the
power seat with the
engine running.
BK0249100US.book 5 ページ ２０１７年５月１０日　水曜日　午前８時４９分
