2018 MITSUBISHI OUTLANDER III engine

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-15
5
N00503301077
The operating range is the interior of thevehicle.
N00503401326
While carrying the F.A.S.T.-key, press thedriver’s or front passenger’s door lock/unlockswitch (A), or the liftgate LOCK switch (B)within the operating range to lock all thedoors and the liftgate.The turn signal lights will blink once and thebuzzer will sound once.Also refer to “Doors locks”, “Power doorlocks”, “Liftgate” and “Power liftgate” onpages 5-34, 5-36, 5-38 and 5-39 respectively.
Even if the F.A.S.T.-key is within about 2.3feet (70 cm) of the handle of the driver’sdoor, front passenger’s door or liftgate, thesystem may not operate if the key is close tothe ground or in a high position.If the F.A.S.T.-key is within the operatingrange, even a person not carrying theF.A.S.T.-key can lock and unlock the doorsor the liftgate by pressing the driver’s orfront passenger’s door lock/unlock switch,the liftgate LOCK switch or the liftgateOPEN switch.
Operating range for starting the engine and changing the opera-tion mode

NOTE
*: Front of the vehicle:Operating range
NOTE
Even if the F.A.S.T.-key is within the operat-ing range, it may not be possible to start theengine and change the
operation mode if the
key is in a storage space such as the glovecompartment, on top of the instrument panel,or in the door pocket or luggage compart-ment.Even if the F.A.S.T.-key is inside the vehicle,it may not be possible to
start the engine and
change the operation mode if the key is tooclose to a door or door window.
To operate using the F.A.S.T.-key

To l o c k

Driver’s and front passenger’s door lock/unlock switches
BK0249100US.book 15 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5
outside rearview mirro
rs to their extended
positions.The outside rearview mirrors are not initiallyset to work as described above. If you wantthem to work as described above, you need toset them so that they do not retract/extendwhen the doors and liftgate arelocked/unlocked using the F.A.S.T.-key or thekeyless entry system of the F.A.S.T.-key.For details, please cons
ult an authorized Mit-
subishi Motors dealer.On vehicles equipped
with the Smartphone
Link Display Audio, it is
possible to change
the setting by means of
screen operations.
Refer to the separate owner’s manual fordetails.
N00529600114
The electronic immobilize
r is designed to sig-
nificantly reduce the
possibility of vehicle
theft. The purpose of the system is to immo-bilize the vehicle if an invalid start isattempted. A valid start attempt can only beachieved (subject to ce
rtain conditions) using
a F.A.S.T.-Key “registered” to the immobi-lizer system.All of the keys provided with your new vehi-cle have been program
med to the vehicle’s
electronics.
N00513501115
To prevent vehicle theft, no F.A.S.T.-keysother than those regist
ered in advance can be
used to start the engine. (Electronic immobi-lizer function)While carrying the F.A.S.T.-key, the engineswitch can be used
to start the engine.
NOTE
On vehicles with F.A.
S.T.-key and equipped
with the mirror retractor switch, the outsiderearview mirrors automatically retract whenall the doors and liftgate are locked using theF.A.S.T.-key function.Refer to “Features a
nd controls: Outside
rearview mirrors” on page 5-60.
Electronic immobilizer (Anti-theft starting system)

Engine switch

CAUTIONThe indicator light (A) will flash orangewhen there is a problem or malfunction inFree-hand Advanced Se
curity Transmitter.
Never drive if the i
ndicator light on the
engine switch is fl
ashing orange. Immedi-
ately contact your authorized MitsubishiMotors dealer.
BK0249100US.book 18 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-19
5
The indicator light on the engine switch turnsoff.The operation mode cannot be put in OFFwhen the selector lever is in any positionother than the “P” (PARK) position.Allows operation of el
ectrical accessories.
The indicator light on
the engine switch illu-
minates orange.All electrical accessories can be used.The indicator light on
the engine switch illu-
minates green.The indicator light goes off when the engineis running.
N00568001035
If you press the engine
switch without press-
ing the brake pedal whil
e the vehicle is sta-
tionary, you can change the operation modein the order of OFF, ACC, ON, OFF.
If the engine switch
operation is not smooth
and feels like it is st
icking, do not operate the
switch.Immediately contact an authorized Mitsubi-shi Motors dealer.NOTE
When operating the engi
ne switch, press the
switch all the way in. If the switch is notfully pressed, the engine may not start or theoperation mode may
not change. If the
engine switch is presse
d correctly, there is no
need to hold the e
ngine switch down.
Operation mode of the engine switch and its function


OFF

ACC CAUTION

ON NOTE
Your vehicle is equippe
d with an electronic
immobilizer. To start
the engine, the ID code
which the F.A.S.T.-key sends must match theone registered to the immobilizer computer.(Refer to “Electronic immobilizer (Anti-theftstarting system)” on page 5-18)
Changing the operation mode

CAUTIONWhen the engine is not running, put the oper-ation mode in OFF. Leaving the operationmode in ON or ACC for a long time whenthe engine is not running may cause the bat-tery to be discharged
, making it impossible
to start the engine.When the battery is disconnected, the currentoperation mode is memo
rized. After recon-
necting the battery, the memorized mode isselected automaticall
y. Before disconnect-
ing the battery for re
pair or replacement,
make sure to put the operation mode in OFF.Be careful if you are not sure which opera-tion mode the vehicle is in when the batteryis run down.The operation mode cannot be changed fromOFF to ACC or ON if the F.A.S.T.-key is notdetected to be in the
vehicle. Refer to “Oper-
ating range for star
ting the engine and
changing the operation mode” on page 5-15.
BK0249100US.book 19 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5

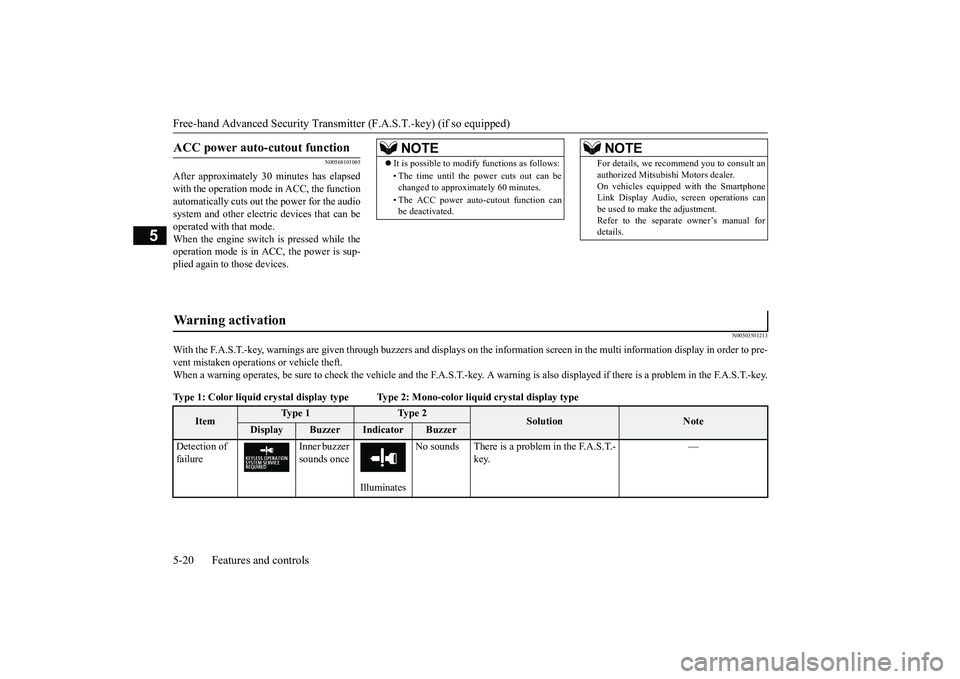

N00568101065
After approximately 30
minutes has elapsed
with the operation mode
in ACC, the function
automatically cuts out the power for the audiosystem and other electr
ic devices
that can be
operated with that mode.When the engine switch is pressed while theoperation mode is in A
CC, the power is sup-
plied again to those devices.
N00503501213
With the F.A.S.T.-key, warnings are given through buzzers and di
splays on the information screen in the multi information displ
ay in order to pre-
vent mistaken operati
ons or vehicle theft.
When a warning operates, be sure to check the vehicle and the F.
A.S.T.-key. A warning is also di
splayed if there is a problem i
n the F.A.S.T.-key.
Type 1: Color liquid crysta
l display type Type 2:
Mono-color liquid
crystal display type
ACC power auto-cutout function

NOTE
It is possible to modify functions as follows:• The time until the power cuts out can bechanged to approxi
mately 60 minutes.
• The ACC power auto
-cutout function can
be deactivated.
For details, we recommend you to consult anauthorized Mitsubishi Motors dealer.On vehicles equippe
d with the Smartphone
Link Display Audio, sc
reen operations can
be used to make the adjustment.Refer to the separate
owner’s manual for
details.NOTE
Warning activation

Item
Ty p e 1
Ty p e 2
Solution
Note
Display
Buzzer
Indicator
Buzzer
Detection of failure
Inner buzzer sounds once
Illuminates
No sounds There is a problem in the F.A.S.T.-
key.
—
BK0249100US.book 20 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-21
5
Fall of battery voltage
Inner buzzer sounds once
Blinks
No sounds The battery of the F.A.S.T.-key is
run down.
The warning is not activated if the battery is completely dead.
F. A . S . T. - k e y take-out mon-itoring system
Inner buzzer sounds onceOuter buzzer sounds intermit-tently
Blinks
Inner buzzer sounds onceOuter buzzer sounds intermit-tently
When the vehicle is parked with the operation mode in any mode other than OFF, if you close the door after opening any of the doors and taking the F.A.S.T.-key out of the vehicle, a warning is issued until the F.A.S.T.-key is detected in the vehicle.
•The F.A.S.T.-key take-out moni-toring system does
not function if
the F.A.S.T.-key is removed through a window without open-ing a door.This setting can be changed.Contact an authorized Mitsubishi Motors dealer for details.•The warning may display even if the F.A.S.T.-key is in the operating range for starting the engine and changing the operation mode. The surrounding environment or elec-tromagnetic waves may make it impossible to verify the ID codes of the F.A.S.T.-key and vehicle.
Item
Ty p e 1
Ty p e 2
Solution
Note
Display
Buzzer
Indicator
Buzzer
BK0249100US.book 21 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5
N00514301080
After pressing the e
ngine switch and opera-
tion mode in OFF, when driver’s door isopened, the steering wheel is locked.Warning display
The following methods ca
n be used to unlock
the steering wheel.Put the operation mode in ACC.Start the engine.
Steering wheel lock
(if so equipped)
To l o c k

NOTE
When the following ope
ration is performed
with the operation mode
in OFF, the steering
wheel is locked.• Open or close one of the doors. (except theliftgate)F.A.S.T.-key operation or the remote con-trol transmitter of the F.A.S.T.-key.
When the driver’s door is opened while thesteering wheel does not
unlock, warning dis-
play will appear and the buzzer sounds toalert the steering wheel is unlocked.
To u n l o c k

WA R N I N GIf the engine is stopped while driving, donot open a door or press the LOCK switchon the remote control switch until thevehicle stops in a safe
place. This could
cause the steering wheel to lock, making itimpossible to operate the vehicle.CAUTIONCarry the F.A.S.T.-key with you when leav-ing the vehicle.If your vehicle needs to
be towed, put the
operation mode in ACC to unlock the steer-ing wheel.
NOTE
When the steering wheel does not unlock,the warning display wi
ll appear. Press the
engine switch again wh
ile moving the steer-
ing wheel slightly right and left.Warning displayWhen the steering wheel lock is abnormal,the warning display will
appear and the inner
buzzer will sounds. Put the operation modein OFF and then press the lock switch of theF.A.S.T.-key. If the warning will appearagain, contact an authorized MitsubishiMotors dealer.warning display
BK0249100US.book 24 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-25
5
N00514601399
The operation mode can be in any modeto start the engine.The starter motor will be turning for up toapproximately 15 seconds if the engineswitch is released at once. Pressing theengine switch again while the startermotor is still turning will stop the startermotor.The starter motor will be turning for up toapproximately 30 seconds while theengine switch
is pressed.
If the engine does not start, wait for awhile and then attempt to start the engineagain. Trying repeatedly with the engineor starter motor still turning will damagethe starter mechanism.If the engine will not start because the bat-tery is weak or discharged, refer to“Jump-starting the engine” on page 8-2for instructions.A longer warm up period will only con-sume extra fuel.The engine is warmed up enough for driv-ing when the bar graph of engine coolanttemperature display starts to move or thelow coolant temperature indicator goesout. Refer to “Engine
coolant temperature
display” on page 5-161 or “Low coolanttemperature indica
tor” on page 5-202.
Your vehicle is equipped with an electroni-cally controlled fuel injection system. Thissystem automatically controls fuel injection.There is usually no need
to depress the accel-
erator pedal when starting the engine.To prevent battery drai
n, wait a few seconds
between attempts to restart the engine.1. Make sure all occupants are properlyseated with seat belts fastened.2. Make sure the parking brake is applied.3. Press and hold the brake pedal downfirmly with your right foot.4. Make sure the selector
lever is in the “P”
If there is a fault in the steering wheel lock,the warning display will
appear. Immediately
stop the vehicle in a sa
fe place and contact
an authorized Mitsubishi Motors dealer.Warning display
Starting and stopping the engine

Tips for starting

NOTE
WA R N I N GNever run the engine in
a closed or poorly
ventilated area any longer than is neededto move your vehicle
out of the area. Car-
bon monoxide gas, wh
ich is odorless and
extremely poisonous, could build up andcause serious injury or death.CAUTIONDo not push-start the vehicle.
Do not run the engine at high rpms or driveat high speeds until the engine has had achance to warm up.
Starting the engine

NOTE
After the engine has not started for a while,the brake pedal effort needed to start theengine may become grea
ter. If this occurs,
depress the brake pedal more firmly thanusual.CAUTION
BK0249100US.book 25 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5
5. Press the engine switch.6. Confirm that all warning lights and warn-ing displays are functioning properly.
After several attempts
, you may experience
that the engine still does not start.1. Make sure that all electric devices, suchas lights, air conditi
oning blower and rear
window defogger, are turned off.2. While depressing the brake pedal, pressthe accelerator peda
l halfway and hold it
there, then crank th
e engine. Release the
accelerator pedal, immediately after theengine starts.
3. If the engine still wi
ll not start, the engine
could be flooded with too much gasoline.While depressing the brake pedal, pushthe accelerator pedal all the way downand hold it there, then press the engineswitch to crank the engine. If the enginedoes not start after 5 to 6 seconds, pushthe engine switch to stop cranking theengine, and release th
e accelerator pedal.
Put the operation mode in OFF. Wait afew seconds, and then press the engineswitch to crank the engine again whiledepressing the brake pedal, but do notpush the accelerator pedal. If the enginefails to start, repeat these procedures. Ifthe engine still will
not start, contact your
local Mitsubishi Motors dealer or a repairfacility of your choi
ce for assistance.
Startability of the en
gine with an ambient
temperature of -22 °F (-30 °C) or lowerWhen the ambient temperature is -22 °F (-30°C) or lower, it may not be possible to startfrom a standstill even wi
th the selector lever
in the
