How to change a tire8-12 For emergencies
8
N00832300020
1. Place the tire on the center of the tirehanger, with the wheel surface facingupwards.2. Lift up the tire hanger (A) and hook it onthe hook (B).
3. With the wheel nut wrench, firmly tightenthe tire hanger mounti
ng bolt by turning it
clockwise.
4. Install the cover over the tire hangermounting bolt.
N00850001172
Store the flat tire in the luggage compartment.Reverse the removing procedure when stor-ing the jack, bar and wheel nut wrench.Refer to “Jack and t
ools” on page 8-5.

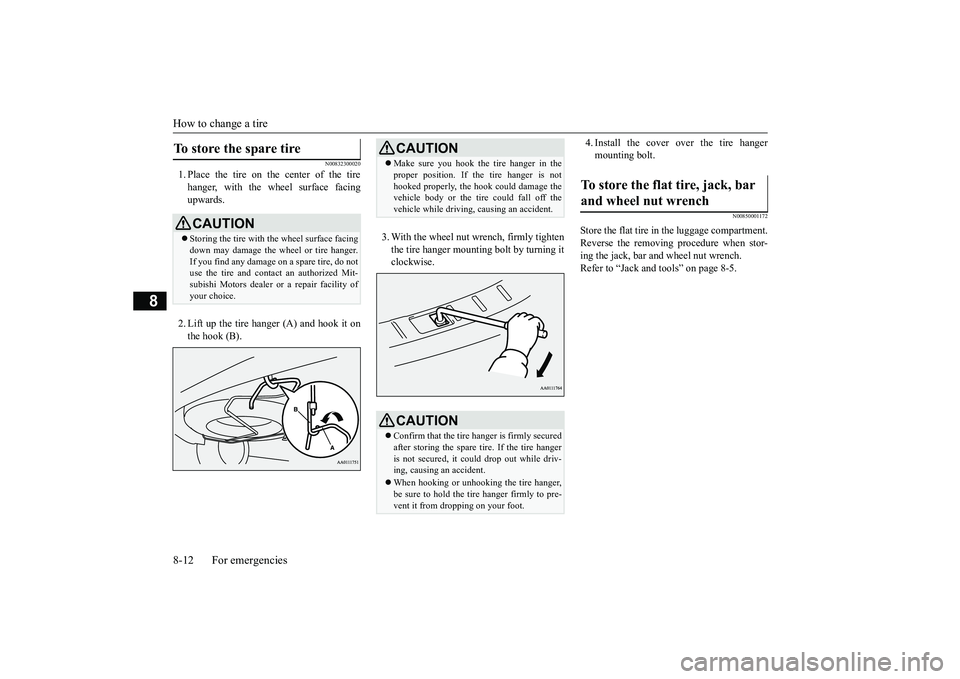

To store the spare tire
CAUTIONStoring the tire with the wheel surface facingdown may damage the wheel or tire hanger.If you find any damage
on a spare tire, do not
use the tire and contact an authorized Mit-subishi Motors dealer or a repair facility ofyour choice.
CAUTIONMake sure you hook the tire hanger in theproper position. If the tire hanger is nothooked properly, the hook
could damage the
vehicle body or the tire
could fall off the
vehicle while driving,
causing an accident.
CAUTIONConfirm that the tire hanger is firmly securedafter storing the spare
tire. If the tire hanger
is not secured, it c
ould drop out while driv-
ing, causing
an accident.
When hooking or unhooking the tire hanger,be sure to hold the tire hanger firmly to pre-vent it from dropping on your foot.
To store the flat tire, jack, bar and wheel nut wrench
BK0249100US.book 12 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Replacement of light bulbs9-34 Vehicle care and maintenance
9
N00901801216
1. When replacing the bulb on the left sideof the vehicle, remove the bolts (A) hold-ing down the relay box and the sub fuseblock, and then move them toward therear of the vehicle. (if so equipped)
2. Turn the cap (B) counterclockwise toremove it.3. Turn the socket (C) counterclockwise toremove it, and then pull the bulb out ofthe socket.
4. To install the bulb, perform the removalsteps in reverse.
N00900301171
• Front foot lights• Floor console box light
Headlights (low beam, halogen bulb type) *- Front of the vehicle
NOTE
*- Front of the vehicle
NOTE
When installing the bulb, align the tab (D)with the notch (E) of the socket.
Headlights (low beam, LED type)
NOTE
The headlights use an LED instead of thebulb.Check with an authorized Mitsubishi Motorsdealer or a repair fa
cility of your choice
when the light needs to be repaired orreplaced.
BK0249100US.book 34 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Replacement of light bulbs
Vehicle care and maintenance 9-35
9
N00901901132
1. When replacing the bulb on the right sideof the vehicle, rem
ove the clip (A) hold-
ing down the washer tank spout and movethe spout toward the rear of the vehicle.2. Turn the cap (B) counterclockwise toremove it.
3. Turn the bulb (C) counterclockwise toremove it and then while holding downthe tab (D), pull out the bulb (E).4. To install the bulb, perform the removalsteps in reverse.
N00943201359
The alignment of th
e headlights should be
checked by an authorized Mitsubishi Motorsdealer or a repair facility of your choice.
N00915501214
1. When replacing the bulb on the left sideof the vehicle, move the relay box towardthe rear of the vehi
cle. (if so equipped)
(Refer to “Headlight
(low beam, halogen
bulb type): Step 1” on page 9-34.
2. Turn the socket (A
) counterclockwise to
remove it, and then pull the bulb out ofthe socket.3. To install the bulb, perform the removalsteps in reverse.
Headlights (high beam) *- Front of the vehicle
Headlight aim adjustment Front side-marker lights
*- Front of the vehicle
BK0249100US.book 35 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Replacement of light bulbs9-36 Vehicle care and maintenance
9
N00917301724N00943401423

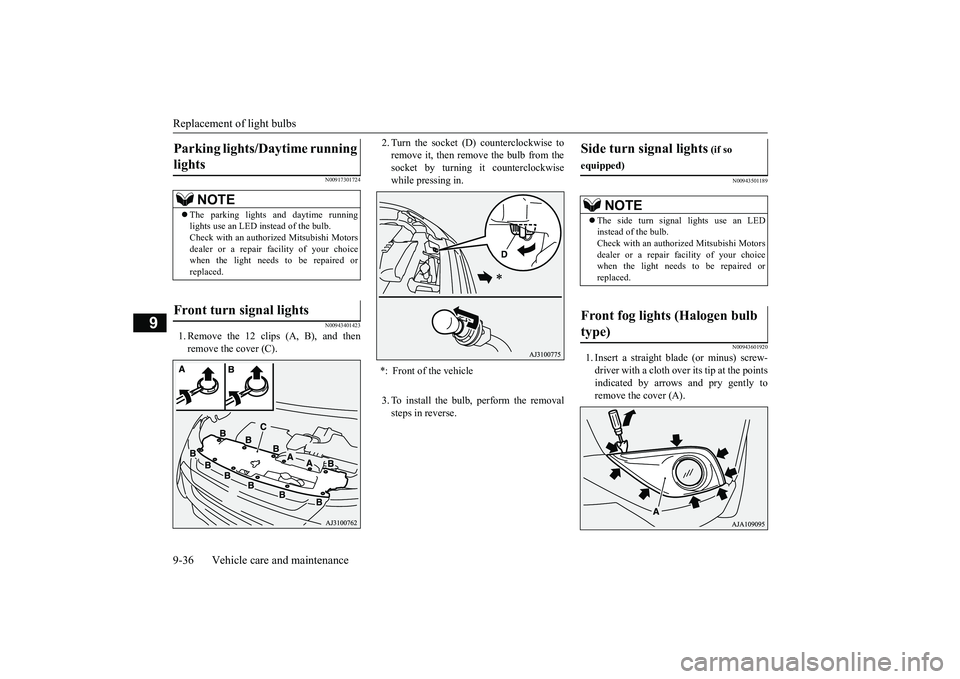

1. Remove the 12 clips (A, B), and thenremove the cover (C).
2. Turn the socket (D
) counterclockwise to
remove it, then remove the bulb from thesocket by turning it counterclockwisewhile pressing in.3. To install the bulb, perform the removalsteps in reverse.
N00943501189N00943601920
1. Insert a straight
blade (or minus) screw-
driver with a cloth over its tip at the pointsindicated by arrows and pry gently toremove the cover (A).
Parking lights/Daytime running lights
NOTE
The parking lights and daytime runninglights use an LED in
stead of the bulb.
Check with an authorized Mitsubishi Motorsdealer or a repair fa
cility of your choice
when the light needs to be repaired orreplaced.
Front turn signal lights
*: Front of the vehicle
Side turn signal lights
(if so
equipped)
NOTE
The side turn signal lights use an LEDinstead of the bulb. Check with an authorized Mitsubishi Motorsdealer or a repair fa
cility of your choice
when the light needs to be repaired orreplaced.
Front fog lights (Halogen bulb type)
BK0249100US.book 36 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Replacement of light bulbs
Vehicle care and maintenance 9-37
9

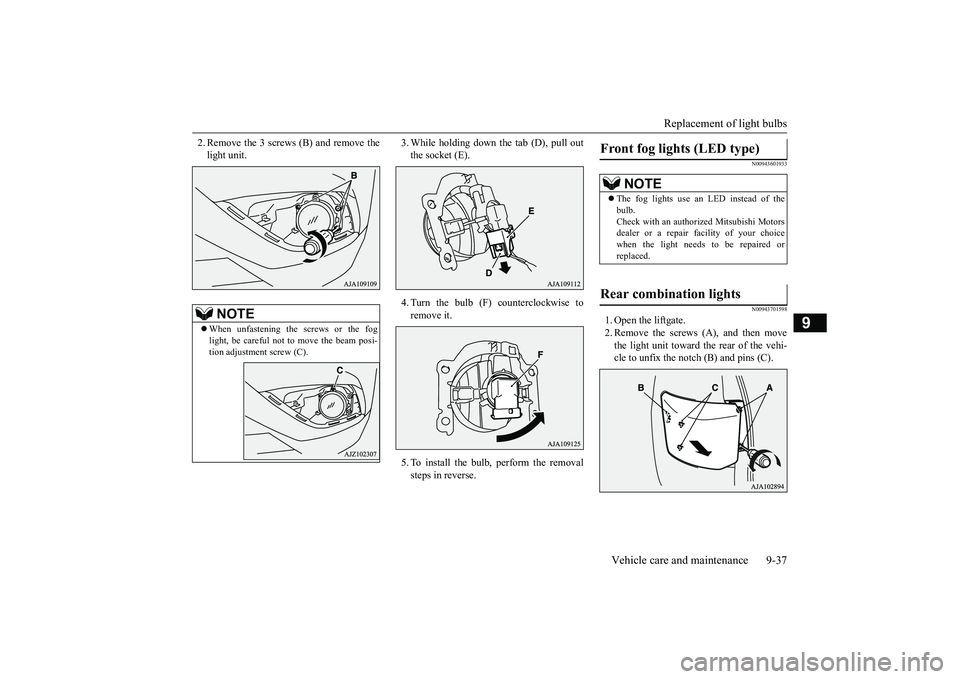

2. Remove the 3 screws
(B) and remove the
light unit.
3. While holding down the tab (D), pull outthe socket (E).4. Turn the bulb (F) counterclockwise toremove it.5. To install the bulb, perform the removalsteps in reverse.
N00943601933N00943701598
1. Open the liftgate.2. Remove the screws (A), and then movethe light unit toward the rear of the vehi-cle to unfix the notch (B) and pins (C).
NOTE
When unfastening the screws or the foglight, be careful not to move the beam posi-tion adjustment screw (C).
Front fog lights (LED type)
NOTE
The fog lights use an
LED instead of the
bulb.Check with an authorized Mitsubishi Motorsdealer or a repair fa
cility of your choice
when the light needs to be repaired orreplaced.
Rear combination lights
BK0249100US.book 37 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Replacement of light bulbs9-38 Vehicle care and maintenance
9

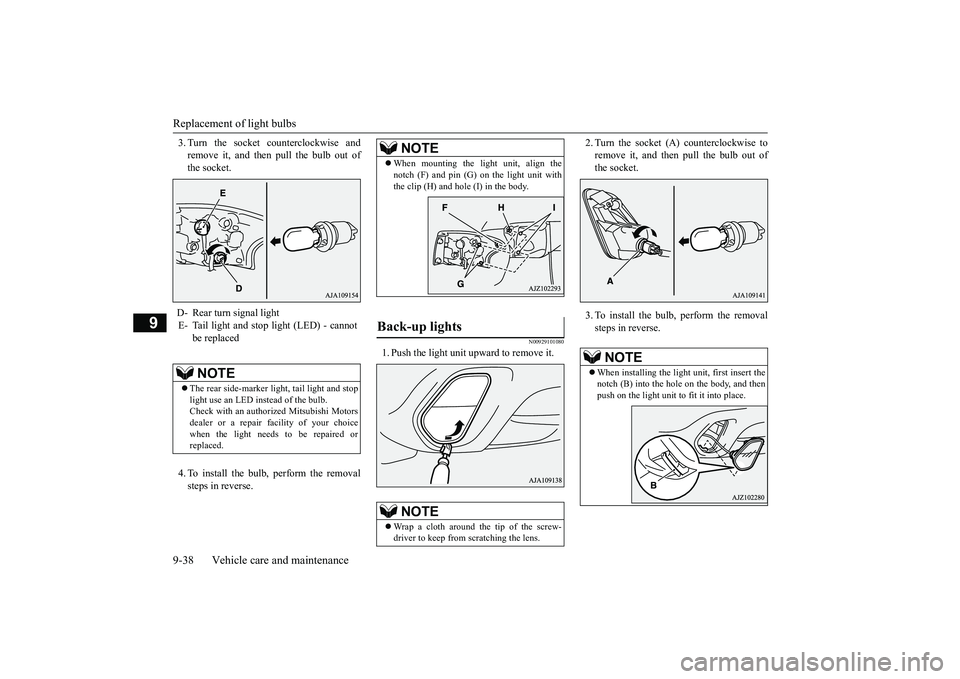

3. Turn the socket counterclockwise andremove it, and then pull the bulb out ofthe socket.4. To install the bulb, perform the removalsteps in reverse.
N00929101080
1. Push the light unit upward to remove it.
2. Turn the socket (A) counterclockwise toremove it, and then pull the bulb out ofthe socket.3. To install the bulb, perform the removalsteps in reverse.
D- Rear turn signal lightE- Tail light and stop light (LED) - cannot
be replacedNOTE
The rear side-marker li
ght, tail light and stop
light use an LED instead of the bulb.Check with an authorized Mitsubishi Motorsdealer or a repair fa
cility of your choice
when the light needs to be repaired orreplaced.
NOTE
When mounting the light unit, align thenotch (F) and pin (G) on the light unit withthe clip (H) and hole (I) in the body.
Back-up lights
NOTE
Wrap a cloth around the tip of the screw-driver to keep from scratching the lens.
NOTE
When installing the light unit, first insert thenotch (B) into the hole on the body, and thenpush on the light unit to fit it into place.
