2018 MITSUBISHI OUTLANDER III engine

Tire pressure monitoring system
Features and controls 5-139
5
Each tire, including the spare (if provided),should be checked monthly when cold andinflated to the inflation pressure recom-mended by the vehicle manufacturer on thevehicle placard or tire
inflation pressure label.
(If your vehicle has tires of a different sizethan the size indicated on the vehicle placardor tire inflation pressure label, you shoulddetermine the proper ti
re inflation pressure
for those tires.)As an added safety feat
ure, your vehicle has
been equipped with a tire pressure monitoringsystem (TPMS) that illuminates a low tirepressure telltale when
one or more of your
tires is significantly under-inflated.Accordingly, when the low tire pressure tell-tale illuminates, you
should stop and check
your tires as soon as possible, and inflatethem to the proper pressure. Driving on a sig-nificantly under-inflated
tire causes the tire to
overheat and can lead
to tire failure.
Under-inflation also reduces fuel efficiencyand tire tread life, and may affect the vehi-cle’s handling and stoppi
ng ability. Please
note that the TPMS is
not a substitute for
proper tire maintenance, and it is the driver’sresponsibility to
maintain corre
ct tire pres-
sure, even if under-infl
ation has not reached
the level to trigger illumination of the TPMSlow tire pressure telltale.Your vehicle has also
been equipped with a
TPMS malfunction indica
tor to indicate when
the system is not operating properly. TheTPMS malfunction indicator is combinedwith the low tire pressure telltale.When the system detects a malfunction, thetelltale will flash for approximately one min-ute and then remain c
ontinuously illuminated.
This sequence will c
ontinue upon subsequent
vehicle start-ups as long as the malfunctionexists.When the malfunction indicator is illumi-nated, the system may not
be able to detect or
signal low tire pr
essure as intended.
TPMS malfunctions ma
y occur for a variety
of reasons, including the installation ofreplacement or alternate tires or wheels on thevehicle that prevent the TPMS from function-ing properly. Always
check the TPMS mal-
function telltale after
replacing one or more
tires or wheels on your vehicle to ensure thatthe replacement or alternate tires and wheels
CAUTIONIf the tire pressure monitoring system warn-ing light does not illumi
nate when the igni-
tion switch is turned to the “ON” position orthe operation mode is put in ON, it meansthat the tire pressure monitoring system isnot working properly. Have the systeminspected by an authorized MitsubishiMotors dealer.In such situations, a malfunctioning of thesystem may be preventing the monitoring ofthe tire pressure. Avoid sudden braking,sharp turning and high-speed driving.If a malfunction is detected in the tire pres-sure monitoring system, the tire pressuremonitoring system warning light will blinkfor approximately 1 mi
nute and then remain
continuously illuminate
d. The warning light
will issue further warnings each time theengine is restarted as
long as the malfunction
exists.Check to see whether the warning light goesoff after few minutes driving.If it then goes off during driving, there is noproblem.However, if the warning light does not gooff, or if it blinks again when the engine isrestarted, have the
vehicle inspected by an
authorized Mitsubish
i Motors dealer.
In such situations, a malfunctioning of thesystem may be preventing the monitoring ofthe tire pressure. For safety reasons, whenthe warning light appears while driving,avoid sudden braking, sharp turning andhigh-speed driving.
NOTE
In addition, the warni
ng display is displayed
on the information screen in the multi-infor-mation display.
BK0249100US.book 139 ページ ２０１７年５月１０日　水曜日　午前８時４９分

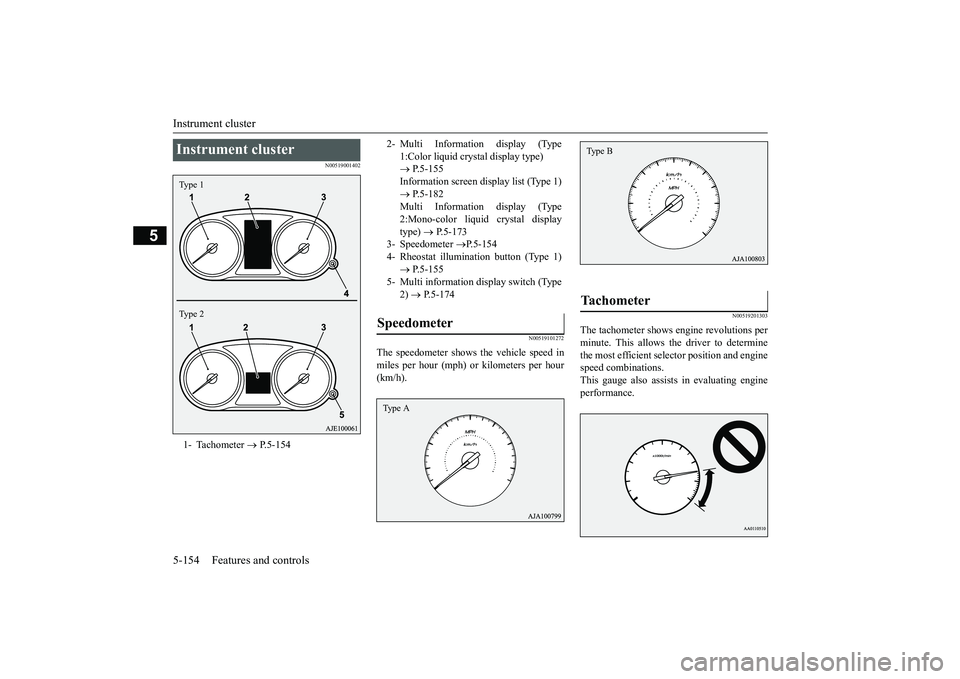

Instrument cluster5-154 Features and controls
5
N00519001402
N00519101272
The speedometer shows the vehicle speed inmiles per hour (mph) or kilometers per hour(km/h).
N00519201303
The tachometer shows e
ngine revolutions per
minute. This allows the driver to determinethe most efficient selector position and enginespeed combinations.This gauge also assists in evaluating engineperformance.
Instrument cluster 1- Tachometer
 P.5-154
Type 1Type 2
2- Multi Information display (Type
1:Color liquid crystal display type) P.5-155Information screen display list (Type 1) P.5-182Multi Information display (Type2:Mono-color liquid crystal displaytype)
 P.5-173
3- Speedometer
P.5-154
4- Rheostat illumina
tion button (Type 1)
 P.5-155
5- Multi information display switch (Type
2)  P.5-174
Speedometer Type A
Tachometer Type B
BK0249100US.book 154 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Multi Information display - Type 1
Features and controls 5-155
5
N00554901280
Each time you press this button, there is asound and the brightness
of the instruments
changes.
N00555001422
The multi information display displays warn-ings, the odometer, trip odometer, servicereminder, engine cool
ant temperature, fuel
remaining, outside temper
ature, selector lever
position, average and momentary fuel con-sumption, driving range
, average speed, etc.
It is also possible to change elements such asthe language and units used on the multiinformation display.[With ignition switch
or operation mode in
OFF]
CAUTIONThe red zone indicates an engine speedbeyond the range of safe operation.Select the correct select
or position to control
the engine speed so that
the tachometer indi-
cator does not enter the red zone.
Meter illumination control (Vehicle equipped with the multi information display - Type 1) 1- Brightness level2- Rheostat illumination button
NOTE
You can adjust to 8 different levels for whenthe front side-marker
lights are illuminated
and when they are not.If the vehicle is equippe
d with the automatic
light control, the light
switch is in a position
other than the “OFF” pos
ition and it is suffi-
ciently dark outside th
e vehicle, the meter
illumination switches automatically to theadjusted brightness.The brightness level
of the instruments is
stored when the ignition switch is turned tothe “OFF” or “LOCK” tion mode is put in OFF.If you press and hold the button for longerthan approximately 2 second when the frontside-marker lights ar
e illuminated, the
brightness level changes to the maximumlevel. Pressing and holding the button forlonger than approximately 2 second againreturns the brightness
level to the previous
level.
Multi Information display - Type 1
1-
Warning display screen
 P.5-161
2- Information screen
 P.5-157
Interrupt display screen
 P.5-160
3- Door ajar warning display screen
 P.5-161
4- Odometer
 P.5-162
5-
“ ” or “ ” mark indicator
 P.5-160
BK0249100US.book 155 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Multi Information display - Type 15-156 Features and controls
5
[With ignition switch or operation mode in ON]1- Drive mode indicator display screen (if
so equipped)
 P.5-84
2- S-AWC drive mode display screen (if
so equipped)
 P.5-87
3-
Warning display screen
 P.5-161
4- Forward Collision Mitigation System
(FCM) OFF display screen (if soequipped)
 P.5-118
5- Lane Departure Warning (LDW) sys-
tem display screen (if so equipped)P.5-134
6- ECO mode indicator display screen
 P.5-218
7- Information screen
 P.5-157
8- Selector lever
position display
 P.5-70, 5-77
9- Engine coolant temperature display
 P.5-161
10- Odometer
 P.5-162
11- Cruise control display screen (if so
equipped)
 P.5-103
12- Adaptive Cruise Control System (ACC)
display screen (if so equipped) P.5-107
13- ECO indicator
 P.5-166
14-
“ ” or “ ” mark indicator
 P.5-160
15- Fuel remaining display screen
 P.5-162
16- Outside temperature display screen
 P.5-162NOTE
The fuel units, outside temperature units,display language, and ot
her settings can be
changed.Refer to “Changing th
e function settings” on
page 5-167.
BK0249100US.book 156 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Multi Information display - Type 1
Features and controls 5-161
5
Warning display screens with a “ ” or “ ”screen can be switched. If you want to switchthe display, press the multi information dis-play switch as follows.“ ”: Press lightly.“ ”: Press for approximately 2 seconds ormore.
N00579600021
When the warning is displayed, if youlightly press the multi information displayswitch a few times, the warning displayscreen you switched
from is redisplayed.
N00579700022
The operation status of each system is dis-played on the information screen.For further details, re
fer to the appropriate
page in the warn
ing display list.
Refer to “Other interrupt displays” on page5-197.
N00555201222
This is displayed when you press the multiinformation display switch and return fromthe warning display screen to the previousscreen.This mark is also displa
yed if there is another
warning other than the one displayed.When the cause of the warning display iseliminated, the warning goes out automat-ically.
N00529700030
If any of the doors or the liftgate is not com-pletely closed, this displays the open door orliftgate.If the speed increases to about 5 mph (8km/h) or higher with a door ajar, a tone willsound 4 times to inform you that a door isajar.
N00578200020
Shows the engine coolant temperature.If the coolant becomes hot, “ ” will blink.Pay careful attention to the engine coolanttemperature display while you are driving.
If you want to switch the displayRedisplay of a warning display screen Other interrupt displays
warning display screen
NOTE
When the warning is displayed, the warn-ing display screen can be redisplayed on theinformation screen.Refer to “Information sc
reen (with the igni-
tion switch in “OFF” or
“LOCK” position or
the operation mode in
OFF)” on page 5-157.
Refer to “Information sc
reen (with the igni-
tion switch or the operation mode in ON)” onpage 5-159.
Door ajar warning display screen
CAUTIONAlways make sure that
the warning display
goes out before beginning to drive.
Engine coolant temperature display
BK0249100US.book 161 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Multi Information display - Type 15-162 Features and controls
5
N00556601180
Shows the amount of fuel remaining.
N00578300050
When the fuel level runs low, the informationscreen switches to the interrupt display of thefuel remaining warning display and the mark(B) on the fuel remaini
ng display flashes. If
the warning display appear
s, refuel as soon as
possible.
N00556501118
Shows the temperature outside the vehicle.
N00574901026
Shows the total distance traveled.
N00575001024
Shows the distance traveled between twopoints.
CAUTIONIf the engine is overheating, “ ” will blink.In this case, the bar graph is on the red zone.Immediately park the vehicle in a safe placeand take the require
d measures. Refer to
“Engine overheating” on page 8-4.
Fuel remaining display screen F- FullE- Empty
CAUTIONRunning out of gas coul
d damage the cata-
lytic converter. If the warning displayappears, refuel as soon as possible.
NOTE
It may take several se
conds to stabilize the
display after re
filling the tank.
If fuel is added with
the ignition switch or
the operation mode in ON, the remainingfuel display may incorre
ctly indicate the fuel
level.The arrow (A) indicates that the fuel tankfiller door is located on
the left side of the
vehicle. (Refer to “F
illing the fuel tank” on
page 3-3.)
Fuel remaining warning display
NOTE
On hills or curves, the display may be incor-rect due to the movement
of fuel in the tank.
Outside temperature display screen
NOTE
The display setting ca
n be changed to the
preferred units (°F or °C).
e function settings” on
page 5-167.Depending on factors such as the drivingconditions, the displa
yed temperature may
vary from the actual outside temperature.
Odometer Trip odometer
BK0249100US.book 162 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Multi Information display - Type 1
Features and controls 5-169
5
When the engine switch or the operationmode is in the following conditions, theaverage fuel consumption display and theaverage speed display will automaticallyreset.[Except for vehicles equipped with theF. A . S . T. - k e y ]The ignition switch has been set to the“ACC”, “LOCK” or
“OFF” position for
about 4 hours or more.[For vehicles equipped with the F.A.S.T.-key]The operation mode has been in ACC orOFF for about 4 hours or more.
N00557101166
The fuel consumption display unit can bechanged. The distan
ce, speed, and amount
units are also changed to match the selectedfuel consumption unit.1. Press and hold the multi information dis-play switch (for about 2 seconds or more)to change from the setting mode screen tothe menu screen.Refer to “Changing the function settings”on page 5-167.2. Lightly press the multi information dis-play switch to select “AVG UNIT” (fuelconsumption display unit setting).3. Press and hold the multi information dis-play switch (for about 2 seconds or more)to display “AVG UNIT” (fuel consump-tion display unit setting).
4. Lightly press the multi information dis-play switch to switch to select the units.5. Press and hold the multi information dis-play switch (for about 2 seconds or more)to change the setting to the selected unit.
The distance and speed units are also changedin the following combinations to match theselected fuel consumption unit.
NOTE
The average fuel consumption display andaverage speed display ca
n be reset separately
in both auto reset mode and manual resetmode.Disconnecting the batter
y cable wi
ll erase
from memory the manual reset mode or autoreset mode setting for
the average speed dis-
play and average fuel consumption display.The initial (default) setting is “Auto resetmode”.
Changing the fuel consumption display unit
NOTE
The display units for the driving range, theaverage fuel consumption, the average speedand the momentary fuel consumption arechanged, but the units
for the indicating nee-
dle (speedometer), the odometer and the tripodometer will remain unchanged.If the battery is disconnected, the memory ofthe unit setting is erased and is automaticallyset to {mpg (US) or L/100 km}.Fuel economy
Distance (driving range)
Speed (average speed)
mpg (UK) mile (s) mphkm /L km km /hL /100 km km km /h
BK0249100US.book 169 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Indicator light, warning light, and information screen display list (multi information display - Type 1)
Features and controls 5-181
5
N00557701074N00557801349
Indicator light, warning light, and information
screen display list (multi information display -
Type 1) Indicator and warning light list 1- Position indicator
 P.5-202
2- Front fog light indicator (if so
equipped)
 P.5-202
3- Turn signal indicators/hazard warning
lights
 P.5-202
4- High beam indicator
 P.5-202
5- Charging system warning light
 P.5-204
6- Blind Spot Warning (BSW) indicator
light (if so equipped)
 P.5-126
7- Automatic high beam system indicator
(if so equipped)
 P.5-211
8- LED headlight warning light (if so
equipped)
 P.5-210
9- Active stability control (ASC) indicator
 P.5-101
10- Active stability
control (ASC) OFF
indicator
 P.5-101
11- Anti-lock braking
system warning light
 P.5-98
12- Supplemental Restra
int System (SRS)
warning light
 P. 4 - 4 1
13- Engine malfuncti
on indicator (“SER-
VICE ENGINE SOON” or “Checkengine light”)
 P.5-204
14- Electric parking
brake warning light
(yellow) (if so equipped)
 P.5-203
BK0249100US.book 181 ページ ２０１７年５月１０日　水曜日　午前８時４９分
