Instruments and controls 1-1
1
Overview
N00100202805
Instruments and controls
Combination headlights an
d dimmer switch P.5-188
Automatic High Beam (AHB) sw
itch (if so equipped) P.5-191
Turn signal lever P.5-196 Front fog light switch P.5-198
Steering wheel audio remote control switches [For DISPLAY AUDIO and Smartphone Link Display Audio, refer to the separate owner’s manual.]
Active stability control (ASC) OFF switch P.5-82
Supplemental Restraint System (SRS) - driver’s airbag P.4-30, 4-37Horn switch P.5-206
Instrument cluster P.5-139
Windshield wiper and washer switch P.5-198 Rear window wiper and
washer switch P.5-203
Cruise control switches P.5-84, 5-88
Steering wheel height and reach adjustment lever P.5-50
Engine switch (if so equipped) P.5-18
Sportronic steering wheel paddle
shifter (if so equipped) P.5-65
Lane Departure Warning (LDW) switch (if so equipped) P.5-115
Forward Collision Mitigation
system (FCM) ON/OFF switch
(if so equipped) P.5-104
Supplemental Restraint System (SRS) - driver’s knee airbag P.4-37
Ignition switch (if so equipped) P.5-57
“SONAR” switch (if so
equipped) P.5-125
Head Up Display (HUD) switches (if so equipped) P.5-184
Headlight leveling switch
(if so equipped) P.5-196
Camera switch P.5-133
Hands free switches (if so equipped)
Multi-information display switches P.5-142
Head Up Display (HUD)
(if so equipped) P.5-184
BK0252700US.bo
ok 1 ページ ２０１７年１０月４日　水曜日　午後４時５４分

5
Features and controlsKeys ..........................................
.......................................................5-3
Electronic immobilizer (Anti-thef
t starting system) ........................5-4
Keyless entry system (if so equipped) ..............................................5-6 Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) .
.................................................
........................5-12
Door locks .......................
...............................................................5-32
Power door locks ............
...............................................................5-34
Child safety locks for r
ear door .....................................................5-35
Liftgate ......................................
.....................................................5-36
Theft-alarm system
................................................
........................5-38
Power window control
...........................................
........................5-40
Power panoramic sunroof (if
so equipped).....................................5-43
Parking brake ..................
...............................................................5-46
Steering wheel height and reach adjustment ..................................5-50 Inside rearview mirro
r ...........................................
........................5-51
Outside rearview mirr
ors ...............................................................5-53
Ignition switch ......
.................................................
........................5-57
Starting the engine
.................................................
........................5-58
Turbocharger operation
..........................................
........................5-60
Continuously variable trans
mission (CVT) ...................................5-60
S-AWC (Super-All Wheel Control) (if so equipped) .....................5-67 4-wheel drive operation
.........................................
........................5-70
Inspection and maintenance following rough road operation ........5-72Cautions on the handling of 4-wheel drive vehicles ......................5-72 Service brake ..................
...............................................................5-73
Brake auto hold (if so
equipped) ....................................................5-74
Hill start assist .......
.................................................
........................5-77
Brake assist system
................................................
........................5-78
Anti-lock braking syst
em .....................................
......................... 5-78
Electric power steering syst
em (EPS) ........................................... 5-80
Active stability control
(ASC) ....................
................................... 5-81
Cruise control ................
.................................................
............... 5-84
Adaptive Cruise Control System (ACC) (if so equipped) .............. 5-88 Forward Collision Mitigation system (FCM) (if so equipped) .... 5-100 Blind Spot Warning (BSW) (with Lane Change Assist) (if so equipped) ..........
.................................................
............. 5-108
Rear Cross Traffic Alert (RCTA) (if so equipped) ....................... 5-112 Lane Departure Warning (LDW) (if so equipped) ....................... 5-115Tire pressure monitoring system (TPMS) ................................... 5-118 Parking sensors (Front/Rear)
(if so equipped).............................. 5-123
Rear-view camera ..........
.................................................
............. 5-127
Multi Around Monitor (if so
equipped)........................................ 5-129
Instrument cluster
.................................................
....................... 5-139
Multi-information disp
lay ....................................
....................... 5-140
Indicator light, warning light, and information screen display list
..............................................
....................... 5-160
Indicators .................................
.................................................... 5-180
Warning lights ................
.................................................
............. 5-181
Information screen disp
lay ........................
................................. 5-183
Head Up Display (HUD) (if
so equipped).................................... 5-184
Combination headlights and dimmer switch ............................... 5-188Headlight leveling switch (if
so equipped)................................... 5-196
Turn signal lever ..
.................................................
....................... 5-196
Hazard warning flasher
switch .................................................... 5-197
ECO mode switch ..........
.................................................
............. 5-198
Front fog light switch
...........................................
....................... 5-198
BK0252700US.bo
ok 1 ページ ２０１７年１０月４日　水曜日　午後４時５４分

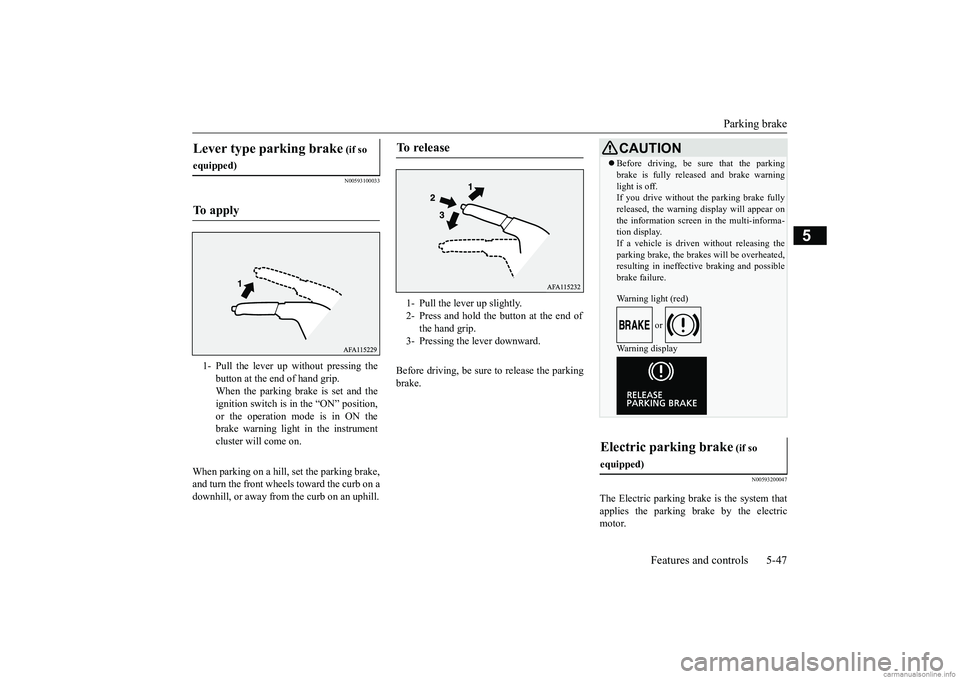

Parking brake
Features and controls 5-47
5
N00593100033
When parking on a hill, set the parking brake, and turn the front wheels toward the curb on a downhill, or away from the curb on an uphill.
Before driving, be sure to release the parking brake.
N00593200047
The Electric parking brake is the system thatapplies the parking brake by the electric motor.
Lever type parking brake
(if so
equipped)To apply

1- Pull the lever up without pressing the
button at the end of hand grip.When the parking brake is set and the ignition switch is in the “ON” position, or the operation mode is in ON thebrake warning light in the instrument cluster will come on.
To release

1- Pull the lever up slightly. 2- Press and hold the button at the end of
the hand grip.
3- Pressing the lever downward.
CAUTION Before driving, be sure that the parking brake is fully released and brake warning light is off. If you drive without the parking brake fully released, the warning display will appear onthe information screen in the multi-informa- tion display. If a vehicle is driven without releasing theparking brake, the brakes will be overheated, resulting in ineffective braking and possible brake failure. Warning light (red)
or
Warning display
Electric parking brake
(if so
equipped)
BK0252700US.bo
ok 47 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Brake auto hold (if so equipped)
Features and controls 5-75
5
If the brake auto hold
switch is pressed while
all of the following conditions are met, the system will change to the standby state andthe indicator light (A) on the switch comes on.  The ignition switch or operation mode in ON.  The driver’s seat belt is fastened.  The driver’s door is closed.
When the vehicle is stopped by depressing the brake pedal with the selector lever in anyposition other than “P” (PARK) or “R” (REVERSE), the brake auto hold activates and the vehicle will be held stationary.The brake auto hold indicator light in the instrument cluster will come on while the system activates.
How to use brake auto hold

To turn on brake auto hold

NOTE
 When the brake auto hold system cannot be used, a buzzer will sound and the following warning will appear on the informationscreen in the multi-information display.
• If this warning appears, confirm that all of the conditions for system operation are met and that there is no malfunction in the sys- tem. • If this warning appears, fasten the driver’s seat belt.
 If any of the following occur while the sys- tem is standby state, the brake auto hold sys- tem will be turned off automatically and theindicator light on the switch goes off. A buzzer will sound and the message will appear on the information screen in themulti-information display. • When the driver’s seat belt is unfastened.• When the driver’s door is opened. • When there is a malfunction in the systemNOTE
 If keeping pressing the brake auto hold switch after setting the brake auto hold to ON (stand by), the brake auto hold will return to OFF as a protection function is operated.After returning to OFF, the brake auto hold will not be switched to ON (Stand by) even if the brake auto hold switch is pressed. To setthe brake auto hold to ON, restart the engine and press the brake auto hold switch again.
To activate brake auto hold

NOTE
or
BK0252700US.bo
ok 75 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Brake auto hold (if so equipped) 5-76 Features and controls
5
Depress the acceleration pedal with the selec- tor lever in any position other than “P”(PARK) or “N” (NEUTRAL). The brakes are released, and the brake auto hold indicator light in the instrument clusterwill go off.
CAUTION Release the brake pedal only after the brake auto hold indicator light has illuminated.NOTE
 In the following situations, the brake auto hold system may not operate temporarily. • The vehicle is stopped on a slippery road. • The vehicle was stopped while the steering wheel was turned all the way to the left or right. • The vehicle is being turned on a parking lot turntable. If this occurs, the brake auto hold systemwill return to the normal operation if you depress the accelerator pedal and the vehi- cle starts moving again.
 If the following operation is performed, the brake auto hold will be deactivated and thebrake auto hold indicator light in the instru- ment cluster goes off. • When shifting the selector lever to the “P” (PARK) or “R” (REVERSE) position with depressing the brake pedal. • When the Electric parking brake is applied by using the Electric parking brake switch.
 While the vehicle is held stationary with the brake auto hold system, the Electric parking brake will be automatically applied under the following conditions, and a buzzer will sound and the message will appear on theinformation screen in the multi-information display. • After approximately 10 minutes has elapsed with applying the brake auto hold system. • When the driver’s seat belt is unfastened. • When the driver’s door is opened.• When the ignition switch is turned to the “OFF” position or the operation mode isput in OFF. • When the system detects the vehicle mov- ing down a slope. If the Electric parking brake cannot be applied automatically due to the system mal-function, the message will appear on the information screen in the multi-information display. Depress the brake pedal.NOTE
 If the ignition switch is turned to the “OFF” position or the operation mode is put in OFF with the selector lever in any position other than “P” (PARK) position, the message may appear on the information screen in themulti-information display. If the message appears, shift the selector lever to the “P” (PARK) position whiledepressing the brake pedal.
To start the vehicle

NOTE
BK0252700US.bo
ok 76 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Forward Collision Mitigation sy
stem (FCM) (if so equipped)
5-104 Features and controls
5
N00577800074
This switch is used to turn on or off the FCM, and also to select the
distance which will trig-
ger the forward collision warning function.
Every time the ignition switch is turned to the “ON” position or the operation mode is put in ON, the FCM will automatically be turnedon. To turn off the FCM, press and hold the FCM ON/OFF switch. The following message willappear on the information screen of the multi- information display and the indicator will come on in the instrument cluster. To turn on the FCM again, press the FCM ON/OFF switch. The indicator on the instrument cluster will go off, and a current distance mode for the fo
rward collision warn-
ing will be shown in the information screenof the multi-information display.
The distance to the vehicle ahead which trig- gers the forward collision warnings can be selected from three levels (FAR, MIDDLE orNEAR). To change the distance mode, push the FCM ON/OFF switch. Every time the switch ispushed, the distance mode will be switched.The selected distance mode is shown on the information screen of the multi-information display. Distance mode: FAR Distance mode: MIDDLE
FCM ON/OFF switch

To turn on/off the FCM

To change forward collision warn- ing distance

BK0252700US.book
104 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Forward Collision Mitigation sy
stem (FCM) (if so equipped) Features and controls 5-105
5
Distance mode: NEAR
N00594800024
If there is a malfunction in the system, a warning will appear on the information screen of the multi-information displaydepending on the situation.
N00594900025
When the FCM system determines that it can-not detect objects properly, the FCM willbecome inoperative. This can occur when:
 Foreign objects, such as dirt, snow, ice, mist or dew condensation adhere to the windshield of the sensor portion.  In adverse weather
conditions, such as
rain, snow, sand storms, etc.  A front vehicle or an oncoming vehicle is splashing water, snow or dirt. Driving on a nonbusy road with a few vehicles and obstacles in front.
The following message will appear on the information screen of the multi-information display and the indicator will come on in the instrument cluster. or When the sensor performance returns, the FCM functions will resume operation. If the message continues showing, there is a possibility that the sensor has a malfunction.Contact an authorized Mitsubishi Motorsdealer for inspection of the sensor.
N00595100024
If the system becomes temporarily unavail-able for some reason, the following messagewill appear on the information screen of the multi-information display, the indicator will come on in the instrument cluster, and the FCM will automatically be turned off. If the message continues showing, there is a possibility that the FCM has a malfunction. Contact an authorized Mitsubishi Motorsdealer for inspection of the system.
NOTE
 Actual distance which triggers the forward collision warnings will vary depending on your vehicle speed and the front vehiclespeed. The distance will become longer when the vehicle speeds are higher.  The distance which will trigger the FCM braking function cannot be adjusted.
System problem warning

When the camera and radar can- not detect accurately

NOTE
 The “DRIVER ASSISTANCE CAMERA BLOCKED” message may temporarily appear on the information screen when the sensor cannot detect a vehicle, a pedestrian or an object within range. This is not a mal-function. When a vehicle or an object comes within range, the FCM function will resume and the message will go off.
When the system cannot operate temporarily

BK0252700US.book
105 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Forward Collision Mitigation sy
stem (FCM) (if so equipped)
5-106 Features and controls
5
N00595200025
If the system becomes temporarily unavail- able due to the high or
low temperature of the
sensor, the following message will appear on the information screen of the multi-informa- tion display, the indicator will come on in the instrument cluster, and the FCM will automatically be turned off. After the temperature of the sensor has been in range, the system will automatically returnto operation. If the message continues showing, there is a possibility that the FCM has a malfunction. Contact an authorized Mitsubishi Motorsdealer for inspection of the sensor.
N00595300026
If the FCM detects a malfunction in the sys-tem, either of the following messages willappear on the information screen of the multi- information display, the indicator will come on in the instrument cluster, and the FCM will automatically be turned off. If the message remains even after the ignition switch is turned to the “OFF” position and then turned back to “ON” position or the operation mode is put in OFF, and then turnedback to “ON”, please contact your authorized Mitsubishi Motors dealer. If the display keeps showing the message, there is a possibility that the FCM has a mal-function. Contact an authorized Mitsubishi Motors dealer.
N00593400052
The sensor (A) is located inside the wind- shield and front bumper
as shown in the illus-
tration.The sensor is shared in the following sys- tems:  Forward Collision Mitigation system (FCM)
*
 Lane Departure Warning (LDW)
*
 Automatic High Beam (AHB)
*
 Adaptive Cruise Control System (ACC)
*
* : if so equipped
Sensor is too hot or cold

FCM deactivation due to fault

NOTE
If the sensor or its surrounding area becomes extremely hot (after prolonged exposure to direct sunlight, for example), the “FCM SERVICE REQUIRED” message may appear.After the temperature of the sensor or its sur- rounding area has been in range, if the mes- sage remains even after restarting the engine,please contact an authorized Mitsubishi Motors dealer.
Handling of the sensor
