Multi Around Monitor (if so equipped) 5-132 Features and controls
5
N00587400031
Wide-angle view of the area behind the vehi- cle is displayed using the entire screen. Two different types of views are displayed on the left side and the right side respectively. Views of the surroundings of the vehicle and behind the vehicle are displayed.
Views of the passenger’s side of the vehicle and behind the vehicle are displayed.
Views of the surroundings of the vehicle and the front of the vehicle are displayed. Views of the passenger’s side of the vehicle and the front of the vehicle are displayed.
Types of views of the Multi Around Monitor

Wide-rear-view mode

Bird’s eye-view/Rear-view mode

Side-view/Rear-view mode

Bird’s eye-view/Front-view mode

Side-view/Front-view mode

BK0252700US.book
132 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Multi Around Monitor (if so equipped)
Features and controls 5-133
5
N00587500058
The Multi Around Monitor can only be used when the operation mode is put in ON. When you move the selector lever to the “R” (REVERSE) position, the wide-rear-view isdisplayed on the Smartphone Link Display Audio. When you move the selector lever to any other position, the display disappears.
When the camera switch (A) is pressed, the bird’s eye-view/front-view is displayed. If the camera switch is pressed, the mode of Multi Around Monitor is switched as follows.
CAUTION The camera uses a special lens. As a result, images and distances shown on the screen are not exact.NOTE
 Because the cameras have a special lens, the lines on the ground between parking spacesmay not look parallel on the screen.  Under certain circumstances, it may become difficult to see an image on the screen, even when the system is functioning correctly. • In a dark area, such as at night. • When water drops or condensation are on the lens. • When sun light or headlights shine directly into the lens. • When a fluorescent light shines directly into the lens.
 If the atmospheric temperature is extremely hot or extremely cold, the camera images may not be clear. There is no abnormality.  If a wireless device is installed near the cam- era, the camera images may cause electrical system interference and the system may stopfunctioning properly.
How to use the Multi Around Monitor

Operation with the selector lever

NOTE
 The passenger’s side screen can be switched to the side-view by pressing the cameraswitch on the steering wheel.NOTE
Operation with the switch

NOTE
 If there is no operation for 3 minutes after the Multi Around Monitor is displayed bypressing the switch with the selector lever in other than “R” (REVERSE), the display dis- appears.
Switching of the screen (Selector lever is “R” (REVERSE))

BK0252700US.book
133 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Multi Around Monitor (if so equipped) 5-134 Features and controls
5
Wide-rear-view mode
 Bird’s eye-
view/Rear-view mode
 Side-view/Rear-
view mode If the camera switch is pressed, the mode of Multi Around Monitor is switched, Wide-rear-view mode
 Bird’s eye-view/Front-
view mode
 Side-view/Front-view mode

OFF
N00587600046
In any mode other than the Bird’s eye-view mode, the lines in the screen give the follow-ing information. Use them only as a guide. Reference lines for the distance and the vehi- cle width and upper surface of the rear bum-per (A) are displayed on the screen.  The Red line (B) indicates approximately 20 inches (50 cm) behind the rear edge of the rear bumper. The Two Green lines (C) indicate the approximately vehicle width.  The Orange line (D) indicates an expected course when the vehicle is reserved with the steering wheel turned. It disappears when the steering wheel is in the neutralposition.  The approximate distance from the vehi- cle body is as follows:
Reference lines for the distance and the vehi- cle width and upper surface of the front bum- per (A) are displayed on the screen.
Switching of the screen (Selector lever is other than “R” (REVERSE))

NOTE
 When you move the selector lever to the “R” (REVERSE) position with the front-viewmode displayed on the driver’s side screen, the driver’s side screen switches to the rear- view mode. When you shift the selector leverto any other position, the driver’s side screen switches to the front-view mode.  When the camera switch is pressed at the vehicle speed of approximately 6 mph (10 km/h) or higher, only the side-view can be displayed on the passenger’s side screen.  The front-view will not be displayed when the vehicle speed exceeds approximately 6 mph (10 km/h).  The display of the view may be delayed dur- ing switching of the screen.
How to read the screen

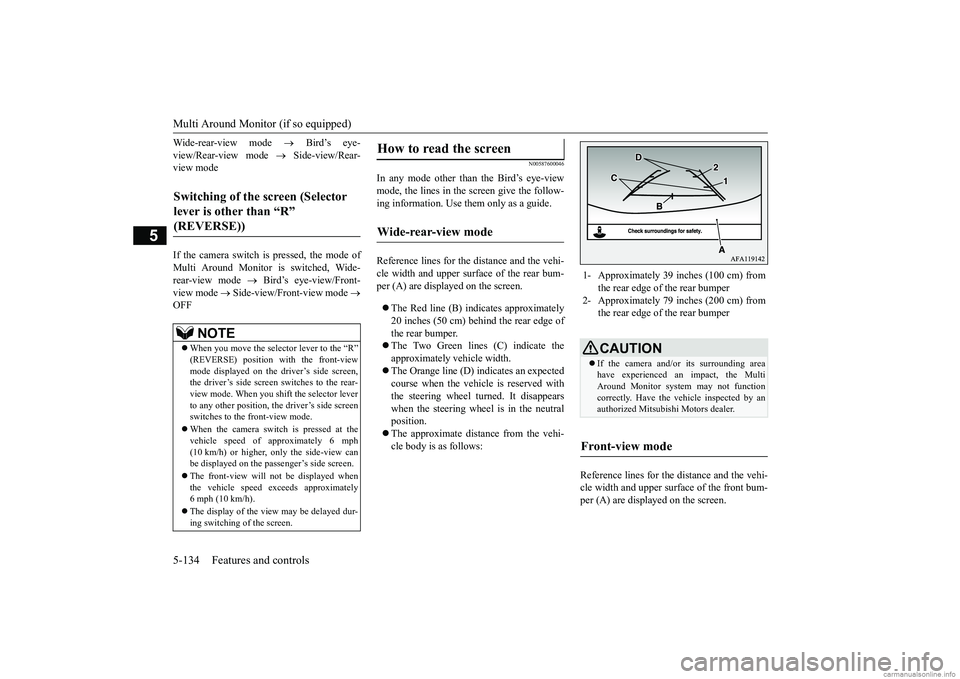

Wide-rear-view mode

1- Approximately 39 inches (100 cm) from
the rear edge of the rear bumper
2- Approximately 79 inches (200 cm) from
the rear edge of the rear bumperCAUTION If the camera and/or its surrounding area have experienced an impact, the MultiAround Monitor system may not function correctly. Have the vehicle inspected by an authorized Mitsubishi Motors dealer.
Front-view mode

BK0252700US.book
134 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Multi Around Monitor (if so equipped)
Features and controls 5-135
5
 The Red line (B) indicates approximately 20 inches (50 cm) from the front edge of the front bumper.  The Two Green lines (C) indicate the approximate vehicle width.  The Orange lines (D) indicates an expected course when the vehicle movesforward with the steering wheel turned. It disappears when the steering wheel is in the neutral position. The approximate distance from the vehi- cle body is as follows:
N00587700034
Reference lines for the distance and the vehi-cle width and upper surface of the rear bum-per (A) are displayed on the screen.  The Red line (B) indicates approximately 20 inches (50 cm) behind the rear edge of the rear bumper. The Two Green lines (C) indicate the approximately vehicle width.  The Orange line (D) indicates an expected course when the vehicle is reserved with the steering wheel turned. It disappears when the steering wheel is in the neutralposition.  The approximate distance from the vehi- cle body is as follows:
1- Approximately 39 inches (100 cm) from
the front edge of the front bumperNOTE
 When the expected course lines are dis- played in the front-view, the expected courselines are also displayed in the bird’s eye- view (Front: solid line, Rear: broken line).
Rear-view mode

NOTE
1- Approximately 39 inches (100 cm)
from the rear edge of the rear bumper
2- Approximately 79 inches (200 cm)
from the rear edge of the rear bumperCAUTION The rear-view camera uses a wide-angle lens. As a result, images and distances shownon the screen are not exact. Never rely solely on the reference lines. The reference lines indicating distance and vehi- cle width are based on a level, flat road sur- face.Actual distance may be different from dis- tance indicated by the lines on the screen, depending on the loading condition of thevehicle and road surface condition. Also, your vehicle widt
h indicated by the
reference lines may be different from theactual vehicle width.
BK0252700US.book
135 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Multi Around Monitor (if so equipped)
Features and controls 5-137
5
N00587900036
Reference lines for the vehicle width and the front end of the vehicle are displayed on thescreen.
• When there is an object behind the vehicle that has upper sections projecting in the direction of the vehicle, the reference lines on the screen will indicate that point A is the farthest point and point B is the closestpoint to the vehicle. In reality, point A and B are actually the same distance from the vehicle, and point C is farther off than pointA and B.CAUTION
NOTE
 When the expected course lines are dis- played in the rear-view, the expected course lines are also displayed in the bird’s eye- view (Front: broken line, Rear: solid line).

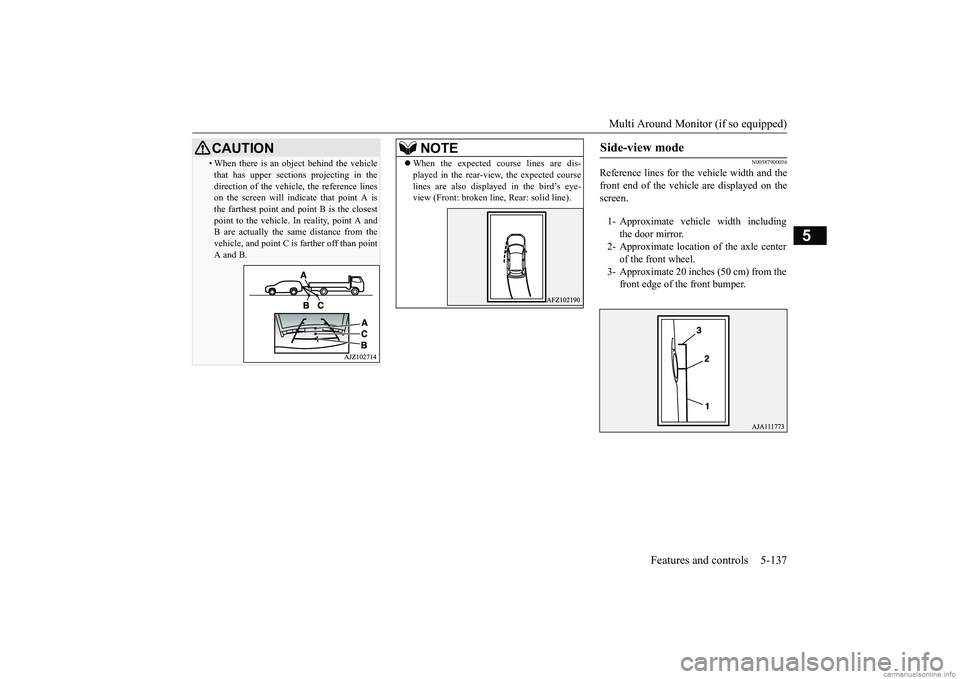

Side-view mode

1- Approximate vehicle width including
the door mirror.
2- Approximate location of the axle center
of the front wheel.
3- Approximate 20 inches (50 cm) from the
front edge of the front bumper.
BK0252700US.book
137 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Multi Around Monitor (if so equipped) 5-138 Features and controls
5
N00588000034
An overhead view in which the vehicle is looked down is displayed so that you can eas-ily identify the location of your vehicle and the course to enter the parking space.
N00594200028
It is possible to change the vehicle icon colorin the bird’s eye-view. 1. Stop the vehicle in a safe place.
Bird’s eye-view mode

CAUTION The bird’s eye-view is a composite image from images captured by the “Front-view camera”, “Side-view cameras (right and left)” and “Rear-view camera”. As a result, objects may appear to be farther away thanthey actually are. Also, an object may appear to be in a direction a
nd/or location different
from actual. In addition, blind spots exist inproximity of the vehicle. Even if the screen indicates that there is a space between your vehicle and an object,there may actually be less or no space. Always check visually behind and all around your vehicle. The view at a section near each corner on the Bird's eye-view is combined from the edgeof the view captured by each camera. As result, an object indicated in the section may be unclear, and it may disappear/reappear onthe screen.NOTE
 In the Bird’s eye-view mode, since the views captured by the four cameras, “Front-view camera”, “Side-view cameras (right and left)” and “Rear-view camera” are processedbased on a level flat road surface, an image may be displayed as follows: • An object appears to have fallen down and looks longer or larger.
• An object having a height from the roadsurface may seem to appear from the joint of the view composition processing regions.
 The brightness of the views from each cam- era may vary depending on the illuminance conditions.  An object above the camera is not displayed.  The object displayed in the Front-view mode or the Rear-view mode may not be displayed in the Bird’s eye-view mode.  The view in the Bird’s eye-view mode may be displaced from its
true position when the
mounting location and angle of each camera are changed.  The lines on the road may appear to be dis- placed or bent at the joint of the views.
To change the vehicle icon color in the bird’s eye-view

CAUTION For reasons of safety, do not operate the switch while driving.NOTE
BK0252700US.book
138 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Instrument cluster
Features and controls 5-139
5
2. Press the switch (A) to display the bird’s eye-view/front-view. 3. Press and hold down the switch (A) until the vehicle icon blinks to enter the selec- tion mode of the vehicle icon color in the bird’s eye-view.4. Press the switch until the desired color appears on the display. Each time you press the switch, the vehi-cle icon color in the bird’s eye-view willchange to the next one. 5. When it is changed to your desired color, press and hold the switch (A) for a fewseconds. This completes the setting.
N00519001444
N00519101272
The speedometer shows the vehicle speed in miles per hour (mph) or kilometers per hour(km/h).
NOTE
 When the selection mode is in the following situations, the vehicle icon color does not change.
• When you place the gearshift lever or theselector lever in the “R” (REVERSE) posi- tion. • When you do not operate anything for 30 seconds. • The operation mode is put in OFF.
Instrument cluster 1- Tachometer
 P.5-140
2- Multi-information display
 P.5-140 Information screen display list

P.5-161
3- Speedometer
P.5-139
4- Rheostat illumination button

P.5-140NOTE
Speedometer Type AType B
