2018 MITSUBISHI ASX dimensions

ExteriorE001005077901. Electric window control p. 3-392. Outside rear-view mirror p. 6-10 Side turn-signal lamps* p. 5-57, 10-26, 10-32
3. Fuel tank filler p. 2-03
4. Wheel lip molding* For details, refer to Vehicle dimensions p. 11-04.
5. Position lamps (Type 1)* p. 5-50, 10-26, 10-30
6. Headlamps, low beam p. 5-50, 10-26, 10-28, 10-29
7. Front fog lamps* p. 5-58, 10-26, 10-32
8. Daytime running lamps* p. 5-53, 10-26, 10-33 Position lamps (Type 2)* p. 5-53, 10-26, 10-33
9. Headlamps, high-beam p. 5-50, 10-26, 10-29
10. Front turn-signal lamps p. 5-57, 10-26, 10-31
11. Bonnet p. 10-03
12. Windscreen wipers p. 5-59
13. Sensor* [for Forward Collision Mitigation system (FCM) and Lane Departure Warning (LDW)] p. 6-59, 6-68
Rain sensor* p. 5-60
14. Side turn-signal lamps* p. 5-57, 10-26, 10-32
Exterior
1-12OGAE18E1Overview1

Vehicle labeling................................................................................ 11-02
Vehicle dimensions........................................................................... 11-04
Vehicle performance......................................................................... 11-06 Vehicle weight.................................................................................. 11-07
Engine specifications........................................................................ 11-10
Electrical system............................................................................... 11-11
Tyres and wheels...............................................................................11-12
Fuel consumption.............................................................................. 11-12
Refill capacities................................................................................. 11-15Specifications
OGAE18E111

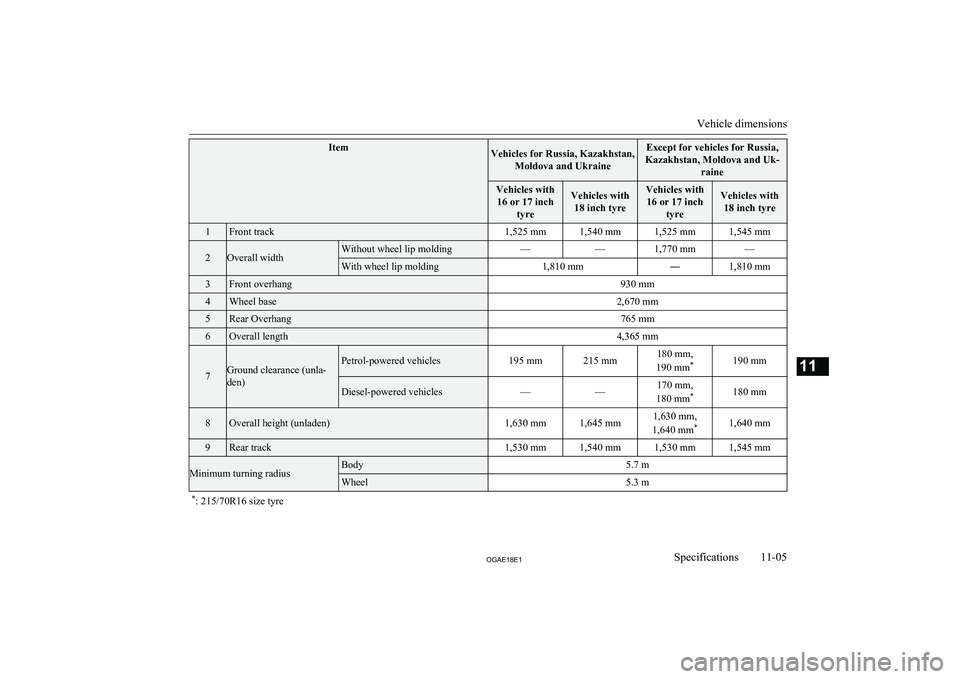

Vehicle dimensionsE01100204995
Vehicle dimensions
11-04OGAE18E1Specifications11Except for vehicles equipped with wheel lip moldings
Vehicles equipped with wheel lip moldings

ItemVehicles for Russia, Kazakhstan,Moldova and UkraineExcept for vehicles for Russia,
Kazakhstan, Moldova and Uk- raineVehicles with16 or 17 inch tyreVehicles with18 inch tyreVehicles with16 or 17 inch tyreVehicles with18 inch tyre1Front track1,525 mm1,540 mm1,525 mm1,545 mm2Overall widthWithout wheel lip molding——1,770 mm—With wheel lip molding1,810 mm―1,810 mm3Front overhang930 mm4Wheel base2,670 mm5Rear Overhang765 mm6Overall length4,365 mm
7Ground clearance (unla-
den)
Petrol-powered vehicles195 mm215 mm180 mm,
190 mm *190 mmDiesel-powered vehicles——170 mm,
180 mm *180 mm8Overall height (unladen)1,630 mm1,645 mm1,630 mm,
1,640 mm *1,640 mm9Rear track1,530 mm1,540 mm1,530 mm1,545 mmMinimum turning radiusBody5.7 mWheel5.3 m*
: 215/70R16 size tyre
Vehicle dimensions
11-05OGAE18E1Specifications11

4
4-wheel drive operation.....................................6-41A
Accessory (Installation).....................................2-05
Accessory socket............................................... 7-72
