Instrument cluster
RX450h_RX450hL _U_OM48F85U■
Clock (on the multi-information display) ( → P. 96)
Vehicles with a navigation system
The following clock setting can be changed: 
Vehicles with a Lexus Display Audio system
The following clock settings can be changed: Press the / switch to select an it em and then press the / switch to
change the setting or adjust the time. Item Settings Details
Display mode 12-hour display
Select to set the display mode of the
clock.
24-hour display
Item Settings Details
Display mode 12-hour display
Select to set the display mode of the
clock.
24-hour display
Adjust time Select to adjust the hour/minute.

118 2. Instrument cluster
RX450h_RX450hL _U_OM48F85UThe head-up display is linked to the meters and navigation system (if equipped)
and projects a variety of information in front of the driver, such as the current
vehicle speed and route guid ance to a set destination.
Navigation system-linked display area (if equipped) ( → P. 121)Displays the following items, which are linked to the navigation system:
•Street name
• Route guidance to destination
•Compass
Message display area ( → P. 120)Displays the following items:
• Warning/Message (if equipped)
• Audio system operation status
• Outside temperature
/ icon ( → P. 120)
Driving assist system status display area (if equipped) Displays the operational stat us of the following systems:
• Dynamic radar cruise control with full-speed range ( → P. 306)
• LKA (Lane-Keeping Assist) ( → P. 297)
• Intuitive parking assist ( → P. 332)
• Intelligent Clearance Sonar (ICS) ( → P. 342)
Displayed content is the same as that disp layed on the multi-information display. For
details, refer to the explanations of each system.Head-up display ∗
∗ : If equippedSummary of functions
1
2
3
4

1192. Instrument cluster
2
Instrument cluster
RX450h_RX450hL _U_OM48F85UVehicle speed display area Displays the following items:
• Vehicle speed
• Speed limit (vehicles with a navigation system)
Hybrid System Indicator/Tachometer ( → P. 121)
Shift position display ( → P. 246)
HUD (Head-up display) switch ( → P. 119)
◆ Enabling/Disabling the head-up display
Press the HUD (Head-up display)
switch.
◆ Changing settings of the head-up display
Select on the multi-information display ( → P. 108) to change the following
settings: ■
Display brightness/position
Select to adjust the brightness and position of the head-up display. ■
Display content
Select to enable/disable the following items: • Route guidance to destination (if equipped)
• Driving assist system status (if equipped)
• Compass (if equipped)
• Audio system operation status
■
Hybrid System Indicator/Tachometer
Select to display Hybrid System Indicator/tachometer/no content. Using the head-up display 5
6
7
8

1212. Instrument cluster
2
Instrument cluster
RX450h_RX450hL _U_OM48F85UDisplays the following items which ar e linked to the navigation system:■
Street name
The name of the street that the vehicle is currently driving on is displayed on
the bottom of the display area.
When the navigation system is performing route guidance, the name of the
next street will be displayed on the top of the display area.■
Route guidance to destination
Displayed when the navigation system is performing route guidance. When
approaching an intersecti on, an arrow will be displayed to indicate the sug-
gested direction of travel. ■
Compass
Displays the direction of travel. ■
Hybrid System Indicator
Charge area
Hybrid Eco area
Eco area
Power area Displayed content is the same as that
displayed on the meter (Hybrid Sys-
tem Indicator). For details, refer to
P. 99.■
Tachometer
Displays the engine speed in revolutions per minute.Navigation system-linked display area (if equipped)
Hybrid System Indicator/Tachometer 1
2
3
4

122 2. Instrument cluster
RX450h_RX450hL _U_OM48F85U■
Head-up display
The head-up display may seem dark or hard to see when viewed through sunglasses,
especially pola rized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.■
When the 12-volt battery is disconnected
The customize settings of the head-up display will be reset.■
Display brightness
The brightness of the head-up display can be adjusted on of the multi-information
display. Also, it is automatically adju sted according to th e ambient brightness.■
Enabling/disabling of the head-up display
If the head-up display is disabled, it will remain disabled when the power switch is turned
off then back to ON mode. ■
Automatic adjustment of the head-up display position
A desired head-up display position can be entered to memory and recalled automati-
cally by the driving position memory system. ( → P. 181)■
Street name display (vehicle s with a navigation system)
Only street names which are included in the map data will be displayed.
WARNING ■
Before using the head-up display ●
Check that the position and brightness of the head-up display image does not inter-
fere with safe driving. Inco rrect adjustment of the image’s position or brightness may
obstruct the driver’s view and lead to an acc ident, resulting in de ath or serious injury.●
Do not continuously look at the head-up di splay while driving as you may fail to see
pedestrians, objects on the road, etc. ahead of the vehicle. ■
Caution for changing settings of the head-up display
As the hybrid system needs to be operating while changing the settings of the head-up
display, ensure that the vehicle is parked in a place with adequate ventilation. In a
closed area such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious health hazard.

124 2. Instrument cluster
RX450h_RX450hL _U_OM48F85UEnergy monitor/consumption screen You can view the status of your hybrid system on the multi-information display
and the audio system screen.
Vehicles with a navigation system (1 2.3-inch display): The energy monitor or
consumption screen can be displayed and operated on the side display.
Multi-information display
Audio system screen
Meter control switches
“MENU” button
Lexus Display Audio controller
“MENU” button
Remote Touch knob
“ENTER” button
* 1
: Vehicles with a Lexus Display Audio sys-
tem
* 2
: Vehicles with a navigation system 1
2
3
4
5
6
7
8
* 1
* 2

1252. Instrument cluster
2
Instrument cluster
RX450h_RX450hL _U_OM48F85U 
Lexus Display Audio screen
Press the “MENU” button on the Lexus
Display Audio controller, then select
“Info” on the “Menu” screen, and then
select “Fuel Consumption”. If the “Energy Monitor” screen does not
appear, move the controller to the right
and select “Energy”. 
Navigation system screen
Press the “MENU” button on the
Remote Touch, then select on the
“Menu” screen, and then select “Fuel
Consumption”. If the “Trip Information” or “Past Record”
screen is displayed, select “Energy”. 

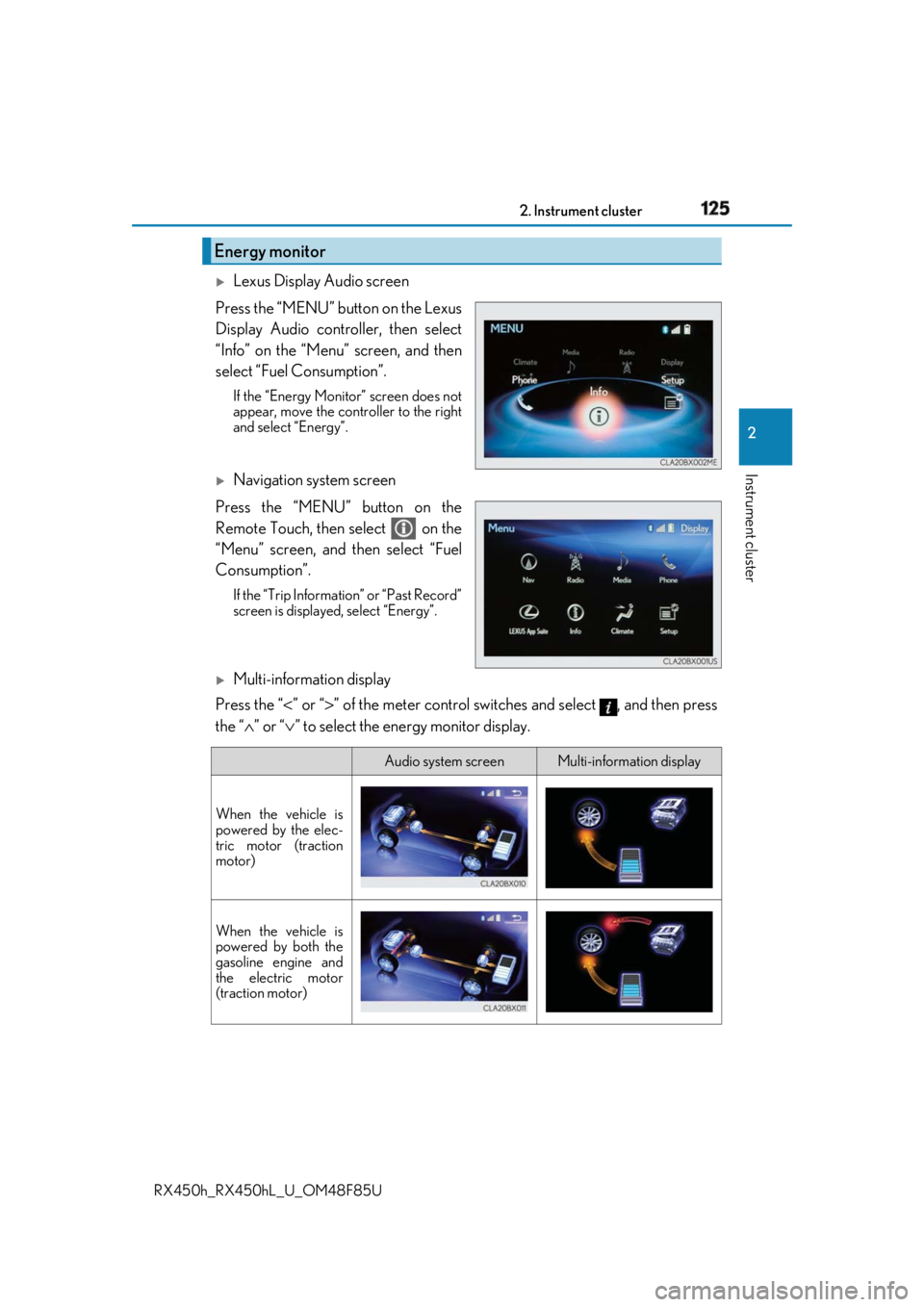

Multi-information display
Press the “ < ” or “ > ” of the meter control switches and select , and then press
the “ ∧ ” or “ ∨ ” to select the energy monitor display.Energy monitor
Audio system screen Multi-information display
When the vehicle is
powered by the elec-
tric motor (traction
motor)
When the vehicle is
powered by both the
gasoline engine and
the electric motor
(traction motor)

1272. Instrument cluster
2
Instrument cluster
RX450h_RX450hL _U_OM48F85U■
Trip information 
Lexus Display Audio screen
Press the “MENU” button on the Lexus Display Audio controller, then select
“Info” on the “Menu” screen, and then select “Fuel Consumption”.If the “Trip Information” screen does no t appear, move the co ntroller to the right
and select “Trip Information”.
Fuel consumption in the past 15
minutes
Current fuel consumption
Regenerated energy in the past
15 minutes
One symbol indicates 50 Wh.
Up to 5 symbols are shown.
Average vehicle speed since the hybrid system was started.
Elapsed time since the hybrid system was started.
Cruising range ( → P. 129)
Navigation system screen
Press the “MENU” button on the Remo te Touch, then select on the
“Menu” screen, and then se lect “Fuel Consumption”.If the “Energy Monitor” or “Past Record” screen is displayed, select “Trip Informa-
tion”.
Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Regenerated energy in the past
15 minutes
One symbol indicates 50 Wh.
Up to 5 symbols are shown.
Average vehicle speed since the hybrid system was started.
Elapsed time since the hybrid system was started.
Cruising range ( → P. 129)Fuel consumption 1
2
3
4
5
6
1
2
3
4
5
