448 8-1. Specifications
LS500_OM_OM50F54U_(U) 8-1.Specifications
*1
: Unladen vehicles *2
: Without electronically modulated air suspension *3
: With electronically mo dulated air suspension*4
:Except F SPORT models *5
:F SPORT models
■
Vehicle identification number
The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifica-
tion number for your Lexus. It is used in
registering the ownership of your vehi-
cle.
This number is stamped on the top left of the instrument panel.Maintenance data (fue l, oil level, etc.)
Dimensions and weight Overall length 206.1 in. (5235 mm)
Overall width 74.8 in. (1900 mm)
Overall height *1
2WD models 57.5 in. (1460 mm) *2
57.1 in. (1450 mm) *3
AWD models 57.9 in. (1470 mm) *2
57.5 in. (1460 mm) *3
Wheelbase 123.0 in. (3125 mm)
Tread *1
Front 2WD models 64.2 in. (1630 mm)
AWD models 64.2 in. (1630 mm) *2
64.4 in. (1635 mm) *3
Rear 64.4 in. (1635 mm) *4
63.6 in. (1615 mm) *5
Vehicle capacity weight
(Occupants + luggage) 870 lb. (395 kg)
Vehicle identification

4498-1. Specifications
LS500_OM_OM50F54U_(U) 8
Vehicle specifications This number is also stamped under the
right-hand front seat.
This number is also on the Certification
Label. ■

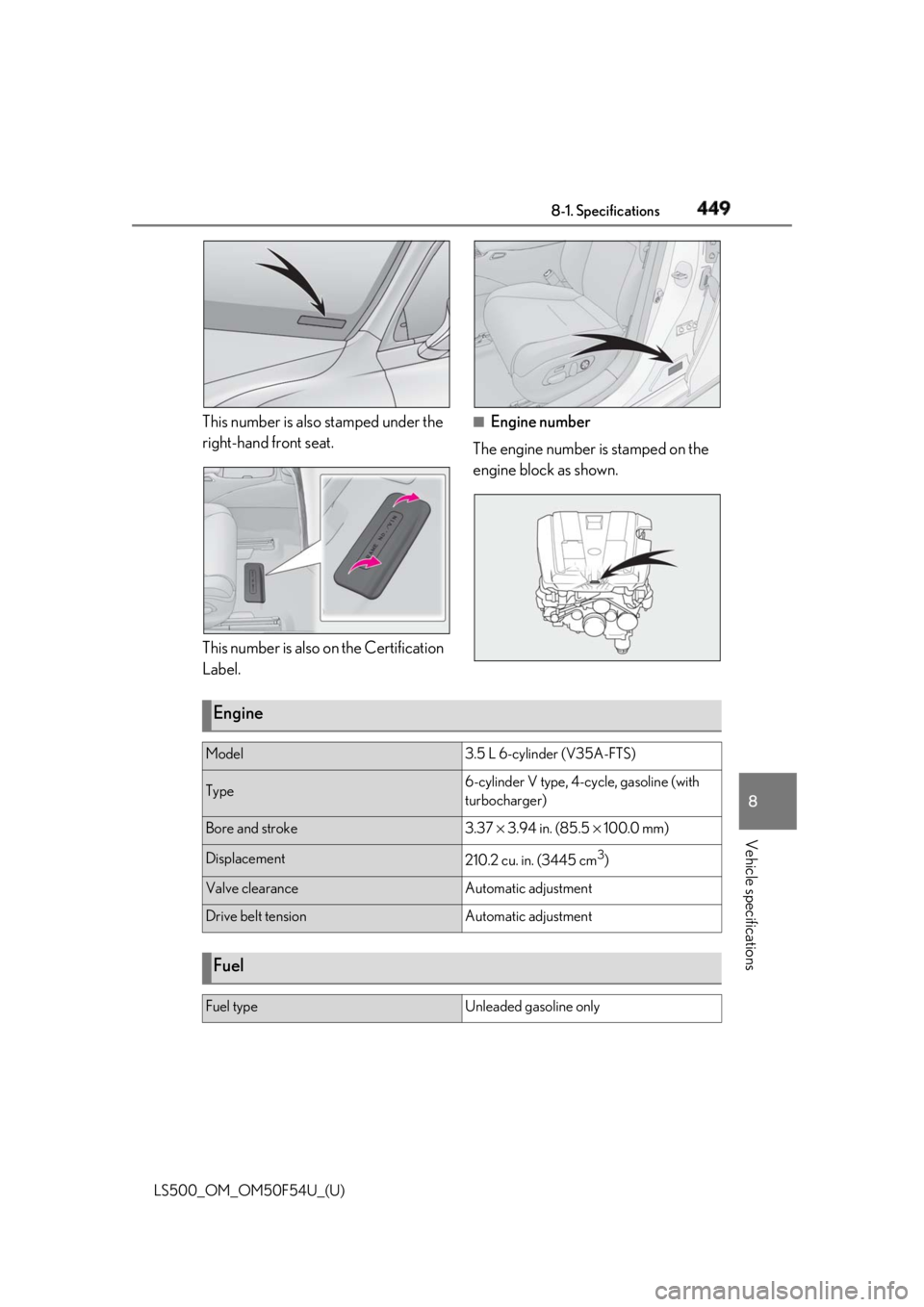

Engine number
The engine number is stamped on the
engine block as shown.
Engine Model 3.5 L 6-cylinder (V35A-FTS)
Type 6-cylinder V type, 4-cycle, gasoline (with
turbocharger)
Bore and stroke 3.37 × 3.94 in. (85.5 × 100.0 mm)
Displacement
210.2 cu. in. (3445 cm 3
)
Valve clearance Automatic adjustment
Drive belt tension Automatic adjustment
Fuel Fuel type Unleaded gasoline only

450 8-1. Specifications
LS500_OM_OM50F54U_(U) ■
Oil capacity (Drain and refill [Ref-
erence *
]) *
: The engine oil capacity is a reference
quantity to be used when changing the
engine oil. Warm up and turn off the
engine, wait more than 5 minutes, and
check the oil level on the dipstick.■
Engine oil selection
“Toyota Genuine Motor Oil” is used in
your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil”
or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade
engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good starting
in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20 at the next oil change.
Recommended viscosity (SAE):
Outside temperature
Oil viscosity (0W-20 is explained here
as an example):
• The 0W in 0W-20 indicates the
characteristic of the oil which allows
cold startability. Oils with a lower
value before the W allow for easier
starting of the engine in cold
weather.
• The 20 in 0W-20 indicates the vis-
cosity characteristic of the oil when
the oil is at high temperature. An oil
with a higher viscosity (one with a
higher value) may be better suited if
the vehicle is operated at high
speeds, or under extreme load con-
ditions.
How to read oil container label:
The International Lubricant Specifica-
tion Advisory Committee (ILSAC)
Certification Mark is added to some oil Octane Rating 91 (Research Octane Number 96) or higher
Fuel tank capacity
(Reference) 21.7 gal. (82.0 L, 18.0 Imp. gal.)
Lubrication system With filter 
2WD models
6.7 qt. (6.3 L, 5.5 Imp. qt.) 
AWD models
7.5 qt. (7.1 L, 6.2 Imp. qt.)
Without fil-
ter 
2WD models
6.1 qt. (5.8 L, 5.1 Imp. qt.) 
AWD models
7.0 qt. (6.6 L, 5.8 Imp. qt.)
A

4518-1. Specifications
LS500_OM_OM50F54U_(U) 8
Vehicle specifications containers to help you select the oil you
should use.

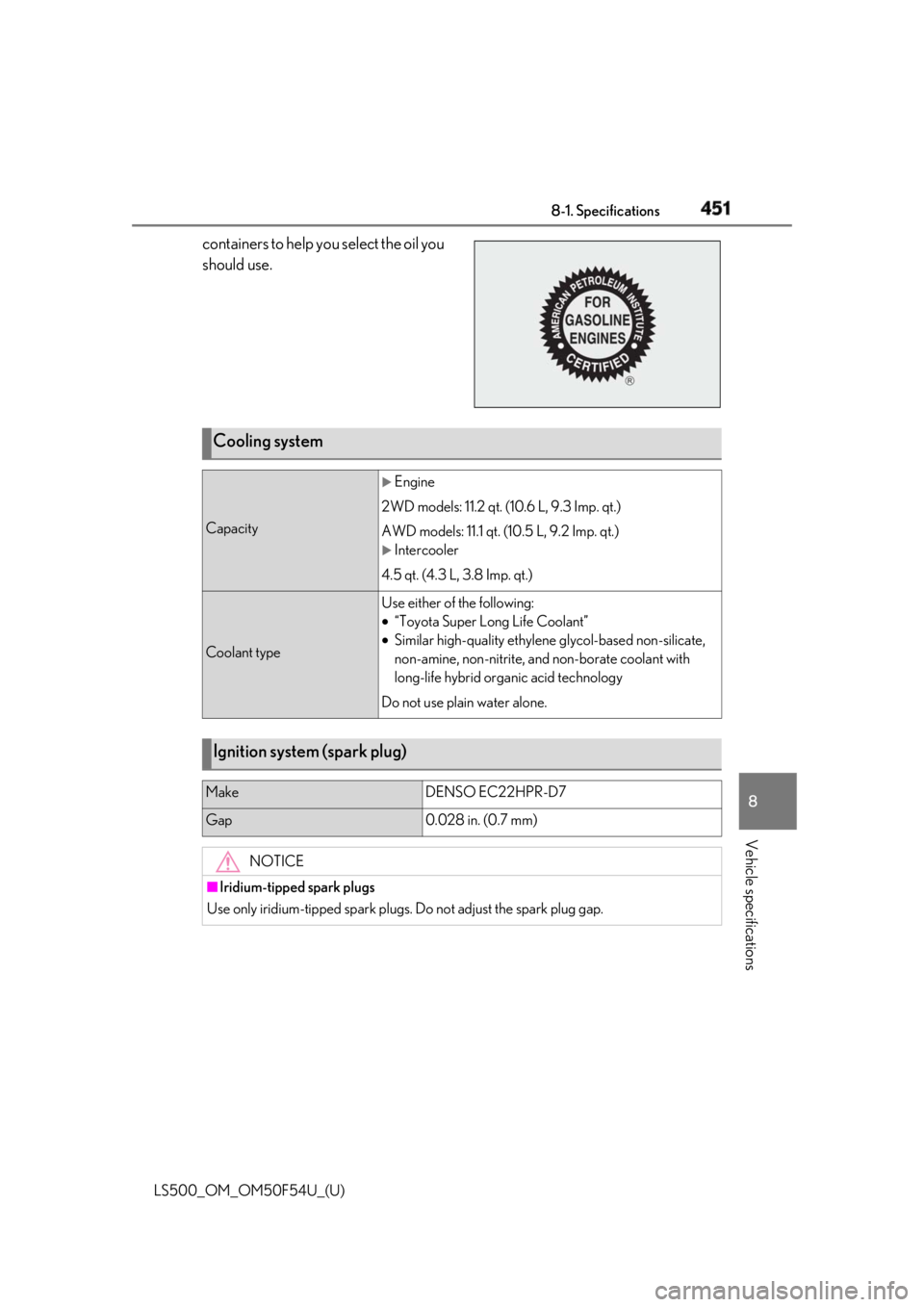

Cooling system Capacity 
Engine
2WD models: 11.2 qt. (10.6 L, 9.3 Imp. qt.)
AWD models: 11.1 qt. (10.5 L, 9.2 Imp. qt.) 
Intercooler
4.5 qt. (4.3 L, 3.8 Imp. qt.)
Coolant type Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate,
non-amine, non-nitrite, and non-borate coolant with
long-life hybrid orga nic acid technology
Do not use plain water alone.
Ignition system (spark plug) Make DENSO EC22HPR-D7
Gap 0.028 in. (0.7 mm)
NOTICE
■
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

452 8-1. Specifications
LS500_OM_OM50F54U_(U) *
: The fluid capacity is a reference quantity.
If replacement is necessary, contact your Lexus dealer.
*
: Your Lexus vehicle is filled with Toyota ge nuine gear oil at the factory. Use Lexus
approved Toyota genuine gear oil or an equi valent of matching qu ality to satisfy the
above specification. Plea se contact your Lexus dealer for further details.
*
: Your Lexus vehicle is filled with “Toyota Genu ine Differential Gear Oil” at the factory.
Use Lexus approved “Toyota Ge nuine Differential Gear Oil” or an equivalent oil of Electrical system (battery) Specific gravity reading at 68°F
(20°C): 12.3 V or higher
(Turn the engine switch off and turn on the head-
lights for 20 to 30 seconds.)
Charging rates
Quick charge
Slow charge 15 A max.
5 A max.
Automatic transmission Fluid capacity *
9.5 qt. (9.0 L, 7.9 Imp. qt.)
Fluid type Toyota Genuine ATF WS
NOTICE■
Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may ca use deterioration in
shift quality, locking up of your transmission accompanied by vibration, and ultimately
damage the transmission of your vehicle.
Transfer (AWD models) Oil capacity 0.74 qt. (0.70 L, 0.62 Imp. qt.)
Oil type and viscosity *
Toyota Genuine Transfer gear oil LL 80 or equivalent
Front differential (AWD models) Oil capacity 0.69 qt. (0.65 L, 0.57 Imp. qt.)
Oil type and viscosity *
Toyota Genuine Differential gear oil LT 75W-85
GL-5 or equivalent

4538-1. Specifications
LS500_OM_OM50F54U_(U) 8
Vehicle specifications matching quality to satisfy th e above specification. Please contact your Lexus dealer for
further details. 
2WD models 
AWD models *
: Your Lexus vehicle is filled with “Toyota Genu ine Differential Gear Oil” at the factory.
Use Lexus approved “Toyota Ge nuine Differential Gear Oil” or an equivalent oil of
matching quality to satisfy th e above specification. Please contact your Lexus dealer for
further details.
*1
: Minimum pedal clearance when depressed with a force of 11 2 lbf (500 N, 51 kgf) while
the engine is running.
When performing the brake pedal inspection, also be sure to check that the brake sys-
tem warning light is not illuminated when th e engine is running. (If the brake system Rear differential Oil capacity 0.90 qt. (0.85 L, 0.75 Imp. qt.)
Oil type and viscosity *
Toyota Genuine Differential gear oil LT 75W-85
GL-5 or equivalent
Oil capacity 1.42 qt. (1.35 L, 1.19 Imp. qt.)
Oil type and viscosity *
Toyota Genuine Differential gear oil LT 75W-85
GL-5 or equivalent
Brakes Pedal clearance *1
4.8 in. (121 mm) Min. *3
4.8 in. (122 mm) Min. *4
Pedal free play 0.04 ⎯ 0.24 in. (1 ⎯ 6 mm)
Brake pad wear limit 0.04 in. (1 mm)
Parking brake lining wear limit 0.04 in. (1 mm)
Parking brake indicator *2
When pushing the parking brake switch for 1 to 2
seconds: comes on
When pulling the parking brake switch for 1 to 2
seconds: turns off
Fluid type FMVSS No.116 DOT 3 or SAE J1703
FMVSS No.116 DOT 4 or SAE J1704

454 8-1. Specifications
LS500_OM_OM50F54U_(U) warning light is illuminated, refer to P.418.) *2
: Make sure to confirm that the brake warning light (yellow) does not illuminate. (If the
brake warning light illuminates, refer to P.418.) *3
: Vehicles without Lexus Safety System+A *4
: Vehicles with Lexus Safety System+A 
19-inch tires (type A)


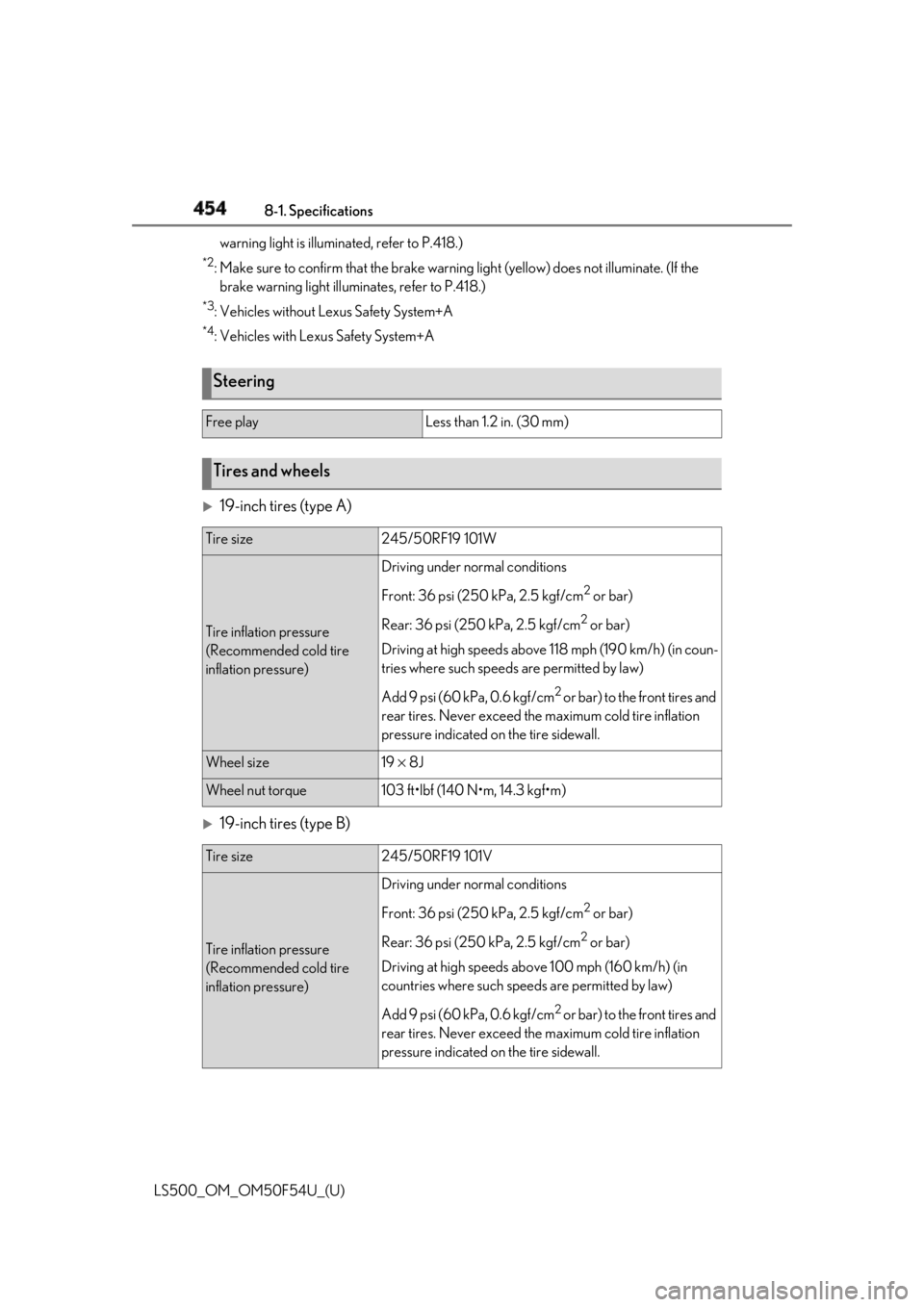

19-inch tires (type B)Steering Free play Less than 1.2 in. (30 mm)
Tires and wheels Tire size 245/50RF19 101W
Tire inflation pressure
(Recommended cold tire
inflation pressure) Driving under normal conditions
Front: 36 psi (250 kPa, 2.5 kgf/cm 2
or bar)
Rear: 36 psi (250 kPa, 2.5 kgf/cm 2
or bar)
Driving at high speeds above 118 mph (190 km/h) (in coun-
tries where such speeds are permitted by law)
Add 9 psi (60 kPa, 0.6 kgf/cm 2
or bar) to the front tires and
rear tires. Never exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.
Wheel size 19 × 8J
Wheel nut torque 103 ft•lbf (140 N•m, 14.3 kgf•m)
Tire size 245/50RF19 101V
Tire inflation pressure
(Recommended cold tire
inflation pressure) Driving under normal conditions
Front: 36 psi (250 kPa, 2.5 kgf/cm 2
or bar)
Rear: 36 psi (250 kPa, 2.5 kgf/cm 2
or bar)
Driving at high speeds above 100 mph (160 km/h) (in
countries where such speeds are permitted by law)
Add 9 psi (60 kPa, 0.6 kgf/cm 2
or bar) to the front tires and
rear tires. Never exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.
