3-2. Opening, closing and locking the doors and trunk
Before driving
WARNING
■Caution regarding interference with electronic devices
●People with implantable cardiac pace-makers, cardiac resynchronization therapy-pacemakers or implantable
cardioverter defibrillators should maintain a reasonable distance between themselves and the smart
entry & start system antennas. ( P.122) The radio waves may affect the opera-
tion of such devices. If necessary, the entry function can be disabled. Ask any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer for details, such as the fre-quency of radio waves and timing of
the emitted radio waves. Then, consult your doctor to see if you should dis-able the entry function.
●Users of any electrical medical device
other than implantable cardiac pace- makers, cardiac resynchronization therapy-pacemakers or implantable
cardioverter defibrillators should con- sult the manufacturer of the device for information about its operation under
the influence of radio waves. Radio waves could have unexpected effects on the operation of such medi-
cal devices.
Ask any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer for details on disabling the entry
function.

138
-$@-$I@0.@0.&@ &&

3-3. Adjusting the seats
3-3.Adjusting the seats
Seat position adjustment
Seatback angle adjustment
Head restraint height adjustment (if
equipped) ( P.143)
Seat cushion (front) angle adjust-
ment
Vertical height adjustment
Lumbar support adjustment
■When adjusting the seat
●Make sure that any surrounding passen- gers or objects are not contact the seat.
●Take care when adjusting the seat so that the head restraint does not touch the ceil-ing.
■Seat-linked function
●This function operates when the seat is
moved forward, backward or in the reclining direction a certain distance or more.
●Vehicles with power head restraint: When the seat is adjusted forward a cer-
tain distance or more, the head restraint moves down.
●Vehicles with power head restraint: When the seat is raised a certain distance or more, the seat stops and the head
restraint moves down.
Front seats
The seats can be adjusted (longitu-
dinally, vertically, etc.).
Adjust the seat to ensure the cor-
rect driving posture.
Adjustment procedure
A
B
C
D
E
F
WARNING
■When adjusting the seat position
●Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.
●Do not put your hands under the seat or near the moving parts to avoid
injury. Fingers or hands may become jammed in the seat mechanism.
●Make sure to leave enough space
around the feet so they do not get stuck.
■Seat adjustment
To reduce the risk of sliding under the lap belt during a collision, do not recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply restraint forces directly to the abdomen, or your
neck may contact the shoulder belt, increasing the risk of death or serious injury in the event of an accident.
Adjustments should not be made while driving as the seat may unexpectedly move and cause the driver to lose control
of the vehicle.

139
3
-$@-$I@0.@0.&@ &&

3-3. Adjusting the seats
Before driving
■Before entering/exiting the rear
seats
 Remove the seat belt from the seat
belt guide. ( P.32)
 Stow the sun visor.
■Entering/exiting the rear seat
1 Pull the lever.
The front seat will lower automatically.
2Fold the seatback completely for-
ward.
The front seat will move forward and the
head restraint will move downward* auto- matically.
*: Power type only
■Returning the front seat to its origi-
nal position
Move the seatback backward until it
locks. The front seat will return to its
original position automatically.
■Lever-operated “Front, Fold & Return” seat
●After the front seat is moved forward by operating the “Front, Fold & Return” seat
lever, if a power seat adjusting switch or a driving position memory switch is pressed, the front seat will not return to its
original position even if the front seatback is moved backward until it locks.
●The lever-operated “Front, Fold & Return” seat will not operate in the follow-
ing situations: • The seat belt of the seat to be operated is fastened.
• The engine switch is in IGNITION ON mode and the shift position is in a position other than
P.
●Operation of the lever-operated “Front,
Fold & Return” seat will stop in the follow- ing situations:• A power seat adjusting switch or a driv-
ing position memory switch is pressed. • The seat belt of the seat which is operat-ing is fastened.
• The engine switch is in IGNITION ON mode and the shift position is changed to a position
other than P.
■Jam protection function
While the driving positi on is recalling or the
lever-operated “Front, Fold & Return” seat is operating, if an object is stuck either in front of or behind the front seat, the front
seat will stop and then move in the opposite direction slightly.
When the jam protection function operates, the seat stops at a po sition other than the set seat position. Check the seat position.
Entering/exiting the rear seats
(lever-operated “Front, Fold &
Return” seat)

140
-$@-$I@0.@0.&@ &&

3-3. Adjusting the seats
1Turn the engine switch switch> to IGNITION ON mode
.
2 Check that the shift position is in P.
3 Adjust the driver’s seat, steering
wheel, outside rear view mirrors
and head-up display to the desired
positions.
4 While pressing the “SET” button, or
within 3 seconds after the “SET”
button is pressed, press button “1”,
“2” or “3” until the buzzer sounds.
If the selected button has already been preset, the previously recorded position
WARNING
■Lever-operated “Front, Fold & Return” seat
●Before operating the lever-operated “Front, Fold & Return” seat, ensure that any surrounding passengers or objects
will not contact the seat.
●Make sure the seatback is locked securely before driving.
●Never operate the lever-operated “Front, Fold & Return” seat while the
vehicle is moving.
■Jam protection function
Do not use a hand, foot, or any other part
of your body to intentionally activate the jam protection function.
Driving position memory
This feature automatically adjusts
the positions of the driver’s seat,
steering wheel, outside rear view
mirrors and head-up display (if
equipped) to suit your preferences.
Up to 3 different driving positions
can be recorded.
Each electronic key can be regis-
tered to recall your preferred driv-
ing position.
Recording a driving position into
memory

141
3
-$@-$I@0.@0.&@ &&

3-3. Adjusting the seats
Before driving
will be overwritten.
■Seat positions that can be memorized
( P.138)
The adjusted positions other than the posi-
tion adjusted by lumbar support switch can be recorded.
■In order to correctly use the driving position memory function
If a seat position is already in the furthest possible position and the seat is operated in
the same direction, the recorded position may be slightly different when it is recalled.
1 Turn the engine switch switch> to IGNITION ON mode
.
2 Check that the shift position is in P.
3 Press one of the buttons for the
driving position you want to recall
until the buzzer sounds.
■To stop the position recall operation
part-way through
Perform any of the following:
●Press the “SET” button.
●Press button “1”, “2” or “3”.
●Operate any of the seat adjustment
switches (only cancels seat position recall).
●Operate the tilt and telescopic steering control switch (only cancels steering
wheel position recall).
■Operating the driving position memory after turning the engine switch off
Recorded seat positions can be activated up to 180 seconds after the driver’s door is
opened and another 60 seconds after it is closed again.
■Registering procedure
Record your driving position to button
“1”, “2” or “3” before performing the
following:
WARNING
■Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear passen-
ger or squeeze your body against the steering wheel.
Recalling a driving position
Registering/cancel ing/recalling
a driving position to an elec-
tronic key (memor y recall func-
tion)

142
-$@-$I@0.@0.&@ &&

3-3. Adjusting the seats
Carry only the key you want to register,
and then close the driver’s door.
If 2 or more keys are in the vehicle, the
driving position cannot be recorded
properly.
1 Turn the engine switch switch> to IGNITION ON mode
.
2 Check that the shift position is in P.
3 Recall the driving position that you
want to record.
4 While pressing the recalled button,
press and hold the door lock switch
(either lock or unlock) until the
buzzer sounds.
If the button could not be registered, the buzzer sounds continuously for approxi-mately 3 seconds.
■Cancelation procedure
1 Carry only the key you want to can-
cel and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be canceled prop-erly.
2 Turn the engine switch switch> to IGNITION ON mode
.
3 While pressing the “SET” button,
press and hold the door lock switch
(either lock or unlock) until the
buzzer sounds twice.
If the button could not be canceled, the buzzer sounds continuously for approxi-
mately 3 seconds.
■Recall procedure
1 Make sure that the doors are
locked before recalling the driving
position. Carry the electronic key
that has been registered to the driv-
ing position, and then unlock and
open the driver’s door using the
smart entry & start system or wire-
less remote control.
The driving position will move to the recorded position (not including the steer-
ing wheel and head-up display).
If the driving position is in a position that
has already been recorded, the seat and outside rear view mirrors will not move.
2 Turn the engine switch switch> to ACCESSORY mode or
IGNITION ON mode mode>.
The steering wheel and head-up display will move to the recorded position.
■Recalling the driving position using the
memory recall function
●Different driving positions can be regis-
tered for each electronic key. Therefore, the driving position that is recalled may be different depending on the key being
carried.
●If the passenger’s door is unlocked with
the smart entry & start system, the driving position cannot be recalled. In this case, press the driving position button which
has been set.
■Customization
The unlock door settings of the memory
recall function can be changed. (Customizable features: P.423)

143
3
-$@-$I@0.@0.&@ &&

3-3. Adjusting the seats
Before driving
Manual type
1 Up
Pull the head restraints up.
2Down
Push the head restraint down while press-
ing the lock release button .
Power type
1 Up
2 Down
■Adjusting the height of the head restraints
Make sure that the head restraints are adjusted so that the center of the head restraint is closest to the top of your ears.
Pull the head restraint up while press-
ing the lock release button .
If the head restraint touches the ceiling,
making the removal difficult, change
the seat height or angle. ( P.138)
Head restraints
Head restraints are provided for
front seats.
WARNING
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to do so may result in death or serious
injury.
●Adjust the head restraints to the cor- rect position at all times.
●Manual type: After adjusting the head restraints, push down on them and
make sure they are locked in position.
●Manual type: Do not drive with the head restraints removed.
Vertical adjustment
A
Removing the head restraints
(manual type only)
A

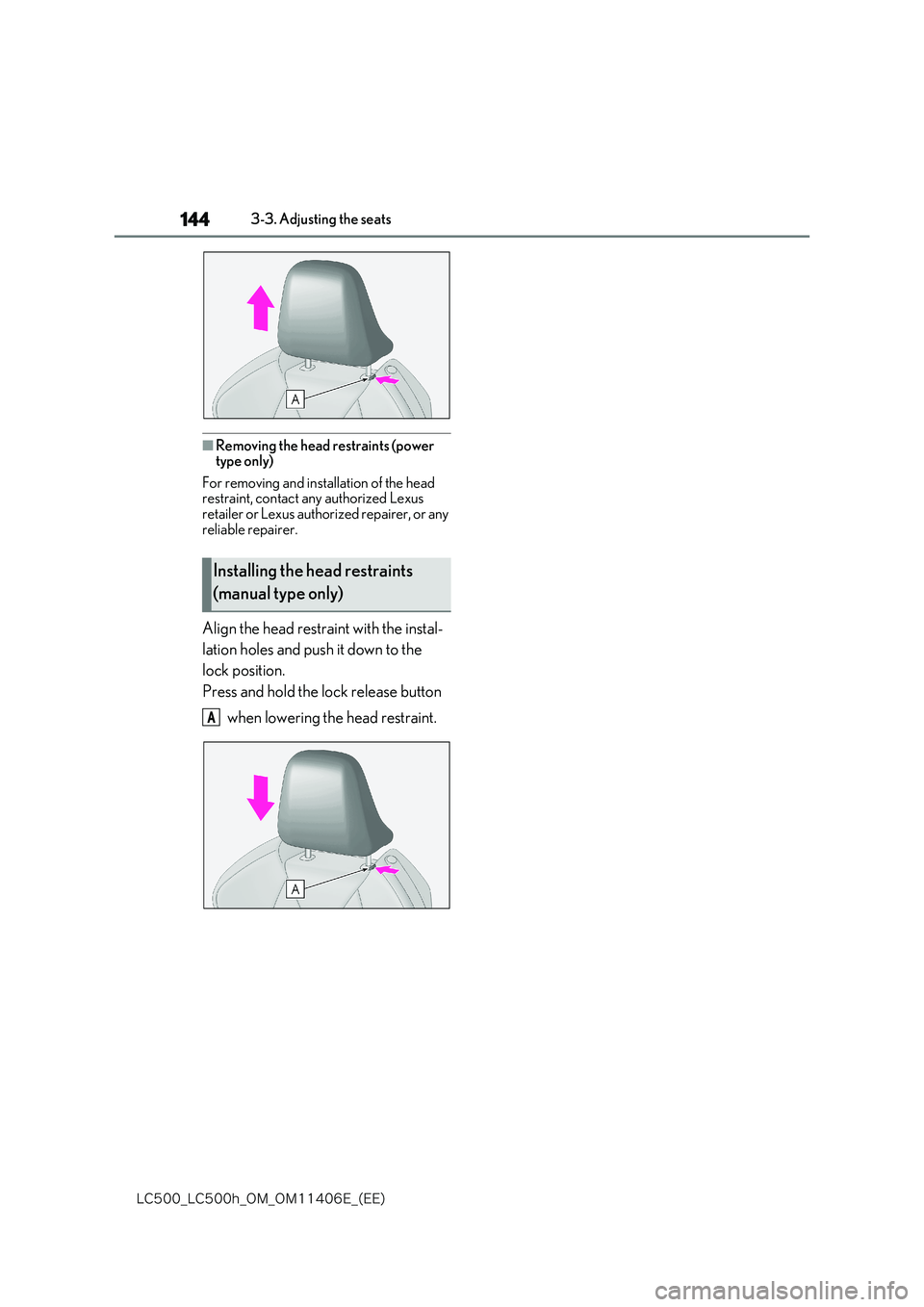

144
-$@-$I@0.@0.&@ &&

3-3. Adjusting the seats
■Removing the head restraints (power type only)
For removing and installation of the head restraint, contact any authorized Lexus retailer or Lexus authorized repairer, or any
reliable repairer.
Align the head restraint with the instal-
lation holes and push it down to the
lock position.
Press and hold the lock release button
when lowering the head restraint.
Installing the head restraints
(manual type only)
A
