120
- $ @ - $ I @ / B W J @ 0 . & @ & &
4-1. Basic operation
4-1.Basic operation
The audio control screen can be
reached by the following methods:
Using the audio control switch
1 Press the “RADIO” or “MEDIA”
button.
Using the Remote Touch
1 Press the “MENU” button on the
Remote Touch, then select “Radio”
or “Media”.
The audio functions can also be displayed and operated on the side display. ( P.33)
■Control screen
■Audio control switch
•Using the radio ( P.126)
• Playing an audio CD or
MP3/WMA/AAC disc ( P.130)
• Playing a DVD ( P.132)
• Playing a USB memory ( P.135)
• Playing an iPod ( P.137)
• Playing a Bluetooth® device
( P.139)
• Using the Miracast™ ( P.142)
•Using the AUX port ( P.144)
• Using the steering wheel audio
switches ( P.146)
• Audio system settings ( P.148)
●The position and shapes of the buttons may differ slightly between right-hand
drive vehicles and left-hand drive vehi- cles.
Quick reference
Functional overview
Page 126 of 252
126
- $ @ - $ I @ / B W J @ 0 . & @ & &
4-2. Radio operation
4-2.Radio operation
The radio control screen can be
reached by the following methods:
Using the audio control switch
1 Press the “RADIO” button.
Using the Remote Touch
1 Press the “MENU” button on the
Remote Touch, then select “Radio”.
Select to tune to preset sta-
tions/ensembles. ( P.126)
Favorites: Turn to move up/down
the preset stations.
Station list: Turn to move up/down
the station list.
Manual: Seek up/down (Hold to
non stop seek up/down)
Favorites: Turn to move up/down
the preset stations.
Station list: Turn to move up/down
the station list.
Manual: (AM/FM) Tune up/down
(DAB) Seek up/down.
DAB time shift screen: Turn to jump
forward/ backwards.
●The radio automatically changes to ste- reo reception when a stereo broadcast is
received.
●If the signal becomes weak, the radio
reduces the amount of channel separa- tion to prevent the weak signal from cre-ating noise. If the signal becomes
extremely weak, the radio switches from stereo to mono reception.
Up to 6 preset stations can be regis-
tered.
1 Tune in the desired station.
2 Select one of the screen buttons (1-
6) and hold it until a beep is heard.
The station’s frequency will be dis-
played in the screen button.
To change the preset station to a dif-
AM/FM/DAB radio
Overview
Control screen
Audio control switch
A
A
Presetting a station
B
Page 130 of 252
130
- $ @ - $ I @ / B W J @ 0 . & @ & &
4-3. Media operation
4-3.Media operation
The CD control screen can be reached
by the following methods:
Using the audio control switch
1 Press the “MEDIA” button.
Using the Remote Touch
1 Press the “MENU” button on the
Remote Touch, then select “Media”.
Inserting a disc (P.122)
Audio CD
Displays cover art
Select to set repeat playback.
( P.130)
Select to select a track/file.
Select and hold to fast rewind.
Select to play/pause.
Select to select a track/file.
Select and hold to fast forward.
Select to set random playback.
( P.131)
MP3/WMA/AAC disc
Displays cover art
Select to set repeat playback.
( P.130)
Select to select a track/file.
Select and hold to fast rewind.
Select to play/pause.
Select to select a track/file.
Select and hold to fast forward.
Select to set random playback.
( P.131)
The track/file or folder currently being
listened to can be repeated.
1 Select .
●Each time is selected, the mode
changes as follows:
Audio CD
• track repeat offMP3/WMA/AAC disc
• file repeat folder repeat off*1
• file repeat off*2
*1: When random playback is off
*2: When random playback is on
CD
Overview
Control screen
A
B
C
D
E
F
Repeating
A
B
C
D
E
F
Page 132 of 252
132
- $ @ - $ I @ / B W J @ 0 . & @ & &
4-3. Media operation
screen. (P.123)
The DVD control screen can be
reached by the following methods:
Using the audio control switch
1 Press the “MEDIA” button.
Using the Remote Touch
1 Press the “MENU” button on the
Re m ot e T ou ch , th e n se l ec t “M e d ia ”.
Inserting a disc (P.122)
DVD
For safety reasons, the DVD video
discs can only be viewed when the
following conditions are met:
(a) The vehicle is completely
stopped.
(b) The engine switch
IGNITION ON mode
(c) The parking brake is applied.
While driving in DVD video mode,
only the DVD’s audio can be heard.
The playback condition of some
DVD discs may be determined by
the DVD software producer. This
DVD player plays a disc as the soft-
ware producer intended. As such,
some functions may not work prop-
erly. Be sure to read the instruction
manual that comes with the individ-
ual DVD disc. ( P.155)
Overview

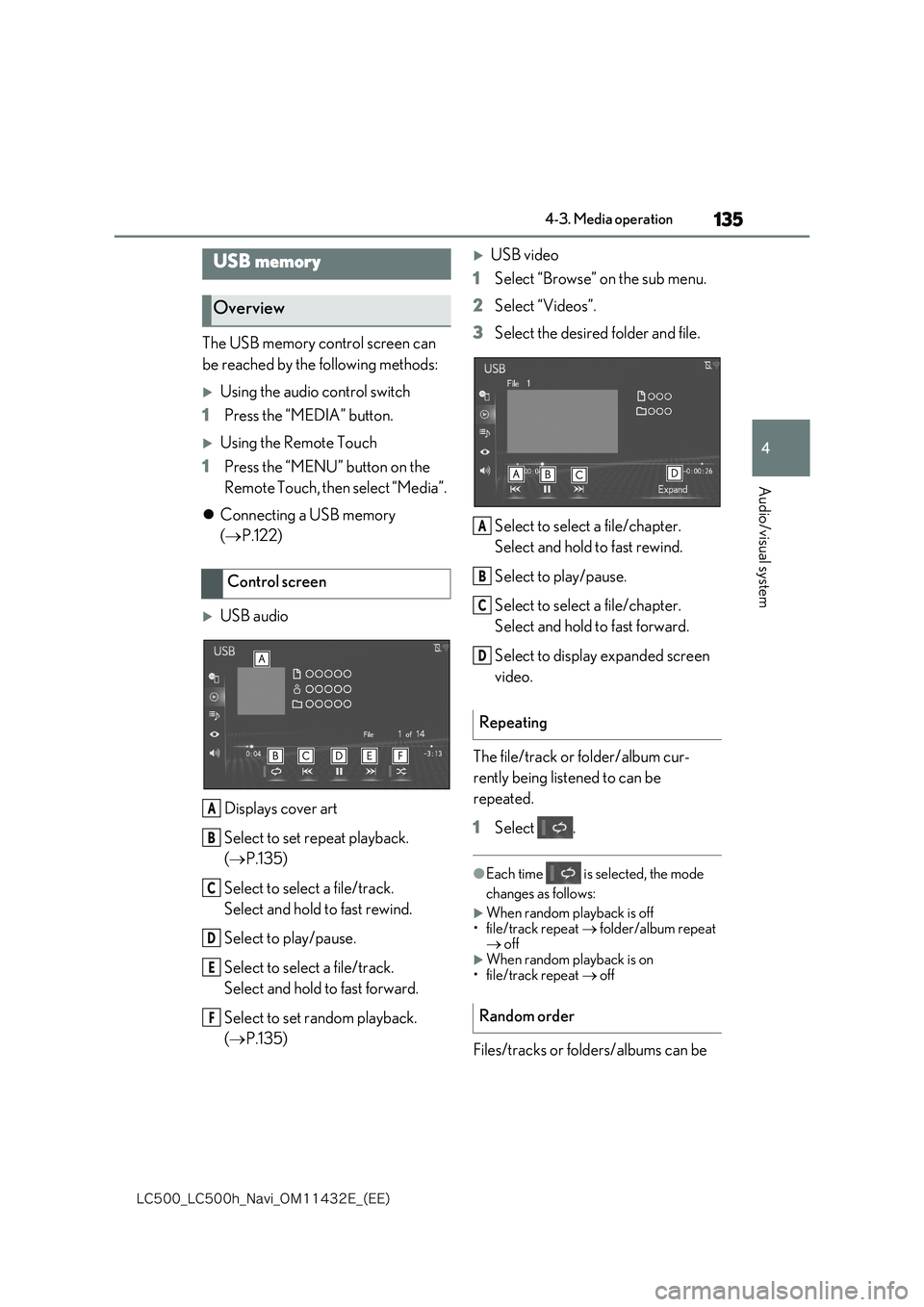

Page 135 of 252
135
4
- $ @ - $ I @ / B W J @ 0 . & @ & &
4-3. Media operation
Audio/visual system
The USB memory control screen can
be reached by the following methods:
Using the audio control switch
1 Press the “MEDIA” button.
Using the Remote Touch
1 Press the “MENU” button on the
Remote Touch, then select “Media”.
Connecting a USB memory
( P.122)
USB audio
Displays cover art
Select to set repeat playback.
( P.135)
Select to select a file/track.
Select and hold to fast rewind.
Select to play/pause.
Select to select a file/track.
Select and hold to fast forward.
Select to set random playback.
( P.135)
USB video
1 Select “Browse” on the sub menu.
2 Select “Videos”.
3 Select the desired folder and file.
Select to select a file/chapter.
Select and hold to fast rewind.
Select to play/pause.
Select to select a file/chapter.
Select and hold to fast forward.
Select to display expanded screen
video.
The file/track or folder/album cur-
rently being listened to can be
repeated.
1 Select .
●Each time is selected, the mode
changes as follows:
When random playback is off
• file/track repeat folder/album repeat offWhen random playback is on
• file/track repeat off
Files/tracks or folders/albums can be
USB memory
Overview
Control screen
A
B
C
D
E
F
Repeating
Random order
A
B
C
D
Page 137 of 252
137
4
- $ @ - $ I @ / B W J @ 0 . & @ & &
4-3. Media operation
Audio/visual system
screen. (P.123)
USB video
Select to display the audio source
selection screen. ( P.121)
Select to return to the control
screen.
Select to display a file list screen.
Select to display the play mode
selection screen.
Select to display the sound setting
screen. ( P.123)
The iPod control screen can be
reached by the following methods:
Using the audio control switch
1 Press the “MEDIA” button.
Using the Remote Touch
1 Press the “MENU” button on the
Re m ot e T ou ch , th e n se l ec t “M e d ia ”.
Connecting an iPod (P.122)
Displays cover art
Select to set repeat playback.
( P.138)
Select to select a track.
Select and hold to fast rewind.
Select to play/pause.
Select to select a track.
Select and hold to fast forward.
Select to set random playback.
( P.138)
A
B
C
D
E
iPod
Overview
Control screen
A
B
C
D
E
F
Page 139 of 252
139
4
- $ @ - $ I @ / B W J @ 0 . & @ & &
4-3. Media operation
Audio/visual system
Select to display the audio source
selection screen. ( P.121)
Select to return to the control
screen.
Select to display a file list screen.
Select to display the play mode
selection screen.
Select to display the sound setting
screen. ( P.123)
The Bluetooth® audio control screen
can be reached by the following meth-
ods:
Using the audio control switch
1 Press the “MEDIA” button.
Using the Remote Touch
1 Press the “MENU” button on the
Re m ot e T ou ch , th e n se l ec t “M e d ia ”.
Depending on the type of portable
player connected, some functions may
not be available and/or the screen may
look differently than shown in this man-
ual.
Connecting a Bluetooth® audio
device ( P.141)
NOTICE
●Do not push down on or apply unnec- essary pressure to the portable player while it is connected as this may dam-
age the portable player or its terminal.
●Do not insert foreign objects into the port as this may damage the portable player or its terminal.
Sub menu
A
B
C
D
E
Bluetooth® audio
The Bluetooth® audio system
enables users to enjoy listening to
music that is played on a portable
player on the vehicle speakers via
wireless communication.
This audio system supports
Bluetooth®, a wireless data system
capable of playing portable audio
music without cables. If your device
does not support Bluetooth®, the
Bluetooth® audio system will not
function.
Overview
Page 141 of 252
141
4
- $ @ - $ I @ / B W J @ 0 . & @ & &
4-3. Media operation
Audio/visual system
SORY or IGNITION ON mode
●If the Bluetooth® device is disconnected
on purpose, such as it was turned off, this does not happen. Reconnect the porta-ble player manually.
●Bluetooth® device information is regis-
tered when the Bluetooth® device is
connected to the Bluetooth® audio sys-
tem. When selling or disposing of the
vehicle, remove the Bluetooth® audio
information from the system. ( P.59)
●In some situations, sound output via the
Bluetooth® audio system may be out of sync with the connected device or output intermittently.
To use the Bluetooth® audio system, it
is necessary to register a Bluetooth®
device with the system.
Registering an additional device
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Bluetooth*” on the sub
menu.
*: The Bluetooth® word mark and logos
are registered trademarks owned by
Bluetooth SIG, Inc.
4 Select “Add New Device”.
5 For more information: P.44
Selecting a registered device
1 Select “Connect” on the sub menu.
2 Select the device to be connected.
WARNING
●Do not operate the player’s controls or
connect to the Bluetooth® audio sys-
tem while driving.
●Your audio unit is fitted with
Bluetooth® antennas. People with
implantable cardiac pacemakers, car- diac resynchronization therapy-pace-makers or implantable cardioverter
defibrillators should maintain a reason- able distance between themselves and
the Bluetooth® antennas. The radio waves may affect the operation of such devices.
●Before using Bluetooth® devices, users of any electrical medical device other than implantable cardiac pace-
makers, cardiac resynchronization therapy-pacemakers or implantable cardioverter defibrillators should con-
sult the manufacturer of the device for information about its operation under the influence of radio waves. Radio
waves could have unexpected effects on the operation of such medical devices.
NOTICE
●Do not leave your portable player in the vehicle. In particular, high tempera-tures inside the vehicle may damage
the portable player.
Connecting a Bluetooth®
device
