2018 KIA SOUL glove box

4133
Features of your vehicle
These compartments can be used to
store small items.
To avoid possible theft, do notleave valuables in the storage
compartment.
Always keep the storage compart- ment covers closed while driving.
Do not attempt to place so many
items in the storage compartment
that the storage compartment
cover cannot close securely.Center console storage
These compartments can be used to
store small items required by the
driver or front passenger.
To open the center console storage,
pull up the lever. (Type B)

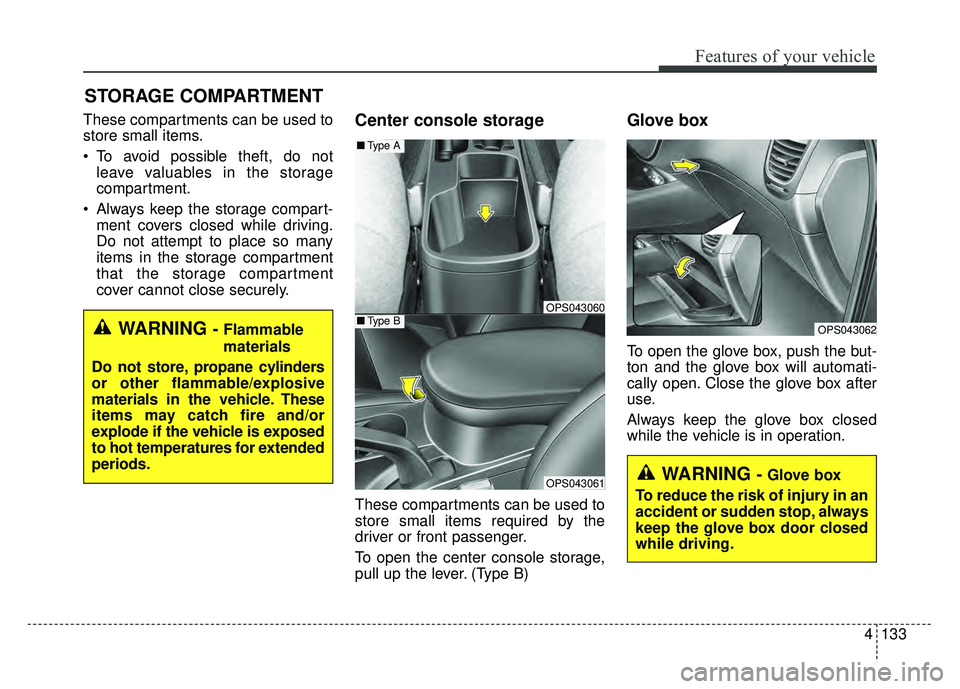

Glove box
To open the glove box, push the but-
ton and the glove box will automati-
cally open. Close the glove box after
use.
Always keep the glove box closed
while the vehicle is in operation.
STORAGE COMPARTMENT
OPS043062WARNING - Flammable
materials
Do not store, propane cylinders
or other flammable/explosive
materials in the vehicle. These
items may catch fire and/or
explode if the vehicle is exposed
to hot temperatures for extended
periods.
OPS043060
OPS043061
■ Type B
■Type A
WARNING - Glove box
To reduce the risk of injury in an
accident or sudden stop, always
keep the glove box door closed
while driving.

Features of your vehicle
134
4
Cool box (if equipped)
You can keep beverage cans or other
items cool in the glove box.
1. Turn on the air conditioning.
2. Slide the open/close lever of the
vent installed in the glove box to
the open position.
3. When the cool box is not used, slide the lever to the closed posi-
tion.
If some items in the cool box block
the vent, the cooling effectiveness of
the coolbox is reduced.
✽ ✽

NOTICE
Do not put perishable food in the
cool box because it may not main-
tain the necessary consistent tem-
perature to keep the food fresh.
✽ ✽

NOTICE
If the temperature control knob is in
the warm or hot position, warm or
hot air will flow into the glove box.
Sunglass holder
To open the sunglass holder, press
the cover and the holder will slowly
open. Place your sunglasses with the
lenses facing out.
To close the sunglass holder, push it
up.
Do not place other items in the sun-
glass holder.
OPS043064OPSE046065L

Maintenance
50
8
CLIMATE CONTROL AIR FILTER (IF EQUIPPED)
Filter inspection
The climate control air filter should
be replaced according to the mainte-
nance schedule. If the vehicle is
operated in severely air-polluted
cities or on dusty rough roads for a
long period, it should be inspected
more frequently and replaced earlier.
When you replace the climate control
air filter, replace it performing the fol-
lowing procedure, and be careful to
avoid damaging other components.
Filter replacement
1. Open the glove box. 2. With the glove box open, remove
the Air filter cover.
OPS073009
OPS073008

883
Maintenance
Description Fuse ratingProtected component
MDPS 7.5A MDPS_UNIT
A/CON 2 7.5A AIR_CONTROL_UNIT_MANUAL(MAX_BLOWER), AIR_CONTROL_UNIT_AUTO(BLOWER_MOTOR)
START 7.5A E/R_FUSE & RELAY_BOX(RELAY - START / SUB START), PDM
IOD 1 7.5AGLOVE_BOX_LAMP, DOOR_WARNING_SW, OVER_HEAD_CONSOLE_LAMP, PERSONAL_LAMP,
SUNVISOR_LAMP, LUGGAGE_LAMP, PORTABLE_LAMP(DOOR)
PDM 2 7.5A SMK_UNIT(BATT_CPU), SMATRA_IMMOBILIZATION(BATT)
P/SEAT PASS 30A SEAT_EXTN_PASS(POWER) PDM 1 20A SMK_UNIT(POWER)
BRAKE SWITCH 10A STOP_LAMP_SW(NORMAL_OPEN), SMK_UNIT

Maintenance
104
8

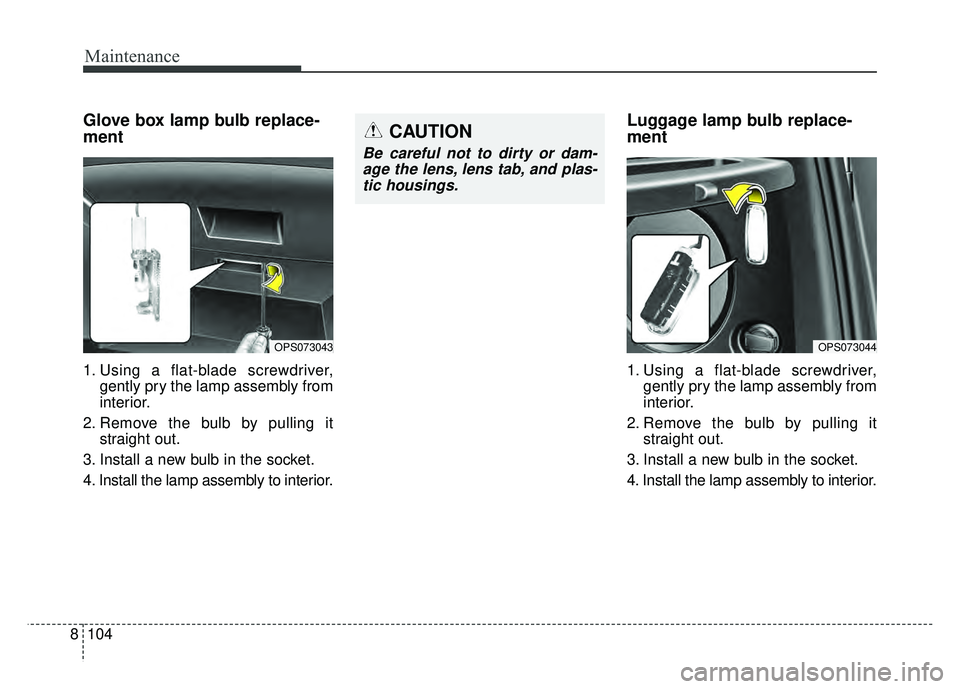

Glove box lamp bulb replace-
ment
1. Using a flat-blade screwdriver,
gently pry the lamp assembly from
interior.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Install the lamp assembly to interior.
Luggage lamp bulb replace-
ment
1. Using a flat-blade screwdriver, gently pry the lamp assembly from
interior.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Install the lamp assembly to interior.
OPS073043
CAUTION
Be careful not to dirty or dam- age the lens, lens tab, and plas-tic housings.
OPS073044

Specifications, Consumer information, Reporting safety defects
49
BULB WATTAGE
* If equippedLight Bulb Wattage Bulb type
Front Headlamps (Low/High) 55/60 H13
Headlamps (Low) 55 H7SLL
Headlamps (Low)-HID type* 35 D3S
Headlamps (High) 55 H7LL
Front turn signal lamps 28 PY28/8W
Front position lamps 8 (Opt : LED) PY28/8W (Opt : LED)
Front fog lamps* 35 H8L
Front side marker 5 W5W
Side Repeater lamps (Outside Mirror)* LED LED
Rear Bulb Type
Rear Stop/Tail lamps (Bottom) 28/8 P28/8W
Rear tail lamps (Mid) 5 W5W
Rear tail lamps & side marker (Top) 5 W5W
LED Type Rear Stop lamps LED LED
Rear Tail lamps & side marker LED LED
Rear turn signal lamps 27 PY27W
Back-up lamps 16 W16W
High mounted stop lamps 5 (Opt :LED*) W5W (Opt : LED*)
License plate lamps 5 W5W
Interior Map lamps 8 FESTOON
Room lamps 8 FESTOON
Personal lamps LED LED
Vanity mirror lamps 5 FESTOON
Glove box lamps 5 FESTOON
Luggage lamp 8 FESTOON

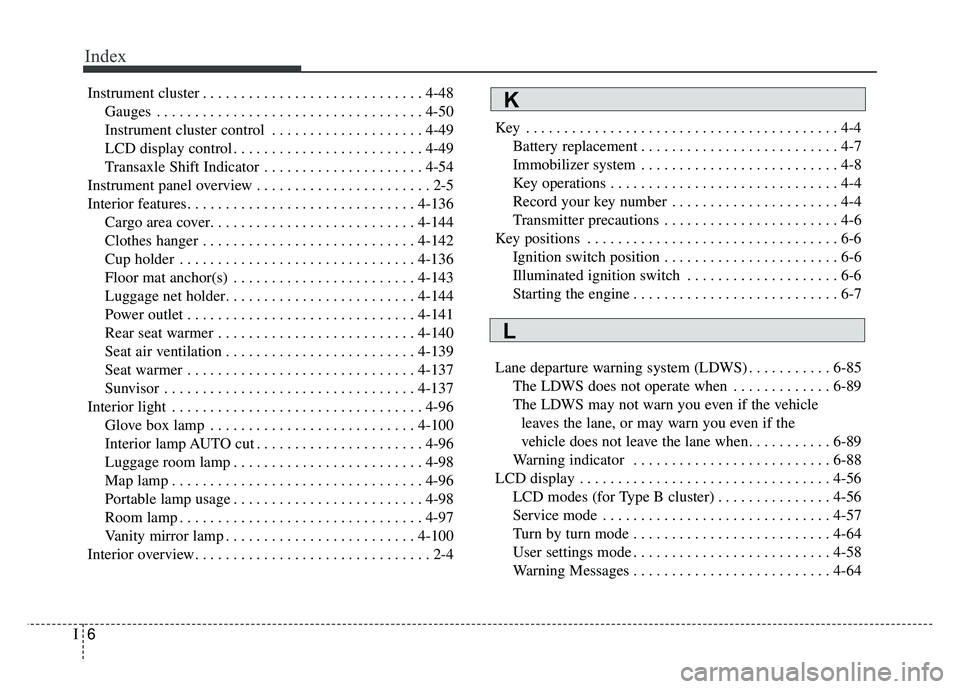

Index
6I
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-48Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
50
Instrument cluster control . . . . . . . . . . . . . . . . . . . . 4-49
LCD display control . . . . . . . . . . . . . . . . . . . . . . . . . 4-49
Transaxle Shift Indicator . . . . . . . . . . . . . . . . . . . . . 4-54
Instrument panel overview . . . . . . . . . . . . . . . . . . . . . . . 2-5
Interior features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-136 Cargo area cover. . . . . . . . . . . . . . . . . . . . . . . . . . . 4-144
Clothes hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-142
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-136
Floor mat anchor(s) . . . . . . . . . . . . . . . . . . . . . . . . 4-143
Luggage net holder. . . . . . . . . . . . . . . . . . . . . . . . . 4-144
Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-141
Rear seat warmer . . . . . . . . . . . . . . . . . . . . . . . . . . 4-140
Seat air ventilation . . . . . . . . . . . . . . . . . . . . . . . . . 4-139
Seat warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-137
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-137
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-96 Glove box lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-100
Interior lamp AUTO cut . . . . . . . . . . . . . . . . . . . . . . 4-96
Luggage room lamp . . . . . . . . . . . . . . . . . . . . . . . . . 4-98
Map lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-96
Portable lamp usage . . . . . . . . . . . . . . . . . . . . . . . . . 4-98
Room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-97
Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . 4-100
Interior overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4 Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . 4-4
Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Key operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Record your key number . . . . . . . . . . . . . . . . . . . . . . 4-4
Transmitter precautions . . . . . . . . . . . . . . . . . . . . . . . 4-6
Key positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6 Ignition switch position . . . . . . . . . . . . . . . . . . . . . . . 6-6
Illuminated ignition switch . . . . . . . . . . . . . . . . . . . . 6-6
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Lane departure warning system (LDWS) . . . . . . . . . . . 6-85 The LDWS does not operate when . . . . . . . . . . . . . 6-89
The LDWS may not warn you even if the vehicle leaves the lane, or may warn you even if the
vehicle does not leave the lane when. . . . . . . . . . . 6-89
Warning indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 6-88
LCD display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-56 LCD modes (for Type B cluster) . . . . . . . . . . . . . . . 4-56
Service mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-57
Turn by turn mode . . . . . . . . . . . . . . . . . . . . . . . . . . 4-64
User settings mode . . . . . . . . . . . . . . . . . . . . . . . . . . 4-58
Warning Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 4-64K
L

I7
Index
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-22Closing the liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22
Emergency liftgate safety release. . . . . . . . . . . . . . . 4-23
Opening the liftgate . . . . . . . . . . . . . . . . . . . . . . . . . 4-22
Light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-88\
Back-up lamp bulb replacement . . . . . . . . . . . . . . 8-100
Bulb replacement precaution . . . . . . . . . . . . . . . . . 8-88
Front fog lamp bulb replacement . . . . . . . . . . . . . . . 8-96
Front side marker bulb replacement. . . . . . . . . . . . . 8-95
Front turn signal lamp bulb replacement . . . . . . . . . 8-93
Glove box lamp bulb replacement . . . . . . . . . . . . . 8-104
Headlamp (HID type) bulb replacement . . . . . . . . . 8-90
Headlamp (Low/High beam) bulb replacement . . . . 8-91
High mounted stop lamp (LED type) bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-102
High mounted stop lamp bulb replacement . . . . . 8-101
License plate lamp bulb replacement . . . . . . . . . . 8-102
Light bulb position (Front). . . . . . . . . . . . . . . . . . . . 8-89
Light bulb position (Rear) . . . . . . . . . . . . . . . . . . . . 8-90
Luggage lamp bulb replacement . . . . . . . . . . . . . . 8-104
Map lamp bulb replacement. . . . . . . . . . . . . . . . . . 8-102
Position lamp + DRL (LED type) bulb replacement . 8-96
Rear turn signal lamp bulb Replacement . . . . . . . . . 8-98
Room lamp bulb replacement . . . . . . . . . . . . . . . . 8-103
Side repeater lamp (LED type) bulb replacement . . 8-97
Stop and tail lamp (LED type) bulb replacement . 8-101
Stop and tail lamp bulb replacement . . . . . . . . . . . . 8-99
Vanity mirror lamp bulb replacement . . . . . . . . . . 8-105 Lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-88
Battery saver function . . . . . . . . . . . . . . . . . . . . . . . 4-88
Daytime running light . . . . . . . . . . . . . . . . . . . . . . . 4-88
Front fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-92
Headlamp escort . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-88
High beam operation . . . . . . . . . . . . . . . . . . . . . . . . 4-90
Lighting control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-89
Turn signals and lane change signals . . . . . . . . . . . . 4-91
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5 Owner maintenance precautions . . . . . . . . . . . . . . . . 8-6
Owner’s responsibility . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Manual climate control system. . . . . . . . . . . . . . . . . . 4-103 Air conditioning refrigerant label . . . . . . . . . . . . . 4-112
Checking the amount of air conditioner refrigerant and compressor lubricant . . . . . . . . . . . . . . . . . . . . . . 4-113
Climate control air filter. . . . . . . . . . . . . . . . . . . . . 4-111
Heating and air conditioning . . . . . . . . . . . . . . . . . 4-104
System operation . . . . . . . . . . . . . . . . . . . . . . . . . . 4-109
Manual transaxle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14 Good driving practices . . . . . . . . . . . . . . . . . . . . . . . 6-17
Manual transaxle operation . . . . . . . . . . . . . . . . . . . 6-14
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-43 Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . 4-43
Outside rearview mirror . . . . . . . . . . . . . . . . . . . . . . 4-45
M
