2018 KIA SOUL EV Owners Manual

83
Specifications, Consumer information and Reporting safety defects

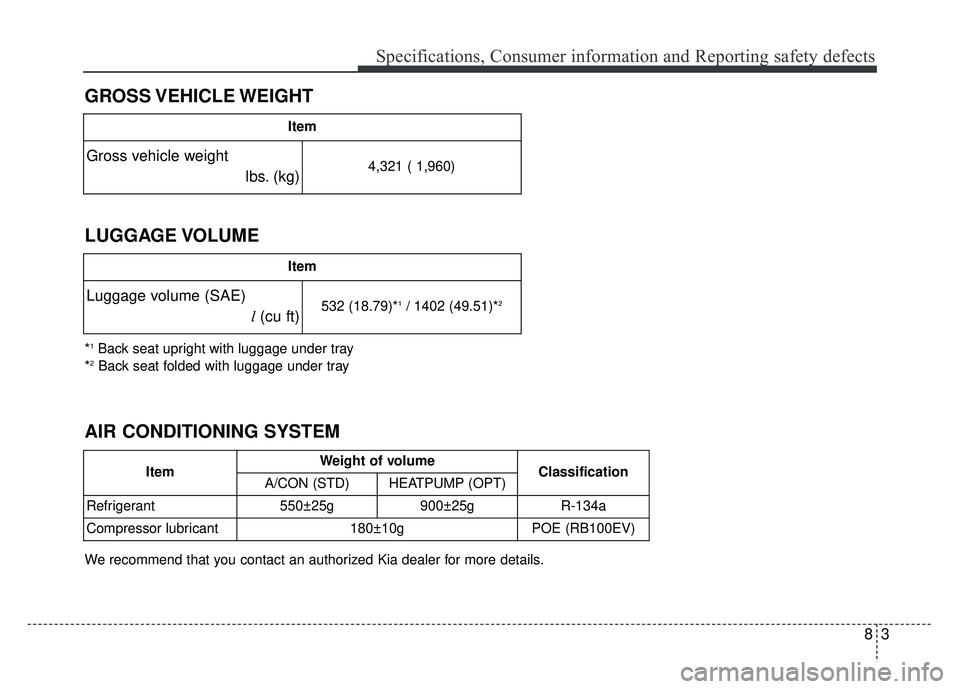

GROSS VEHICLE WEIGHT
LUGGAGE VOLUME
Item
Gross vehicle weight lbs. (kg)4,321 ( 1,960)
Item
Luggage volume (SAE) l(cu ft)532 (18.79)*1/ 1402 (49.51)*2
AIR CONDITIONING SYSTEM
ItemWeight of volumeClassification A/CON (STD)HEATPUMP (OPT)
Refrigerant
550±25g 900±25gR-134a
Compressor lubricant
180±10gPOE (RB100EV)
We recommend that you contact an authorized Kia dealer for more details. *
1Back seat upright with luggage under tray
*2Back seat folded with luggage under tray

Specifications, Consumer information and Reporting safety defects
48

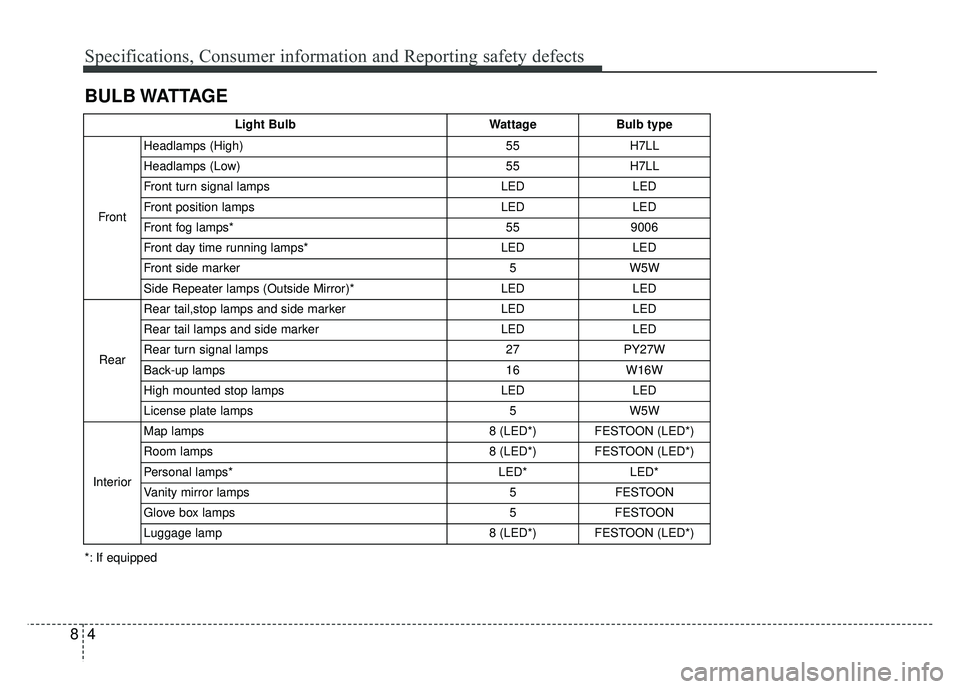

BULB WATTAGE
Light BulbWattageBulb type
Front Headlamps (High)
55H7LL
Headlamps (Low) 55H7LL
Front turn signal lamps LEDLED
Front position lamps LEDLED
Front fog lamps* 559006
Front day time running lamps*LEDLED
Front side marker 5W5W
Side Repeater lamps (Outside Mirror)* LED LED
Rear Rear tail,stop lamps and side marker LED LED
Rear tail lamps and side marker LED LED
Rear turn signal lamps 27 PY27W
Back-up lamps 16 W16W
High mounted stop lamps LED LED
License plate lamps 5 W5W
Interior Map lamps 8 (LED*) FESTOON (LED*)
Room lamps 8 (LED*) FESTOON (LED*)
Personal lamps* LED* LED*
Vanity mirror lamps 5 FESTOON
Glove box lamps 5 FESTOON
Luggage lamp 8 (LED*) FESTOON (LED*)
*: If equipped

85
Specifications, Consumer information and Reporting safety defects

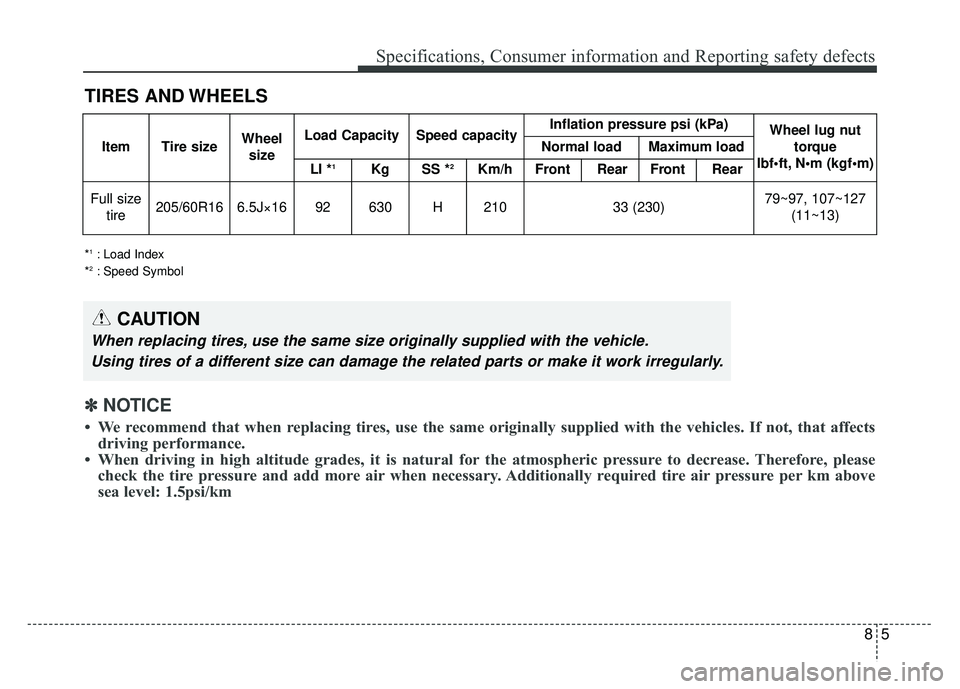

TIRES AND WHEELS
*1: Load Index
*2: Speed Symbol
ItemTire sizeWheel sizeLoad CapacitySpeed capacityInflation pressure psi (kPa)Wheel lug nut torque
lbf•ft,
Normal loadMaximum load
LI *1KgSS *2Km/hFrontRear FrontRear
Full size tire205/60R166.5J×1692630H21033 (230)79~97, 107~127 (11~13)
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or make it work irregularly.
✽
✽ NOTICE
• We recommend that when replacing tires, use the same originally supplied with the vehicles. If not, that aff\
ects
driving performance.
• When driving in high altitude grades, it is natural for the atmospheric pressure to decrease. Therefore, please check the tire pressure and add more air when necessary. Additionally required tire air pressure per km above
sea level: 1.5psi/km

Specifications, Consumer information and Reporting safety defects
68
LubricantVolume Classification
Reduction gear oil 1.4±0.1 US qt.
(1.3±0.1l) “70W, API GL-4, TGO-9 (MS517-14) or other brands meet-
ing the GL-4 specification approved by Kia Motors Corp.”
Coolant 5.39 US qt.
(5.1l) Mixture of antifreeze and water
(Ethylene glycol base coolant for aluminum radiator)
Brake fluid FMVSS116 DOT-3 or DOT-4

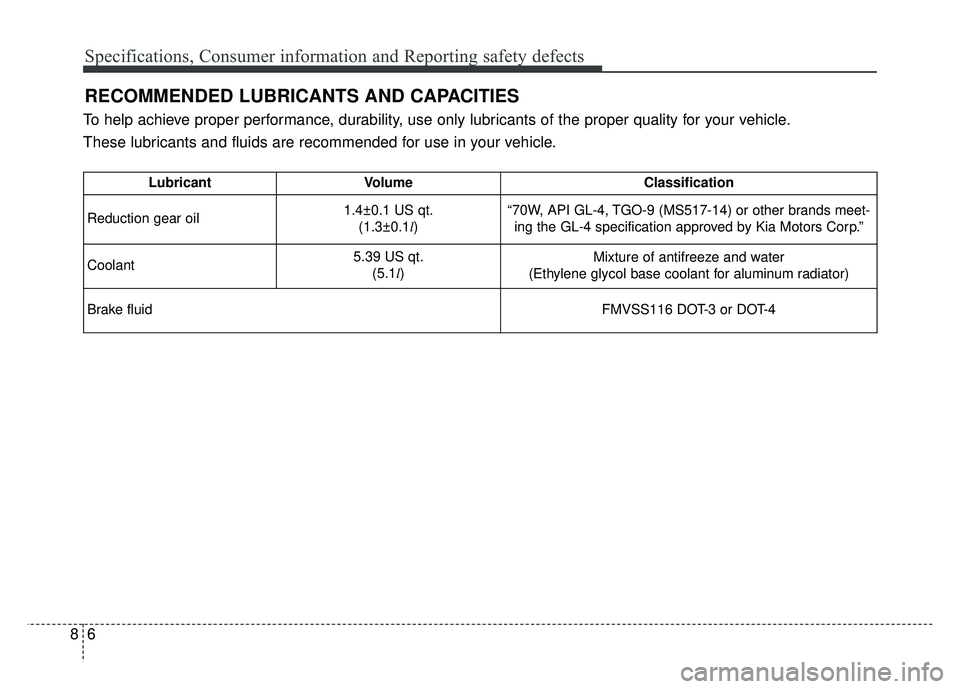

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper performance, durability, use only lubricants of the proper quality for your vehicle.
These lubricants and fluids are recommended for use in your vehicle.

87
Specifications, Consumer information and Reporting safety defects

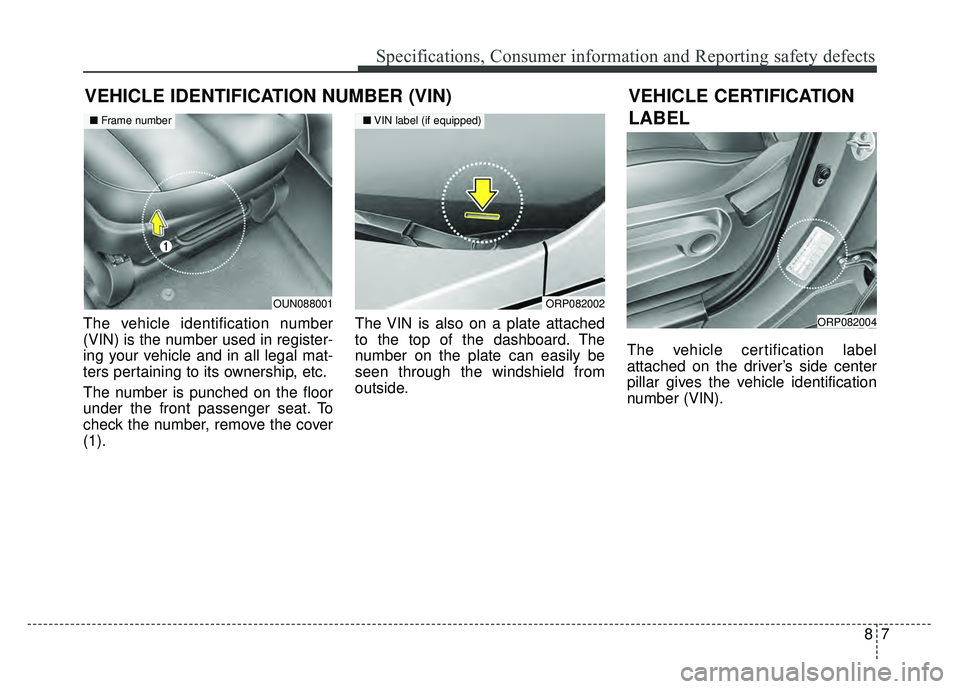

VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched on the floor
under the front passenger seat. To
check the number, remove the cover
(1).The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.
The vehicle certification label
attached on the driver’s side center
pillar gives the vehicle identification
number (VIN).
OUN088001
■
Frame number
VEHICLE CERTIFICATION
LABEL
ORP082002
■VIN label (if equipped)
ORP082004

Specifications, Consumer information and Reporting safety defects
88

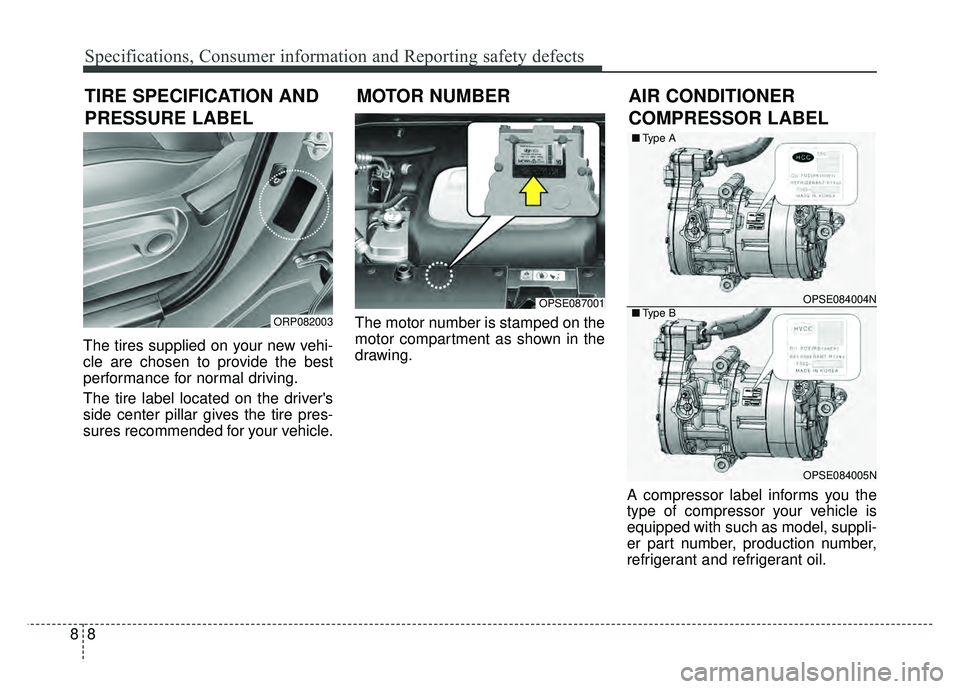

The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your vehicle.The motor number is stamped on the
motor compartment as shown in the
drawing.
A compressor label informs you the
type of compressor your vehicle is
equipped with such as model, suppli-
er part number, production number,
refrigerant and refrigerant oil.
TIRE SPECIFICATION AND
PRESSURE LABELMOTOR NUMBER
ORP082003
OPSE087001
AIR CONDITIONER
COMPRESSOR LABEL
OPSE084004N
OPSE084005N
■
Type A
■Type B

89
Specifications, Consumer information and Reporting safety defects

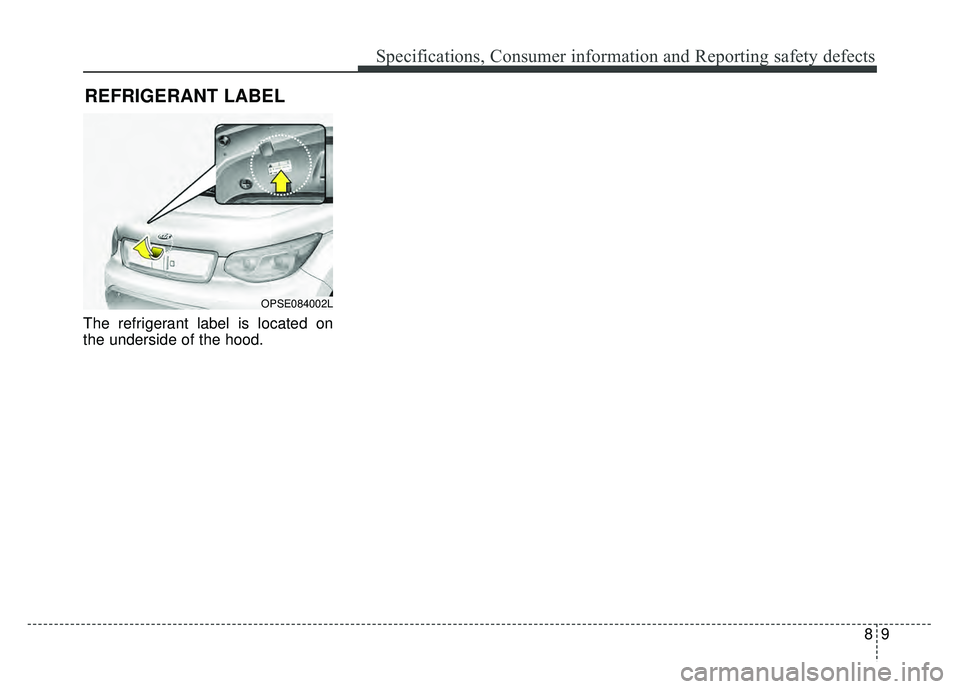

The refrigerant label is located on
the underside of the hood.
REFRIGERANT LABEL
OPSE084002L

Specifications, Consumer information and Reporting safety defects
10
8

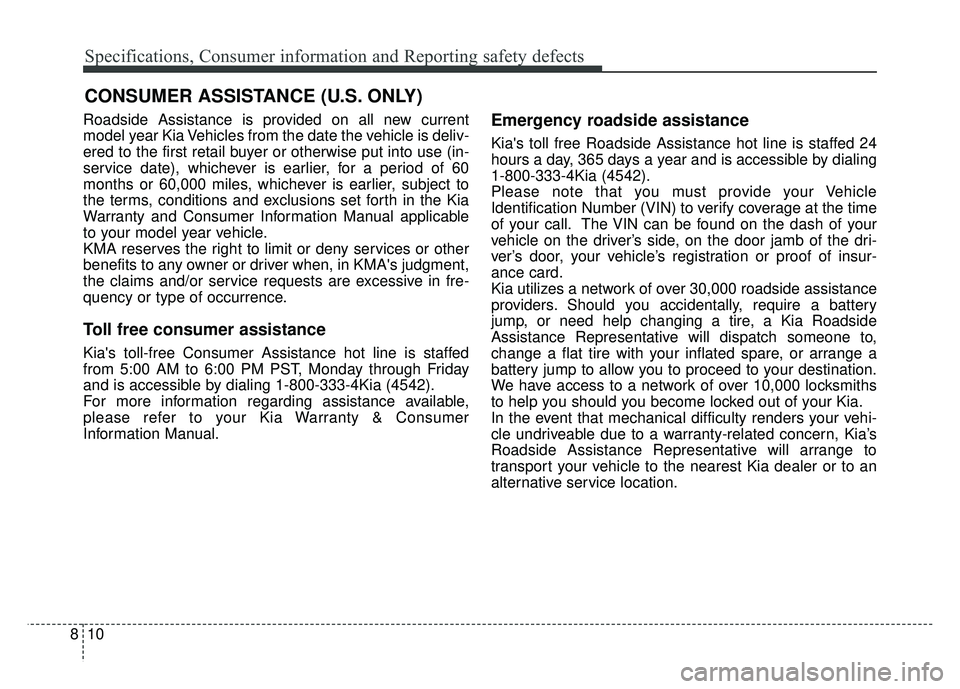

Roadside Assistance is provided on all new current
model year Kia Vehicles from the date the vehicle is deliv-
ered to the first retail buyer or otherwise put into use (in-
service date), whichever is earlier, for a period of 60
months or 60,000 miles, whichever is earlier, subject to
the terms, conditions and exclusions set forth in the Kia
Warranty and Consumer Information Manual applicable
to your model year vehicle.
KMA reserves the right to limit or deny services or other
benefits to any owner or driver when, in KMA's judgment,
the claims and/or service requests are excessive in fre-
quency or type of occurrence.
Toll free consumer assistance
Kia's toll-free Consumer Assistance hot line is staffed
from 5:00 AM to 6:00 PM PST, Monday through Friday
and is accessible by dialing 1-800-333-4Kia (4542).
For more information regarding assistance available,
please refer to your Kia Warranty & Consumer
Information Manual.
Emergency roadside assistance
Kia's toll free Roadside Assistance hot line is staffed 24
hours a day, 365 days a year and is accessible by dialing
1-800-333-4Kia (4542).
Please note that you must provide your Vehicle
Identification Number (VIN) to verify coverage at the time
of your call. The VIN can be found on the dash of your
vehicle on the driver’s side, on the door jamb of the dri-
ver’s door, your vehicle’s registration or proof of insur-
ance card.
Kia utilizes a network of over 30,000 roadside assistance
providers. Should you accidentally, require a battery
jump, or need help changing a tire, a Kia Roadside
Assistance Representative will dispatch someone to,
change a flat tire with your inflated spare, or arrange a
battery jump to allow you to proceed to your destination.
We have access to a network of over 10,000 locksmiths
to help you should you become locked out of your Kia.
In the event that mechanical difficulty renders your vehi-
cle undriveable due to a warranty-related concern, Kia’s
Roadside Assistance Representative will arrange to
transport your vehicle to the nearest Kia dealer or to an
alternative service location.
CONSUMER ASSISTANCE (U.S. ONLY)
