2018 KIA SORENTO remote control

• Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-166
• AC inverter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-167
• USB charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-169
• Coat hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17\
0
• Floor mat anchor (s) . . . . . . . . . . . . . . . . . . . . . . . . . 4-170
• Side curtain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-171
• Luggage net holder . . . . . . . . . . . . . . . . . . . . . . . . . . 4-171
Exterior features . . . . . . . . . . . . . . . . . . . . . . . . . . 4-173
• Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17\
3
Audio system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-174
• Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
174
• Steering wheel remote controller . . . . . . . . . . . . . . . 4-175
• AUX, USB port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-176
• How vehicle audio works . . . . . . . . . . . . . . . . . . . . . 4-177
• Using the USB device . . . . . . . . . . . . . . . . . . . . . . . . 4-181
• Using iPod
®device. . . . . . . . . . . . . . . . . . . . . . . . . . . 4-182
4

Features of your vehicle
48
4
Make sure to refuel your vehicle
according to the “Fuel requirements”
suggested in chapter 1.
If the fuel filler cap requires replace-
ment, use only a genuine Kia cap or
the equivalent specified for your vehi-
cle. An incorrect fuel filler cap can
result in a serious malfunction of the
fuel system or emission control sys-
tem.Emergency fuel filler lid release
If the fuel filler lid does not open
using the remote fuel filler lid
release, you can open it manually.
Remove the panel in the cargo area.
Pull the handle out slightly.
WARNING- Smoking
DO NOT use matches or a lighter
and DO NOT SMOKE or leave a lit
cigarette in your vehicle while at
a gas station especially during
refueling. Automotive fuel is
highly flammable and can, when
ignited, result in fire.
WARNING- Refueling & Vehicle fires
When refueling, always shut the
engine off. Sparks produced by
electrical components related
to the engine can ignite fuel
vapors causing a fire. Once
refueling is complete, check to
make sure the filler cap and
filler door are securely closed,
before starting the engine.CAUTION- Exterior paint
Do not spill fuel on the exterior surfaces of the vehicle. Anytype of fuel spilled on paintedsurfaces may damage the paint.
CAUTION
Do not pull the handle exces-sively, otherwise the luggagearea trim or release handle maybe damaged.
OUM044026

469
Features of your vehicle

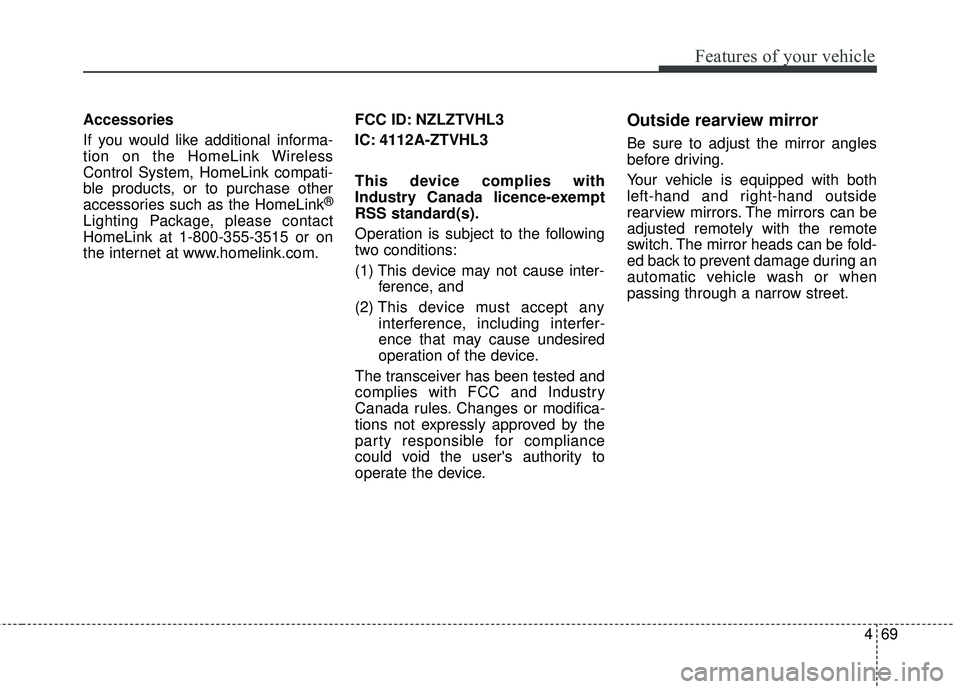

Accessories
If you would like additional informa-
tion on the HomeLink Wireless
Control System, HomeLink compati-
ble products, or to purchase other
accessories such as the HomeLink
®
Lighting Package, please contact
HomeLink at 1-800-355-3515 or on
the internet at www.homelink.com.FCC ID: NZLZTVHL3
IC: 4112A-ZTVHL3
This device complies with
Industry Canada licence-exempt
RSS standard(s).
Operation is subject to the following
two conditions:
(1) This device may not cause inter-
ference, and
(2) This device must accept any
interference, including interfer-
ence that may cause undesired
operation of the device.
The transceiver has been tested and
complies with FCC and Industry
Canada rules. Changes or modifica-
tions not expressly approved by the
party responsible for compliance
could void the user's authority to
operate the device.
Outside rearview mirror
Be sure to adjust the mirror angles
before driving.
Your vehicle is equipped with both
left-hand and right-hand outside
rearview mirrors. The mirrors can be
adjusted remotely with the remote
switch. The mirror heads can be fold-
ed back to prevent damage during an
automatic vehicle wash or when
passing through a narrow street.

471
Features of your vehicle

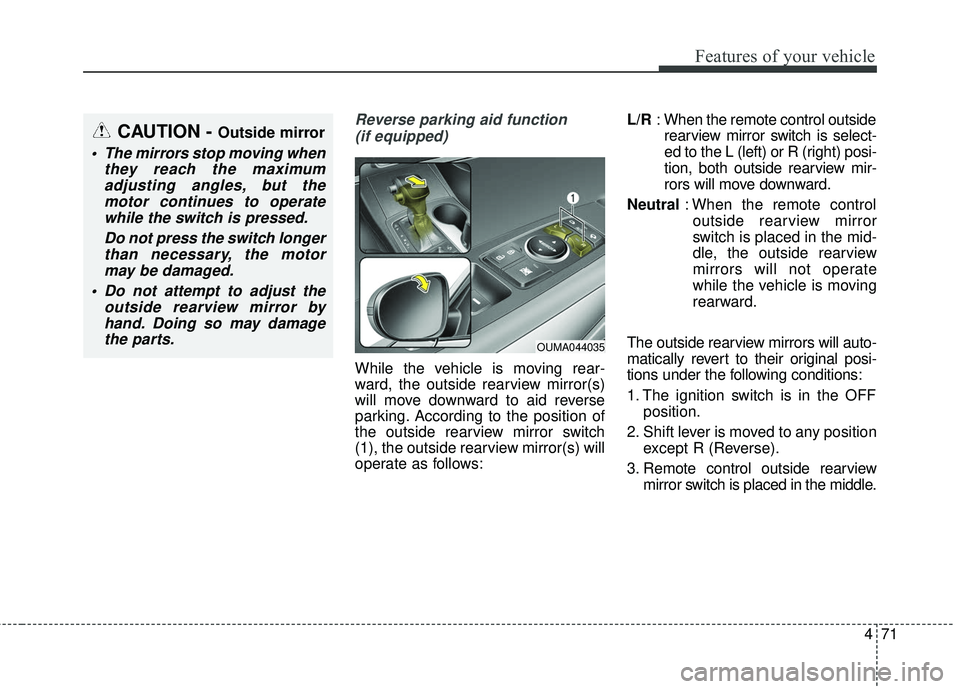

Reverse parking aid function (if equipped)
While the vehicle is moving rear-
ward, the outside rearview mirror(s)
will move downward to aid reverse
parking. According to the position of
the outside rearview mirror switch
(1), the outside rearview mirror(s) will
operate as follows: L/R
: When the remote control outside
rearview mirror switch is select-
ed to the L (left) or R (right) posi-
tion, both outside rearview mir-
rors will move downward.
Neutral : When the remote control
outside rearview mirror
switch is placed in the mid-
dle, the outside rearview
mirrors will not operate
while the vehicle is moving
rearward.
The outside rearview mirrors will auto-
matically revert to their original posi-
tions under the following conditions:
1. The ignition switch is in the OFF position.
2. Shift lever is moved to any position except R (Reverse).
3. Remote control outside rearview mirror switch is placed in the middle.
CAUTION - Outside mirror
The mirrors stop moving whenthey reach the maximumadjusting angles, but themotor continues to operatewhile the switch is pressed.
Do not press the switch longerthan necessary, the motormay be damaged.
Do not attempt to adjust the outside rearview mirror byhand. Doing so may damagethe parts.
OUMA044035

4175
Features of your vehicle
Steering wheel remote
controller
(1) VOLUME
Used to control volume.
(2) SEEK
When pressed shortly (under 0.8
seconds).
- FM, AM mode : Searches broad-cast frequencies saved to presets.
- CD, USB, iPod
®, My Music,
Bluetooth®Wireless Technology
Audio mode : Changes the track, file. When pressed and held (over 0.8
seconds).
- FM, AM mode : Automatically
searches broadcast frequencies
and channels.
- CD, USB, iPod
®, My Music mode :
Rewinds or fast forwards the track
or file.
(3) MUTE
Mutes audio volume.
(4) MODE
Each time this key is pressed, the
mode is changed in order of FM1,
FM2, AM, CD, USB (iPod), AUX, My
Music, BT Audio.
If the media is not connected or a
disc is not inserted, corresponding
modes will be disabled.
Press and hold the key (over 0.8 sec-
onds) to turn the audio system on/off.
When power is off, press the key to
turn power back on. (5) (if equipped)
When pressed shortly.
- When pressed in the phone screen,
displays call history screen.
- When pressed in the dial screen, makes a call.
- When pressed in the incoming call screen, answers the call.
- When pressed while another incoming call is waiting, switches to
waiting call (Call Waiting).
When pressed and held (over 0.8 sec-
onds).
- When pressed in the
Bluetooth®
Wireless Technology Handsfree
wait mode, redials the last call.
- When pressed during a
Bluetooth®
Wireless Technology Handsfree
call, switches call back to mobile
phone (Private).
- When pressed while calling on the mobile phone, switches call back to
Bluetooth®Wireless Technology
Handsfree (Operates only when
Bluetooth®Wireless Technology
Handsfree is connected).
OUMA046409

Index
2I
Advanced smart cruise control system (ASCC) . . . . . . 5-65Limitations of the system . . . . . . . . . . . . . . . . . . . . . 5-75
Speed setting (ASCC) . . . . . . . . . . . . . . . . . . . . . . . 5-66
To adjust the sensitivity of advanced smartcruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-74
To convert to cruise control mode . . . . . . . . . . . . . . 5-75
Vehicle to vehicle distance setting (ASCC) . . . . . . . 5-70
Air bag - advanced supplemental restraint system . . . 3-44 Air bag warning label. . . . . . . . . . . . . . . . . . . . . . . . 3-68
Air bag warning light . . . . . . . . . . . . . . . . . . . . . . . . 3-47
Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-61
Do not install a child restraint on the frontpassenger’s seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-47
Driver's and passenger's front air bag . . . . . . . . . . . 3-57
How does the air bag system operate . . . . . . . . . . . 3-45
Inflation and non-inflation conditions of the air bag . . 3-62
Occupant Detection System (ODS) . . . . . . . . . . . . . 3-51
Side air bag. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-59
SRS Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-67
SRS components and functions . . . . . . . . . . . . . . . . 3-48
Air cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-42\
Filter replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . 7-42
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
All wheel drive (AWD) . . . . . . . . . . . . . . . . . . . . . . . . 5-20 All wheel drive (AWD) transfer mode selection . . . 5-22
For safe all wheel drive operation . . . . . . . . . . . . . . 5-23
Tight corner brake effect . . . . . . . . . . . . . . . . . . . . . 5-21 Appearance care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-91
Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-91
Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-98
Autonomous emergency braking (AEB)/ Forward collision warning (FCW). . . . . . . . . . . . . 5-50
AEB warning message and system control . . . . . . . 5-52
Brake operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-54
Limitation of the system . . . . . . . . . . . . . . . . . . . . . 5-56
Recognizing pedestrians. . . . . . . . . . . . . . . . . . . . . . 5-59
Sensor to detect the distance from the vehicle in front (front radar) . . . . . . . . . . . . . . . . . . . . . . . . 5-54
System malfunction . . . . . . . . . . . . . . . . . . . . . . . . . 5-55
System setting and activation. . . . . . . . . . . . . . . . . . 5-50
Audio system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-174 Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-174
AUX, USB and iPod
®port . . . . . . . . . . . . . . . . . . 4-176
How vehicle audio works. . . . . . . . . . . . . . . . . . . . 4-177
Steering wheel remote controller . . . . . . . . . . . . . . 4-175
Using iPod
®device . . . . . . . . . . . . . . . . . . . . . . . . 4-182
Using the USB device . . . . . . . . . . . . . . . . . . . . . . 4-181
Automatic climate control system . . . . . . . . . . . . . . . 4-141 3rd row air conditioning. . . . . . . . . . . . . . . . . . . . . 4-150
Automatic heating and air conditioning. . . . . . . . . 4-143
Checking the amount of air conditionerrefrigerant and compressor lubricant . . . . . . . . . . 4-154
Climate control air filter. . . . . . . . . . . . . . . . . . . . . 4-153
Manual heating and air conditioning . . . . . . . . . . . 4-144
A
