Page 17 of 84
14
You can access the radio player either by pressing the 003500240027002C0032 key or by select-
ing the Radio menu option from All Menus on the Home screen. Select the
SiriusXM™ tab from the radio player.
SiriusXM™ Mode Display Controls
i Information
•
If you press the 003500240027002C0032 key when the power is off, the power will turn on and a radio
broadcast will be tuned from the current mode.
• If you are in the SiriusXM™ mode, select the SiriusXM™ radio widget from the Home
screen to access the r adio pla
yer.
• When the power is off, pressing the
003500240027002C0032 key will turn the power on and play a
SiriusXM™ Radio broadcast.
Features Description
Mode Display• Displays the current operating mode
• If you tap on FM, AM, or SiriusXM in the Mode Display, the
corresponding mode will be selected.
Preset • Shows saved presets for user selection.
• After selecting frequency, press and hold the preset button
for more than 0.8 seconds. A ‘beep’ will sound and the fre-
quency is saved to the selected preset button
A total of 18 frequencies for SiriusXM™ modes can be saved.
Channel Logo
Displays the current channel logo.
Channel InfoDisplays the current channel number and name.
Contents InfoDisplays the artist, title and other information about the current
playing song.
Category Info
Displays the current playing category.
0036004C0055004C00580056003B00300430
, @ + ' 1 ) & 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E & 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 18 of 84
15
FeaturesDescription
Scan
Plays all receivable channels for 10 seconds each.
Direct Tune Used to search for channels by entering channel numbers.
CategoryIf you press Category, when search channels through SEEK,
Tune and Scan, search it in the current category.
Category
Selection
Buttons Used to select the previous/next category.
Weak Signal
Displays the weak radio reception.
Play LivePlays live broadcast mode.
Skip BackwardRepeats the previously broadcasted program.
• Holding for less than 0.8 seconds: Moves to the previous
segment
• Holding for more than 0.8 seconds: Moves to the previous 5 seconds
Play/Pause Pauses/plays the current broadcasting program.
Skip ForwardMoves to the next segment.
ListDisplays SiriusXM™ Radio Categories/Channel Lists
Menu• What is on My Presets?
The program schedule saved in my preset. (For more details,
see Section 3.8 Viewing Menu.)
• Featured Favorites
Theme channels recommended by SiriusXM™. (For more
details, see Section 3.8 Viewing Menu.)
• Preset Scan
Plays preset frequencies for 5 seconds each.
SoundHound
Runs the SoundHound feature.
For more details regarding this feature, refer to the
SoundHound information in the Info section.
, @ + ' 1 ) & 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
& 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 19 of 84
16
FeaturesDescription
SEEK/TRACK• When pressed quickly (less than 0.8 seconds),
Plays the previous/next channel
• When pressed and held down (more than 0.8 seconds),
Continuously changes the channel until the key is released and
plays the current channel
TUNE
Changes the channel
0036004C0055004C00580056003B00300430
, @ + ' 1 ) & 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E & 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 20 of 84
17
003800360025
USB Music
FeaturesDescription
Mode
Displays the current operating mode
File IndexShows the current file/total files within the USB
Repeat/
Shuffle/Scan From Repeat/Shuffle/Scan, displays the currently operating
function
Play Time
Displays the current play time/total play time
Song InfoDisplays the artist/title/album info
ListMoves to the list screen
Previous File• If button is pressed (less than 0.8 seconds): Moves to the
previous file or play the current file from the beginning
(Depends on the play time)
- If play time is less than 3 seconds, moves to previous file
- If play time is more than 3 seconds, play the current file
from the beginning
• If button is pressed (over than 0.8 seconds) it rewinds the track
Play/Pause Plays/pauses the current file
Next File• If button is pressed (less than 0.8 seconds): Moves to the
next file.
• If button is pressed (over than 0.8 seconds): It fast-forwards the track.
Repeat Repeats the current file
• Select the song in the file tab on the list screen: Select the
003500480053004800440057 button to switch between repeating one song, repeat-
ing folder, and turning repeat off
• Select the song in the other tabs on the list screen: Select the
003500480053004800440057 button to switch between repeating one song and
turning repeat off
Back Button Converts to basic mode screen
, @ + ' 1 ) & 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E & 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 21 of 84
18
003800360025
FeaturesDescription
ShufflePlays files in random order
• Select the song in the file tab on the list screen: Select the
0036004B005800490049004F0048 button to switch between Shuffle Folder, Shuffle All,
and turning shuffle off
• Select the song in the other tabs on the list screen: Select the
0036004B005800490049004F0048 button to switch between Shuffle Category and turn-
ing shuffle off
Scan Scans the beginning parts of USB files (approx. 10 seconds per file)
• Select the song in the file tab on the list screen: Select the
0036004600440051 button to switch between Scan Folder, Scan All, and
turning scan off
• Select the song in the other tabs on the list screen: Select the
0036004600440051 button to switch between Scan category and turning
scan off
Menu • Save to My Music: You can save the current track to My
Music. You can play saved track from My Music without USB.
Access to My Music in the Media mode.
• Hide Current File: a selected file can be deleted. Deleted file can be found in the “Hidden_” folder.
This function is only supported when USB format is compati-
ble with FAT16 or FAT32.
SoundHound Runs the SoundHound feature.
For more details regarding this feature, refer to the SoundHound
information in the Info section.
TUNE
Turn the
0037003800310028
knob to search a desired track. If the desired
track is displayed, press the
0037003800310028
knob to play the track.
, @ + ' 1 ) & 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E & 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 22 of 84
19
USB Image
FeaturesDescription
Mode
Displays the current operating mode
Folder/File
Name Displays folder name where image is located
File Index
Shows the current file/total files within the USB
Slideshow Images as slideshow in 5, 10, 20, 30 second intervals
Rotate Rotate image in clockwise direction
InfoShows the file name, resolution and file type of current image
Adjust Image
Size Enlarge/reduce (zoom-in/zoom-out) image size
List
Moves to the list screen
Previous/
Next Image Swipe image left or right to see previous/next image
, @ + ' 1 ) & 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
& 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 23 of 84
20
004C0033005200470071
iPod®
FeaturesDescription
Mode
Displays the current operating mode
Song IndexShows the current song/total songs
Repeat/ShuffleFrom Repeat/Shuffle, displays the currently operating function
Play Time Displays the current play time/total play time
Song InfoDisplays the artist/title/album info
ListMoves to the list screen
Previous File• If button is pressed (less than 0.8 seconds): Moves to the
previous file or play the current file from the beginning
(Depends on the play time)
- If play time is less than 3 seconds, moves to previous file
- If play time is more than 3 seconds, play the current file
from the beginning
• If button is pressed (over than 0.8 seconds) it rewinds the track
Play/Pause Plays/pauses the current file
Next File• If button is pressed (less than 0.8 seconds): Moves to the
next file.
• If button is pressed (over than 0.8 seconds): It fast-forwards the track.
Repeat Repeats the current file
Select the 003500480053004800440057 button to switch between repeating 1 track,
and turning repeat off
Shuffle Plays files in random order
When selecting 0036004B005800490049004F0048 button, it changes to shuffle category
044F deactivate shuffle then repeat
• Shuffle Category: Shuffle song in the current category
Back Button Move to home/previous mode screen
, @ + ' 1 ) & 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E & 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1

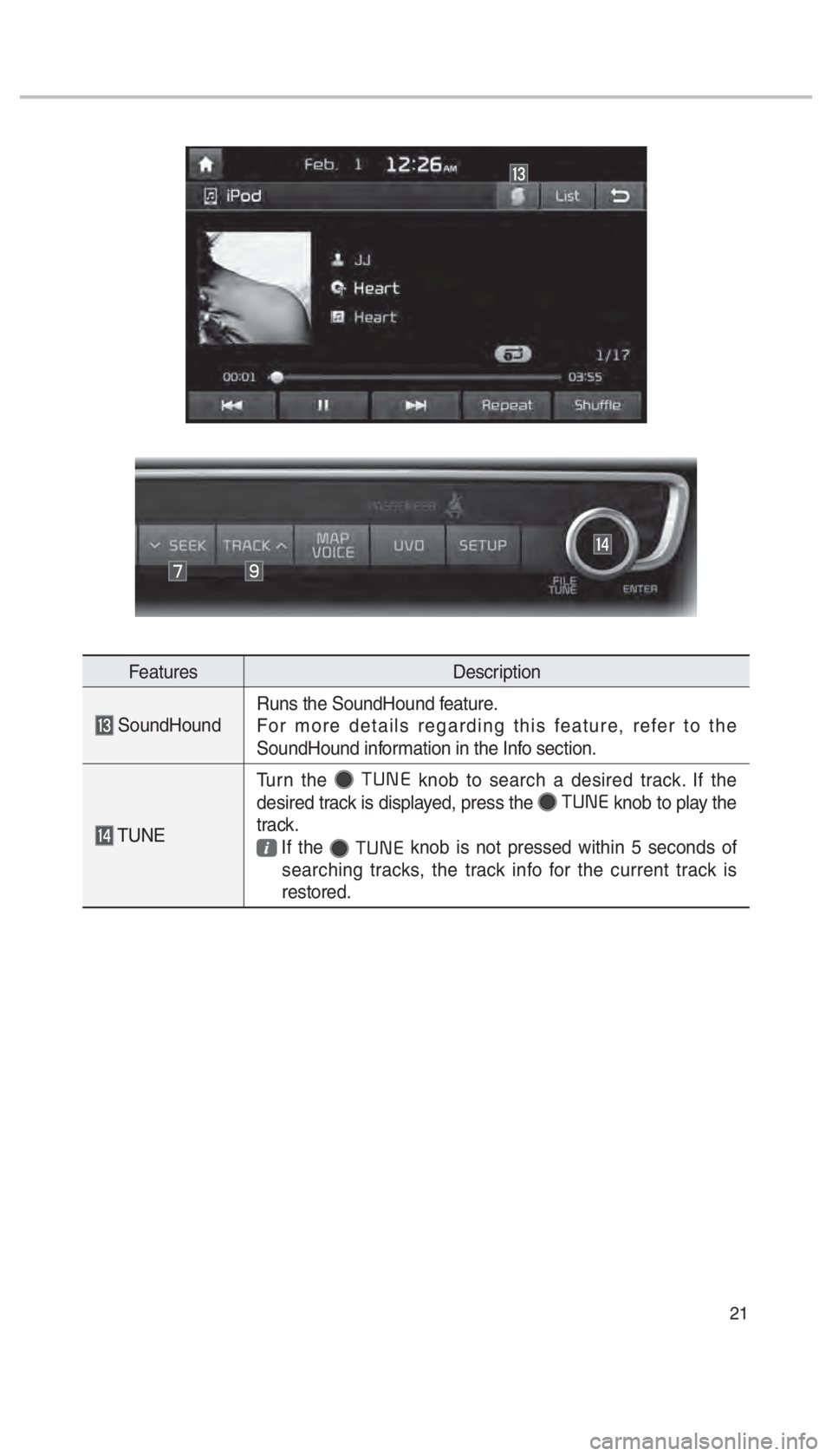

Page 24 of 84
21
FeaturesDescription
SoundHoundRuns the SoundHound feature.
For more details regarding this feature, refer to the
SoundHound information in the Info section.
TUNETurn the
0037003800310028
knob to search a desired track. If the
desired track is displayed, press the 0037003800310028
knob to play the
track.
If the
0037003800310028
knob is not pressed within 5 seconds of
searching tracks, the track info for the current track is
restored.
, @ + ' 1 ) & 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E & 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
